Wavtech WAV-LINK1000.5PLUS 1000W 5-Channel Amplifier with OEM Integration

The link1000.5plus is the perfect complete system amplifier. Like all W?vtech amplifiers, the link1000.5plus has built-in adaptive loading, active thermal management and can accept up to 40V of input.

WHAT MAKES THIS AMP STAND OUT FROM THE REST?

The link1000.5mini features built-in summing for up to 6-channels of input, so you won’t need to purchase an external processor in applications where a full range signal is not present. Like all W?vtech amplifiers, it is compatible with Start/Stop systems. It also features 12dB per octave crossover on the 4 main channels and W?vtech’s proprietary bassFREQ preamp with 24dB crossover and subsonic filter on the mono channel. The optional linkRC can be used to control the level of the subwoofer from the front of the vehicle.

link1000.5plus Features

1000 Watt 5-Channel Amplifier

Main Channels

75 watts x 4 @ 4 ohms

100 watts x 4 @ 2 ohms

200 watts x 2 @ 4 ohms (bridged)

Subwoofer Channel

300 watts x 1 @ 4 ohms

500 watts x 1 @ 2 ohms

Small Footprint Only 11.9”x5.5”x1.65”

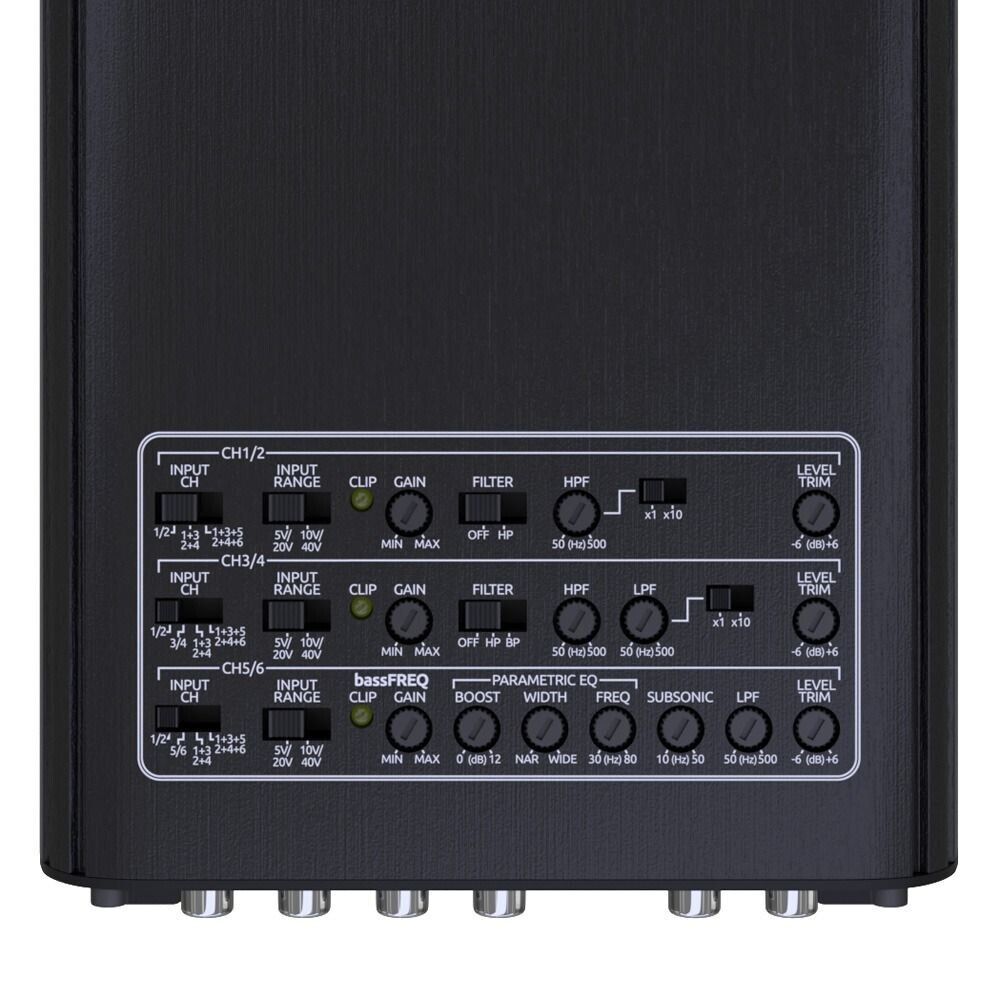

Variable HP Crossover (-12dB/oct) with 1x/10x CH1/2

Variable HP/BP/LP Crossover (-12dB/oct) CH3/4

Variable Low-Pass Crossover (-24dB/oct) CH5

Variable Subsonic Filter (-24dB/oct) CH5

Adjustable Parametric EQ CH5

Remote Level Control (RLC) w/Optional linkRC

Built-In Summing w/Level Trim Adjsutment

Start/Stop Sytem Compatiable

Differential Balanced Inputs

Variable Gain Adjustment w/Clip LED

Auto Turn-On via DC-Offset or Audio Signal Detect

Adaptive OEM Load Technology

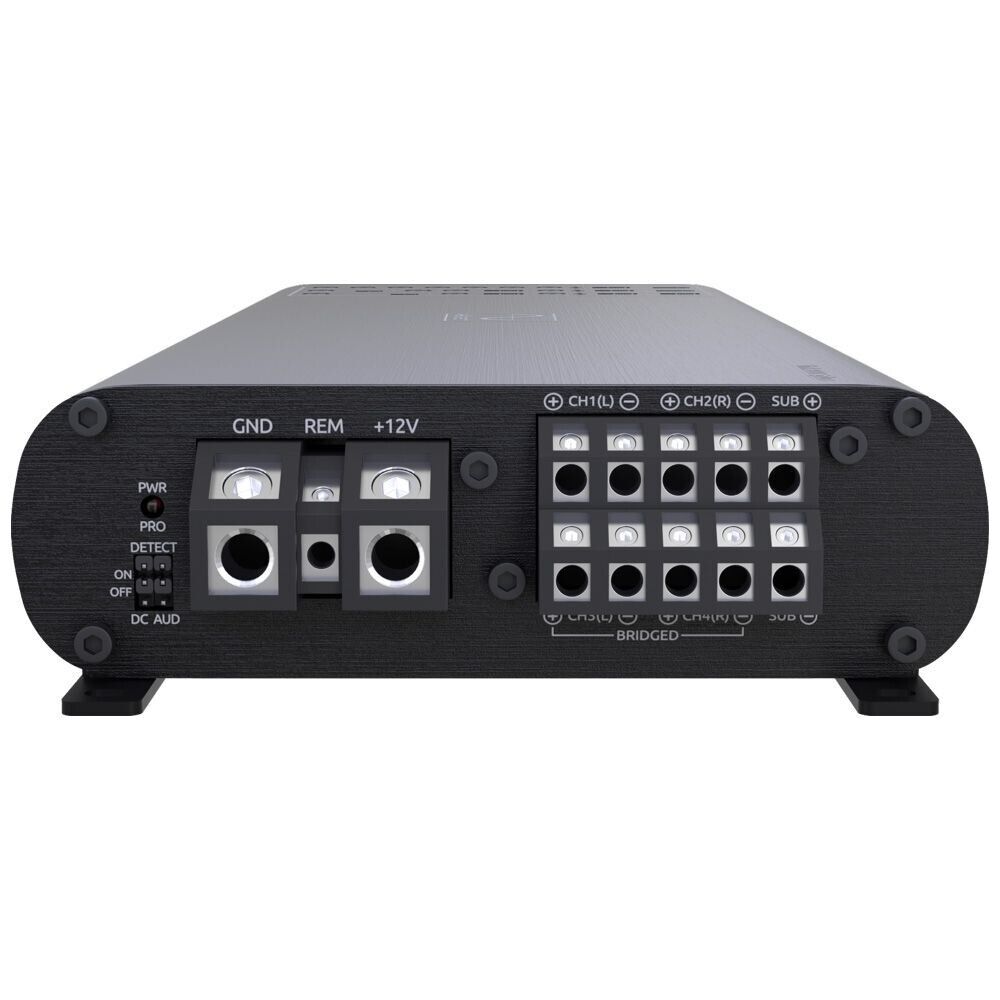

Locking Detachable Hi-Level Speaker Terminals

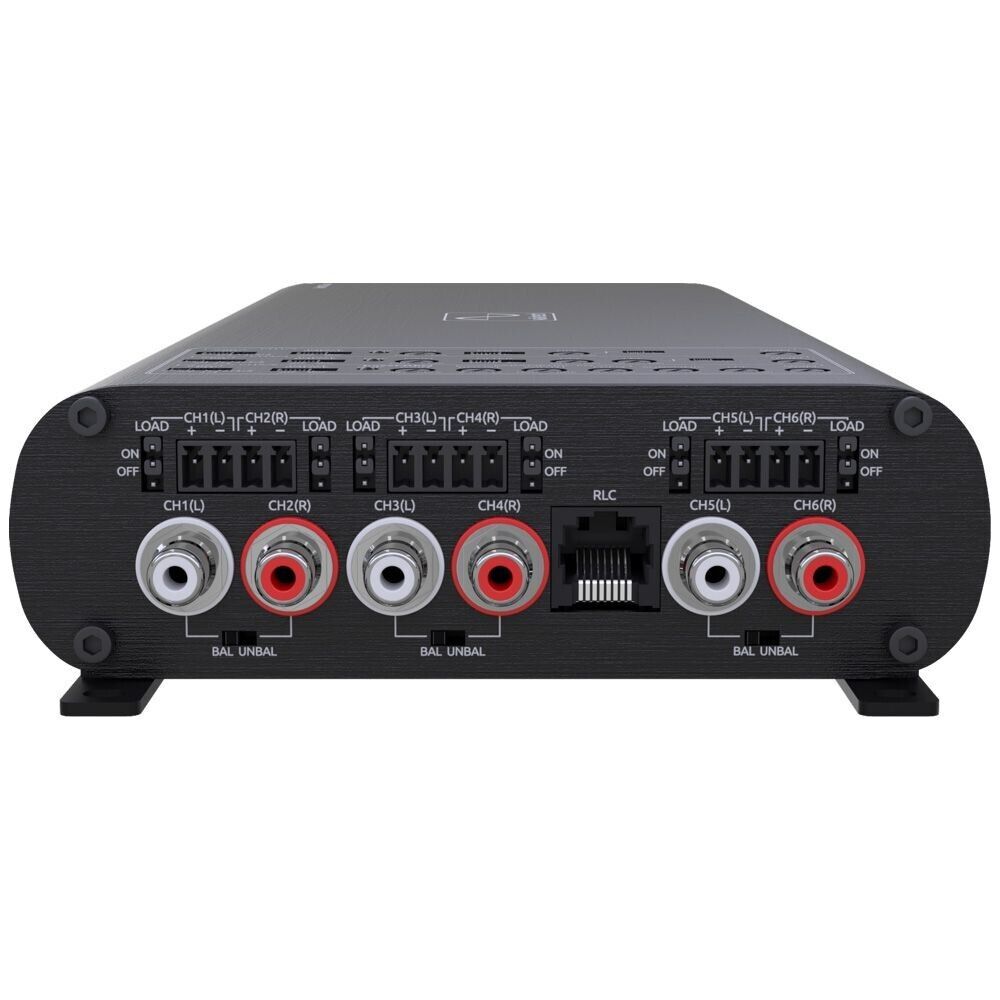

Professional Grade Panel Mount RCA’s

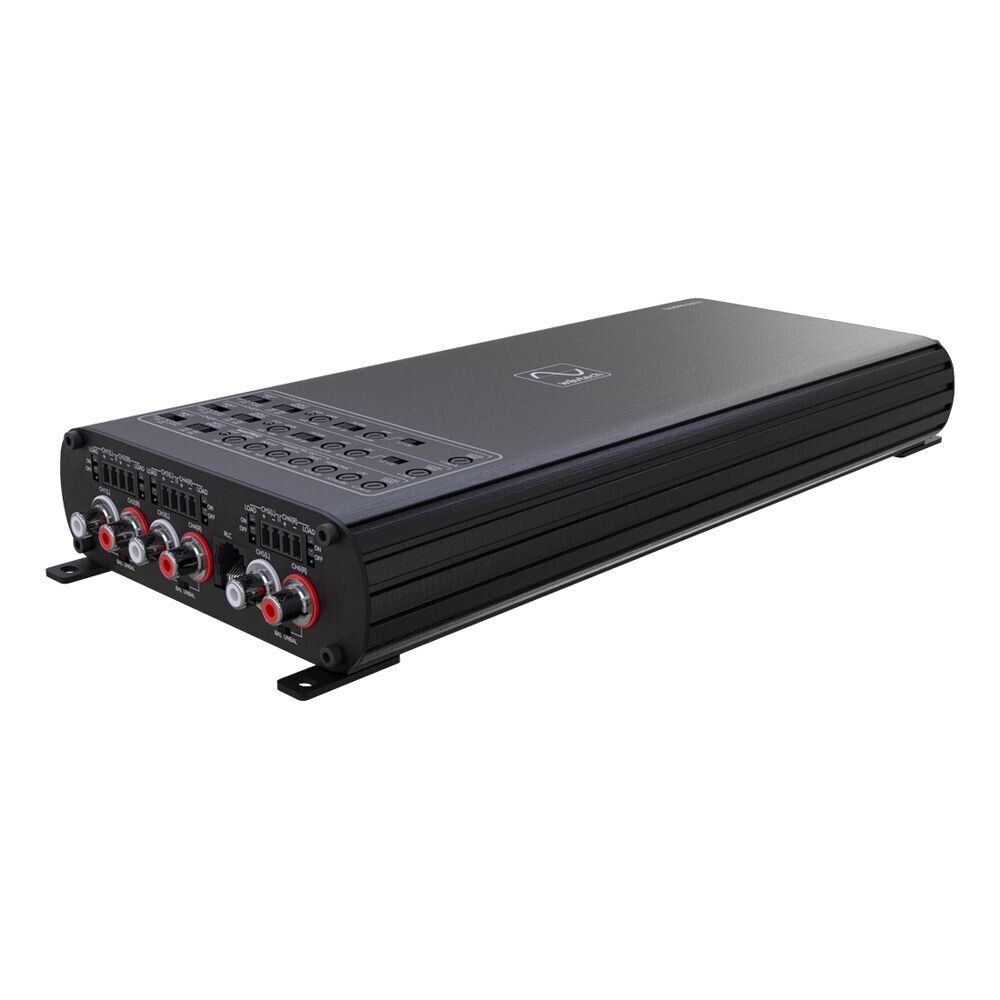

Compact Aluminum Chassis w/Detachable Mounting tabs
