PCD Adaptors Fiat 4x98 to 5x120 to Fit BMW wheels to your Fiat 2 PAIRS

 BRAND NEW

CUSTOM MADE PCD ADAPTORS

Designed and manufactured in the UK

These adapters are CUSTOM MADE and they are NOT returnable!

Please make sure you purchase correctly and give the details correctly

2 PAIRS - so you can do all 4 wheels !

4x98 to 5x120

Width is 20mm per spacer

Designed to fit vehicles :

Alfa and Fiat vehicles with 4x98 and can be made with either M12x1.25 or M12x1.5

Designed to allow you to fit wheels that have come from :

BMW (such as E36 / E46) with 5x120 PCD - 72.5 centre bore and M12x1.5 bolts

(We can also have this adaptor machined if you are wanting it for the larger 74 centre bore found on E39 and X5 07on)

How they work :

This adaptor system is a 2 piece UK made adaptor that uses a heat treated steel offset plug that makes these PCD conversions possible.

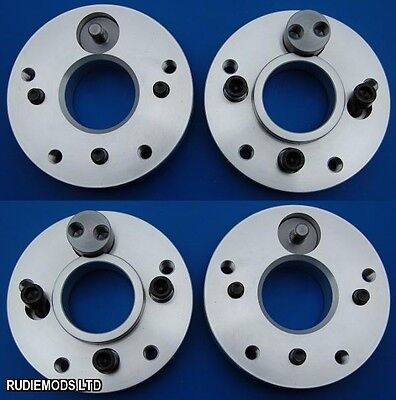

These adaptors work by threading in the offset plug (as seen in pics 3 and 4) tight and then rotating the plug back slightly until where the outer PCD is lined up

Bolt the adapter to the vehicle hub with the 3 supplied bolts, and then mounting the wheel to the adapter.

The adaptors are available in widths starting from 20mm up to 40mm

The adaptors include the two special steel inserts plus 6 allen key headed bolts to bolt the adaptors to the wheels

Please note that the car side can only be made to take an M12x1.25 or M12x1.5 bolt, and the outer side is normally made to take a M12x1.5 bolt also (not supplied)

PLEASE NOTE THAT THESE ADAPTORS MUST BE FITTED USING HAND TOOLS

THEY MUST NOT BE USED WITH ANY AIR TOOLS / ELECTRONICS TOOLS

If you are using wheels from vehicles like some of the newer BMW / Land Rover then these would have used M14x1.5 bolts so you will have to source some M12x1.5 bolts to fit your wheels.

FOR MORE INFORMATION OR TO ORDER DIFFERENT WIDTHS

PLEASE CALL US ON
