PCD Adaptors 4x100 to 5x108 Ford Jag Volvo 1 PAIR

 BRAND NEW

CUSTOM MADE PCD ADAPTORS

Designed and manufactured in the UK

1 PAIR - so you can do all 4 wheels !

4x100 to 5x108

Width is 20mm per spacer

Designed to fit vehicles :

VW / Seat / Skoda / Vauxhall / Renault / BMW Mini Mk1 (01-06) / E30 3 series BMW

 with 4x100 PCD -  and M12x1.5 bolts

Designed to allow you to fit wheels that have come from :

Ford Focus Mk2, Mondeo Mk2/3, SMax etc

Jaguar S Type, X Type, XF 08 on, XK 06 on

Range Rover Freelander 2 / Evoque

Volvo

Plus some American vehicles use 5x108

 with 5x108 PCD -  and M12x1.5 bolts

How they work :

This adaptor system is a 2 piece UK made adaptor that uses a heat treated steel offset plug that makes these PCD conversions possible.

This system is available for any 4x100 PCD with M12x1.5 tapped holes

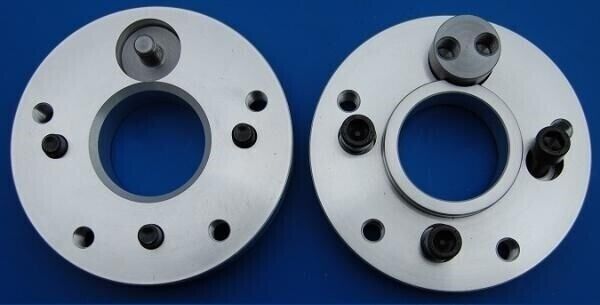

These adaptors work by threading in the offset plug (as seen in pics 3 and 4) tight and then rotating the plug back slightly until where the outer PCD is lined up

Bolt the adapter to the vehicle hub with the 3 supplied bolts, and then mounting the wheel to the adapter.

The adaptors are available in widths starting from 20mm up to 40mm

The adaptors include the two special steel inserts plus 6 allen key headed bolts to bolt the adaptors to the wheels

Please note that the car side can only be made to take an M12x1.5 bolt, and the outer side is normally made to take a M12x1.5 bolt also (not supplied)

PLEASE NOTE THAT THESE ADAPTORS MUST BE FITTED USING HAND TOOLS

THEY MUST NOT BE USED WITH ANY AIR TOOLS / ELECTRONICS TOOLS

If you are using wheels from vehicles like some of the newer BMW / Land Rover then these would have used M14x1.5 bolts so you will have to source some M12x1.5 bolts to fit your wheels.
