NEW EDGE SPL PACKAGE - 6600W Monoblock Amplifier + TWO 1500W RMS SPL 12" Subs

Edge EDS3000.1FD-E3 6600W Amplifier

The Street series amplifiers are new to the EDGE range, these amps feature Class D topology but use a full bridge method of power delivery.

This is more efficient method of converting DC power from your battery to AC output for your speakers. Full bridge technoology allows us to generate large power in a tiny footprint.

The custom tooled heatsink was designed with over engineered fins for excellent heat dissertation ensuring the amp works well and cools correctly.

All models have built in active crossovers and bass boost and can be used to power subwoofers, midrange drivers or tweeters.

Compact and powerful, the perfect amplifier upgrade for those wanting more than the norm.

Features

Built in active crossovers

Bass boost circuit

Ultra efficient class D topology

Wideband frequency response up to 20kHz

Full bridge technology

Compact footprint

Specifications

Model: EDS3000.1FD-E3

Configuration: Monoblock

RMS @ 4 Ohms Mono: 1 x 1100 watts

RMS @ 2 Ohms Mono: 1 x 2050 watts

RMS @ 1 Ohms Mono: 1 x 3300 watts

Maximum Power: 6600 watts

Frequency Response: 15Hz - 20kHz

Crossover Type: LP / HP

Crossover Range: 15Hz - 20kHz

Recommended Fuse: 250A external fuse

Topology: Class D

Dimensions (H x W X D): 63mm x 184mm x 232mm (2.5" x 7.2" x 9.1")

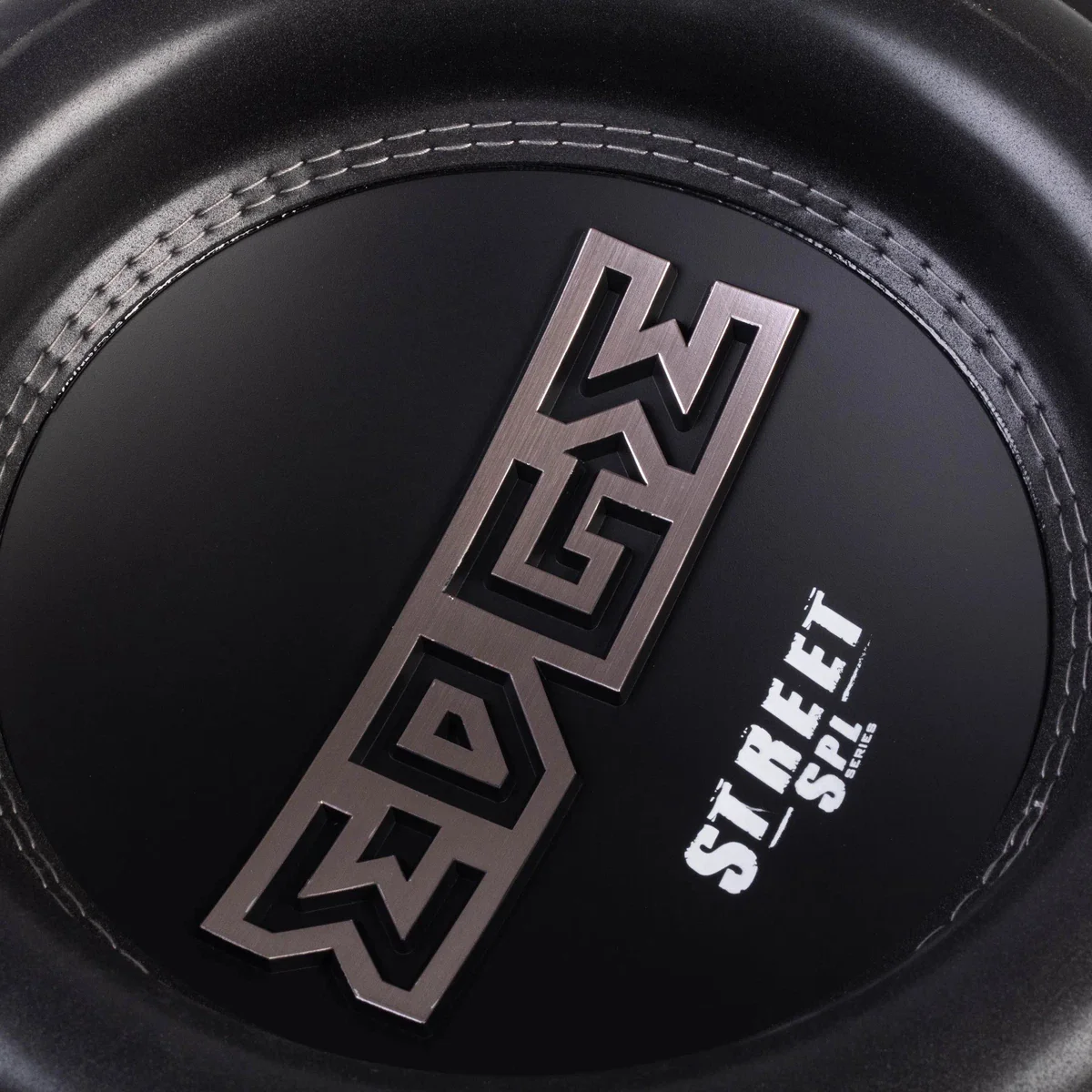

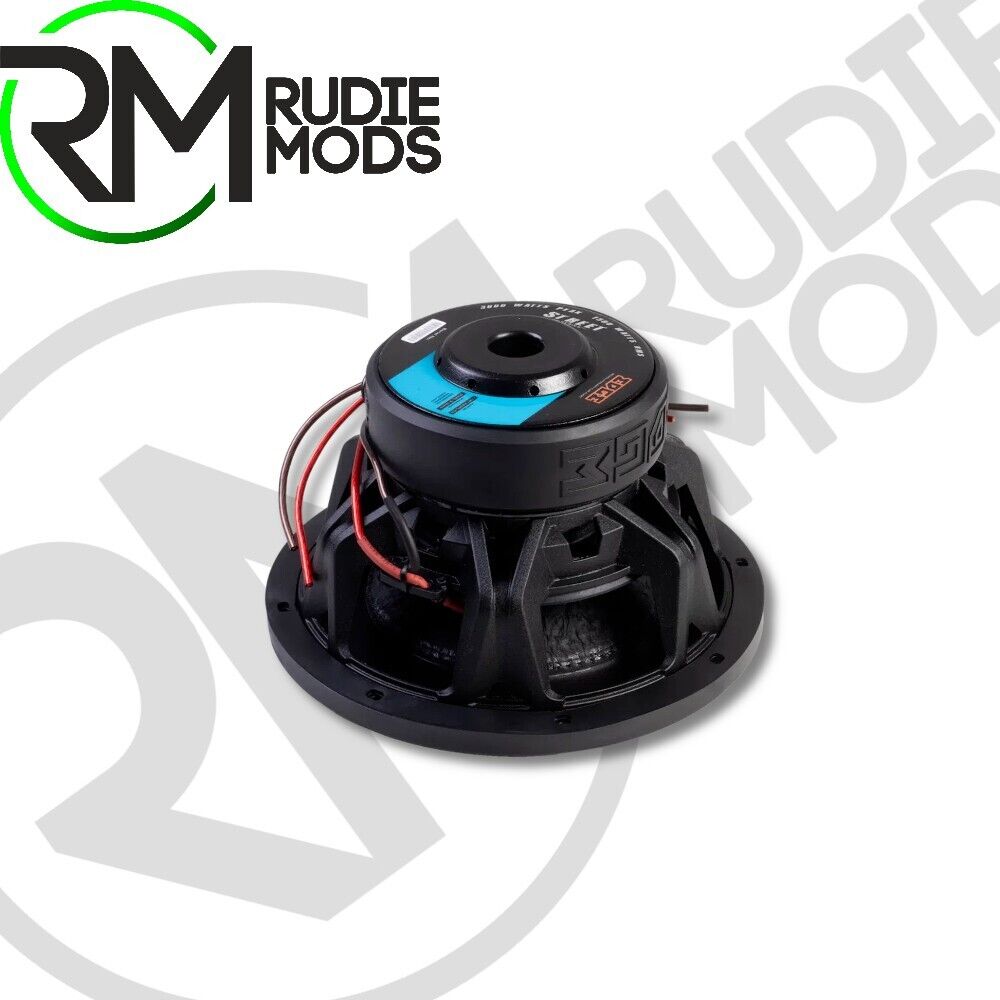

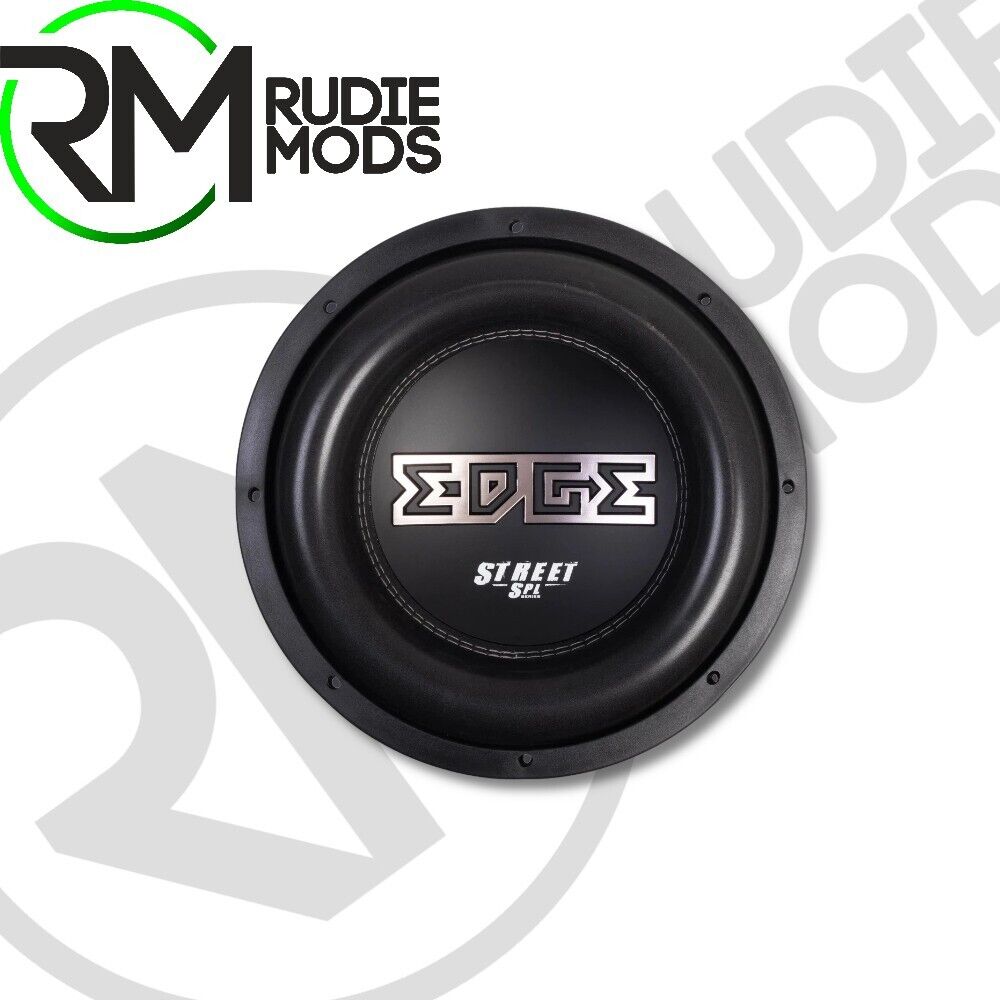

NEW EDGE CAR AUDIO 12" 1500W RMS SPL SUBWOOFER EDP122SPL-E3

The Edge Car Audio EDP122SPL-E3 is our best-selling 12" (30cm) subwoofer in a refreshed version. Same reliable performance and sound pressure level. Only the design of the cone and dust cap has been updated, otherwise the parameters are identical. Super robust subwoofer for really high sound pressure levels. Thrives in a 70 liter box with a low tuning around 35 Hz.

12" (30cm) subwoofer

RMS power: 1500W

SPL power: 4500 W

Minimum input (RMS): 750 W

Ultra-wide roll foam surround

12" (323mm) subwoofer

75mm voice coil

132oz double stacked magnet

Thiel Small Parameters

SPL (sensitivity), dB 83.7

FS (resonant frequency), Hz 22

Qts (total quality factor) 0.53

Vas (equivalent volume), l 17.2

BL (electromechanical coupling coefficient), T m 19.198

Dimensions

Overall diameter 322 mm

Speaker cut-out 283 mm

Installation depth 198 mm

Magnet diameter 226 mm

Weight: 12.50 kg

Recommended enclosure

70 liters net volume

140cm² port cross-section with 50cm length

Tuning: 35Hz
