MOSCONI GLADEN ONE 4|8 DSP - 4CH+8CHANNEL HIGH QUALITY DSP CAR AUDIO AMPLIFIER

4 CHANNEL HIGH QUALITY DSP AMPLIFIER

MOSCONI ONE 4|8 DSP

4 channel DSP amplifier

Class AB technology

Up to 4 x 175 Watts @ 2 Ohm

New Design

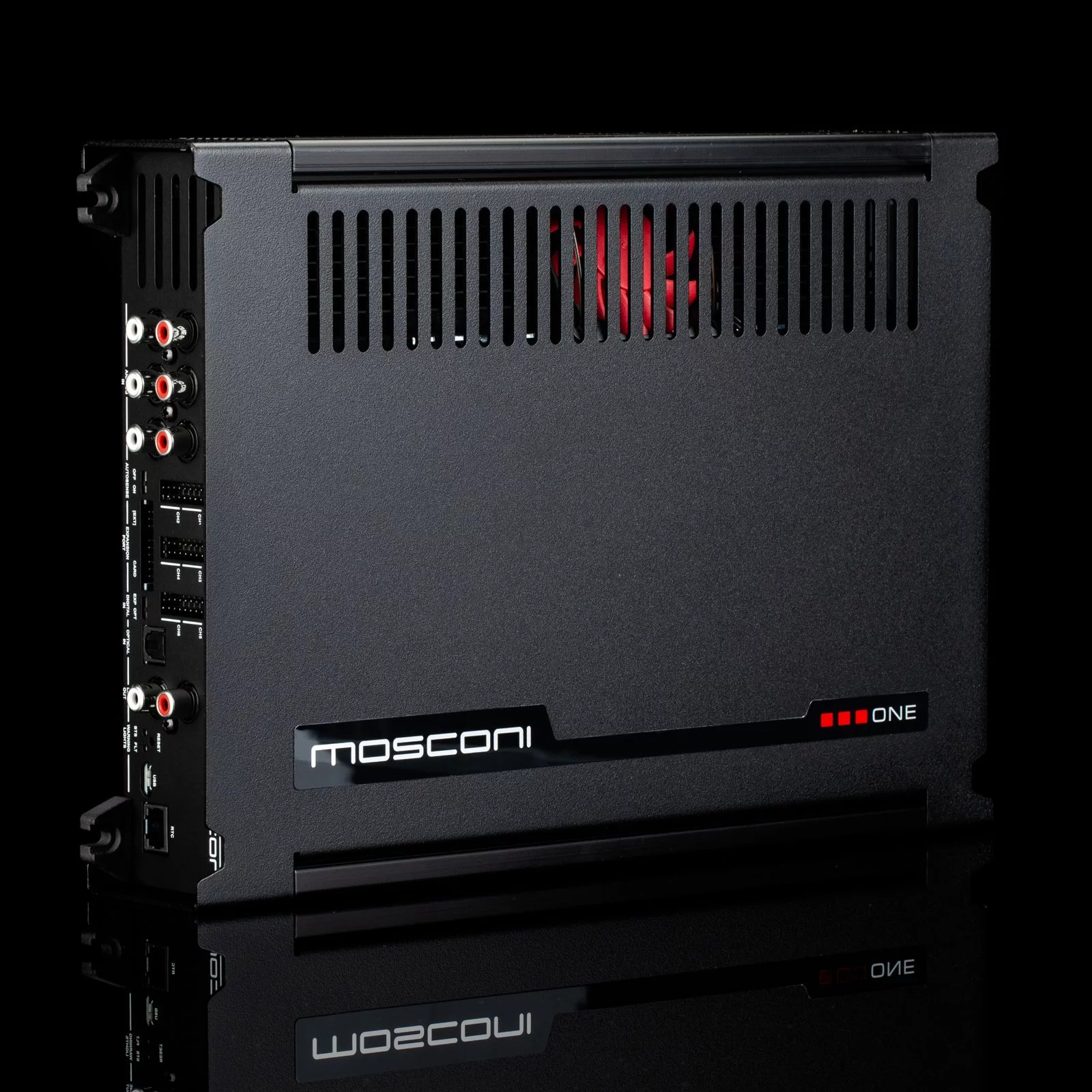

OVERVIEW MOSCONI ONE 4|8 DSP

The new MOSCONI ONE 4|8 DSP is a universal 4 channel DSP amplifier in Class AB technology. It is the ideal amplifier for speaker systems in combination with efficient subwoofers.

In addition to the revised optics, this 4-channel amplifier has a 8-channel DSP with the latest software. Thus, the new ONE - Line amplifier series is now also compatible with our GUI 3.xx software and offers you full functionality.

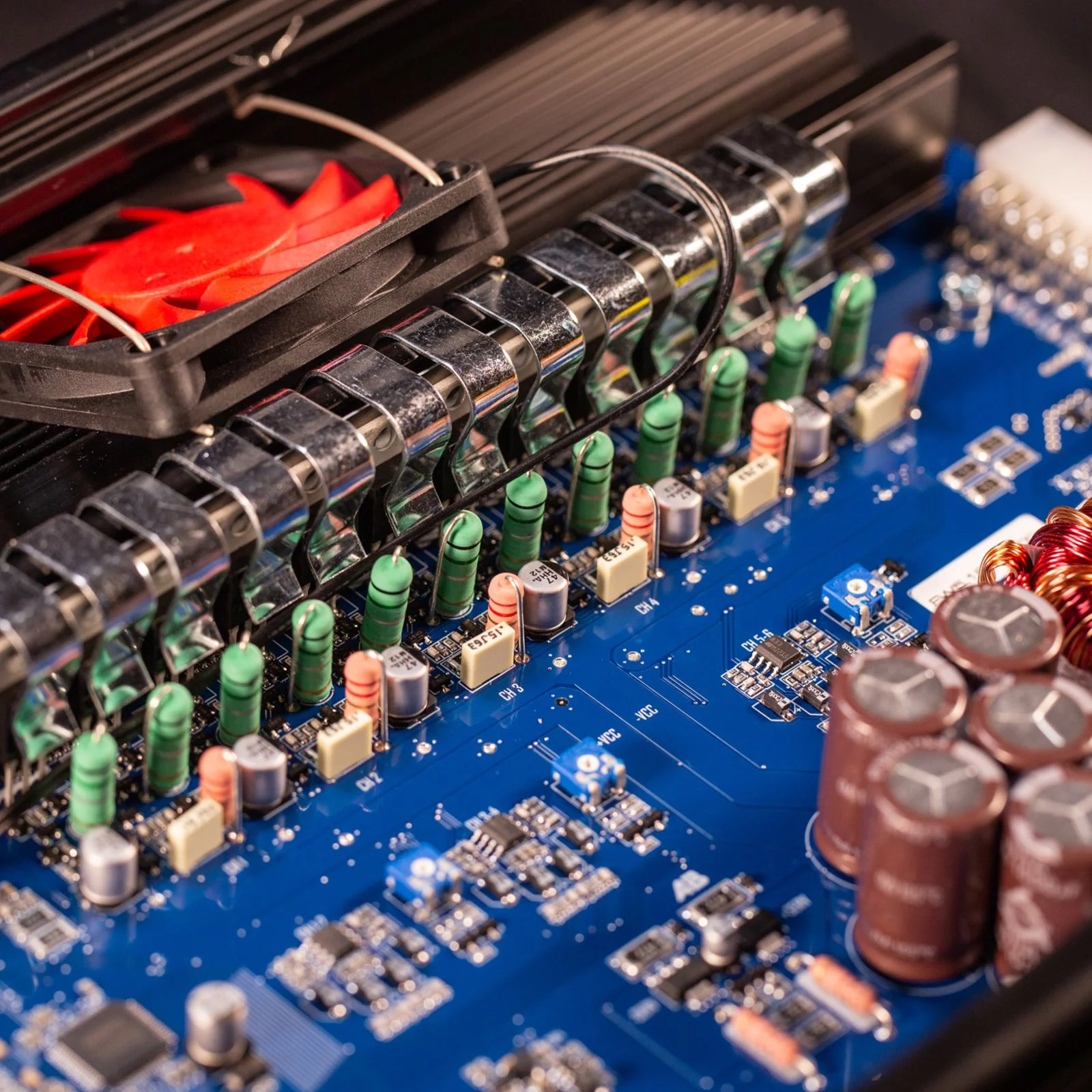

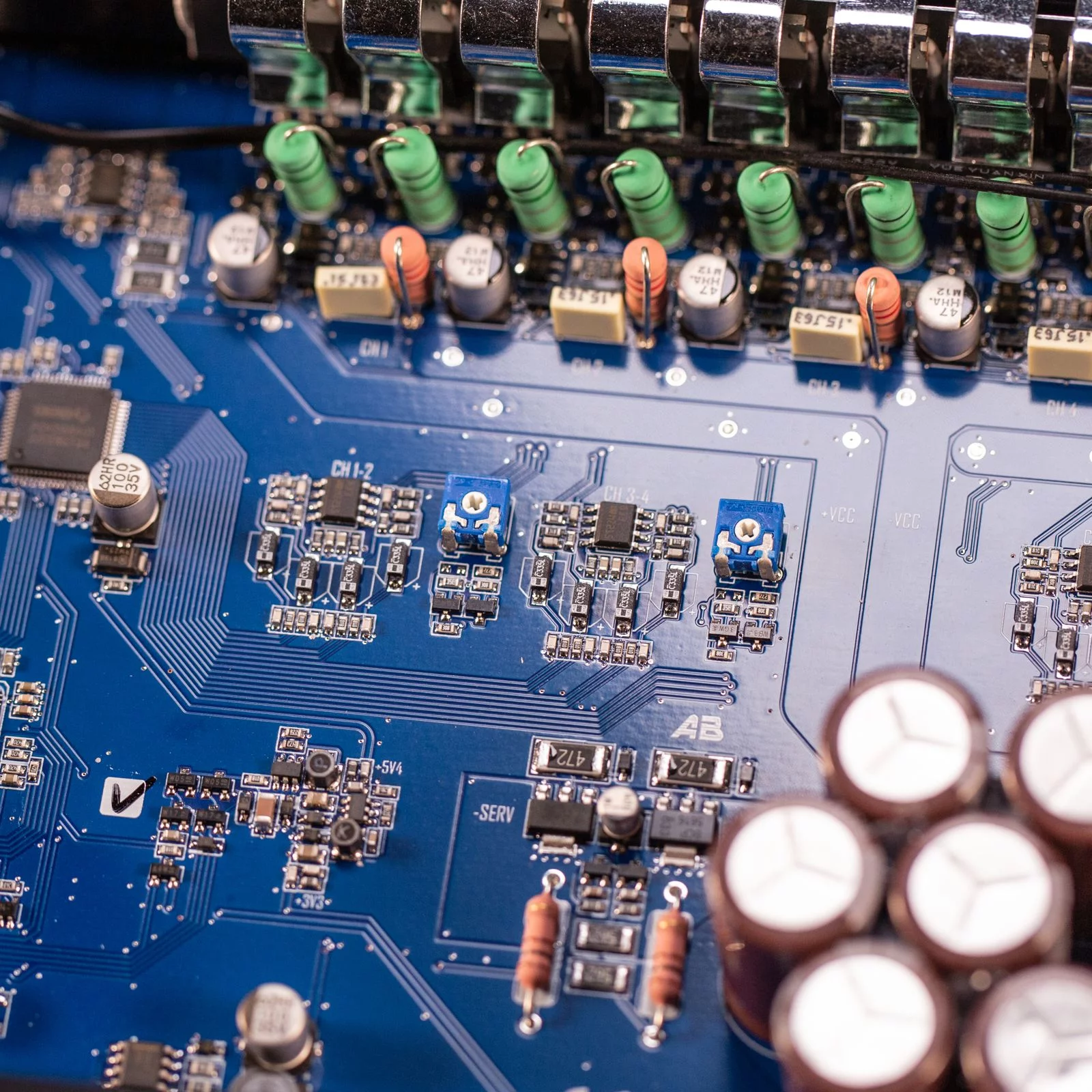

The output side power amp section has remained analog to spoil the listener with a warm and powerful sound image.

Of course, all speaker outputs are bridgeable. Here, almost limitless configurations are open to the user.

With its power of 4 x 130 watts RMS, the ONE 4|8 DSP is sufficiently equipped for large 2-way solutions as well as for complete multi-channel concepts.

For system expansion, the integrated 8-channel DSP offers two additional stereo outputs.

The MOSCONI ONE 4|8 DSP is equipped with a Molex speaker connection. This not only ensures clean cabling, but is also compatible with all plug&play cable sets from our SoundUp program.

4 Channel Amplifier

New design

Analog amplifier technology

8 channel DSP

Loudspeaker outputs bridgeable

4 x 130 watts @ 4 ohms

6 x 175 watts @ 2 ohms

2 x 350 Watt @ 4 Ohm (bridged)

Auto On (High Level)

TECHNICAL DATA MOSCONI ONE 4|8 DSP

OUTPUT POWER:

Output power @ 4 Ohm:

4 x 130 Watt

Output power @ 2 Ohm:

4 x 175 Watt

Output power @ 4 Ohm:

2 x 130 Watt + 1 x 350 Watt BTL

Output power @ 4 Ohm:

2 x 350 Watt

SPECIFICATIONS:

Input sensitivity:

0.35 V - 16 V

Fuse:

2 x 40 A

Analog DSP Output:

4 x 2 Vrms

Digital input:

Optisch (Toslink)

Remote Control:

RTC (optional)

Dimensions:

290 x 210 x 55 mm
