MATCH UP W8BMW-S Ultra Flat Subwoofer Upgrade kit for BMW E84 X1 SUV 2009-2015

MATCH UP W8BMW-S Ultra Flat Subwoofer Upgrade kit for BMW's

Maximum POWER for BMW sound concepts

The ultra-flat UP W8BMW-S subwoofers are playing extremely dynamically and punchy. Especially the exceptionally rigid fiberglass cone generates maximum sound pressure without distortions.

The BMW-specific baskets and connectors allow fast and easy installation into the original mounting positions of all BMW model ranges with under-seat subwoofers.

Nevertheless these subwoofers are also perfectly qualified for universal applications. Thanks to the very low mounting depth, extremely compact sealed enclosures are no problem at all whereas the oversized 1.7" / 42.5 mm voice coil assures high power handling. With their 1 x 2 Ohms single voice coil the UP W8BMW-S are the perfect replacement for the original subwoofers of the BMW HiFi sound system. Additionally they are the perfect playmate for our MATCH Upgrade amplifier MATCH UP 7BMW and MATCH UP 7DSP.

No matter if these subwoofers are used for a bass upgrade in your BMW or as supplier of low-frequencies in universal concepts, they will definitely add loads of powerful bass for musical enjoyment.

Features

2 x 8" BMW upgrade subwoofer

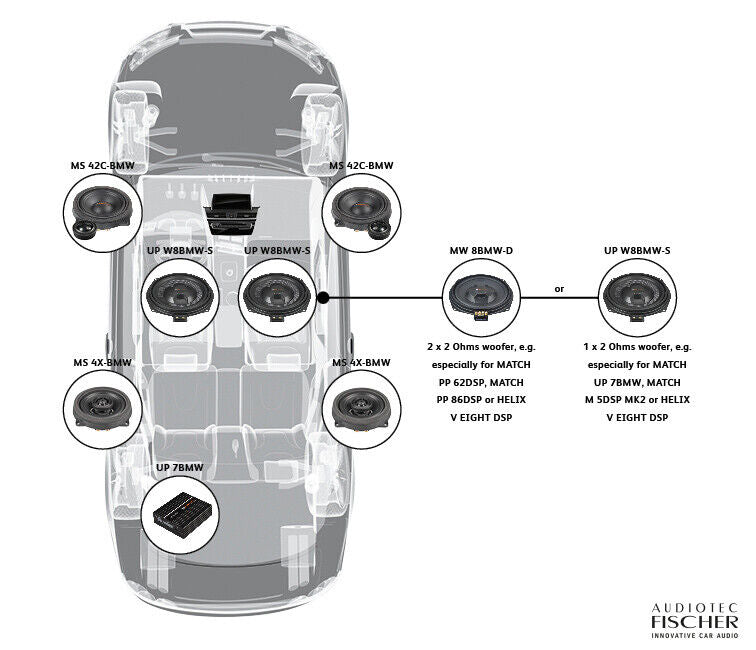

Fits perfectly into the original mounting positions under the front seats of all BMW model ranges with under-seat subwoofers

Extremely stiff fiberglass cone for maximum sound pressure

1 x 2 Ohms impedance per woofer

Oversized 42.5 mm / 1.7" voice coil for high power handling

BMW connection cables for original BMW cable harness are included in delivery

Perfectly combinable with the MATCH UPGRADE amplifiers MATCH UP 7BMW and UP 7DSP

Also ideal for universal use in ultra-flat subwoofer constructions

Technical data

Power RMS / max.P200 / 400 Watts

Impedance Z1 x 2 Ω

DC resistance Re2.0 Ω

Resonance frequency Fs49 Hz

Mechanical Q factor Qms3.80

Electrical Q factor Qes0.61

Total Q factorQts0.53

ComplianceCms210 µm/N

Equivalent air volumeVas13.9 L

Force factor B*I7.1 Tm

Efficiency 1 W / 1 mSPL90 dB

Cone area Sd214 cm²

Moving mass Mms47.4 g

Cone material Extremely stiff fiberglass cone

Mechanical resistance Rms3.97 kg/s

Voice coil diameterø42.5 mm

Voice coil winding height 12.5 mm

Max. linear excursion Xmax+/- 4.0 mm

Outer diameterø239 mm / 9.41"

Installation diameterø175 mm / 6.89"

Installation depth 40 mm / 1.57"

Recommended enclosure volumes

Sealed box

Net volume 3 L

Lower limiting frequency (-3dB) 63 Hz

DSP settings - Highpass: Butterworth; 12 dB/octave; crossover frequency 40 Hz

- Additional EQ filter: center frequency 90 Hz; Q factor 3.0; gain -4 dB

- Lowpass: Butterworth; 24 dB/octave; crossover frequency 80 - 100 Hz

Vented box For one subwooferFor two subwoofers

Net volume 12 Lor 24 L

Port diameterø60 mm / 2.36"or 80 mm / 3.15

Port area 28 cm² or 50 cm²

Port length 25 cm / 9.84" or 20 cm / 3.94"

Port tuning frequencyFb46 Hz or 46 Hz

Lower limiting frequency (-3dB) 45 Hz45 Hz

DSP settings

Highpass: Self-Define; crossover frequency 40 Hz; Q factor 1.3

Additional EQ filter: center frequency 67 Hz; Q factor 3.0; gain -3 dB

Lowpass: Butterworth; 24 dB/octave; crossover frequency 80 - 100 Hz

Contents

2 x Subwoofer MATCH UP W8BMW-S

2 x BMW connection cable

1 x Mounting material

1 x Instruction manual
