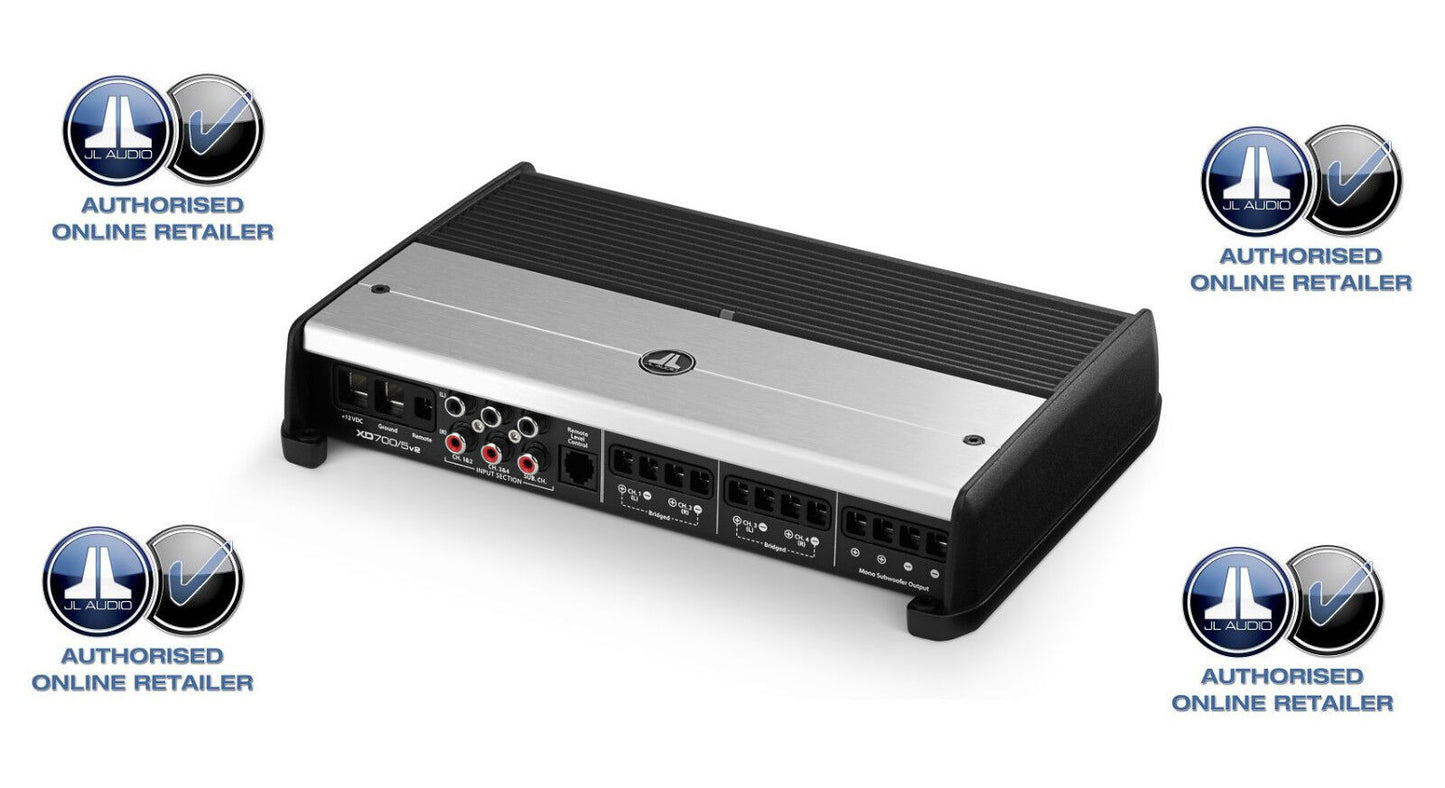

JL Audio XD700/5 5 Channel Amplifer 4x75w RMS and 1 x 300w RMS SPECIAL OFFER

AUTHORISED JL AUDIO DEALER

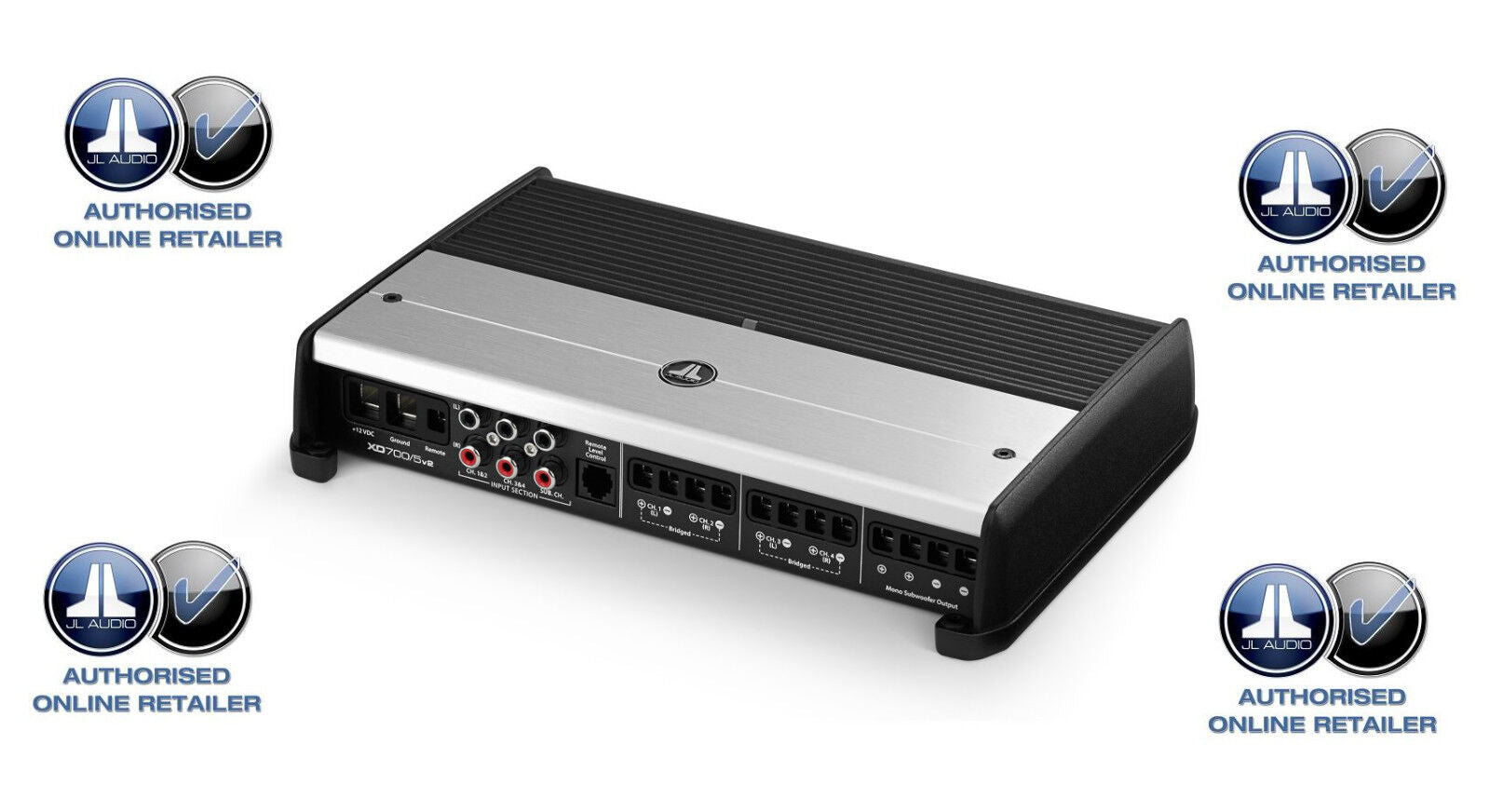

JL AUDIO XD700/5 5 channel amplifier

5-Channel Class D System Amplifier, 75 W x 4 @ 4 Ω + 300 W x 1 @ 2 Ω - 14.4V

The XD700/5 is ideal for a complete audiophile-grade, subwoofer + four satellite system, and it fits comfortably in just about any vehicle.

With this incredible little amplifier, you can drive two pairs of quality component speaker systems with plenty of clean power (75 W x 4 @ 4 Ω), while also delivering a stout 300 W of power to a subwoofer system.

The breakthrough that makes this much power possible in such a small chassis is our NexD switching design.

The XD700/5 includes a 12 dB / octave high-pass filter for one main channel pair, a 12 dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel.

All three filters offer continuously variable cutoff frequency selection from 50-500 Hz.

This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2.

An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz.

With the addition of an HD-RLC remote level control (sold separately), the amplifier's subwoofer channel level or overall level can be directly controlled from the driver's seat.

This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.

SPECIFICATION

RMS Power at 14.4v

Main Channels @ 4 Ω 75 W RMS x 4Main Channels @ 2 Ω 100 W RMS x 4Main Channels - Bridged @ 4Ω 200 W RMS x 2Subwoofer Channel @ 4 Ω 180 W RMS x 1Subwoofer Channel @ 3 Ω 240 W RMS x 1Subwoofer Channel @ 2 Ω 300 W RMS x 1Subwoofer Channel @ 1.5 Ω N/A

Frequency Response (Main Channels) 12 Hz - 22 kHz (+0, -1dB)Frequency Response (Subwoofer Channel) 10 Hz - 1 kHz (+0, -1dB)S/N Ratio, referred to highest rated power (Main Channels) >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)Damping Factor @ 4 Ω >150 / 50 HzDamping Factor @ 2 Ω >75 / 50 HzTHD+N @ Rated Power (Main Channels) <1% @ 2 Ω per Ch.THD+N @ Rated Power (Subwoofer Channels) <1% @ 2 Ω per Ch.Input Voltage Range @ RCA Inputs 100 mV - 4 V RMSMin Copper Power / Ground Wire Gauge 4 AWG wireFuse Rating 60 A (AFS, AGU or MaxiFuse)

Filter Modes: Channels 1 & 2 (front) High-Pass onlyFilter Slope (dB/Octave): Channels 1 & 2 (front) 12 dBFilter Frequency Range: Channels 1 & 2 (front) 50-5000 HzFilter Modes: Channels 3 & 4 (rear) High-Pass or BandpassFilter Slope (dB/Octave): Channels 3 & 4 (rear) 12 dBFilter Frequency Range: Channels 3&4 50-500 HzFilter Modes: Subwoofer Channel Low-Pass onlyFilter Slope (dB/Octave): Subwoofer Channel 12 dB or 24 dBFilter Frequency Range: Subwoofer Channel 50-500 HzDetented, Calibrated Filter Freq. Potentiometers YesFilters Defeatable? YesInfrasonic Filter: Subwoofer Channel noneRemote Level Control Optional (HD-RLC)Remote Level Modes Sub Ch. or All ChannelsChannel Input Mode Switch Yes (2/4/6 ch.)Pass-Through Preamp Output NoneSource Channel Selection for PreOuts N/A

Height (H) 2.05 in / 52 mmWidth (W) 10.23 in / 260 mmDepth (D) 7.09 in / 180 mmNet Weight 6.15 lb / 2.79 kg
