JL Audio MX280/4 Car Audio 4 Channel Class D Amplifier SMALL TINY MIRCO

AUTHORISED JL AUDIO UK SIGNATURE DEALER

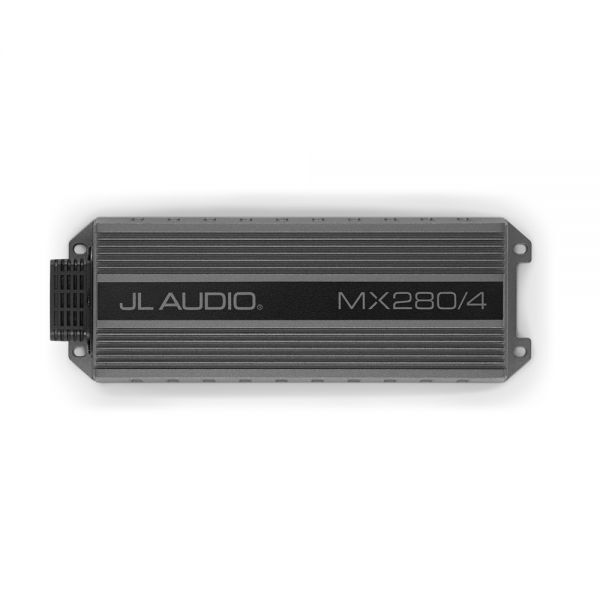

JL MX280/4

4 Channel Class D Full-Range Amplifier, 70 W x 4 @ 2 Ω / 50 W x 4 @ 4 Ω - 14.4V

Engineered specifically for powersports applications, the 4-channel MX280/4 amplifier employs our high-speed NexD switching design to deliver plenty of clean power, without straining charging systems.

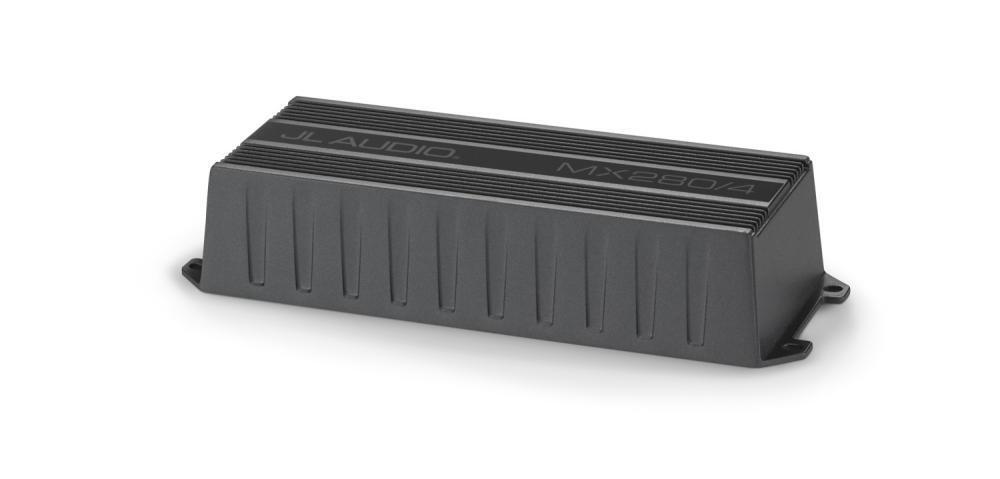

Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX6 water-resistance rating, making it perfect for motorcycles, ATV's or other utility vehicles.

Generating a solid 50W x 4 into 4 ohms (14.4V, 1% THD), the MX280/4 is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a potent 140W x 2 into 4 ohms.

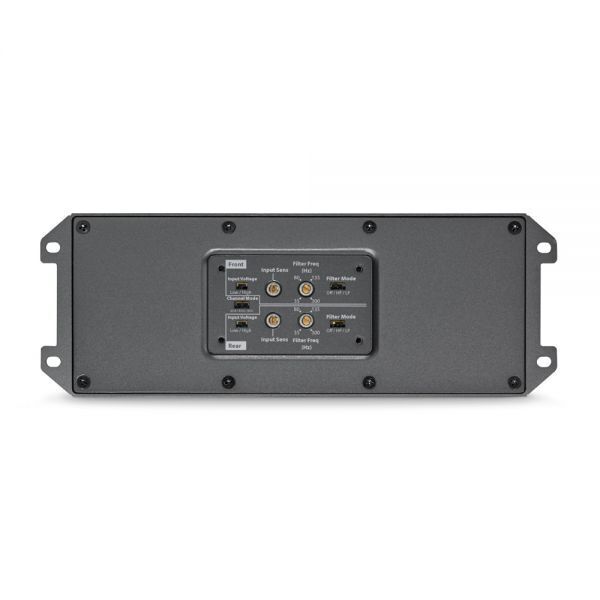

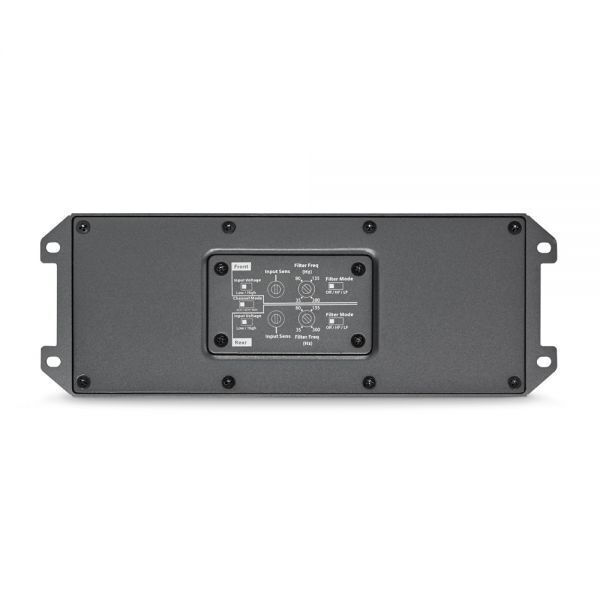

Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.

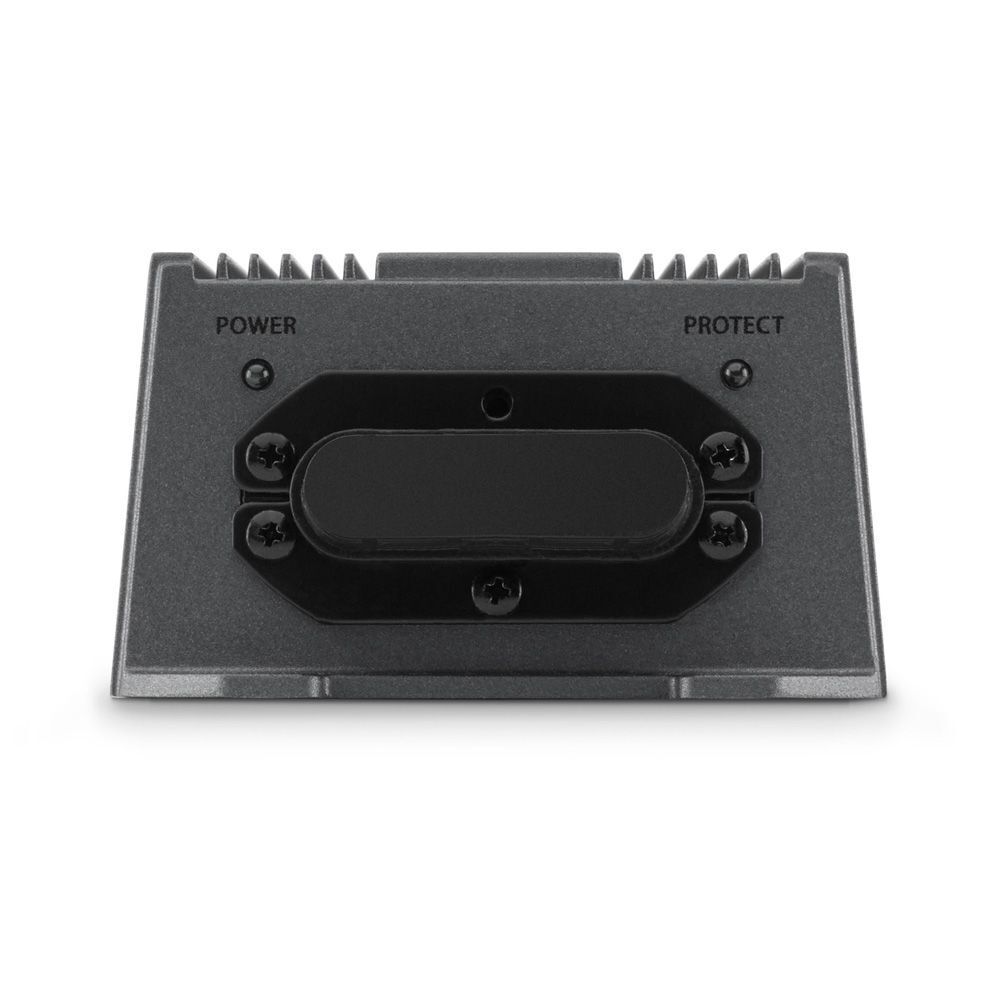

This amplifier features a black powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.

RATED POWER at 14.4v4 ohm 50 W RMS x 4 2 ohm 70 W RMS x 4 Bridged 4 ohm 140 W RMS x 2

Frequency Response 20 Hz - 20 kHz (+0, -1dB) S/N Ratio, referred to highest rated power >89.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >68 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor at 4 Ω >60 / 50 Hz Damping Factor at 2 Ω >30 / 50 Hz THD+N at Rated Power <1% @ 2 ohm per Ch. Input Voltage Range at RCA Inputs Switchable from 250 mV - 4 V RMS (Low) to 750 mV - 15 V RMS (High) Min.Copper Power / Ground Wire Gauge 8 AWG wire Fuse Rating 35 A (AFS, AGU or MaxiFuse)

Filter Mode(s) Low-Pass or High-Pass Filter Slope(s) 12 dB/octave Filter Frequency Range 35 Hz - 300 Hz Detented, Calibrated Filter Freq. Potentiometers Yes Filter Defeat Function Yes Remote Level Control No Remote Level Modes N/A Channel Input Mode Switch Yes (2/3/4 ch.) Pass-Through Preamp Output None Source Channel Selection for PreOuts N/A

Height (H) 1.77 in / 45 mm Width (W) 8.66 in / 220 mm Depth (D) 3.09 in / 78.5 mm Net Weight 3.18 lb / 1.44 kg
