JL Audio MX 500W 4 Channel Class D Full Range Amplifier MX500/4

MX 500W 4 CHANNEL CLASS D FULL RANGE AMPLIFIER

JLMX500/4

4-Channel Class D Full-Range Amplifier125W x 4 @ 2Ω - 14.4V70W x 4 @ 4Ω - 14.4V250W x 2 @ 4Ω - 14.4V

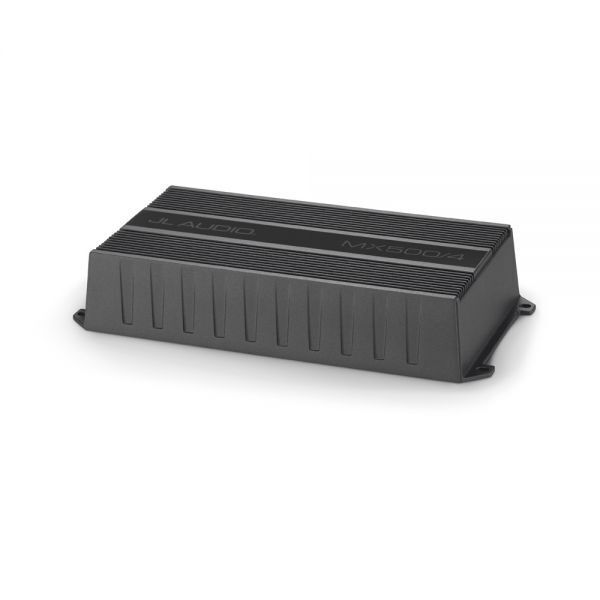

Engineered specifically for powersports applications, the 4-channel MX500/4 amplifier employs our high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminium chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV's or other utility vehicles.

Generating a solid 70W x 4 into 4 ohms (14.4V, 1% THD), the MX500/4 is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a potent 250W x 2 into 4 ohms.

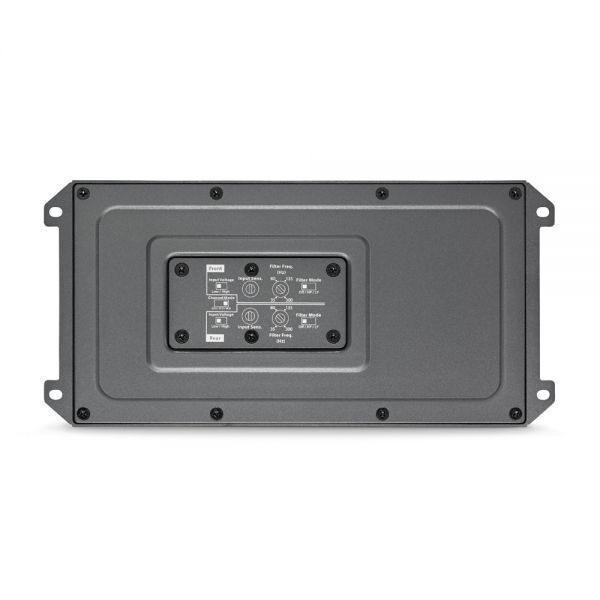

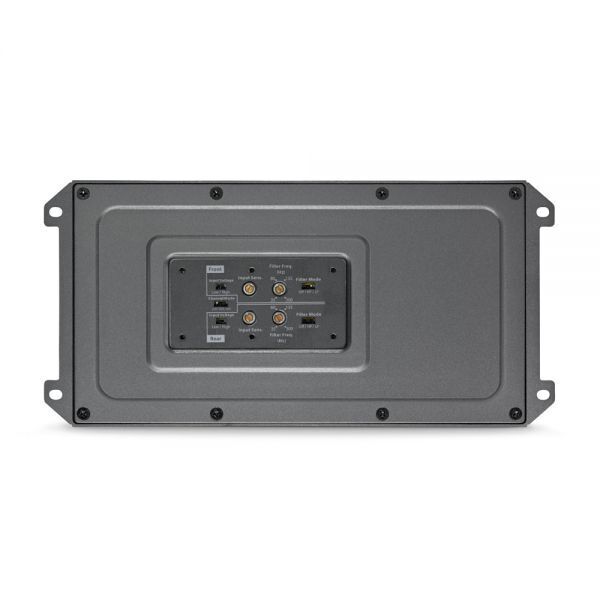

Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.

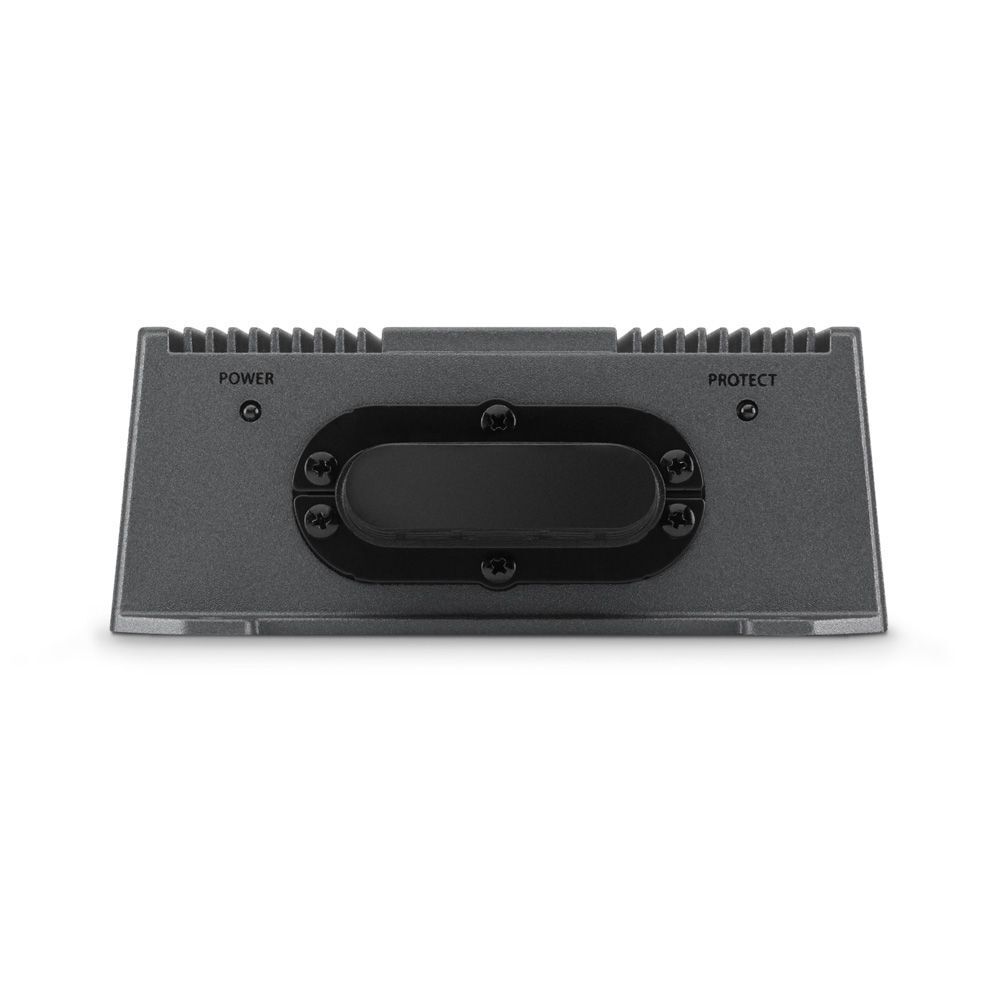

This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.

RMS Power @ 14.4V

70W x 4 @ 4Ω125W x 4 @ 2Ω250W x 2 @ 4Ω Bridged

Output Channels

4

Voltage (V)

12

Class

D

Features

NexD™ Switching TechnologyDifferential Balanced Inputs

Waterproof Rating

IPX7

Filter

High-PassLow-Pass

Fuse Rating (A)

50

Cable Gauge (AWG)

4

Amp Turn-On

12V

Frequency Response (Hz)

20-20k

Signal-to-Noise Ratio (dB)

88

Controller

N/A

Input Channels

4

Input Type

High LevelLow Level

Input Sensitivity Low Level

250mV-4V

Input Sensitivity High Level

750mV-15V

Height (cm)

4.5

Width (cm)

23.7

Depth (cm)

11.5

Brand

JL Audio

EAN

699440986427
