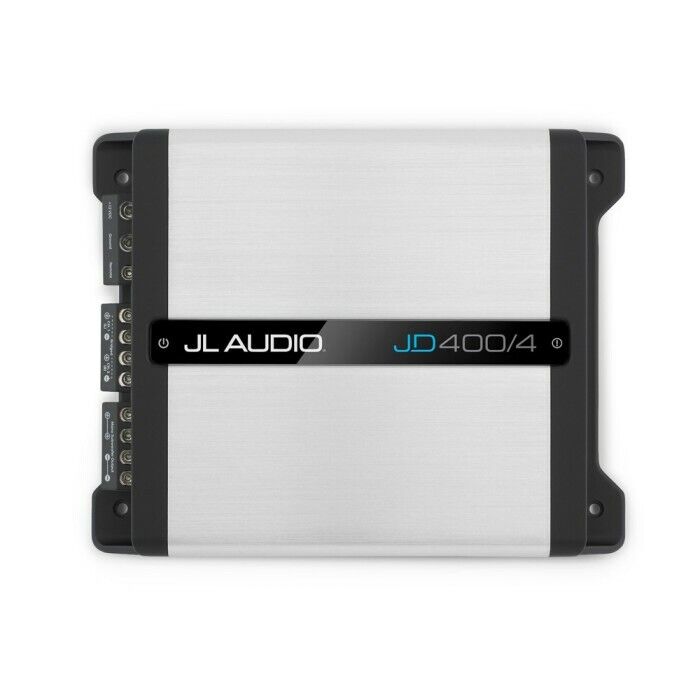

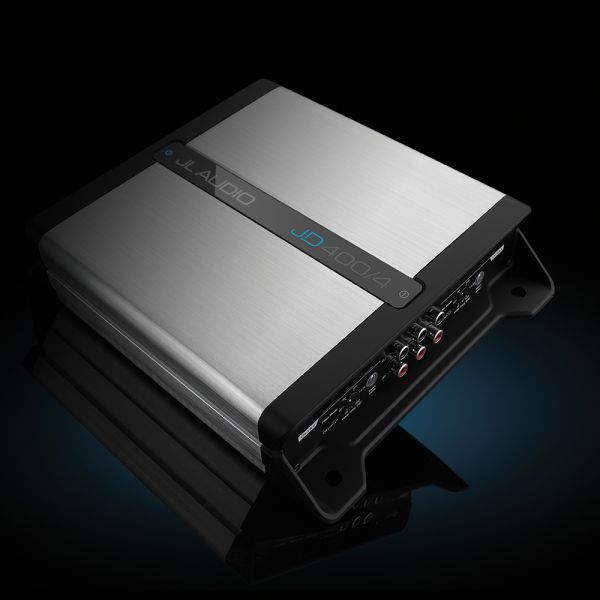

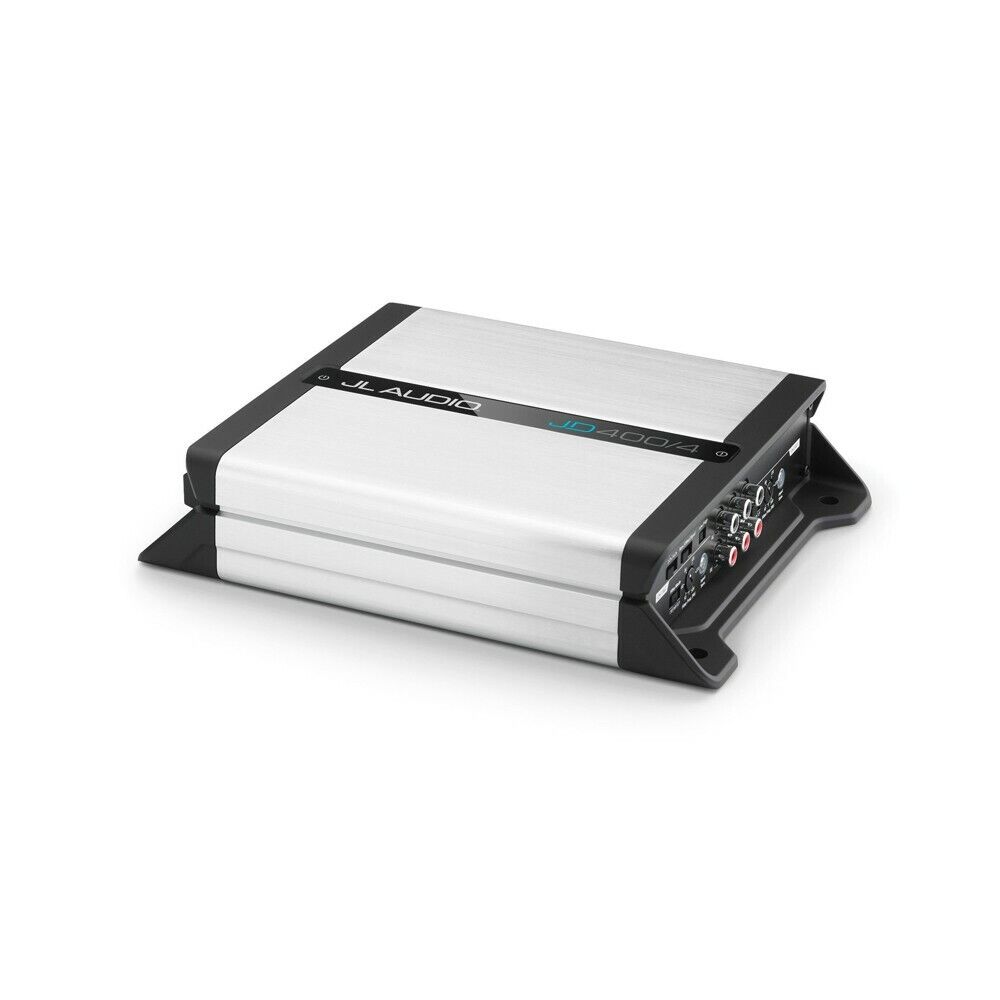

JL Audio JD400/4D Class D Car Audio 4 Channel Amplifier 4x70w RMS JLJD400/4D

JL AUDIO JD400/4D

4-Channel Class D Full-Range Amplifier, 100 W x 4 @ 2 Ω / 70 W x 4 @ 4 Ω - 14.4V

The JX400/4D employs a highly-efficient Class D design with a robust MOSFET power supply to deliver a strong 100 watts to each of its four channels into 2 ohms (14.4V, 1% THD).

Use the JD400/4D in combination with our JD500/1D or JD1000/1D monoblocks to build an amazing amplification system at a very affordable price.

Or, use the JD400/4D by itself to power two satellites, plus a subwoofer.

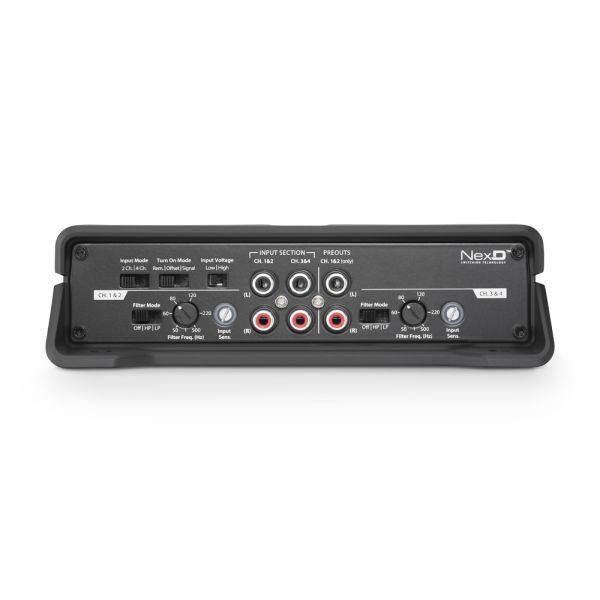

The JD400/4D includes a defeatable 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-200 Hz.

Dedicated hi-level inputs are included, in addition to conventional low-level RCA inputs, making it easy to integrate with a variety of OEM and aftermarket head units.

Power output

@ 4 Ω     70 W RMS x 4@ 2 Ω     100 W RMS x 4Bridged @ 4Ω     200 W RMS x 2

Frequency Response     20 Hz - 20 kHz (+0, -1dB)S/N Ratio, referred to highest rated power     >93 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)S/N Ratio, referred to 1 W     >76 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)Damping Factor @ 4 Ω     >60 / 50 HzDamping Factor @ 2 Ω     >30 / 50 HzTHD+N @ Rated Power     <1% @ 2 Ω per Ch.Input Voltage Range @ RCA Inputs     200 mV - 4 V RMSInput Voltage Range @ High-Level Inputs     2 V - 10 V RMSMin Copper Power / Ground Wire Gauge     4 AWG wireFuse Rating     40 A (AFS, AGU or MaxiFuse)
