JL AUDIO C3-570 5 x 7" / 6 x 8" Convertible Component / Coaxial Speaker System

C3-570

JL AUDIO

5 x 7 / 6 x 8" (125 x 180 mm) Convertible Component / Coaxial Speaker System

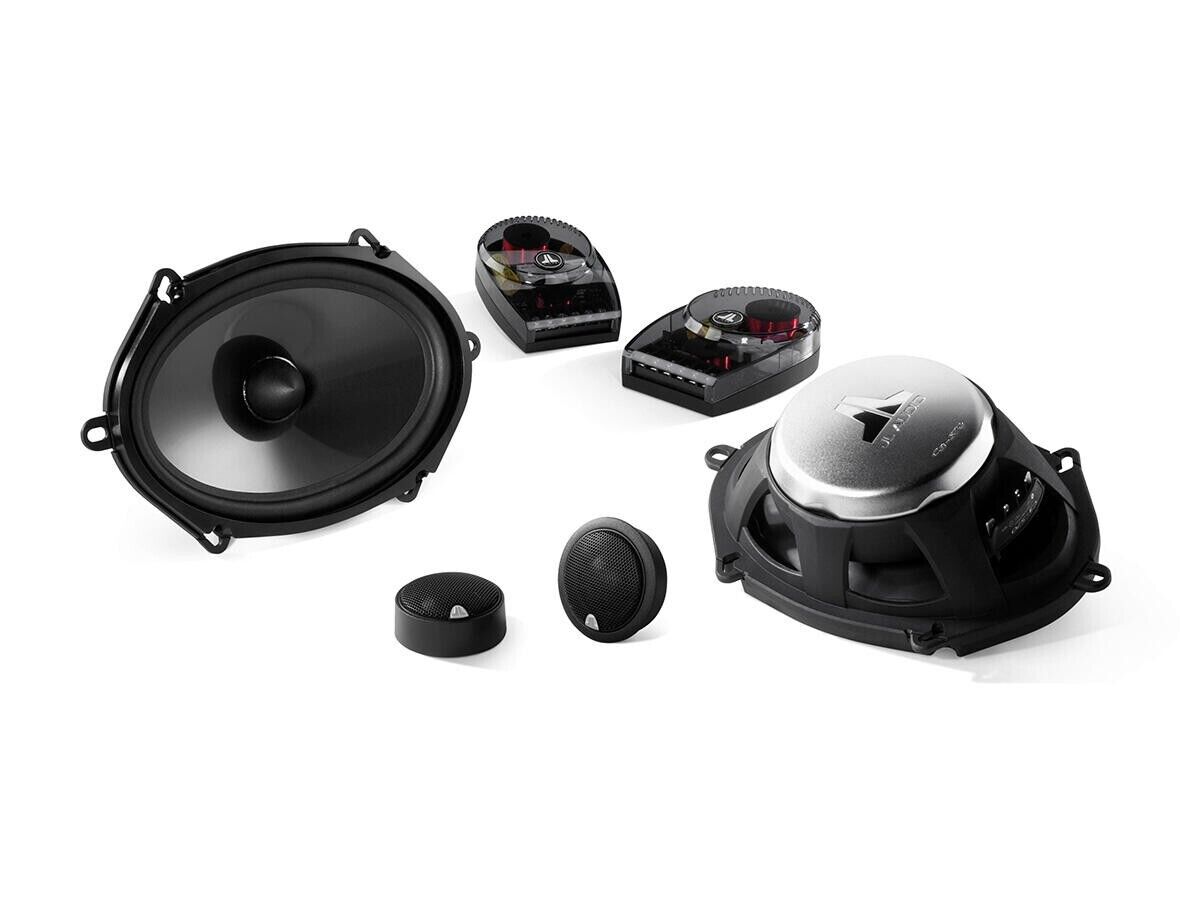

2-Way Convertible Component / Coaxial System: 5 x 7 / 6 x 8-inch (125 x 180 mm) Woofer, 1-inch (25 mm) Silk Dome Tweeter

There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.

Many people mistakenly believe that an oval speaker cannot perform as well as a round one, leading to many instances of 5.25-inch speakers being installed into 5 x 7-inch openings. JL Audio has put in the engineering time and effort to create fantastic-sounding speakers that drop into oval openings and deliver equivalent performance to our 6.5-inch (165 mm) round speaker systems... guaranteed. So, don't make the mistake of losing cone area and efficiency by stepping down to a smaller round speaker... these ovals are as impressive as our round format systems.

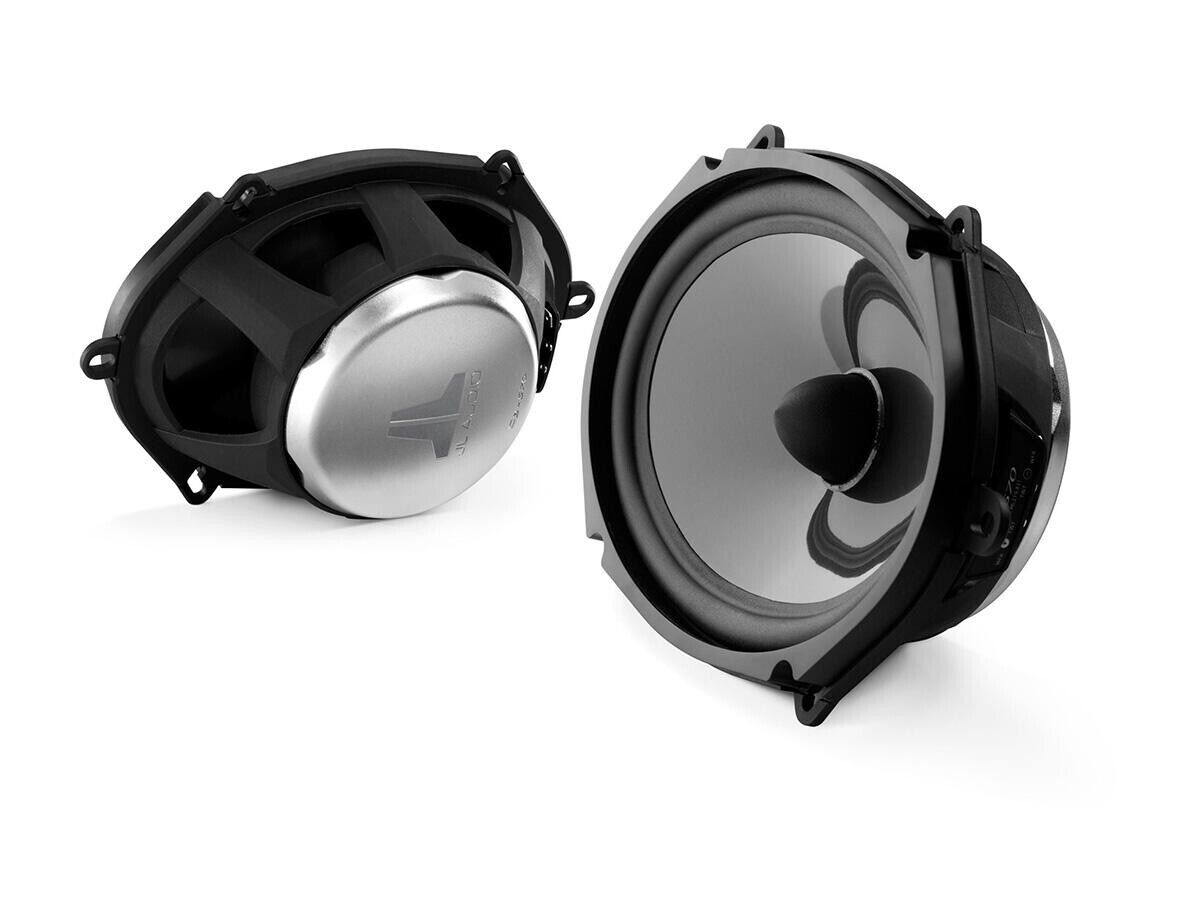

The C3-570 system features 5 x 7 / 6 x 8-inch (125 x 180 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

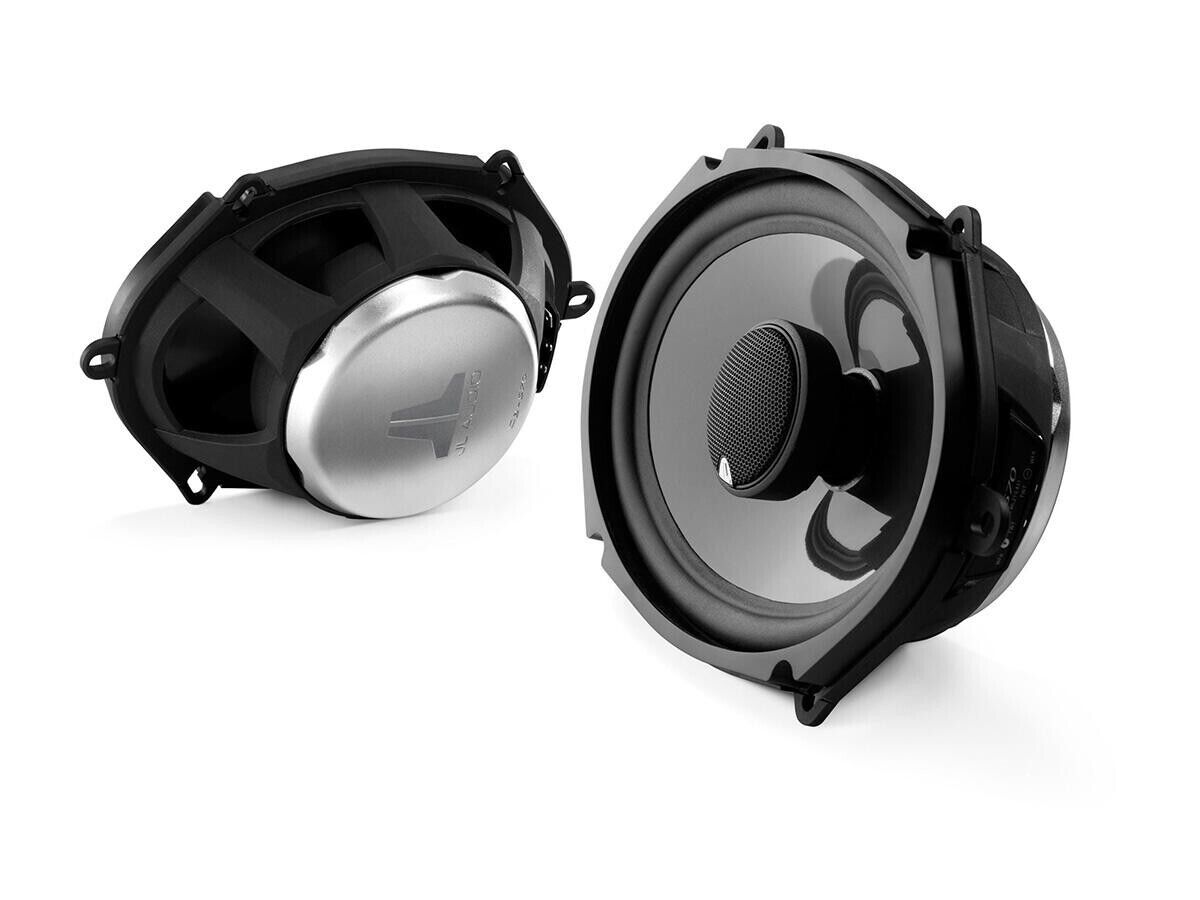

The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.

C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!

Woofer grilles are not available for this product.

Sold as a pair.

Continuous Power Handling (RMS): 75 W

Recommended Amplifier Power (RMS): 25 - 150 W / Ch.

System Efficiency: 90.0 dB @ 1 W / 1 m

System Nominal Impedance: 4 Ω

System Frequency Response: 48 Hz - 25 KHz ± 3 dB
