15" W0 SUBWOOFER 500W @ 4 OHM
JL15W0V3-4

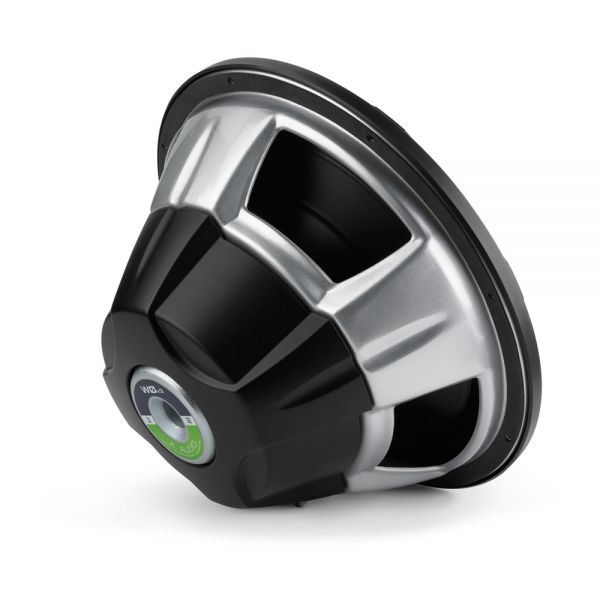

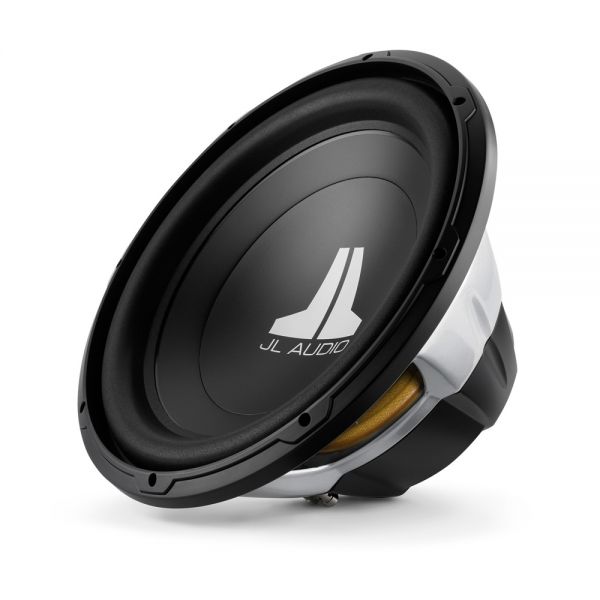

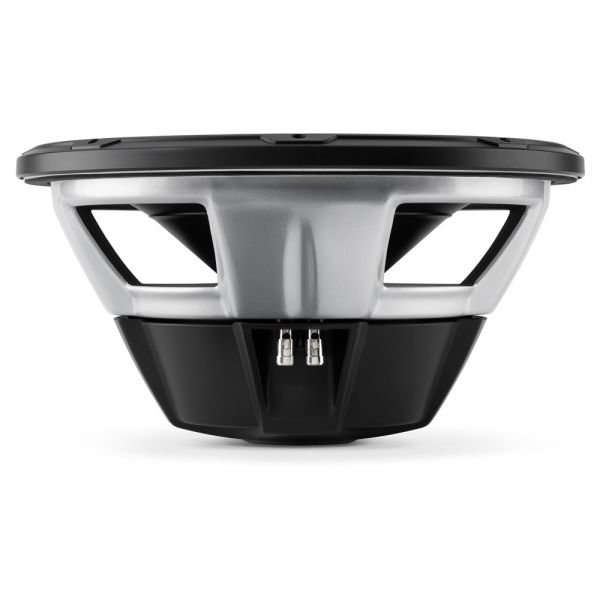

W0v3 15-inch Subwoofer (500 W, 4 Ω)
Sometimes, bigger is better... For these situations, the 15W0v3 offers excellent excursion capability, linearity and an overall performance envelope that puts it right at the top of its price class. It features a very beefy 2.5 in. diameter voice coil and our patented Elevated Frame Cooling design for enhanced power handling and reliability.
The 15W0v3 is best used with amplifier power in the 150W - 500W range and is optimized to operate in a moderately sized 1.875 cu. ft. (53.1 l) sealed enclosure, or a 2.75 cu. ft. (77.88 l) ported enclosure.
| Speaker Size (in) | 15" |
|---|---|
| Style | Round |
| Impedance (Ohms) | 4 |
| Voice Coils | Single |
| RMS Power (W) | 300 |
| Peak Power (W) | 500 |
| Sensitivity (dB @ 1W/1m) | 88.2 |
| Frequency Response (Hz) | N/A |
| Features | DMA Optimised Motor Elevated Frame Cooling |
| Height (cm) | 39.4 |
| Width (cm) | 39.4 |
| Depth (cm) | 20.5 |
| Protrusion (cm) | 2.3 |
| Mounting Depth (cm) | 18.2 |
| Mounting Hole Diameter (cm) | 34.9 |
| Grills | JLSGRU-15 (Sold Separately) |
| Recommended Amplifier | JLJD500/1 JLXD600/1v2 |
| Recommended Minimum Power Handling (W) | 150 |
| Recommended Maximum Power Handling (W) | 500 |
| Recommended Box Volume Sealed (Litres) | 53.1 |
| Recommended Box Volume Ported (Litres) | 77.88 |
| Brand | JL Audio |
| EAN | 699440996198 |
