JL Audio 13" W3 SUBWOOFER 600W @ 4 OHM JL13W3V3-4
JL Audio 13" W3 SUBWOOFER 600W @ 4 OHM JL13W3V3-4
Couldn't load pickup availability
13" W3 SUBWOOFER 600W @ 4 OHM
JL13W3V3-4

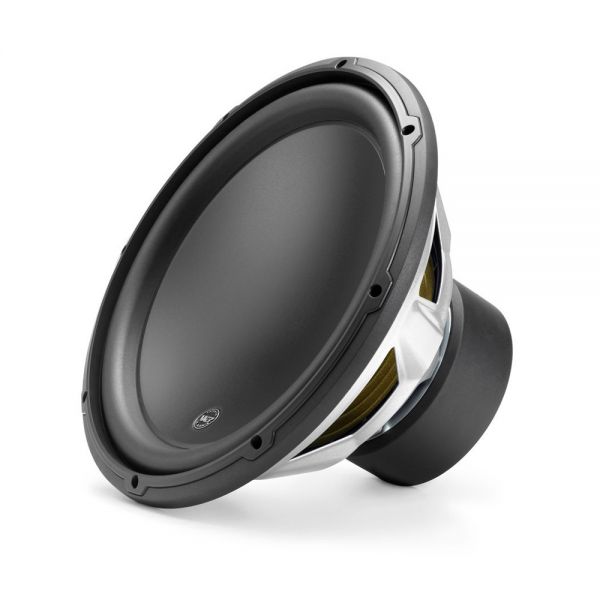

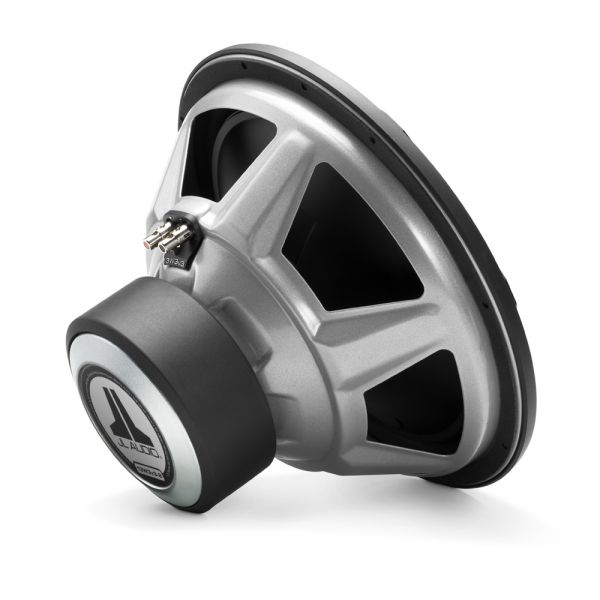

W3v3 13.5-inch Subwoofer (600 W, 4 Ω)
If you have the space, it makes a tremendous sense to maximize your subwoofer system's piston area to enhance efficiency (and output). It gets even better when the larger driver delivers additional power handling and excursion. For the preceding reasons, the 13W3v3 can be the best choice for those seeking high output with great sound quality at medium power levels.
As with the smaller W3v3's, several exclusive JL Audio technologies and proprietary assembly techniques are applied to the 13W3v3 to enhance linearity and reliability.
The 13W3v3-4 is best used with amplifier power in the 150W - 600W range and is optimized to operate in a moderate size 1.5 cu. ft. (42.5 l) sealed enclosure, or a 2.25 cu. ft. (63.7 l) ported enclosure.
| Speaker Size (in) | 13" |
|---|---|
| Style | Round |
| Impedance (Ohms) | 4 |
| Voice Coils | Single |
| RMS Power (W) | 400 |
| Peak Power (W) | 600 |
| Sensitivity (dB @ 1W/1m) | 87.9 |
| Frequency Response (Hz) | N/A |

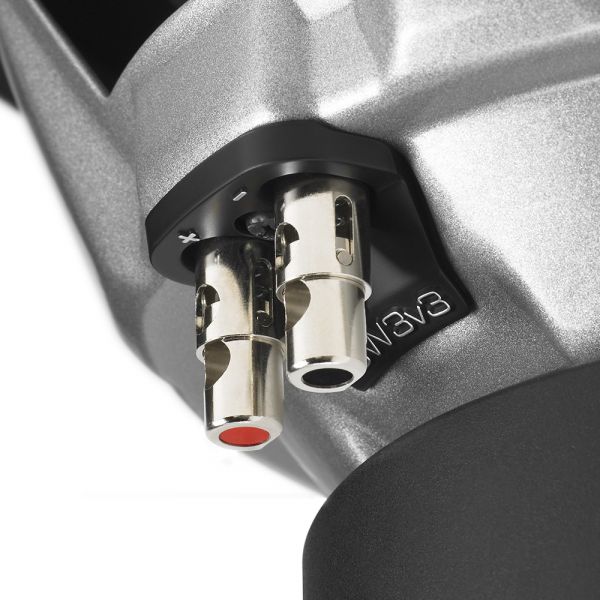

| Features | DMA Optimised Motor Elevated Frame Cooling FCAM™ Cone Attach Method Vented Reinforcement Collar Insert Moulded Sub-Assembly Engineered Lead-Wire System Customisable Trim Ring Constructed In USA |
| Height (cm) | 35.6 |
| Width (cm) | 35.6 |
| Depth (cm) | 21.4 |
| Protrusion (cm) | 2 |
| Mounting Depth (cm) | 19.4 |
| Mounting Hole Diameter (cm) | 31.9 |
| Grills | JLSGRU-13 (Sold Separately) |
| Recommended Amplifier | JLRD1000/1 JLXD600/1v2 JL600/1v3 |
| Recommended Minimum Power Handling (W) | 150 |
| Recommended Maximum Power Handling (W) | 600 |
| Recommended Box Volume Sealed (Litres) | 42.5 |
| Recommended Box Volume Ported (Litres) | 63.7 |
| Brand | JL Audio |
| EAN | 699440996174 |
