JL Audio

JL Audio 13.5" W7 SUBWOOFER 1500W DUAL 1.5 OHM ANNIVERSARY EDITION

JL Audio 13.5" W7 SUBWOOFER 1500W DUAL 1.5 OHM ANNIVERSARY EDITION

Regular price £1,225.95 GBP
Regular price Sale price £1,225.95 GBP
Sale Sold out
Tax included.

13.5" W7 SUBWOOFER 1500W DUAL 1.5 OHM ANNIVERSARY EDITION

JL13W7AE

10th Anniversary Edition - W7 13.5-inch Subwoofer (1500 W, Dual 1.5 Ω voice coils)

Words like "extreme," "reference" and "ultimate" get thrown around quite a bit in the Subwoofer world, but rare is the product that can honestly lay claim to them. The 13W7AE does.

Taking the W7 design formula to its highest level, the 13W7AE offers a staggering linear excursion envelope that exceeds 1.25 inches (32 mm) one-way, along with a suspension capable of over 4-inches of peak-to-peak excursion. Combine that with a piston diameter that is 28% larger than the 12W7AE's, and you have a serious high-performance driver for the most demanding applications. With a 13W7AE, limits simply vanish and amazing sub-bass happens... on all fronts, at any level.

Our most potent Subwoofer is best used with amplifier power in the 500W - 1500W range and is optimized to operate in a 1.875 cu. ft. (53.1 l) sealed enclosure, or a 2.375 cu. ft. (67.3 l) ported enclosure.

W7AE (Anniversary Edition) Subwoofers celebrate the 10th Anniversary of the launch of the W7 subwoofers. Functionally, they are identical to the original W7's, but are they distinguished by the following cosmetic differences:

  • Satin-Black Powder coated Baskets
  • Bright Anodized Surround Clamp Ring
  • Anniversary Edition Cone Badge

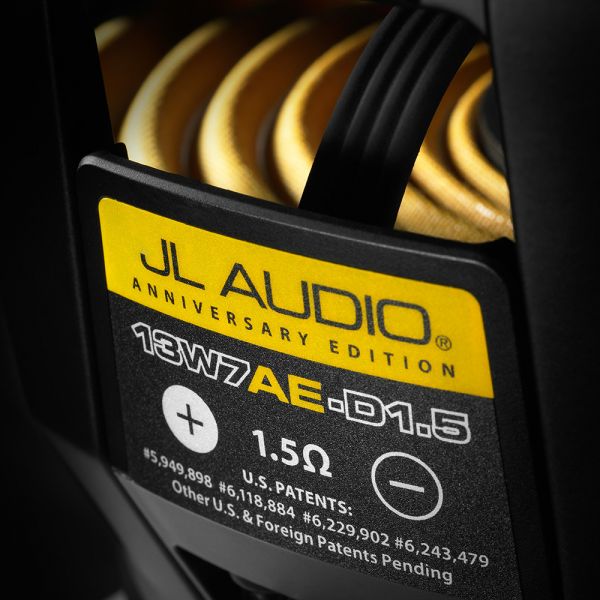

  • Anniversary Edition Terminal Label
Speaker Size (in) 13.5"
Style Round
Impedance (Ohms) Dual 1.5
Voice Coils Dual
RMS Power (W) 1000
Peak Power (W) 1500
Sensitivity (dB @ 1W/1m) 86.3
Frequency Response (Hz) N/A
Features DMA Optimised Motor
W Cone Assembly
Elevated Frame Cooling
FCAM™ Cone Attach Method
OverRoll™ Surround Design
Radially Cross-Drilled Pole-Piece
Engineered Lead-Wire System
Constructed In USA
Height (cm) 35.6
Width (cm) 35.6
Depth (cm) 30.3
Protrusion (cm) 3.6
Mounting Depth (cm) 26.7
Mounting Hole Diameter (cm) 30.2
Grills JLSGR-13W7 (Sold Separately)
Recommended Amplifier JLXD1000/1v2
JLHD1200/1
JL1200/1v3
Recommended Minimum Power Handling (W) 500
Recommended Maximum Power Handling (W) 1500
Recommended Box Volume Sealed (Litres) 53.1
Recommended Box Volume Ported (Litres) 67.3
Brand JL Audio
EAN 699440996181
