JL Audio

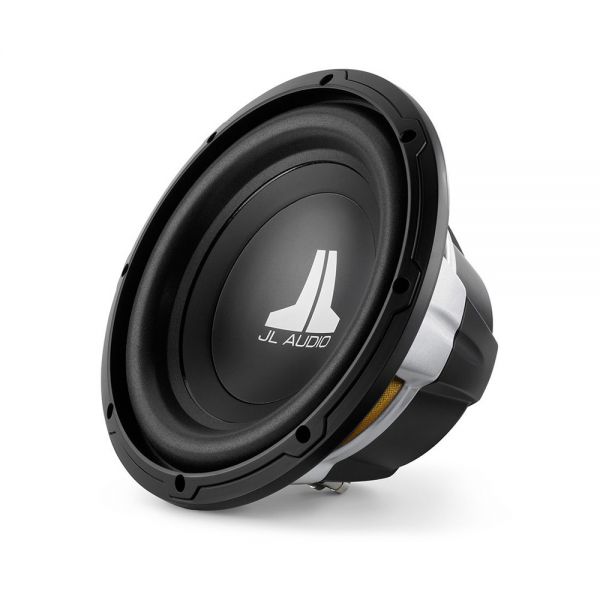

JL Audio 10" W0 SUBWOOFER 300W @ 4 OHM JL10W0V3-4
JL Audio 10" W0 SUBWOOFER 300W @ 4 OHM JL10W0V3-4
Couldn't load pickup availability
10" W0 SUBWOOFER 300W @ 4 OHM
JL10W0V3-4
W0v3 10-inch Subwoofer (300 W, 4 Ω)
The 10W0v3 is a rugged performer with excellent excursion capability and linearity and an overall performance envelope that puts it right at the top of its price class. It features a beefy 2 in. diameter voice coil and our patented Elevated Frame Cooling design for enhanced power handling and reliability.
The 10W0v3 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a compact 0.65 cu. ft. (18.4 l) sealed enclosure, or a 1.125 cu. ft. (31.9 l) ported enclosure.
| Speaker Size (in) | 10" |
|---|---|
| Style | Round |
| Impedance (Ohms) | 4 |
| Voice Coils | Single |
| RMS Power (W) | 175 |
| Peak Power (W) | 300 |
| Sensitivity (dB @ 1W/1m) | 84.07 |
| Frequency Response (Hz) | N/A |
| Features | DMA Optimised Motor Elevated Frame Cooling |
| Height (cm) | 26.7 |
| Width (cm) | 26.7 |
| Depth (cm) | 14.7 |
| Protrusion (cm) | 2.3 |
| Mounting Depth (cm) | 12.4 |
| Mounting Hole Diameter (cm) | 23 |
| Grills | JLSGRU-10 (Sold Separately) |
| Recommended Amplifier | JLJD500/1 JLRD500/1 JLMX500/1 |
| Recommended Minimum Power Handling (W) | 75 |
| Recommended Maximum Power Handling (W) | 300 |
| Recommended Box Volume Sealed (Litres) | 18.41 |
| Recommended Box Volume Ported (Litres) | 31.86 |
| Brand | JL Audio |
| EAN | 8714505040103 |
