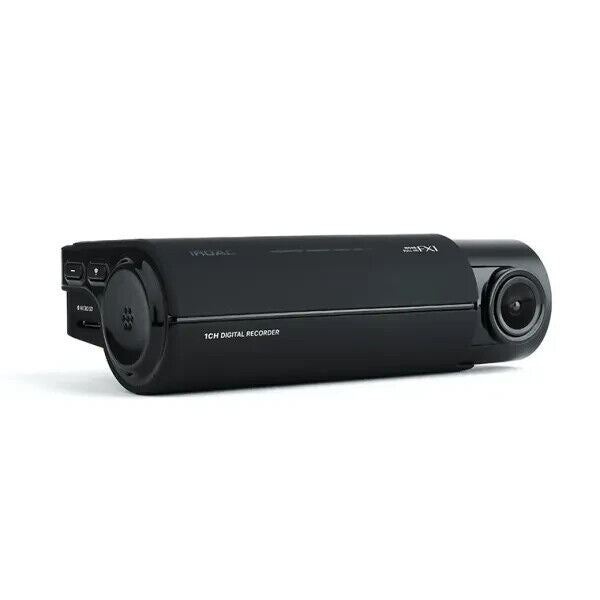

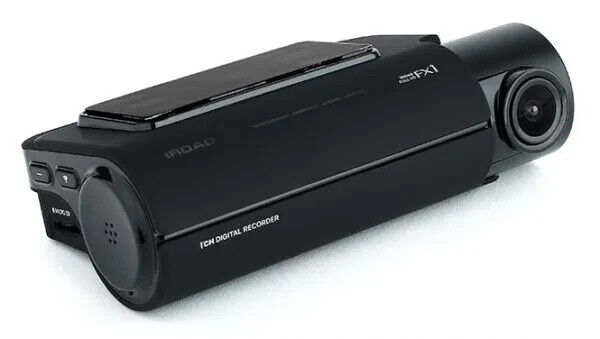

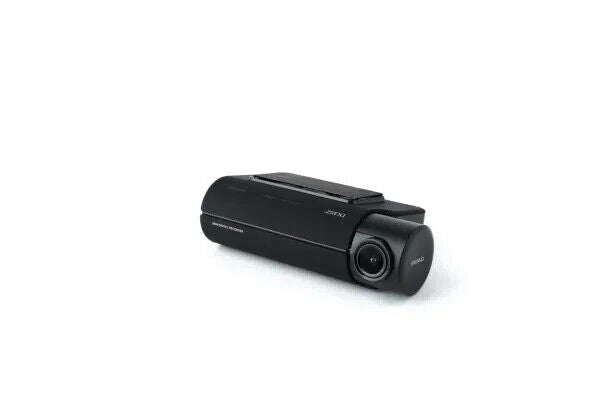

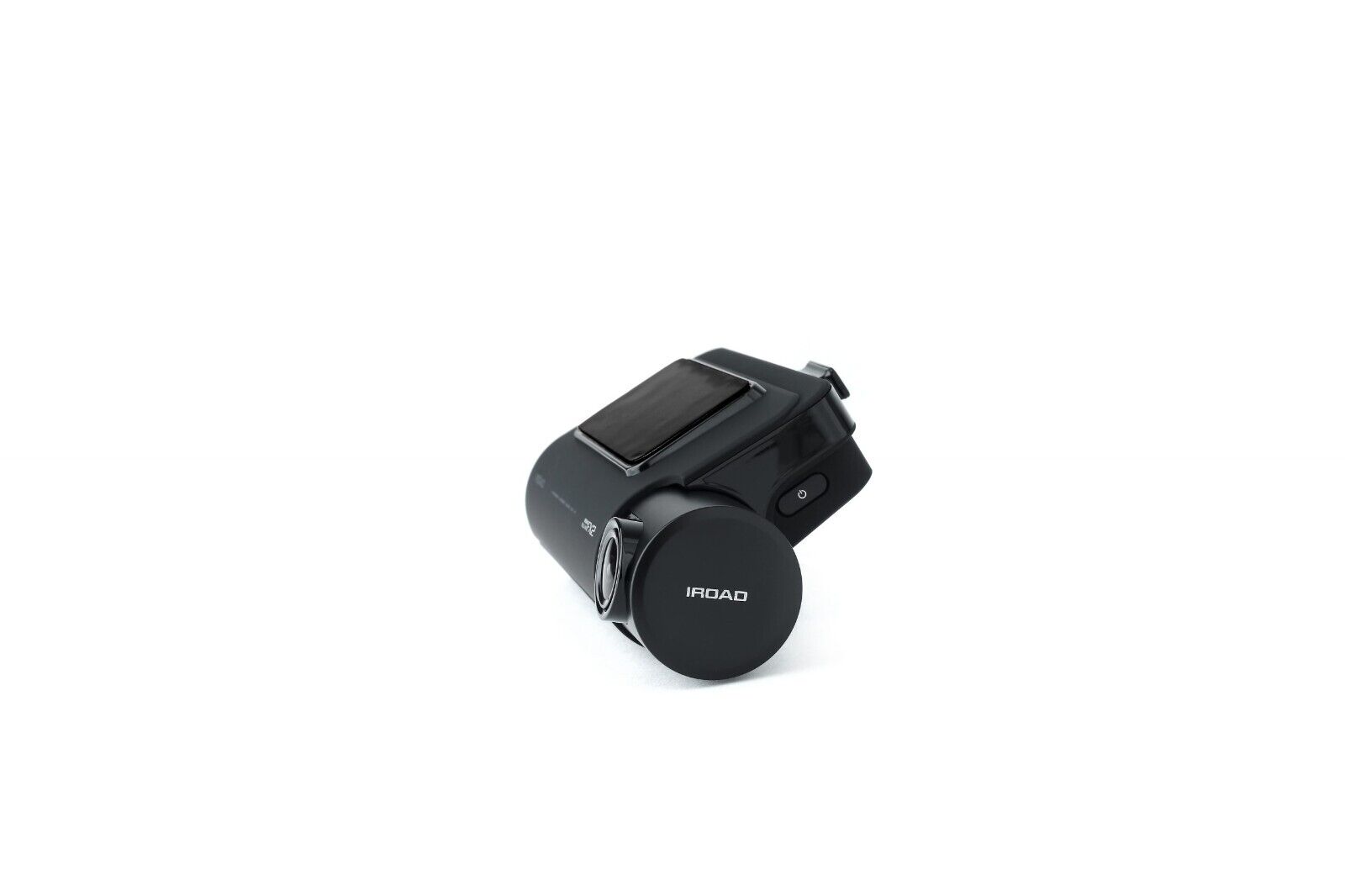

IROAD CAR DASH CAM FX1 1CH Full HD Built-in GPS Night mode

Excellence In Simplicity

IROAD DASH CAM FX1

1CH FHD ' Built-in GPS ' ADAS 2.0

Time Lapse ' Hyper Lapse-4X Efficiency Recording ' Wi-Fi ' Night Vision

140º Wide Viewing Angle ' Battery Discharge Prevention ' Format Free 2.2

Mobile APP (Android/iOS) ' Windows/Mac Viewer

4x More Recording Time

HYPER LAPSE

No more worries about missing out while driving long-distance.

By compressing the recorded video, Hyper Lapse minimizes the memory space and saves 4 times more footage.

However, when an event or impact occurs, recording frame rate switches automatically to 30 fps to provide clearer images of important moments.

Long parking recording with

TIME LAPSE

Experience continuous Parking Mode recording for a long time with IROAD Time Lapse.

Time Lapse is a low-capacity recording method that minimizes the storage space by compressing and saving at 1fps while in Parking Mode.

On the other hand, when an impact or motion is detected during Parking Mode, it switches automatically to 30 fps to provide clearer images of important moments.

PARKING MODENormalTIME LAPSE

CAPACITY32GB32GB

FPS30 fps1 fps

RECORDING TIMEAbout 4HAbout 48H

ADVANCED DRIVER ASSISTANCE SYSTEM

ADAS 2.0 (ver.2022)

The IROAD FX series is equipped with the Road Safety Warning System that provides audio and visual alerts for Lane Departure (LDWS), Front Collision (FCWS) and Front Vehicle Departure (FVDW). It detects road markings and gives voice warnings to the drivers if the vehicle begins to stray from its lane or when it is at risk of an imminent crash.

LANE DEPARTURE WARNING SYSTEM LDWS

LDWS operates in a way that the front camera recognizes the road lane in real time and, if the driver falls asleep while driving or drives poorly, causing the car to depart the lane, it will notify about it through the preset warning sound.

FRONT VEHICLE DEPARTURE WARNING FVDW

When the car is stopped at an intersection or in traffic, FVDW informs the driver when the vehicle in front has started to move, preventing delayed departure.

FORWARD COLLISION WARNING SYSTEM FCWS

The FCWS function calculates the average distance from the vehicle in front and alerts the driver in advance when reaching the range of safe breaking distance in order to prevent a collision.

COMPREHENSIVE DRIVING DATA THROUGH BUILT-IN GPS

The GPS data in the IROAD FX series can precisely pinpoint the vehicle's location and routes on the map, while also displaying the driving speed. This helps to more accurately assess the situation and the circumstances in case of an accident.

High Definition Video Quality

1080p FHD 1CH

CMOS Image Sensors allow constant FHD 1080p Front recording during both daytime and nighttime along with a 140-degree wide angle lens view. This will minimize blind spots to assure recording of all events without fail.

NIGHTTIME PICTURE QUALITY CORRECTION

NIGHT VISION

Videos recorded by a dash cam in low light environments such as dark alleyways or underground parking lots can pose difficulties when you try to accurately identify information from the image.

IROAD NIGHT VISION employs the new ISP (Image Signal Processing) technology and the real-time image processing function to provide brighter images than our earlier models when recording at nighttime during Parking Mode.

LIGHT EXPOSURE AUTOMATIC EXPOSURE

Sudden light exposure while driving, such as strong direct sunlight or the light of incoming vehicles at night, can sometimes affect your vision and make it difficult to assess the situation.

The IROAD FX series dash cams automatically adjust the amount of light exposure to provide bright and clear images in any situation.

VARIOUS AUTONOMOUS RECORDING MODES

CONTINUOUS RECORDING MODE

This mode is activated automatically when you start the engine. Recorded videos are saved in one-minute segments with an auto-looping mechanism.

EVENT RECORDING MODE

It will automatically start an Event recording when motion or impact is detected around the vehicle during both parking and driving mode.

MANUAL RECORDING

Generate Event files on request when witnessing a traffic incident or something interesting on the road that you want to make sure you catch on camera. When pressing the Manual Recording button, the dash cam records and separately stores a few seconds of footage before (5-10s) and after (15-20s) that moment as a Manual Recording file protected from overwriting (limit before overwriting: up to max. 4% of total SD card storage).

PARKING IMPACT BUFFERED RECORDING

When in Parking Mode, the built-in G sensor detects when an impact with the vehicle has occurred, for which the dash cam generates an event file stored separately, protected from overwriting (if SD card storage is assigned to Event files through the dash cam settings). The saved video will include a few seconds before the impact occurred (5-10s) and a few seconds after (15-20s). This can be turned ON regardless of the Parking Mode used (Time-lapse or Motion Detection).

TIME-LAPSE PARKING MODE

The dash cam will continuously record at 1fps during Parking Mode. If Parking Impact is turned ON, the frame rate will briefly switch from 1fps to 30fps when recording the impact, then the dash cam will continue recording at 1fps.

MOTION DETECTION PARKING MODE

The dash cam stays "asleep" until it detects movement around the vehicle. In this mode, any motion happening around the vehicle in recorded in an event file stored separately. The saved video will include a few seconds before the motion was detected (5-10s) and a few seconds after (15-20s).

RESOLUTION - Front:1080p FHD / Rear:1080p FHD

A = Driving mode 100% @30fps

A [Driving mode 100%]

Storage

Recording Time

32GB

About 4H 20Min

64GB

About 8H 40Min

128GB

About 17H 20Min

256GB

About 35H 40Min

B [Driving mode(HYPER LAPSE) 100%]

Storage

Recording Time

32GB

About 48H

64GB

About 96H

128GB

About 192H

256GB

About 382H

C = Parking mode(TIME LAPSE) 100% @1fps

C [Parking mode(TIME LAPSE) 100%]

Storage

Recording Time

32GB

About 48H

64GB

About 96H

128GB

About 192H

256GB

About 382H

D = Parking Impact 50% + Motion 50% @30fps

D [Parking Impact 50% + Motion 50%]

Storage

Recording Time

32GB

About 4H 30Min

64GB

About 9H

128GB

About 17H 40Min

256GB

About 36H

A + D = Driving mode 50% + Parking mode 50%

A [Driving mode 50%]

D [Parking mode 50%]

Storage

Recording Time

32GB

About 4H 10Min

64GB

About 8H 50Min

128GB

About 17H 30Min

256GB

About 35H 50Min

A + C = Driving mode 50% + TIME LAPSE 50%

A[Driving mode 50%]

C [Parking mode 50%]

Storage

Recording Time

32GB

About 22H 40Min

64GB

About 45H

128GB

About 89H 40Min

256GB

About 180H

B + C = HYPER LAPSE 50% + TIME LAPSE 50%

B[Driving mode 50%]

C [Parking mode 50%]

Storage

Recording Time

32GB

About 48H

64GB

About 96H

128GB

About 192H

256GB

About 382H

ENERGY SAVING 2.4W

In parking mode, power consumption is greatly reduced to maximize recording time. In addition, to protect the vehicle battery, the dash cam automatically powers off when the vehicle battery voltage falls below a certain set value (Battery Discharge Prevention).

140º WIDE ANGLE LENS

The 140 ° angle lens offer a wide angle of view and minimize blind spots, ensuring all scenes that can be seen through the front windshield are completely recorded.

HIGH-TEMPERATURE PROTECTION

The FX series models are built to endure both high and low temperatures in order to keep the device running smoothly. The high-temperature protection function makes the device automatically turn off in case of overheating, protecting both the device and the stored data.

HIGH-EFFICIENCY VIDEO CODING FORMAT

FORMAT FREE 2.2

The 2022 newly released IROAD FX series dash cams use a new file format which allows for a higher compression rate, uses memory space more efficiently and provides outstanding image quality.

Format Free 2.2 is a server storage technology developed by IROAD that maximizes the life span, stability and efficiency of memory cards.
