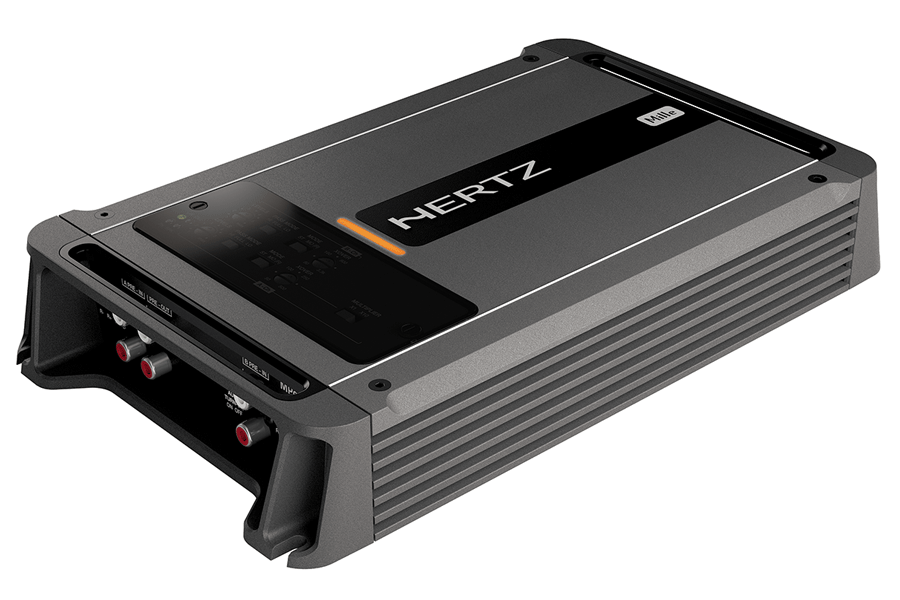

Hertz ML Power 4 Channel Car Amplifier 4x250W RMS

Hertz ML Power 4

Hertz Mille Power is redefining Class D amplification. With new hyper-efficient chassis design, the compact case size belies the brutish power available inside. Balanced high -level inputs ensure noise is kept to a minimum. This four-channel specimen can be run in four, three or two channel mode and is 2 Ohm stable. Bypass, Hi Pass and Lo Pass filters are all included.

Technical Specification

Channel mode: 4 - 3 - 2

Output Power (RMS) @ 14.4 VDC:

4 Ch 150 W x 4 (4 ohm)

4 Ch 250 W x 4 (2 ohm)

3 Ch 150 W x 2 (4 ohm) + 500 W x 1 (4 ohm)

3 Ch 250 W x 2 (2 ohm) + 500 W x 1 (4 ohm)

2 Ch 500 W x 2 (4 ohm)

Filters: Bypass, Hi-Pass (A: 50 - 5k @ 12 dB/Oct. - B: 80 - 3.3k Hz @ 12 dB/Oct.), Lo-Pass (A: 50 - 5k @ 12 dB/Oct. - B: 80 - 3.3k Hz @ 12 dB/Oct.)

Distortion - THD (100Hz @ 4 ohm): 0.08 %

S/N Ratio (A weighted @ 1V): 100 dB

Damping factor (100Hz @ 4 ohm): 80

Size W x D x H mm (in.): 170 x 289 x 46.70 (6.69' x 11.38' x 1.84')
