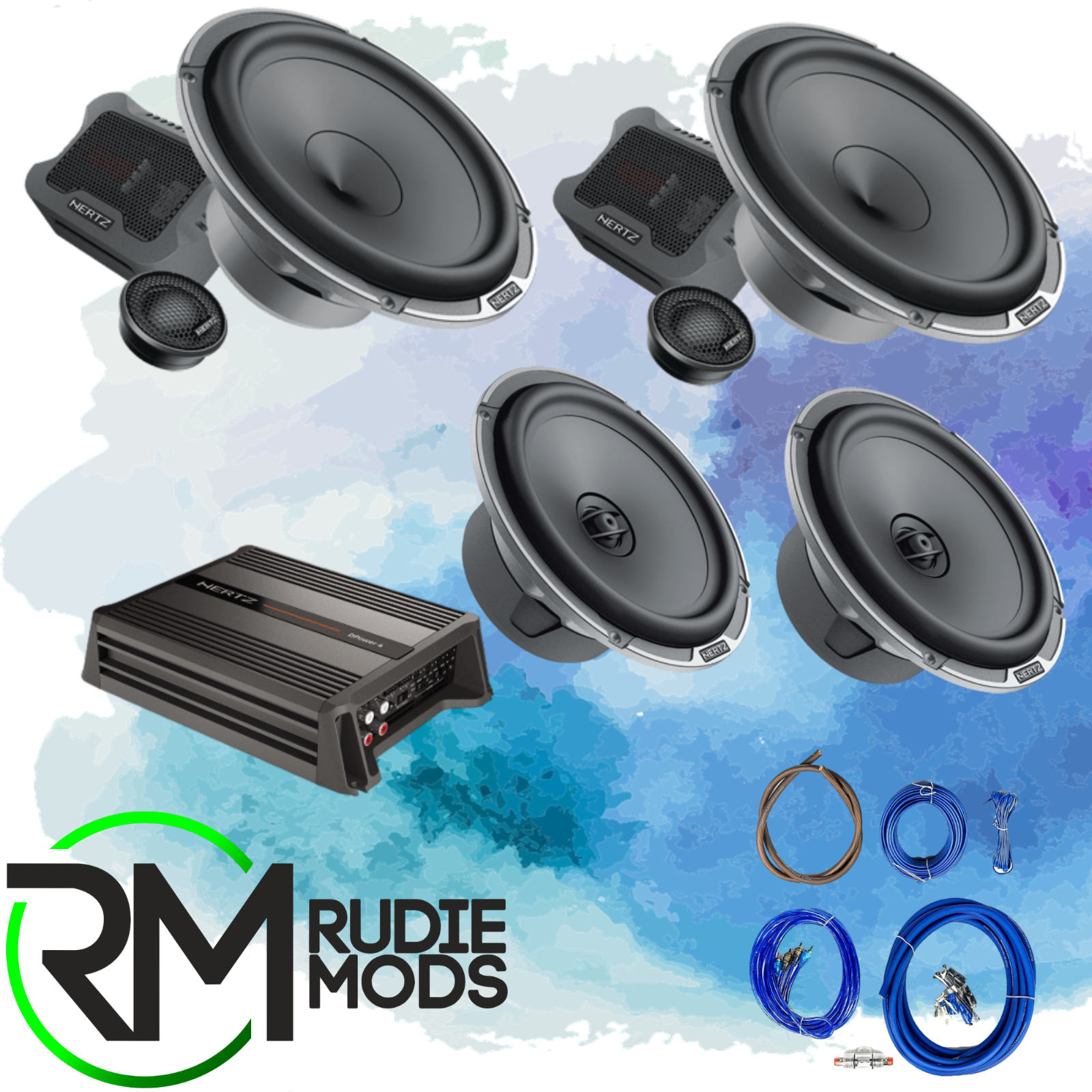

Hertz Mille Pro 6.5" Component & Coaxial Car Speaker & Amplifier Package

Hertz Mille Pro 6.5" Component & Coaxial Car Speaker & Amplifier Package Front & Rear

Hertz Mille Pro MPK 165.3

Astonishing reach down coupled with high power handling capacity make this 2-channel solution the perfect starting point for a high-powered musical experience you will never regret. The V-cone technology employed, aids with dispersion even when fitted in factory positions.

Technical Specification

Power Handling

Peak W 220 Power, Continuous W 110

Impedance - 4Ohms

Frequency response Hz 40 - 22.5kHz

Sensitivity dB SPL 92

Voice coil mm (in.) 25 (1)

Woofer size mm (in.) 165 (6.5)

Tweeter size mm (in.) 29 (1.14)

Woofer magnet High density flux ferrite

Tweeter magnet Neodymium

Woofer cone Pressed-pulp cone with cotton fibres

Tweeter dome Tetolon

Crossover type 2-Way Passive Crossover

Crossover cut off 3.5 kHz

Hertz Mille Pro MPX 165.3

A 20mm concentric ducted tweeter sits inside the woofer voice coil achieving a perfect single point source, as used in many high quality home hifi speakers. This 200 Watt set will deliver excellent results particularly when the mounting positions are high up in the doors. The boundary-free woofer cone provides sumptuous mid bass.

Technical Specification

Power Handling - Peak W 200

Power Handling - Continuous W 100

Impedance 4Ohms

Frequency response Hz 45 - 21.5k

Sensitivity dB SPL 92

Woofer size mm (in.) 165 (6.5)

Tweeter size mm (in.) 25 (1)

Woofer Voice Coil mm (in.) 36 (1.42)

Tweeter voice coil mm (in.) 20 (0.8)

Woofer magnet - High density flux ferrite

Tweeter magnet - Neodymium

Woofer cone - Pressed-pulp cone with cotton fibres

Tweeter dome Tetolon

Hertz DPower 4

With all the attributes of Hertz renowned clean power, the DPower 4 makes it easy to upgrade stodgy, standard audio to something far more engaging and musical. The compact size makes the DPower 4 easy to hide away and a smart auto turn on feature reduces wiring time. The DPower 4 provides 600 Watts Max. across its four channels into 4 Ohms and each channel is equipped with 12dB/octave Hi and Lo pass filters. Channels can also be bridged for 2-channel or 3-channel configuration.

Technical Specification

Channels 4 - 3 - 2

Output Power (RMS) @ 14.4 VDC, THD 1%:

4 Ch: 50 W x 4 (4Ω)

3 Ch: 50 W x 2 + 130 x 1 (4Ω)

2 Ch: 130 W x 2 (4Ω)

4 Ch: 65 W x 4 (2Ω)

3 Ch: 65 W x 2 + 130 x 1 (2Ω)

Inputs: PRE IN / SPEAKER IN

INPUT MODE : 2Ch / 4Ch

FRONT Ch. Filters FULL: Yes

Hi-Pass: 40 - 220 Hz @ 12 dB/Oct.

REAR Ch. Filters FULL: Yes

Hi-Pass: 40 - 220 Hz @ 12 dB/Oct.

Lo-Pass: 40 - 220 Hz @ 12 dB/Oct.

Power supply voltage / fuse: 11 - 15 VDC / 1 x 20 A

Idling current (power ON/OFF) 1 A / 0.04 mA

Consumption @ 2Ω, 14.4 VDC

(Max Musical Power): 16 A

Remote In: 4 - 15 VDC - 1 mA

ART™: Automatic Remote Turn-On/Off

Distortion - THD (100 Hz @ 4Ω): 0.2 %

Bandwidth: 10 - 30k Hz

S/N Ratio (A weighted @ 1 V) 95 dB

Damping factor (100 Hz @ 4Ω) 60

Pre-In sensitivity: LO: 0.2 ÷ 5 V

HI: 0.8 - 20 V

Load impedance (MIN)

@ 4 Ch: 2Ω

@ 2 Ch: 4Ω

Max size (mm/inches): 222,2 x 142 x 50,5 / 8.75 x 5.59 x 1.99

Weight (kg/lb): 1,58 / 3.48

Adjustable Crossovers yes

CELSUS 4AWG CCA WIRING KIT

A wiring kit is as important as any other component in your audio system, without it nothing will work. Celsus wiring kits are here to help by providing everything you require in one easy pack.

The 4 AWG kit is perfect for system running between 800W and 1500W RMS. If your system is less powerful the you may consider looking at the 10 or 8 AWG kit.

High specification CCA cable

Flexible, easy to work with PVC jacket

Complete amplifier wiring kit including all necessary cables

Complete with accessories for a clean and safe installation
