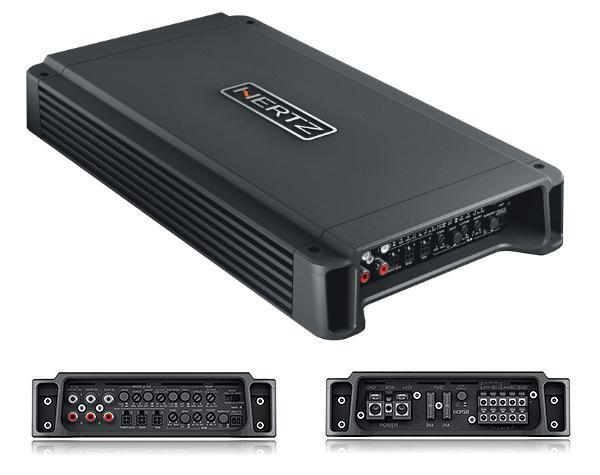

Hertz HCP5D Car 5 Channel Car Audio Amplifier Class D 4x55w and 1 x 160w RMS

HERTZ HCP5D - 5 Channel Amplifier

1500W 5-channel D-Class AmplifierOutput Power (RMS) @ 14.4 VDC, THD 1%:5 Ch: 55 W x 4 + 160 W x 1 (4 Ω)5 Ch: 90 W x 4 + 280 W x 1 (2 Ω)3 Ch: 180 W x 2 (4 Ω) + 160 W x 1 (4 Ω)3 Ch: 180 W x 2 (4 Ω) + 280 W x 1 (2 Ω)Output Power (RMS) @ 14.4 VDC, THD 10%:5 Ch: 65 W x 4 + 200 W x 1 (4 Ω)5 Ch: 105 W x 4 + 330 W x 1 (2 Ω)3 Ch: 210 W x 2 (4 Ω) + 200 W x 1 (4 Ω)3 Ch: 210 W x 2 (4 Ω) + 330 W x 1 (2 Ω)

Power supply voltage: 11-15 VDC . 2 x 25AIdling current when off: 1.6A/0.04 mAConsumption @ 2Ω, 14.4 VDC (Max Musical Power): 30 ARemote In: 7 - 15 VDC - 1 mAART: Automatic Remote Turn-On/Off with Speaker-InAmplifier stageDistorsion - THD (100 Hz @ 4Ω): 0.02 %Bandwidth FRONT/REAR: 10 - 50k HzBandwidth SUB: 10 - 500 HzS/N Ratio (A weighted @ 1 V): 100 dBDamping factor (100 Hz @ 4Ω): 250Pre-In sensitivity: 0.6 - 5 V RMSSpeaker-In sensitivity: 1.5 ÷ 12 V RMSLoad impedance (MIN) @ 5 Ch: 2 Ω / @ 3 Ch: 4 Ω + 4 Ω + 2 ΩINPUTS: PRE IN / SPEAKER INFRONT Ch. filters FULL: YesHi-Pass: 50 - 5k Hz @ 12 dB/Oct.REAR Ch. filters FULL: YesHi-Pass: 50 - 5k Hz @ 12 dB/Oct.Band-Pass: 50 - 500 Hz (Hi) @ 12 dB/Oct.50 - 5 kHz (lo) @ 12 dB/Oct.SUB Ch. filter LO-PASS: 50 - 500 Hz @ 24 dB/Oct.SUBSONIC (on/off): 25 Hz @ 24 dB/Oct.BOOST 50 Hz (adjust): (0 - 12) dBRemote Volume Control: (-50 - 6) dB1. Compact design built from an extruded aluminum heatsink with the top side ensuring effective transfer of the heat generated by the power electronic components.2. Special balanced input circuitry to reject electromagnetic disturbances present on the Pre-amplified or Speaker level inputs.3. Input featuring both Speaker-In (OEM radio) and RCA-In (Aftermarket radio) inputs.4. Selectable ART, Automatic Remote Turn-On/Off function, automatically turns on and off the amplifier when the OEM radio turns on and off (available on Speaker-In only).5. Power supply stage featuring multiple winding transformer, Low-ESR 105°C capacitors, D-Class 2 Ω stable.6. 5 ch / 3 ch operation mode (selectable), to realize a five-channel system (with sub), or a powerful sub + front three-channel system.7. Versatile front and rear filters, providing the ability to realize Hi-Pass front + rear system or multichannel woofer + tweeter system, both including sub.8. Bass Boost (50 Hz) adjustable to 12 dB, to increase the subwoofer punch.9. Selectable full range front + rear power outputs.10. 24 dB continuously adjustable (50 to 500 Hz) Lo-Pass subwoofer filter.11. SUBSONIC filter (24 dB - 25 Hz), removes very low subsonic frequencies from music signal to avoid damages to the subwoofer.12. Optional Remote Volume Control (HRC) allows the user to adjust subwoofer level from dashboard.
