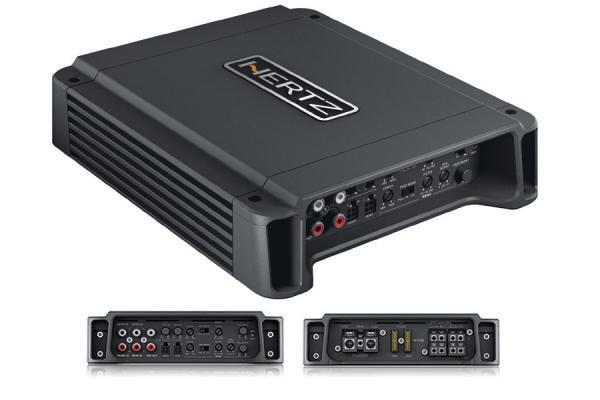

Hertz HCP4D Car 4 Channel Car Audio Amplifier Class D 4x85w RMS

HERTZ HCP4D - 4 Channel Amplifier

1160W 4-channel D-Class AmplifierOutput Power (RMS) @ 14.4 VDC, THD 1%:4 Ch: 75 W x 4 (4 Ω)4 Ch: 130 W x 4 (2 Ω)3 Ch: 75 W x 2 (4 Ω) + 260 W x 1 (4 Ω)3 Ch: 130 W x 2 (2 Ω) + 260 W x 1 (4 Ω)2 Ch: 260 W x 2 (4 Ω)Output Power (RMS) @ 14.4 VDC, THD 10%:4 Ch: 85 W x 4 (4 Ω)4 Ch: 145 W x 4 (2 Ω)3 Ch: 85 W x 2 (4 Ω) + 290 W x 1 (4 Ω)3 Ch: 145 W x 2 (2 Ω) + 290 W x 1 (4 Ω)2 Ch: 290 W x 2 (4 Ω)

Power supply voltage: 11-15 VDC . 2 x 20AIdling current when off: 1.6A/0.04 mAConsumption @ 2Ω, 14.4 VDC (Max Musical Power): 22 ARemote In: 7 - 15 VDC - 1 mAART: Automatic Remote Turn-On/Off with Speaker-InAmplifier stageDistorsion - THD (100 Hz @ 4Ω): 0.02 %Bandwidth (-3 dB): 10 - 60 kHzS/N Ratio (A weighted @ 1 V): 10 dBDamping factor (100 Hz @ 4Ω): 200Pre-In sensitivity: 0.6 - 5 V RMSSpeaker-In sensitivity: 1.5 - 12 V RMSLoad impedance (MIN) @ 4 Ch: 2 Ω / @ 3 Ch: 2 Ω + 2 Ω + 4 Ω / @ 2 Ch: 4 ΩINPUTS: PRE IN / SPEAKER INPre out FULL range (FRONT): YesFRONT Ch. filters FULL: YesHi-Pass: 50 - 3.2k Hz @ 12 dB/Oct.Lo-Pass: 50 - 3.2k Hz @ 12 dB/Oct.REAR Ch. filters FULL: YesHi-Pass: 50 - 3.2k Hz @ 12 dB/Oct.Lo-Pass: 50 - 3.2k Hz @ 12 dB/Oct.FRONT Ch. MONO (on/off): YesREAR Ch. MONO (on/off): YesBOOST 50 Hz (adjust): (0 - 12) dB1. Compact design built from an extruded aluminum heatsink with the top side ensuring effective transfer of the heat generated by the power electronic components.2. Special balanced input circuitry to reject electromagnetic disturbances present on the Pre-amplified or Speaker level inputs.3. Input featuring both Speaker-In (OEM radio) and RCA-In (Aftermarket radio) inputs.4. Selectable ART, Automatic Remote Turn-On/Off function, automatically turns on and off the amplifier when the OEM radio turns on and off (available on Speaker-In only).5. Power supply stage featuring multiple winding transformer, Low-ESR 105°C capacitors, D-Class 2 Ω stable.6. Pre-out, also available when using Speaker level inputs.7. Mono operation mode (selectable) to realize a sub + front three-channel system, or a powerful two-channel system.8. Bass Boost (50 Hz) selectable to 12 dB, to increase the subwoofer punch.9. Lo-Pass and Hi-Pass 12 dB adjustable (50 Hz to 3200 Hz) filters, providing the ability to realize a front + rear system, a multichannel woofer + tweeter system or a powerful sub + front system.10. Selectable full range power outputs.

FOR MORE INFORMATION PLEASE CALL US
