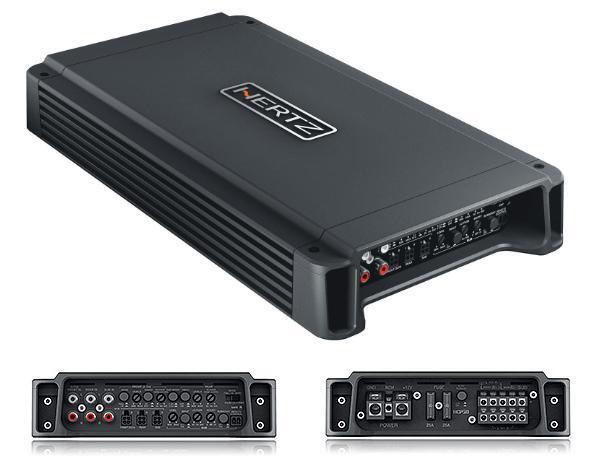

Hertz HCP1DK Car Mono Car Audio Amplifier Class D 740w RMS 4 Ohm

HERTZ HCP1DK - Mono Amplifier

Data table

Channel mode 1Output Power (RMS) @ 14.4 VDC 1 Ch: 740 W x 1 (4Ω)1 Ch: 1240 W x 1 (2Ω)FiltersBypass - 50 ÷ 250 Hz @ 12 dB/Oct.Hi-Pass - 50 ÷ 250 Hz @ 24 dB/Oct.Lo-PassBand-PassSubsonic - 25 Hz @ 24 dB/Oct.

Distortion - THD (100Hz @ 4Ω) 0,25 %

S/N Ratio (A weighted @ 1V) > 100 dB

Damping factor (100Hz @ 4Ω) > 100

Size W x D x H mm (in.) 315 x 190 x 50 (12.40 x 7.48 x 1.97)

HCP 1DK is a mono car audio amplifier with an incredibly minimized size heat sink. All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system.

The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier. HCP 1DK has been designed to work in multiple configurations.

More specifically, it features Hi-Pass pre-amplified outputs, providing the ability to create a Band-Pass on the front woofer. Besides, using the HRC accessory (Hertz Remote Control), the subwoofer volume can be remote controlled with extreme preciseness.
