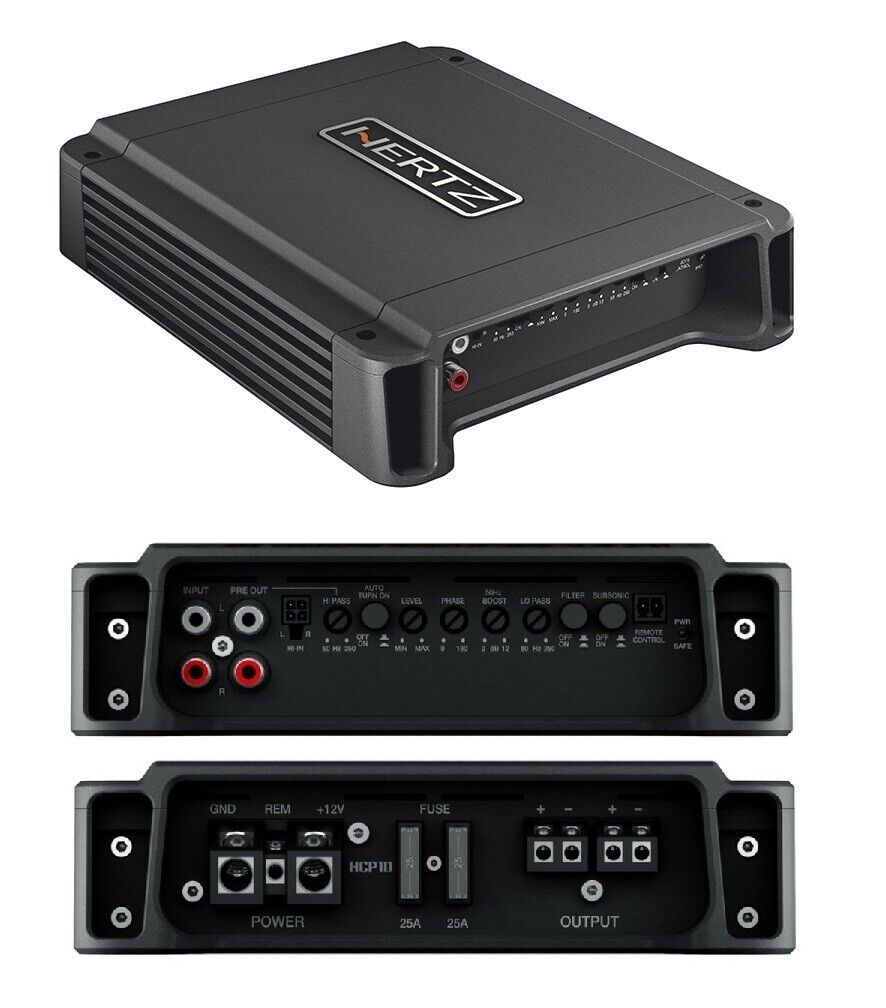

Hertz HCP1D Car Mono Car Audio Amplifier Class D 380w RMS 4 Ohm

HERTZ HCP1D - Mono Amplifier

Data table

Channel mode 1Output Power (RMS) @ 14.4 VDC 1 Ch: 380 W x 1 (4 Ω)1 Ch: 700 W x 1 (2 Ω)Filters Bypass - YesHi-Pass - Lo-Pass - 50 ÷ 250 Hz @ 24 dB/Oct.Band-Pass Subsonic - 25 Hz @ 24 dB/Oct.

Distortion - THD (100Hz @ 4Ω) 0.2%S/N Ratio (A weighted @ 1V) 100 dBDamping factor (100Hz @ 4Ω) 80Size W x D x H mm (in.) 215 x 190 x 50 (8.46 x 7.48 x 1.97)

HCP 1D is a mono D Class car audio amplifier , with an incredibly minimized size heat sink. All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system.

The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier. HCP 1D has been designed to work in multiple configurations.

More specifically, it features Hi-Pass pre-amplified outputs, providing the ability to create a Band-Pass on the front woofer.

Besides, using the HRC accessory (Hertz Remote Control), the subwoofer volume can be remote controlled with extreme preciseness.
