Hertz 6.5" Component & Coaxial Car Speakers & Amplifer Package DPK 165.3 HCP4D

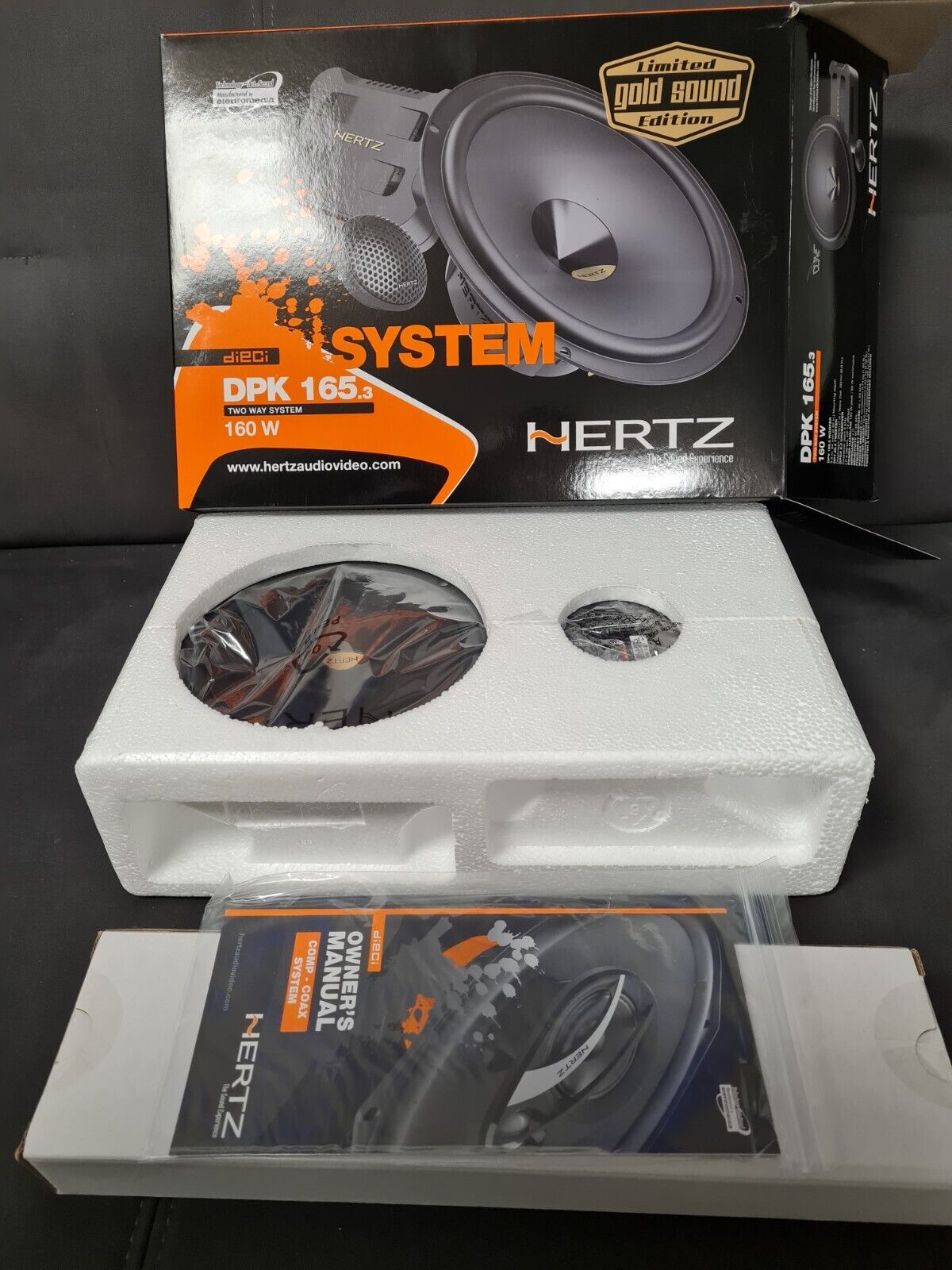

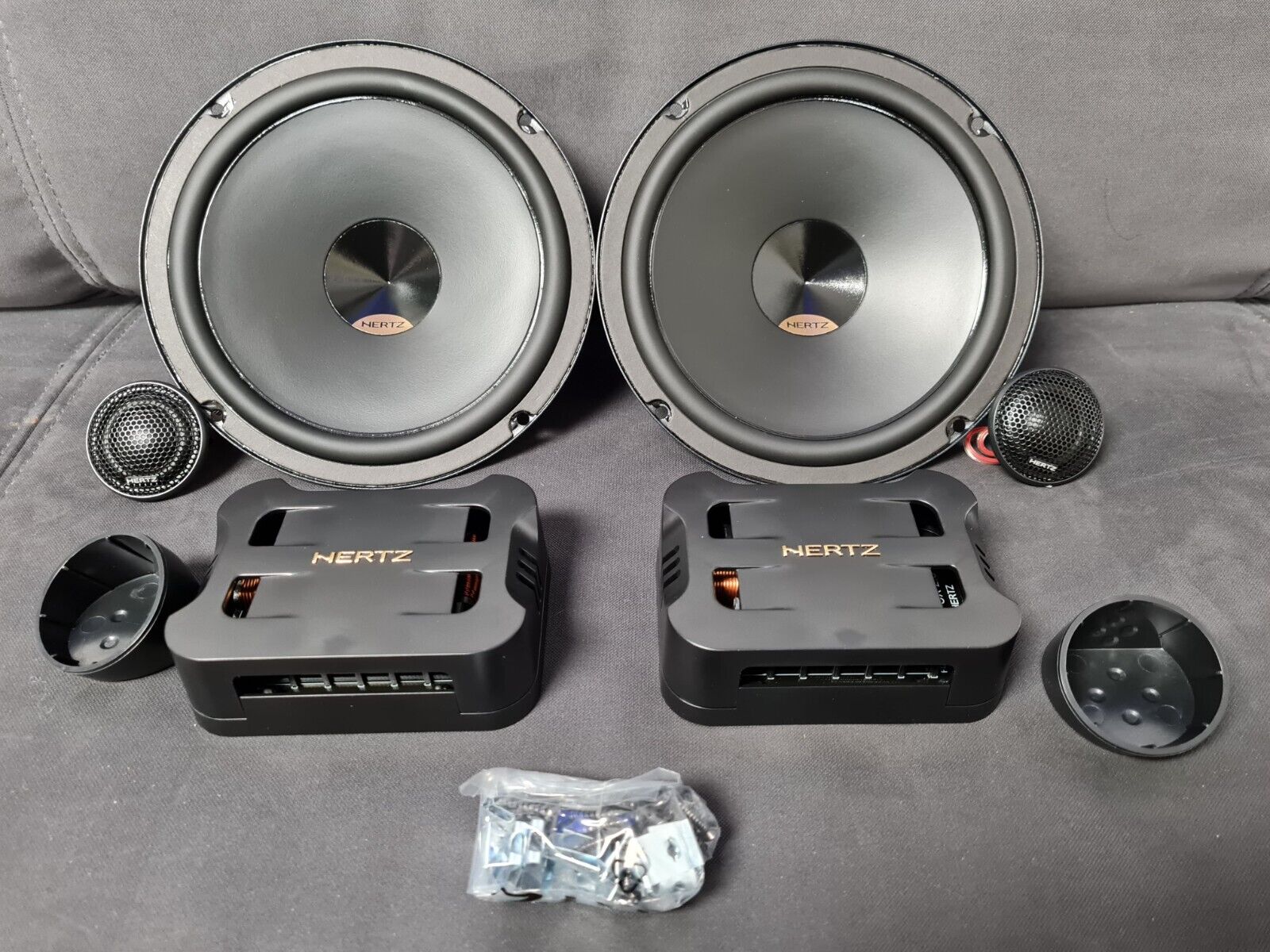

6.5" Component & Coaxial Car Speakers & Amplifer Package HERTZ DPK 165.3 Limited Edition, HCP4D, DCX165.3

Online Exclusive to Rudiemods

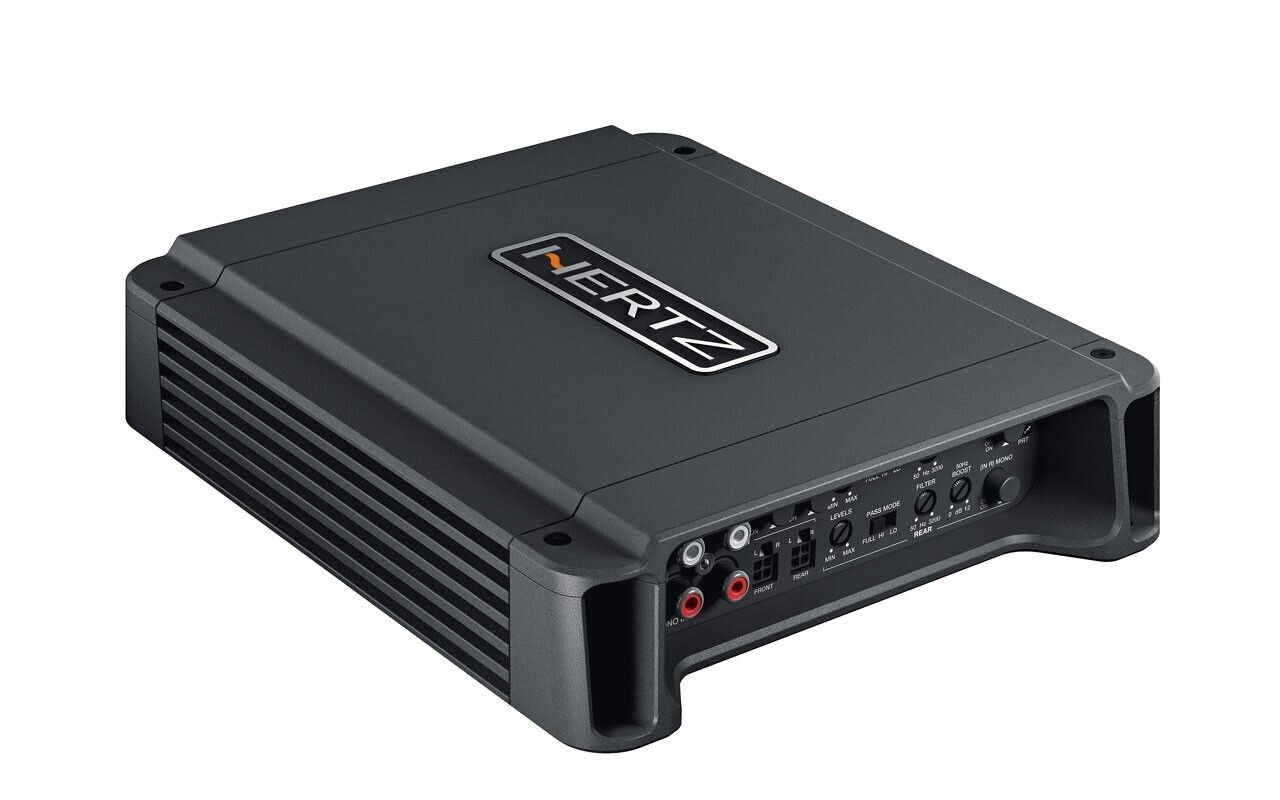

HCP 4DCh: 4 - 3 - 2 ' 1160 W

HCP 4D is a D Class car audio amplifier, able to offer up to 1160W (RMS); it is the ideal choice for those who want high power levels in complex systems. Extremely versatile, complete in its functions, provided with Speaker-In and RCA-In inputs to work with any head units, it has been designed to work also in mono (selectable mode), for a three-channel system with sub and front, or a powerful two-channels system.

All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier.

4 Ch:75 W x 4 (4 Ω)

4 Ch:130 W x 4 (2 Ω)

3 Ch:75 W x 2 (4 Ω) + 260 W x 1 (4 Ω)

3 Ch:130 W x 2 (2 Ω) + 260 W x 1 (4 Ω)

2 Ch:260 W x 2 (4 Ω)

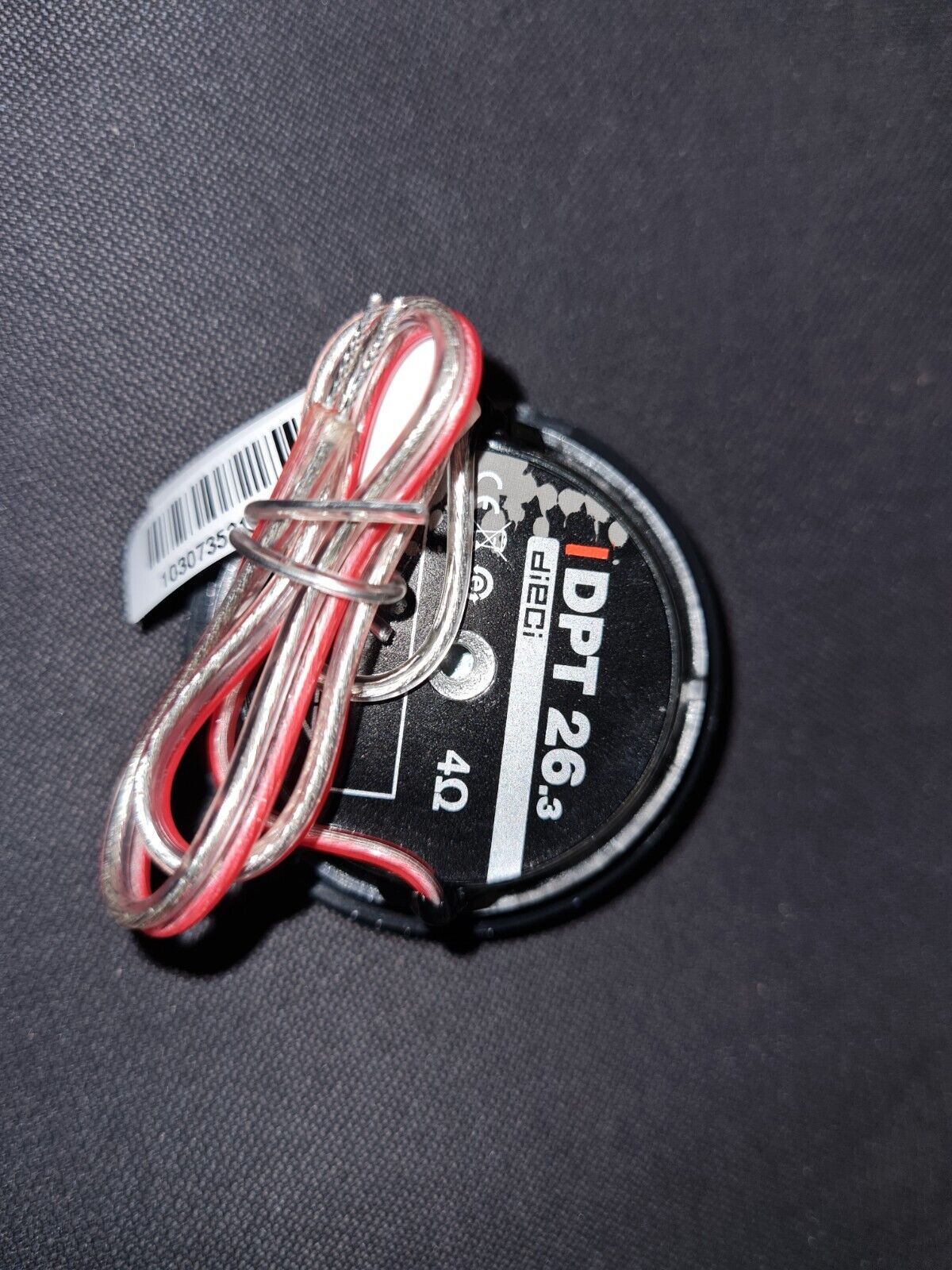

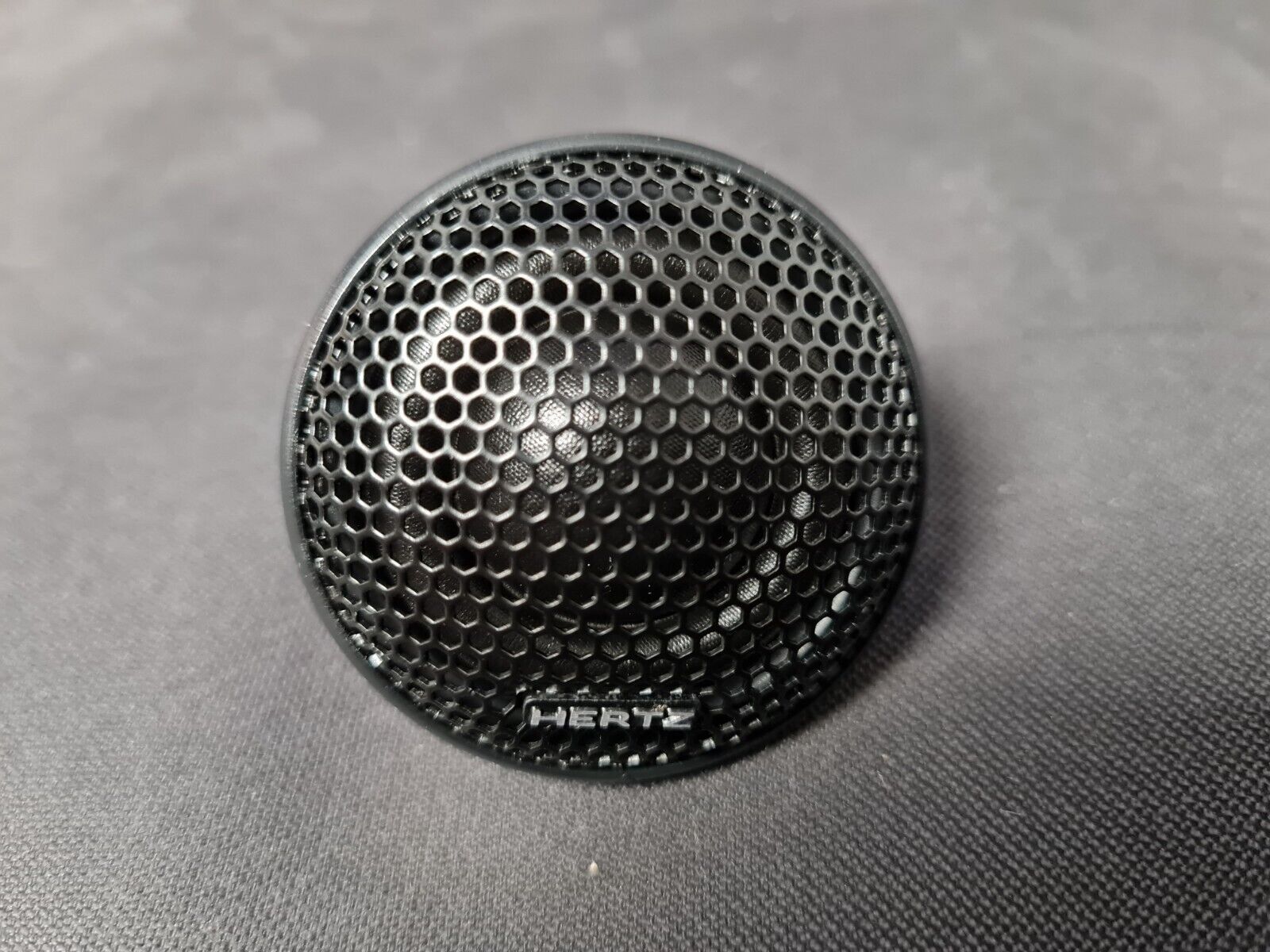

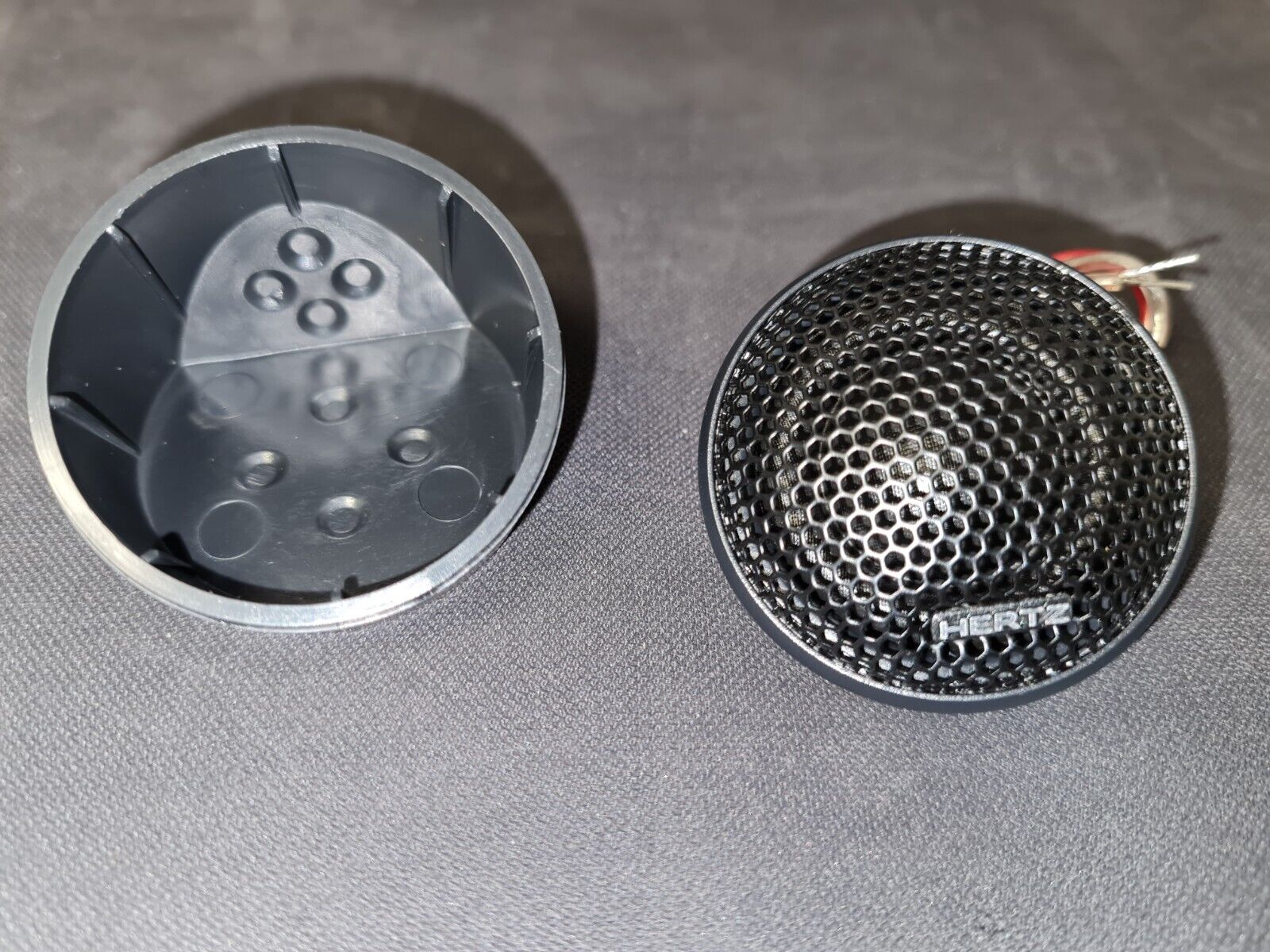

DPT 26.3 Tweeters

- 26mm Soft Tetolon® fiber dome tweeter for natural sound.

- Low resonance frequency (1,5 kHz) for best vocal reproduction.

- Neodymium magnet for compact size and well extend high frequencies up to

23kHz.

- Mounting accessories for external or embedded mounting included.

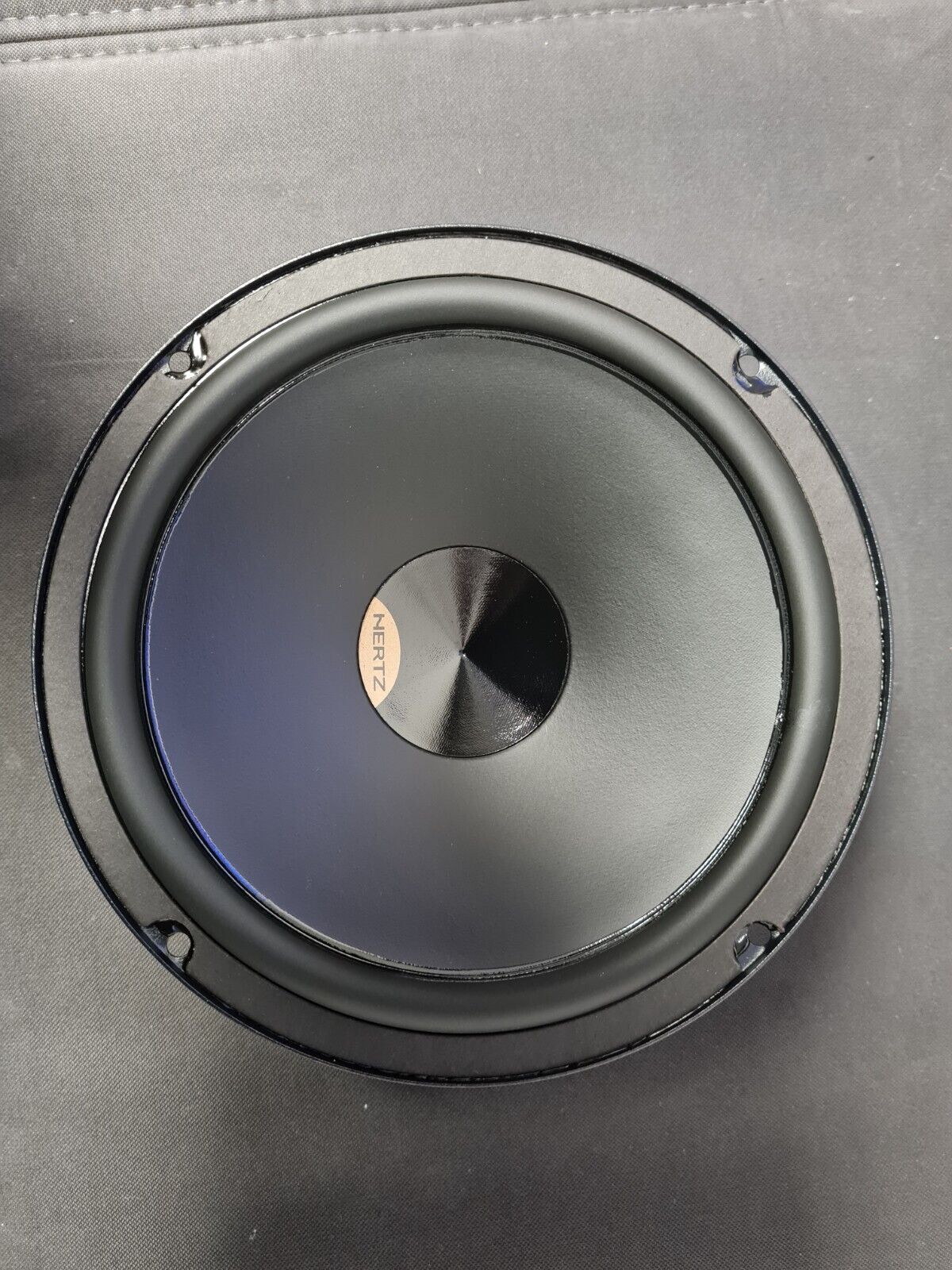

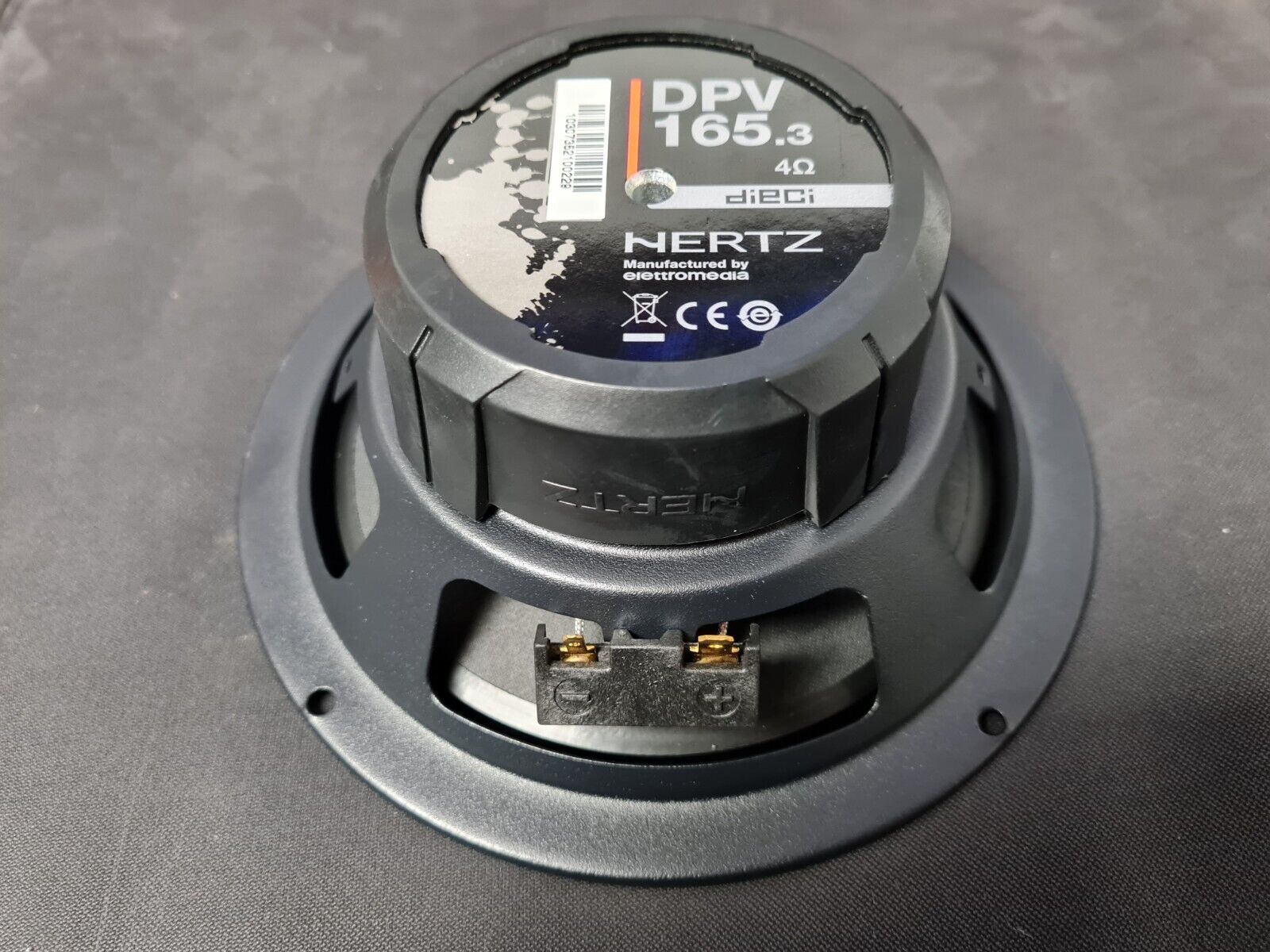

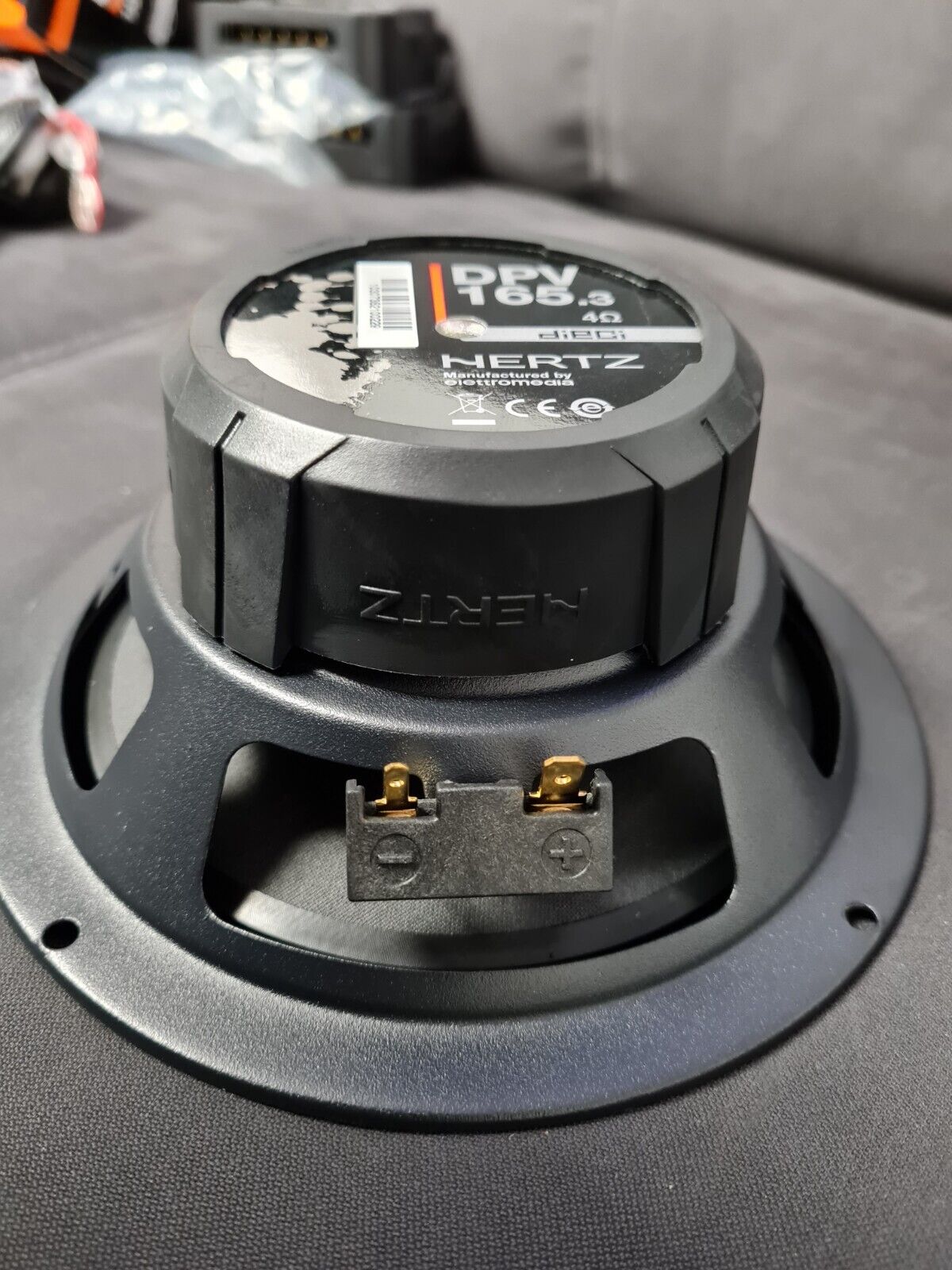

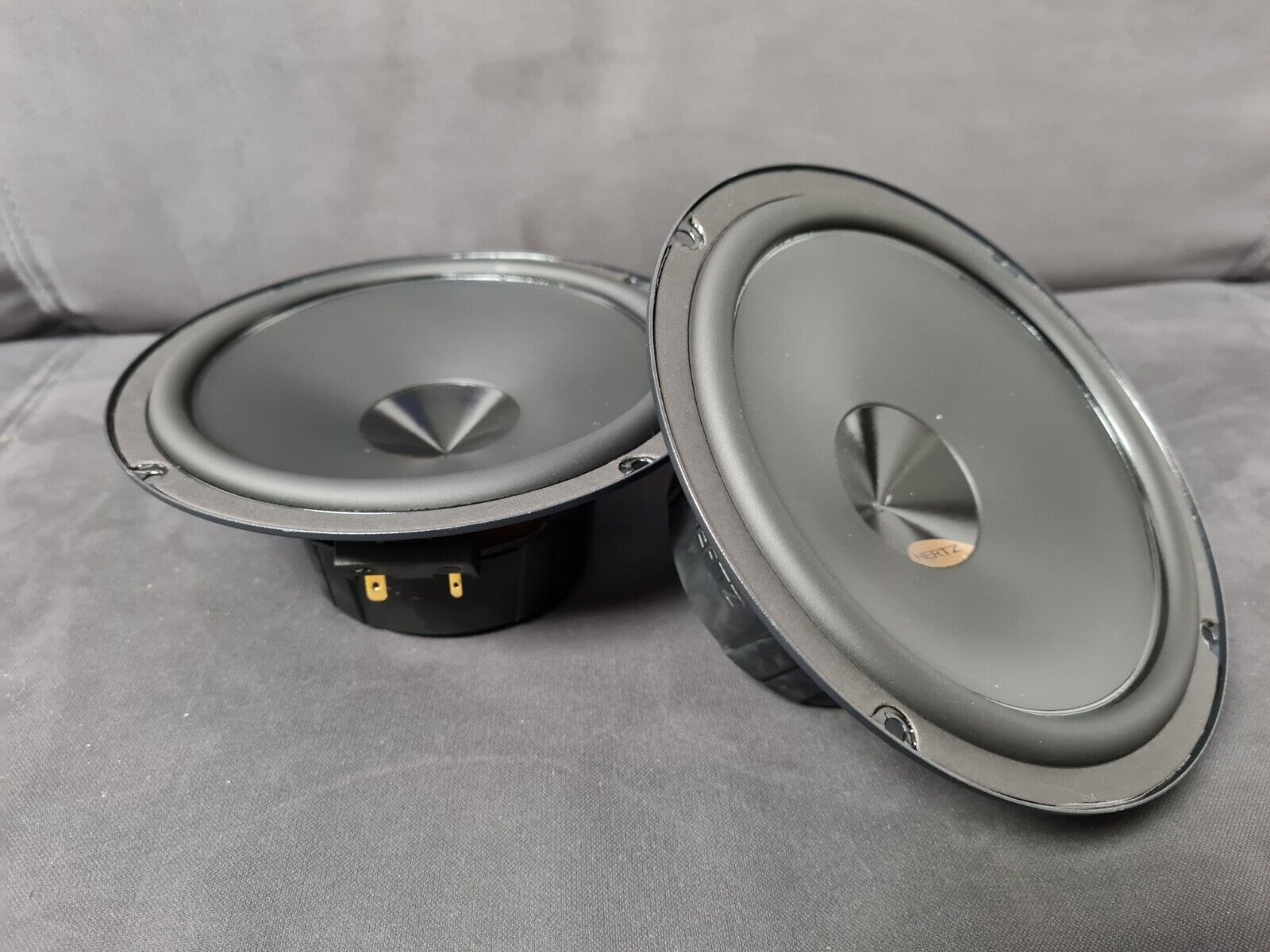

DPV 165.3 Woofers

- V-cone® for best off-axis response and smooth midrange.

- 60Hz Resonance frequency for tight and deep bass response.

- Pure copper voice coil and powerful magnet for low distortion.

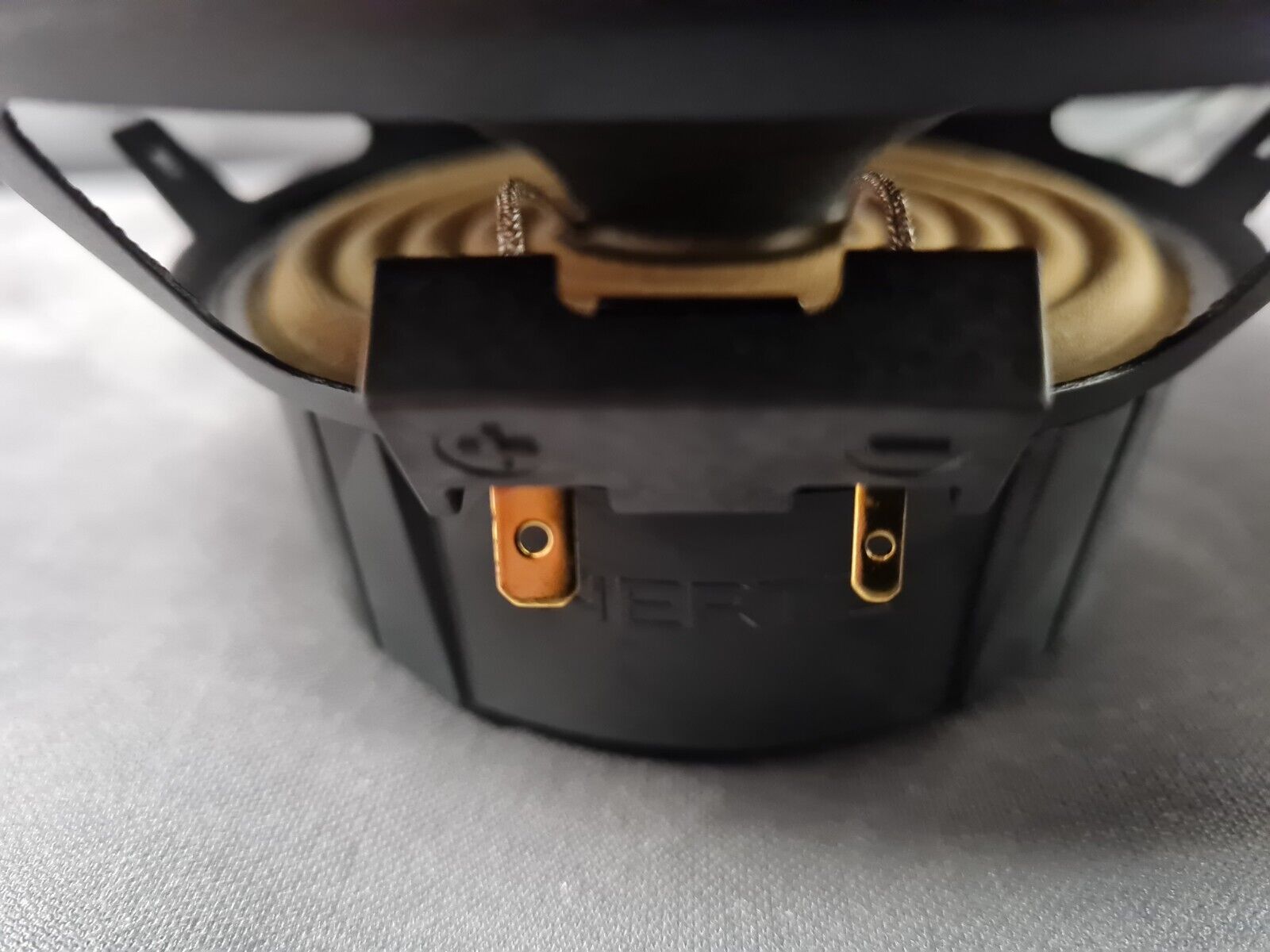

- Gold-plated, high current terminals, featuring protective ABS cover.

- Black rubber magnet cover offers nice cosmetic finish and protection.

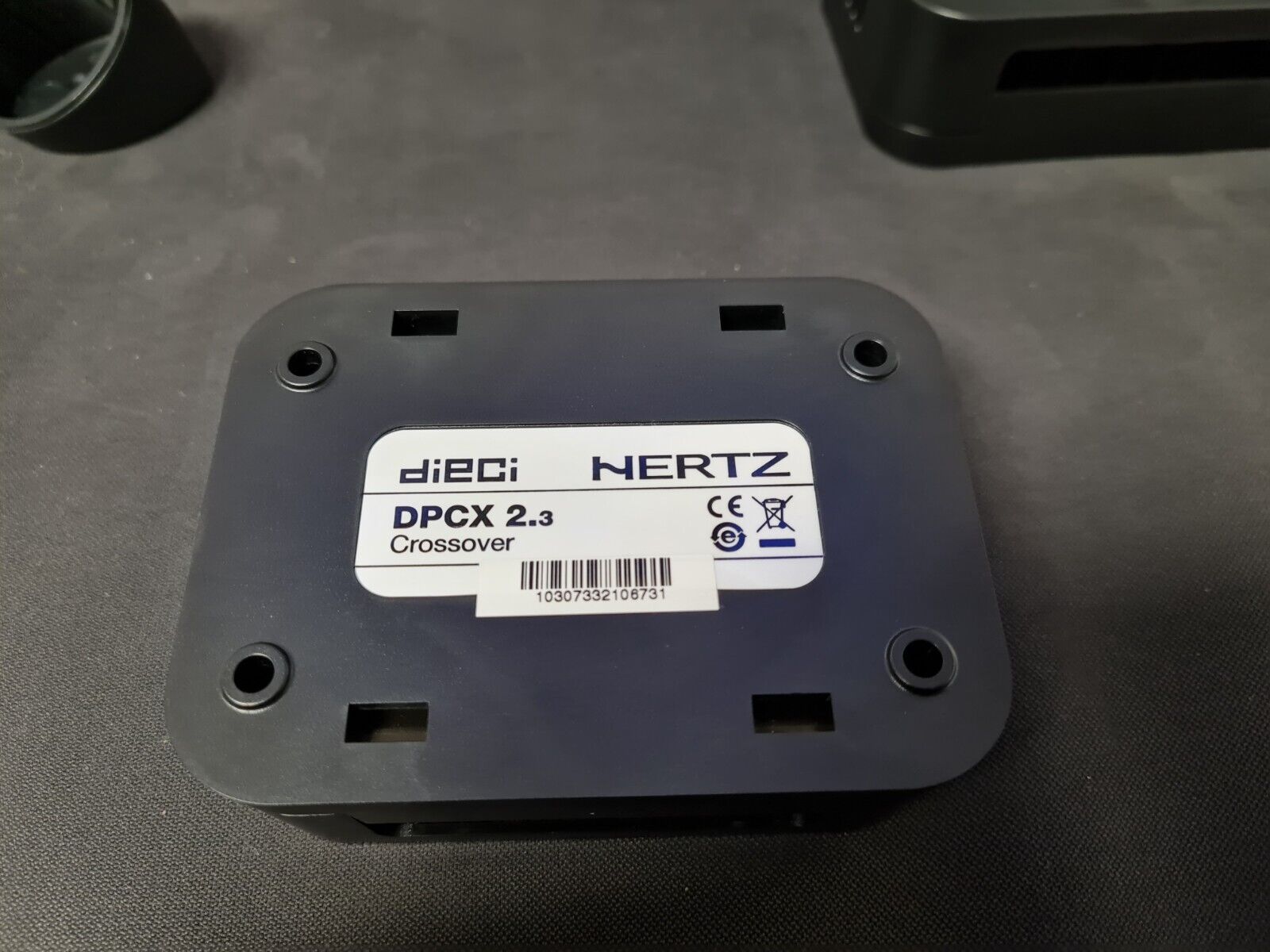

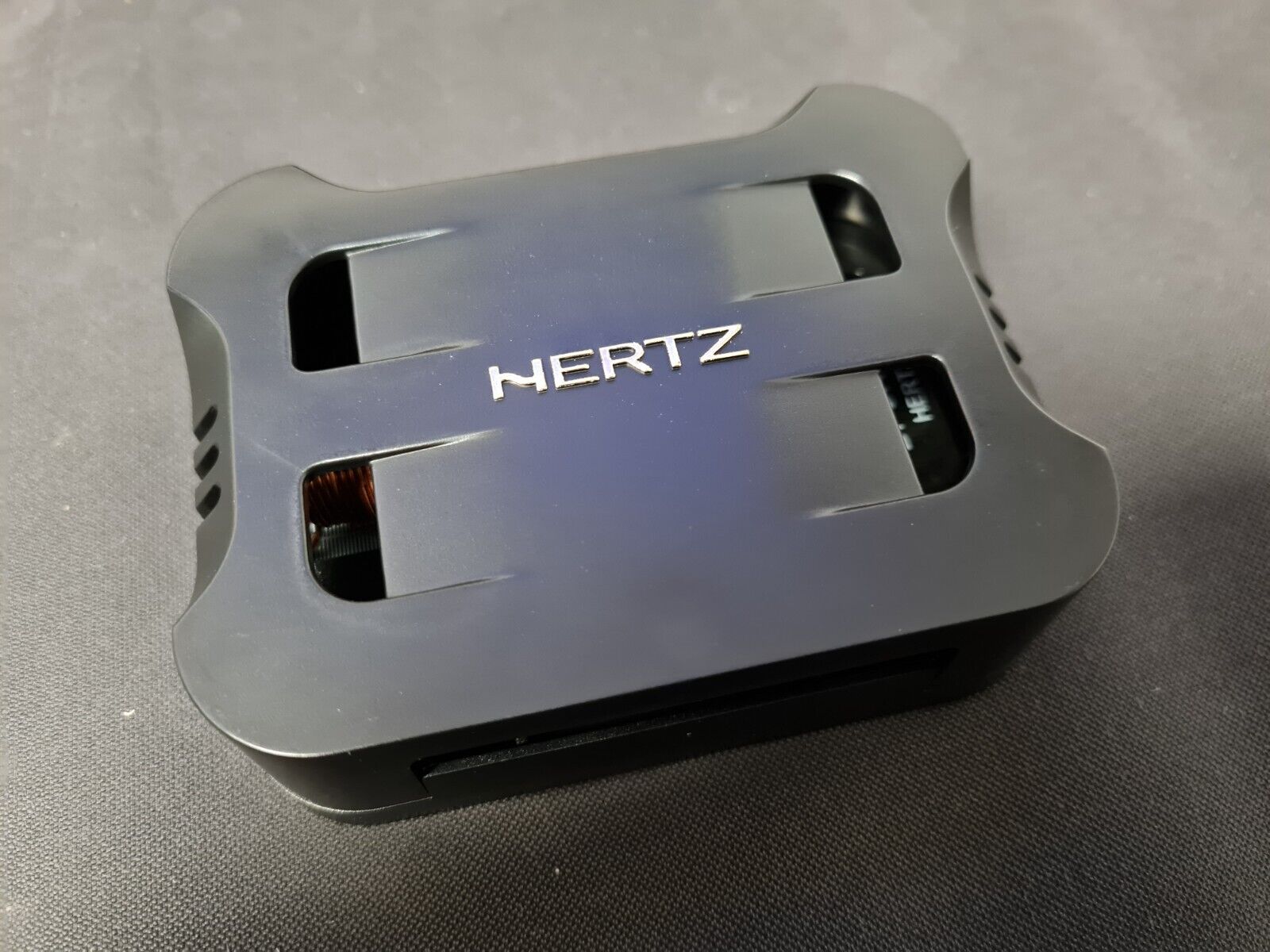

DPCX 2.3 Crossover

- Compact case design featuring air-venting holes and Gold Plated terminal block

for best signal transfer.

- Woofer 6dB/oct. low pass filter based on pure copper high-current inductors.

- Tweeter 12/oct. high pass filter featuring 100V polypropylene bi-metallized capacitor for best sound transparency.

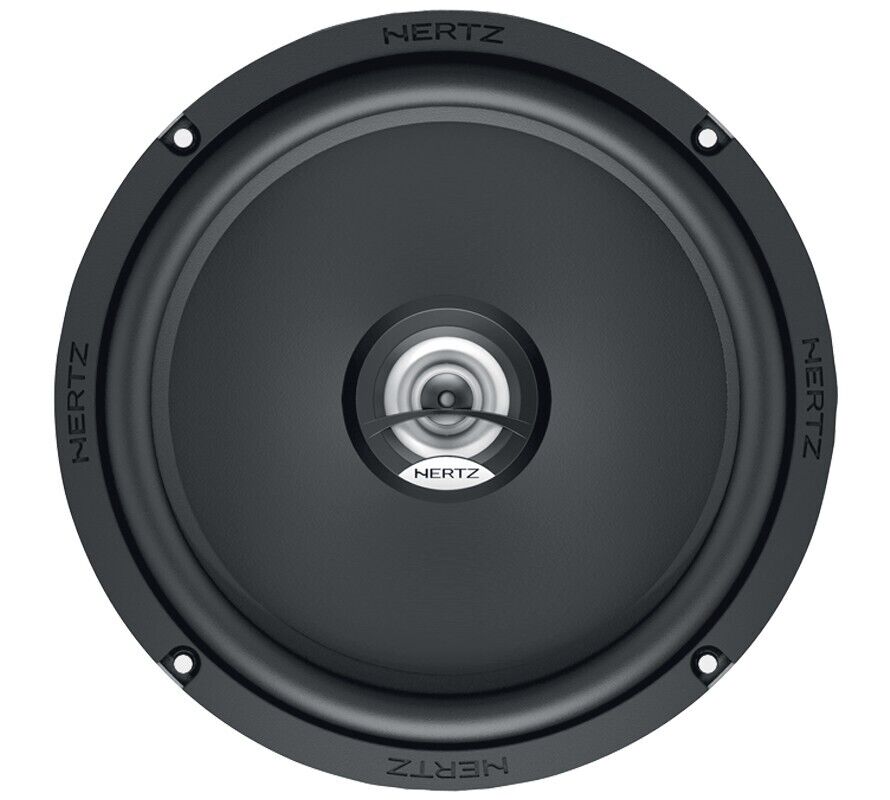

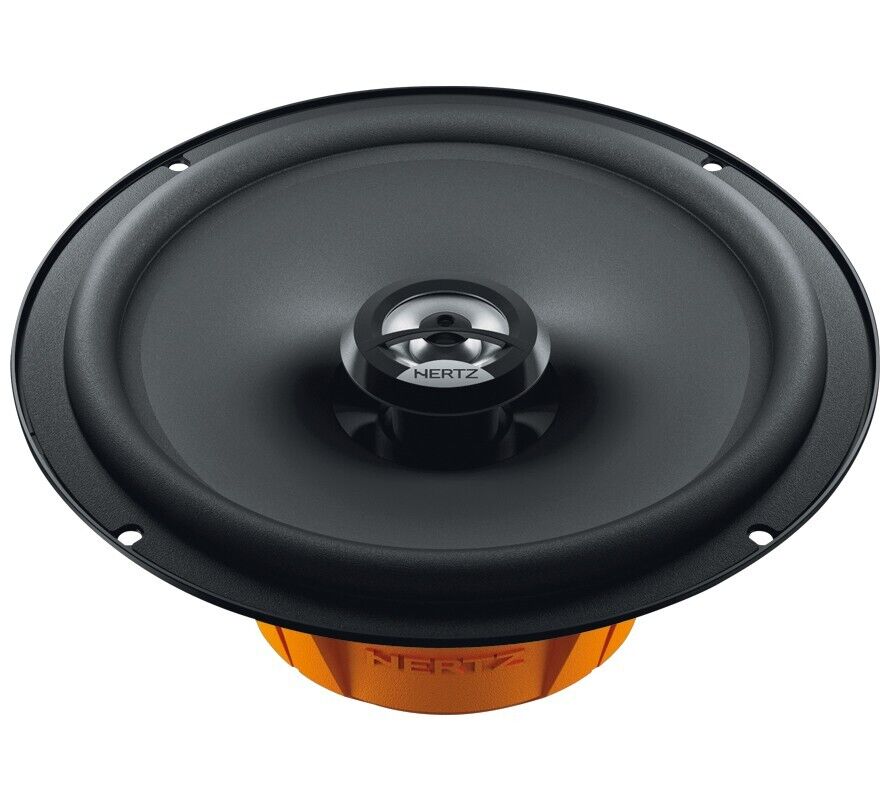

DCX 165.3165 (6.5) mm (in.) ' 72 (2.8) mm (in.) ' Two Way Coaxial ' 120 W ' 4 Ohm

To meet all installation needs, without giving up on Hertz quality and performance, the Dieci coaxes were designed with maniacal care to provide a linear frequency response and ensure high reliability. A Neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround and a pressed-paper cone provide the optimum ratio between installation friendliness and sound with dynamic and emotional impact.
