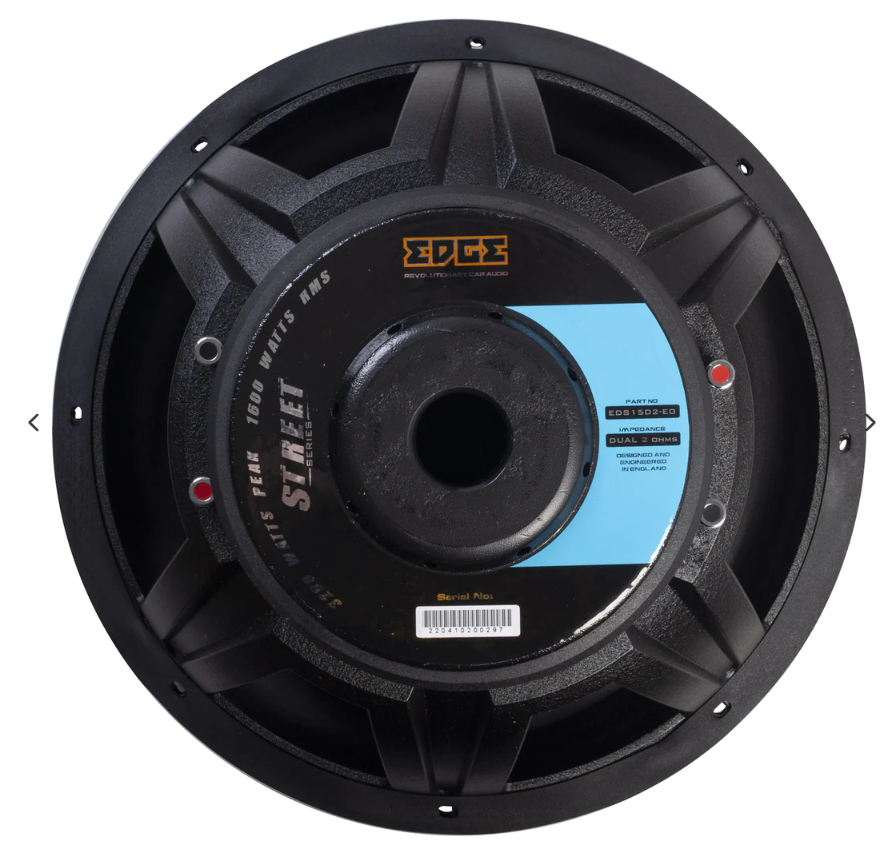

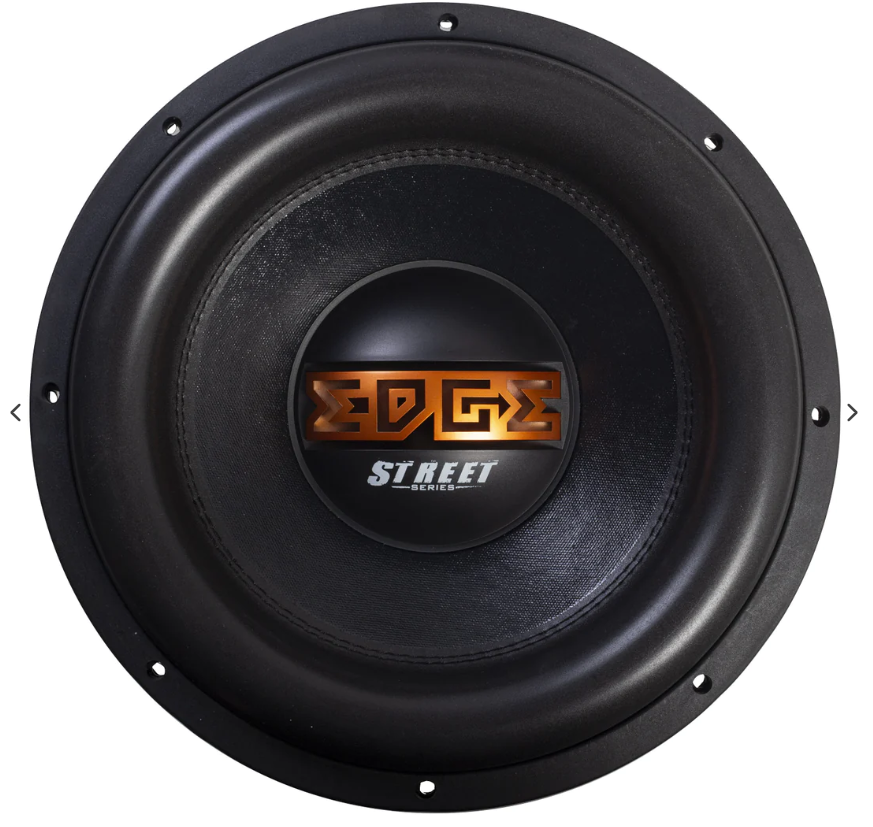

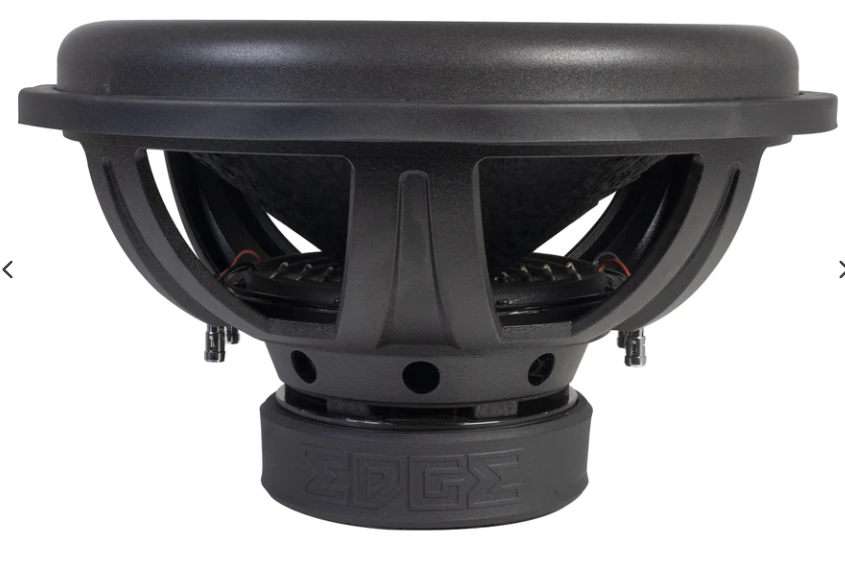

EDS18D2-E0 | EDGE Street Series 18 inch 3600 watts Subwoofer

Introducing the trunk thumping Street series subwoofers from EDGE.

The Street series subs have been designed from the ground up to produce awesome musical bass, using double stacked magnets to generate large magnetic force we are able to control the subwoofer with pin point accuracy while maintaining a high level of excursion and SPL.

Using polycotton spiders, non-pressed paper cones and stitched tinsel leads, we are able to create a high quality product that produces accurate loud bass.

All models have built in active crossovers and bass boost and can be used to power subwoofers, midrange drivers or tweeters.

For anyone looking for hard hitting street bass look no further than our Street series subs.

Features

Non pressed paper cone

Wide roll foam surround

Black polycotton spiders

Dual Y35 Ferrite magnets

3 inch Black Aluminium voice coil

Specification−

Model: EDS18D2-E0

Cone: Non pressed paper

Surround: Big roll foam - stitched

Dustcap: Part IMPP

Voice Coil: 45mm Copper winding

Spider: 4pcs Black PC

Gasket: Rubber

Top Plate: 12mm Black anodized

T-Yoke: 10mm bumped

Terminal / Wire: Terminal

Impedance: Dual 2 Ohms

RMS Power: 1800 watts

Peak Power: 3600 watts

TS Parameters

−

Equivalent Volume - Vas: 24.7L

Free Air Resonance - Fs: 26Hz

Mechanical Factor - Qms: 4.595

Electrical Factor - Qes: 0.736

Total Factor - Qts: 0.634

Moving Mass - Mms: 582.066g

Compliance - Cms:   60.489μ M/N

BI Factor - BI: 21.907 T

Voice Coil Inductance - Le:   2.850 mH

Diaphragm Area - Sd:   471CM2

DC Resistance - Re:   3.6 Ω

SPL: 86.7dB

Installation−

Magnet Size: 190mm x 20mm 2pcs

Magnet Weight: 150oz
