EDGE EDX10D2 XTREME SERIES 10” MAX DUAL 2OHM Car SPL SUBWOOFER 1500W RMS

EDGE EDX10D2 XTREME SERIES 10" 3000 WATT MAX DUAL 2OHM Car SPL SUBWOOFER

Introducing from EDGE the Xtreme series subwoofers, for those looking for deep, high power, street thumping bass our subwoofers are for you, multiple models and sizes available complete with a brand new range.

Our Xtreme series subwoofers were designed with a combination of street bass and competition bass in mind. All the subwoofers feature massive triple stacked motor structures across 3 baskets types all constructed from bast aluminium for strength and rigidity, paired with Polycotton spiders, stitched tinsel leads, non pressed paper cones and 3 inch Voice coils we have a variant of power and sizes available. The new for 2021 feature a brand new custom tooled basket for increased excursion on the low bass and an even wider foam surround to cope with this excursion! This is paired with our brand new custom tooled 2 piece dustcap giving us a unique subwoofer!

If Pushing the limits of excursion and SPL our Xtreme series subwoofers have been designed with you in mind!

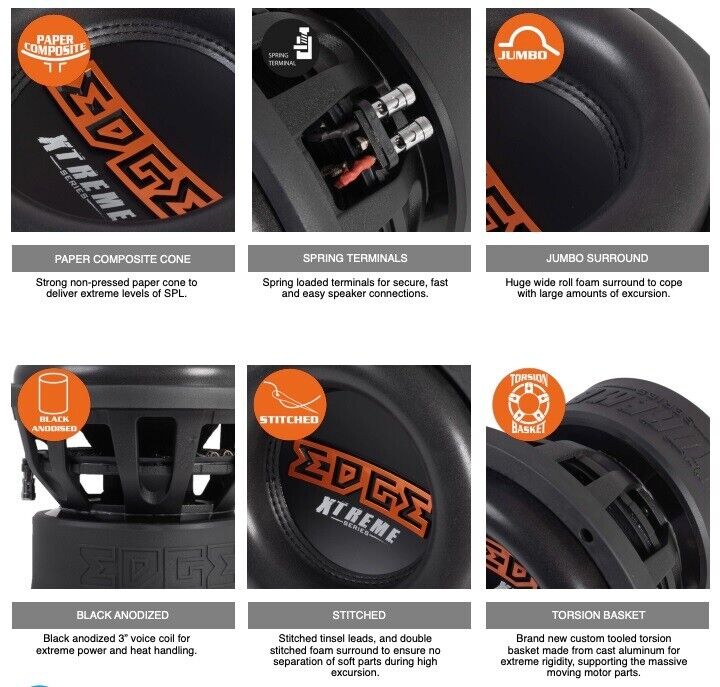

Features

Non pressed paper cone

Wide roll dual foam surround

High quality Y35 triple stacked Ferrite magnets

76mm USA built 4 layer flat wound voice coil

Specification

Model: EDX10D2-E0

Cone: Non pressed paper cone

Surround: Big roll foam - dual stitched

Voice Coil Former: 3" Black Aluminium

Spider: 2pcs Black PC

Gasket: Rubber

Top Plate: 8mm Black anodized

T-Yoke: 10mm Black anodized flat

Terminal / Wire: Spring loaded connectors

Impedance: Dual 2 Ohms

RMS Power: 1500 watts

Peak Power: 3000 watts

TS Parameters

Equivalent Volume - Vas: 13.3L

Free Air Resonance - Fs: 32Hz

Mechanical Factor - Qms: 5.069

Electrical Factor - Qes: 0.389

Total Factor - Qts: 0.362

Moving Mass - Mms: 218g

Compliance - Cms:   107.3μ M/N

BI Factor - BI: 20.42 T

Voice Coil Inductance - Le:   110 mH

Diaphragm Area - Sd:   295CM2

DC Resistance - Re:   2*1.8 Ω

SPL: 83dB

Installation

Magnet: 190mm x 95mm x 20mm 3pcs

Overall Diameter: 234mm

Mounting Depth: 170mm
