Edge EDS3000.1FD-E3 Street Series 6600 watts Monoblock + Two EDX10D2

EDGE EDX10D2 XTREME SERIES 10" 3000 WATT MAX DUAL 2OHM Car SPL SUBWOOFER

This Package will give each subwoofer 1025W of power a total RMS of 2050w!

Introducing from EDGE the Xtreme series subwoofers, for those looking for deep, high power, street thumping bass our subwoofers are for you, multiple models and sizes available complete with a brand new range.

Our Xtreme series subwoofers were designed with a combination of street bass and competition bass in mind. All the subwoofers feature massive triple stacked motor structures across 3 baskets types all constructed from bast aluminium for strength and rigidity, paired with Polycotton spiders, stitched tinsel leads, non pressed paper cones and 3 inch Voice coils we have a variant of power and sizes available. The new for 2021 feature a brand new custom tooled basket for increased excursion on the low bass and an even wider foam surround to cope with this excursion! This is paired with our brand new custom tooled 2 piece dustcap giving us a unique subwoofer!

If Pushing the limits of excursion and SPL our Xtreme series subwoofers have been designed with you in mind!

Features

Non pressed paper cone

Wide roll dual foam surround

High quality Y35 triple stacked Ferrite magnets

76mm USA built 4 layer flat wound voice coil

Specification

Model: EDX10D2-E0

Cone: Non pressed paper cone

Surround: Big roll foam - dual stitched

Voice Coil Former: 3" Black Aluminium

Spider: 2pcs Black PC

Gasket: Rubber

Top Plate: 8mm Black anodized

T-Yoke: 10mm Black anodized flat

Terminal / Wire: Spring loaded connectors

Impedance: Dual 2 Ohms

RMS Power: 1500 watts

Peak Power: 3000 watts

TS Parameters

Equivalent Volume - Vas: 13.3L

Free Air Resonance - Fs: 32Hz

Mechanical Factor - Qms: 5.069

Electrical Factor - Qes: 0.389

Total Factor - Qts: 0.362

Moving Mass - Mms: 218g

Compliance - Cms:   107.3μ M/N

BI Factor - BI: 20.42 T

Voice Coil Inductance - Le:   110 mH

Diaphragm Area - Sd:   295CM2

DC Resistance - Re:   2*1.8 Ω

SPL: 83dB

Installation

Magnet: 190mm x 95mm x 20mm 3pcs

Overall Diameter: 234mm

Mounting Depth: 170mm

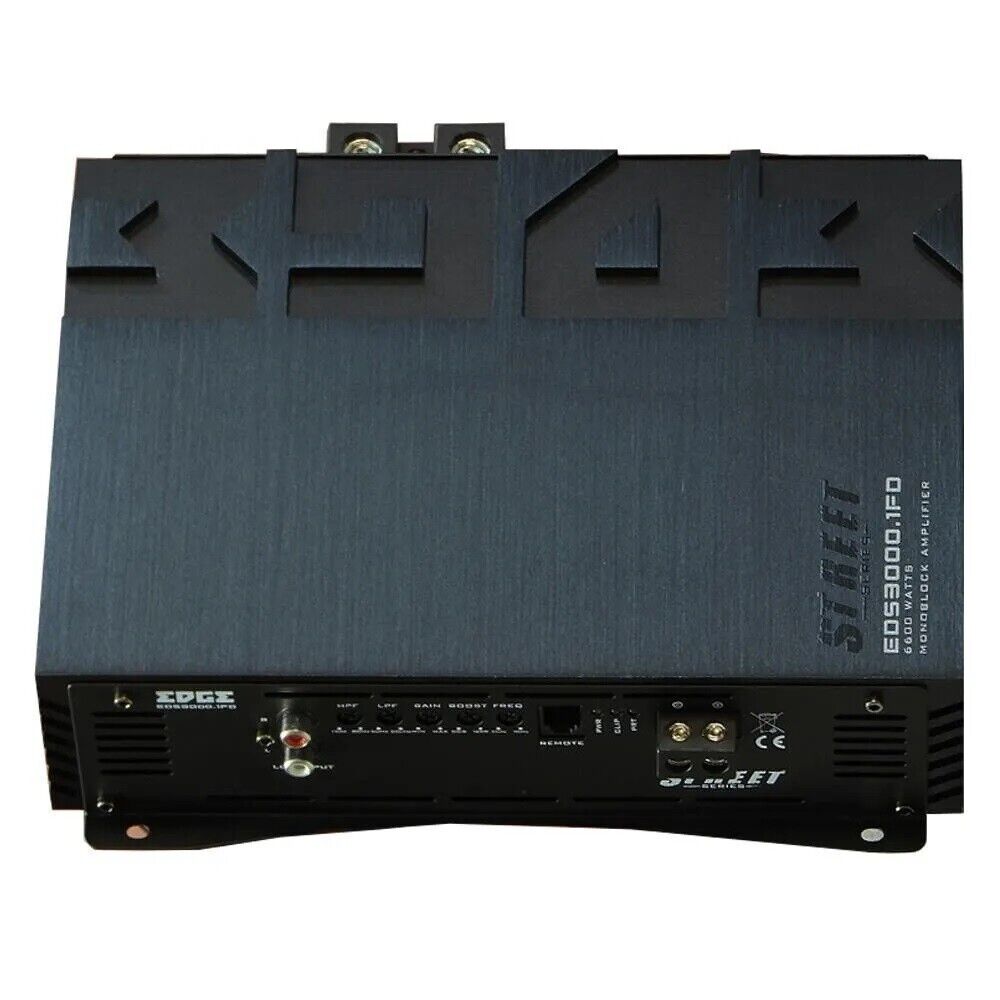

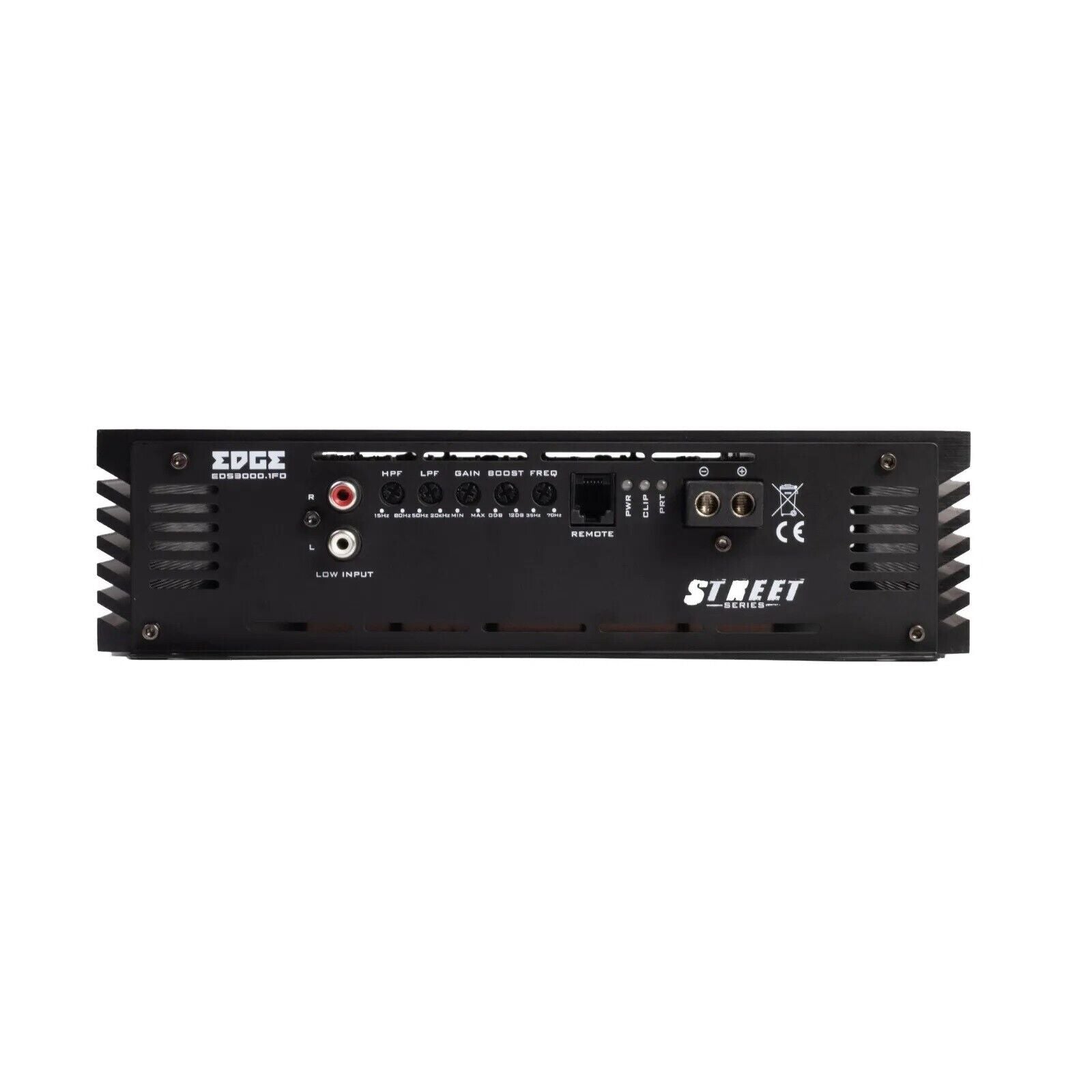

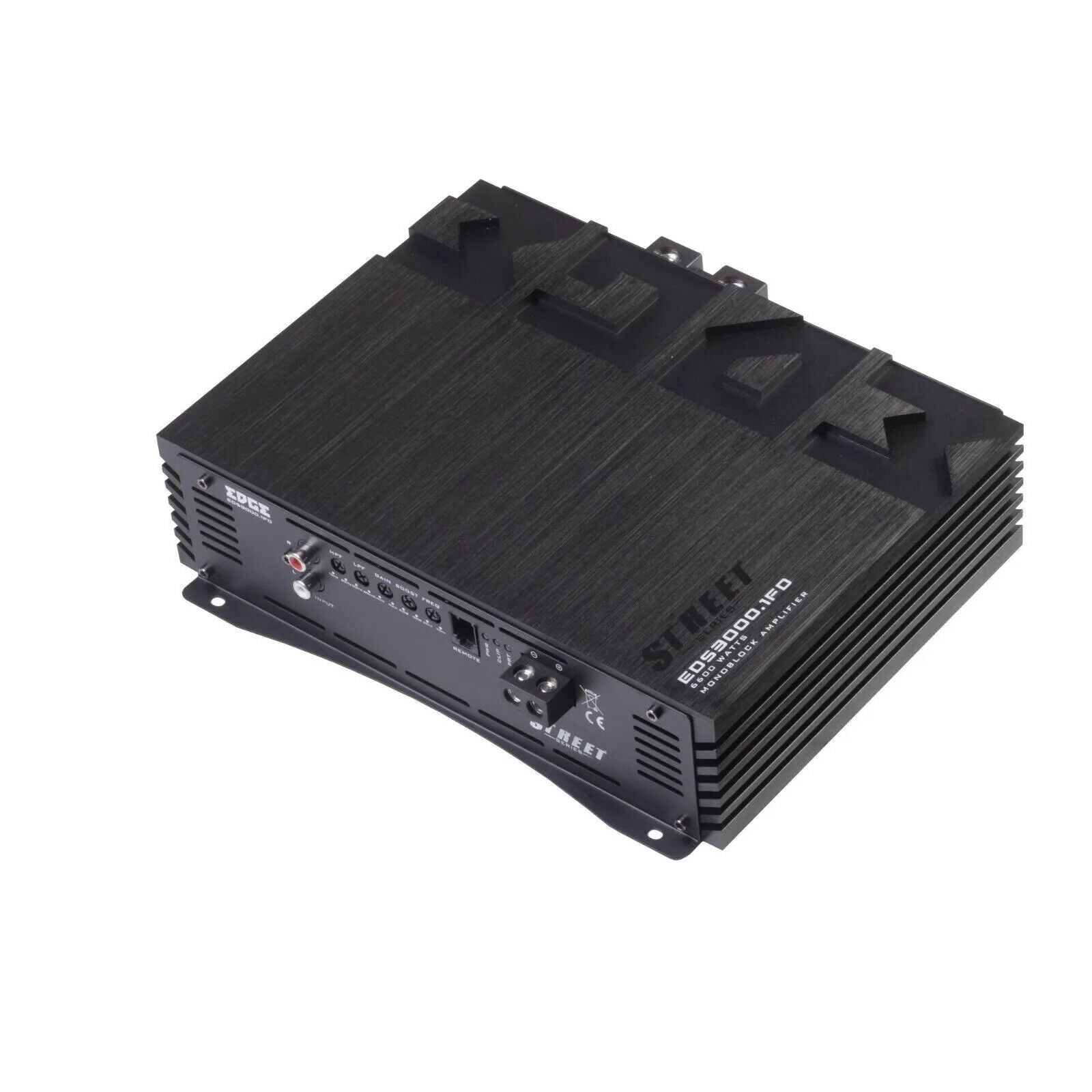

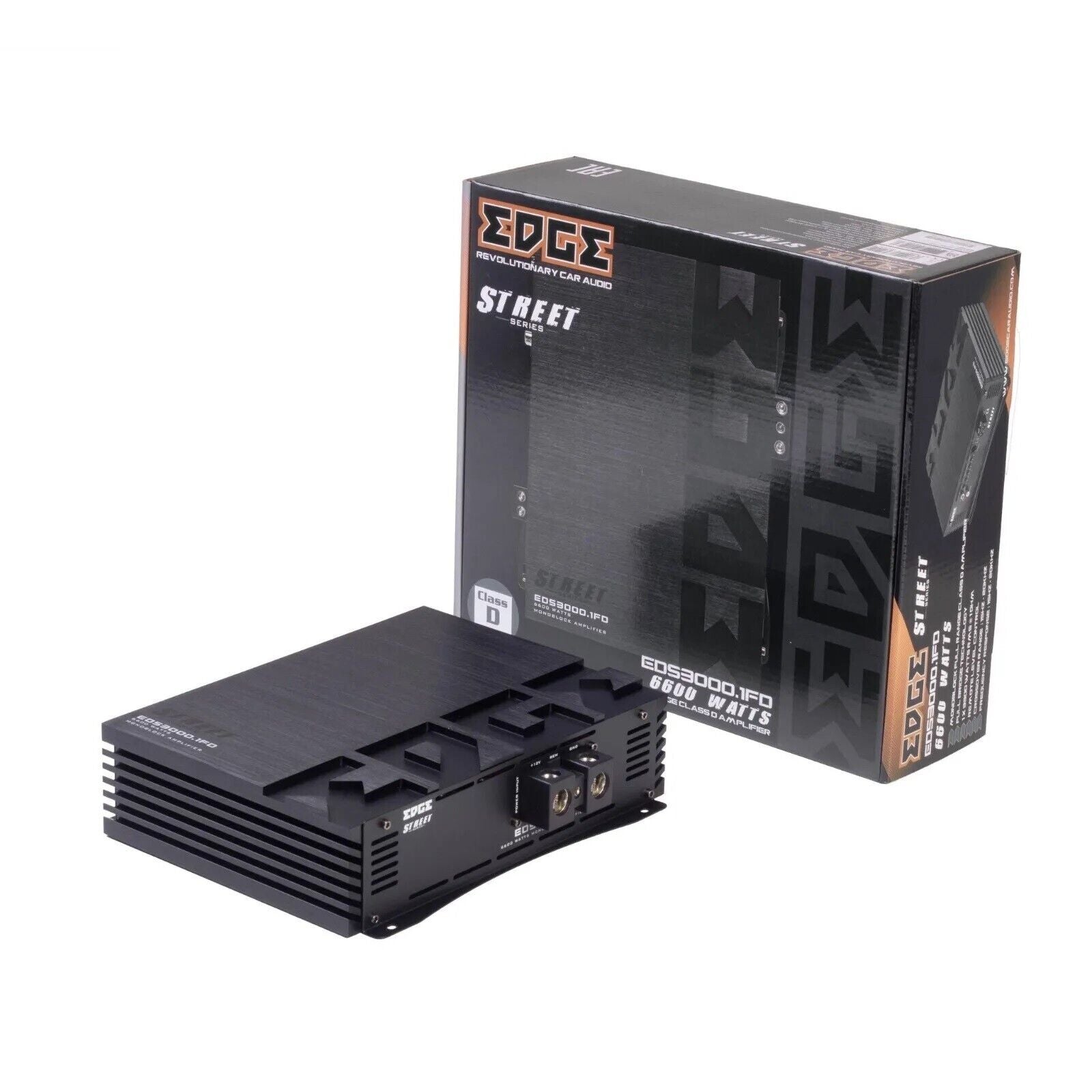

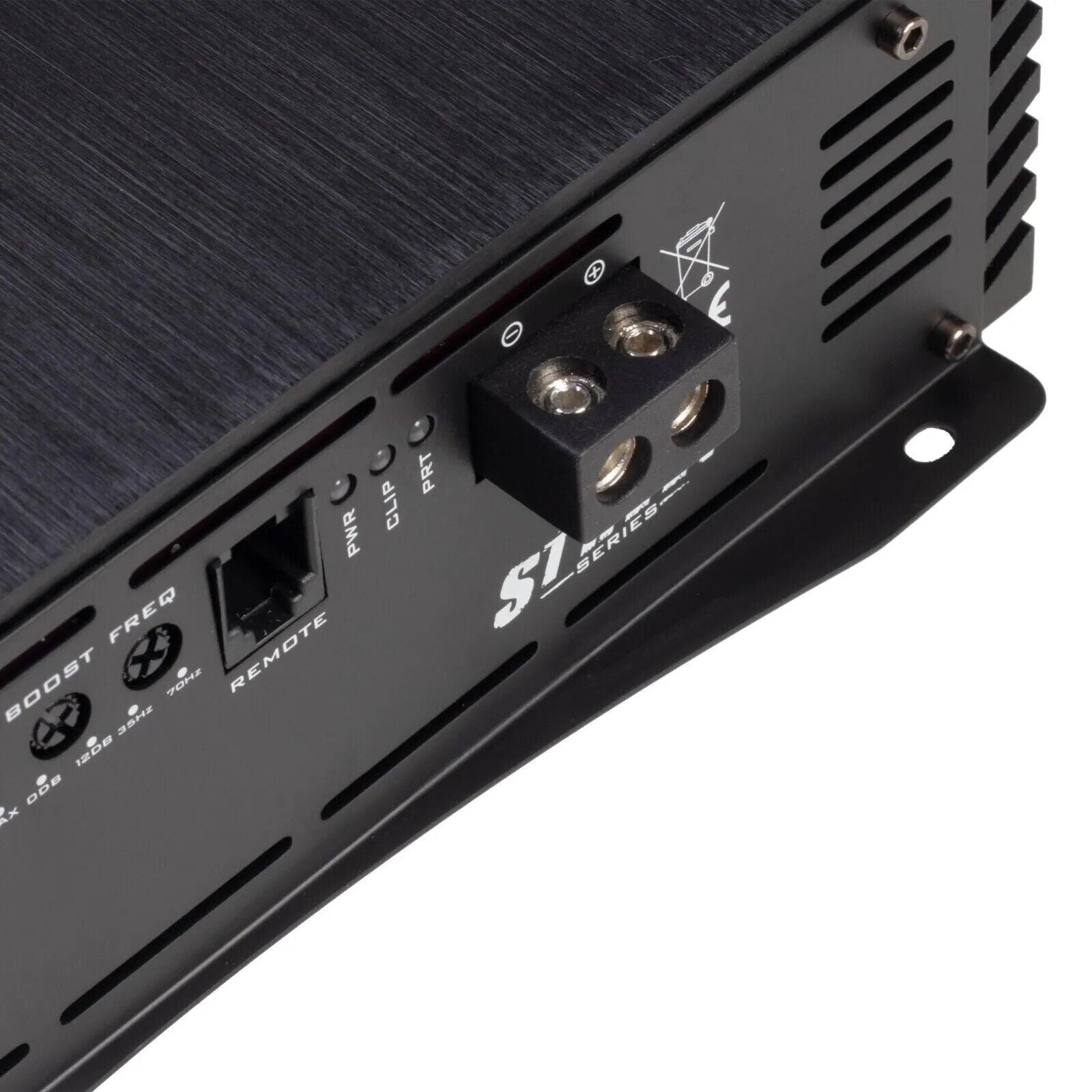

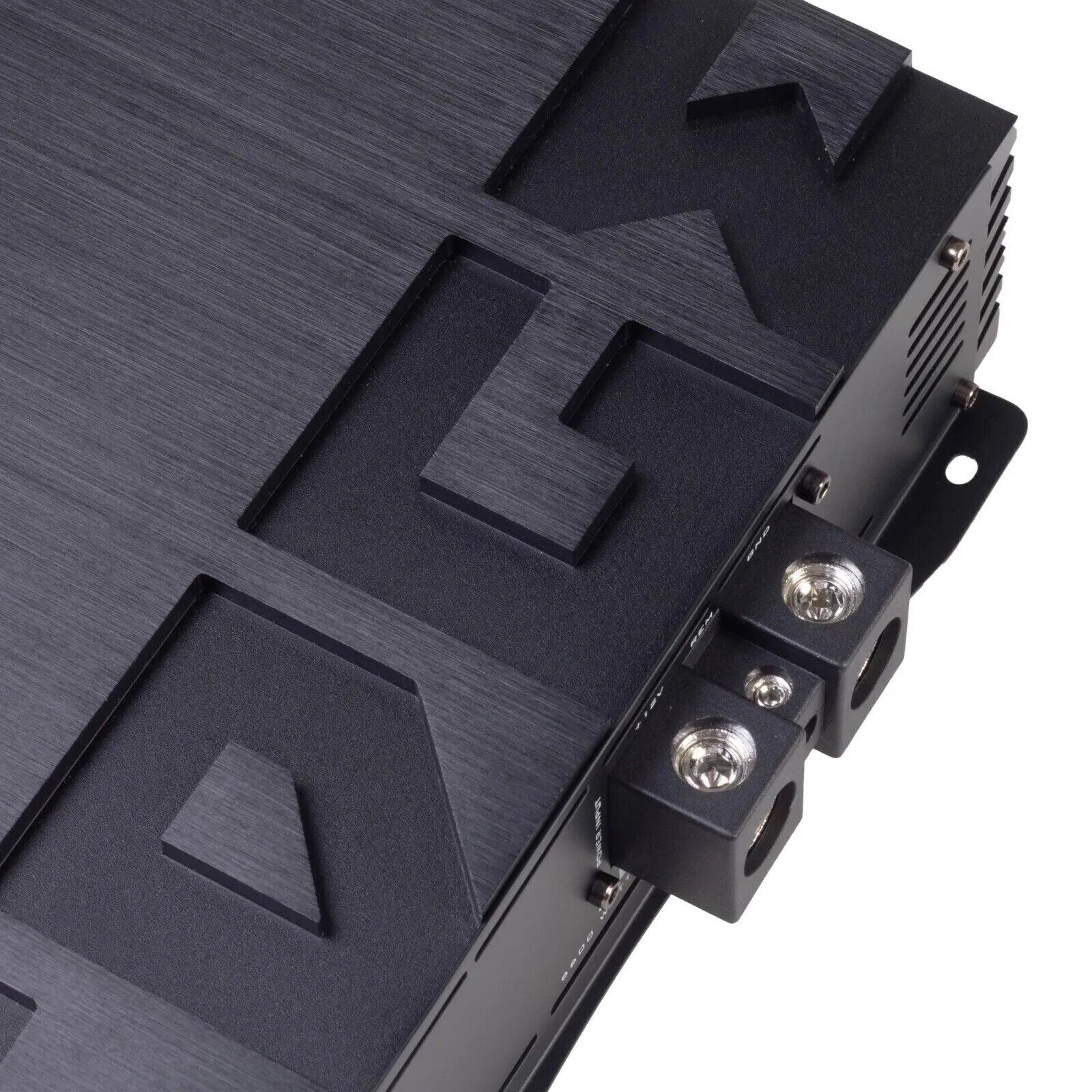

Edge EDS3000.1FD-E3 Street Series 6600 watts Monoblock One Channel Amplifier

The Street series amplifiers are new to the EDGE range, these amps feature Class D topology but use a full bridge method of power delivery.

This is more efficient method of converting DC power from your battery to AC output for your speakers. Full bridge technology allows us to generate large power in a tiny footprint.

The custom tooled heatsink was designed with over engineered fins for excellent heat dissertation ensuring the amp works well and cools correctly.All models have built in active crossovers and bass boost and can be used to power subwoofers, midrange drivers or tweeters.

Compact and powerful, the perfect amplifier upgrade for those wanting more than the norm.

Features

Built in active crossovers

Bass boost circuit

Ultra efficient class D topology

Wideband frequency response up to 20kHz

Full bridge technology

Compact footprint

Specification

Model: EDS3000.1FD-E3

Configuration: Monoblock

RMS @ 4 Ohms Mono: 1 x 1100 watts

RMS @ 2 Ohms Mono: 1 x 2050 watts

RMS @ 1 Ohms Mono: 1 x 3300 watts

Maximum Power: 6600 watts

Frequency Response: 15Hz - 20kHz

Crossover Type: LP / HP

Crossover Range: 15Hz - 20kHz

Recommended Fuse: 250A external fuse

Topology: Class D

Installation

Dimensions (H x W X D): 63mm x 184mm x 232mm (2.5" x 7.2" x 9.1")
