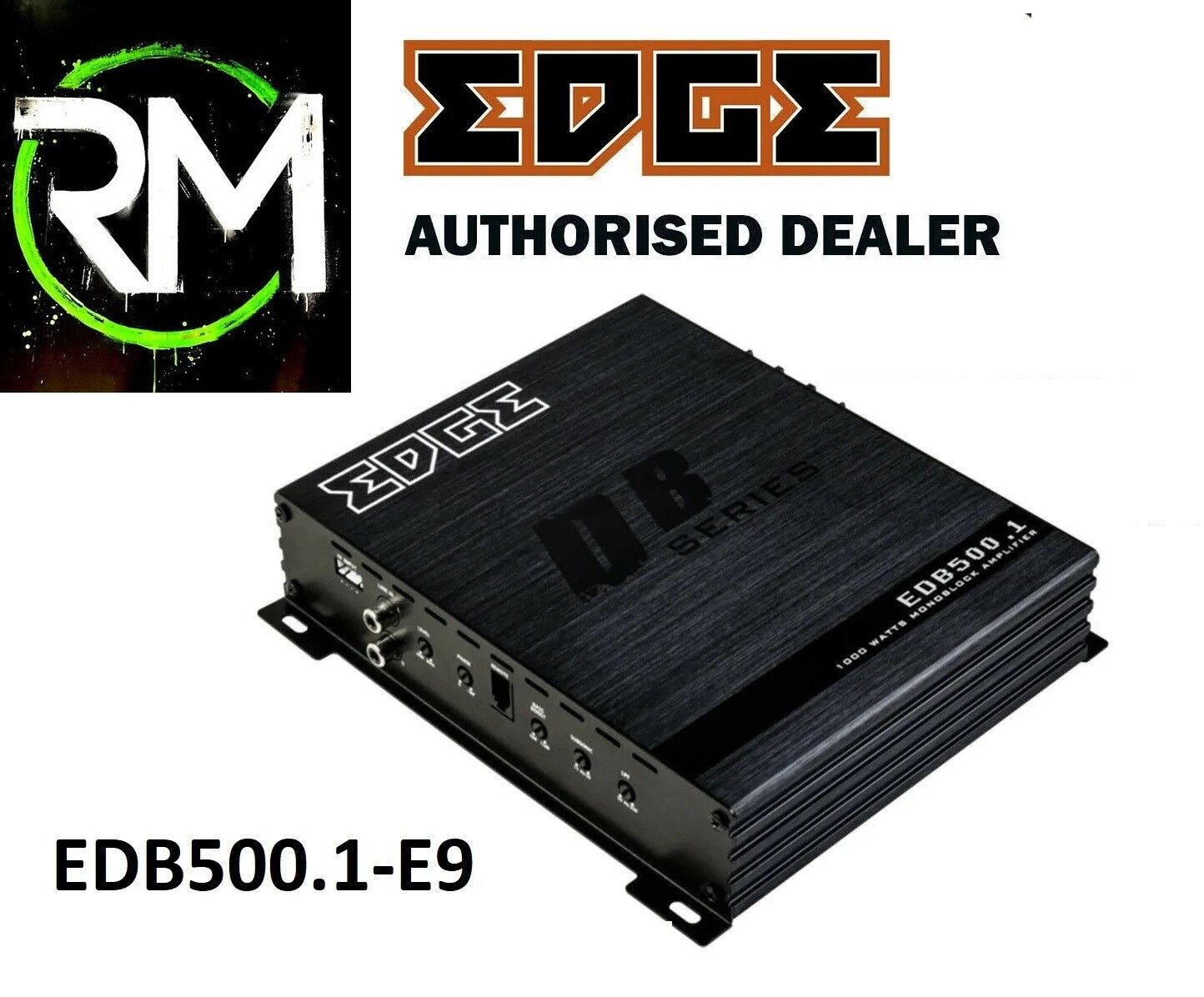

Edge EDB500.1-E9 | EDGE DB Series 1000 watts Monoblock Car Audio Amplifier

Introducing the DB series amplifiers.

A range of entry level amps to be paired to power the range of speakers and

subwoofers featured in the DB series.

Our DB Series amps feature Class D topology, this means they more efficiently

produce power and can be manufactured in a compact design for easier installation.

Available in single channel and four channel models the amp range features active

crossovers, bass boosts and remote gain controls for accurate amp configuration.

When power and space are important, utilise the DB series amps to power any DB

series speaker, subwoofer and tweeter.

Features

Built in active crossovers

Bass boost circuit

Extruded Aluminium heatsink

Efficient class D topology

Specification−

Type: Monoblock

RMS @ 4 Ohms: 1 x 200 watts

RMS @ 2 Ohms: 1 x 350 watts

RMS @ 1 Ohms: 1 x 500 watts

Maximum Power: 1000 watts

Frequency Response: 15Hz - 250Hz

Crossover Type: LP / Subsonic

Crossover Range: 15Hz - 250Hz

Topology: Class D

Dimensions (H x W X D): 46mm x 185mm x 205mm (1.8" x 7.3" x 8.1")
