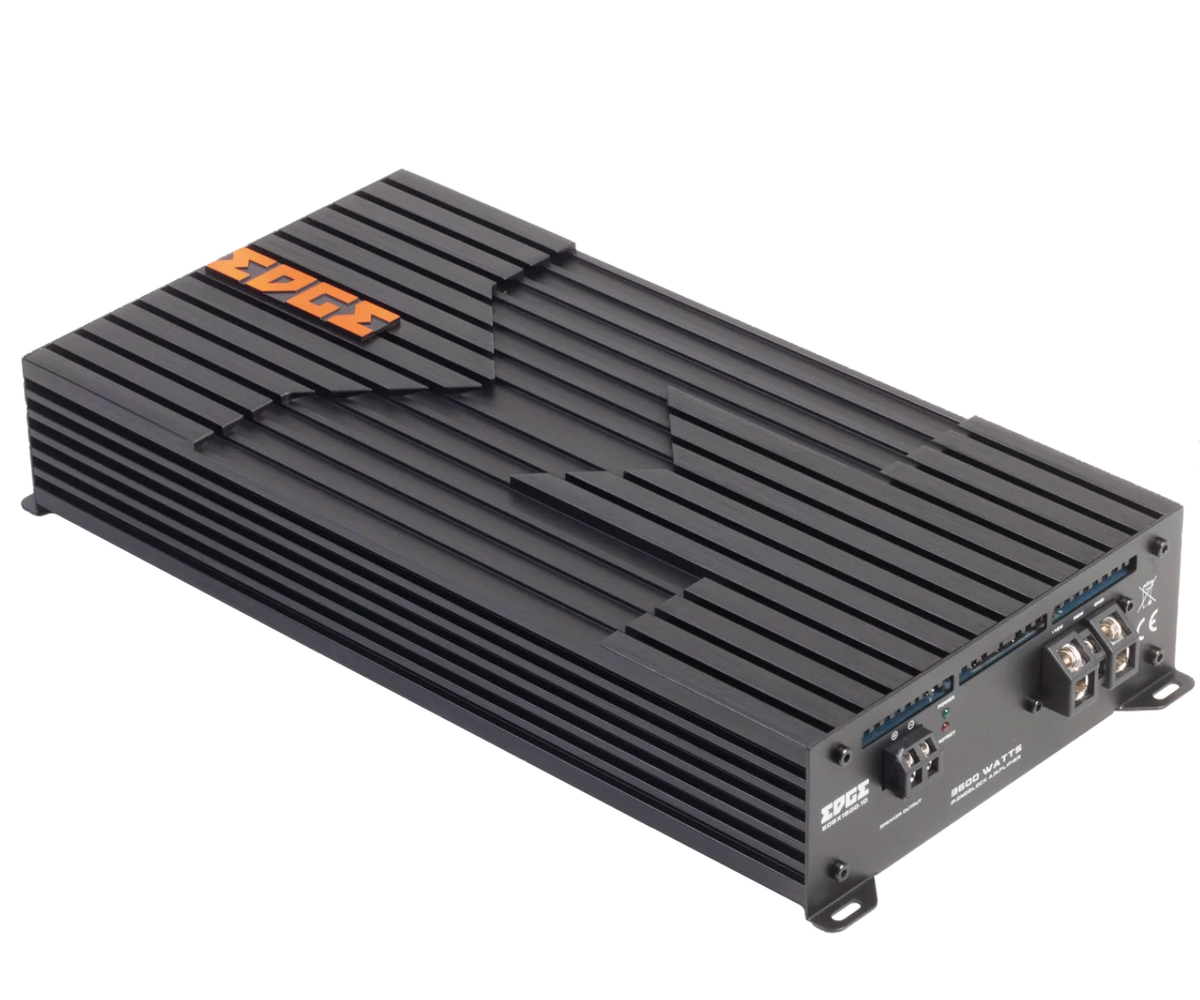

EDGE DBX Series Monoblock Amplifier 4400 watts EDBX2200.1D-E4

EDGE DBX Series Monoblock Amplifier 4400 watts EDBX2200.1D-E4

Description
EDGE Introduces “The Big E” range of brand new Class D monoblock amplfiers to the DBX series.

Our unique designed “Big E” heatsink has a high quality extruded Aluminium chassis with thick side fins for heat dissipation and our signature E engraved into the top for a subtle but very unique design.

The amps come with solid die-cast 4AWG power and ground terminals, dual speaker terminals and a bass remote for fine tuning adjustability, paired with onboard adjustment for gain, bass boost, frequency and a subsonic filters these amps offer great levels of control.

Finally both models offer a signal output allowing you to simply add signal to another amp in your system. Elegant, precise and powerful.

Features

Built in active crossover with LPF and Subsonic filter
Parametric bass boost circuit with adjustable frequency
Remote level control
RCA input and output

Specification
Configuration: Monoblock
RMS @ 4 Ohms Mono: 1 x 850 watts
RMS @ 2 Ohms Mono: 1 x 1600 watts
RMS @ 1 Ohms Mono: 1 x 2200 watts
Maximum Power: 4400 watts
Frequency Response: 10Hz - 180Hz
Crossover Type: LP / Subsonic
Crossover Range: 0Hz - 180Hz
Recommended Fuse: 220A (External Fuse)
Topology: Class D

Installation
Dimensions (H x W X D): 50mm x 490mm x 228mm (2" x 19.3" x 9")
