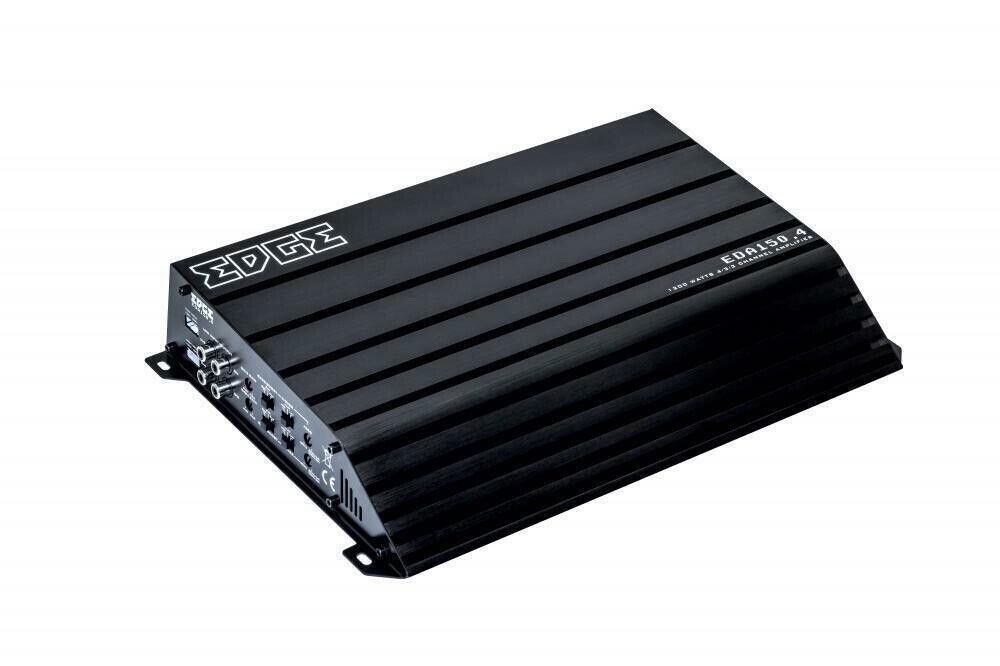

EDGE 4 Channel Amplifier EDBX150.4-E1 DBX Series 1200 watts

The DBX Series amplifiers have some fantastic new unique features, The New EDGE heatsink has progressive T bar fins promoting heat dispersion to keep the amps cool. The 2 and 4 channel class AB models feature an extended set of filters with the HPF up to 11kHz and the LPF to 4kHz giving much more control of your speakers than the average amplifier .

The all new DBX amplifiers also feature internal fan cooling to keep temperature low when the volume gets high.

When enhanced power for your car audio is your drive, the DBX series amps provide everything you need for high power high quality amplification.

Features

BEST DESIGN - The unique "Big E" design integrated into the over-engineered T bar progressive heatsink design offers premium looks with strategical engineering.

PREMIUM TUNING - With extended frequency bands on the LPF and HPF crossover the EDBX series amps offer greater tune-ability and set up over its competitors.

BEST SOUND - The class AB technology offers great SQ compared to its class D competitors, Leading to rich and warm sound playback.

OPTIMISED FUNCTIONS - With 3 crossover options, high and low level inputs, bass Boost and auto sense turn on our DBX series offers all the functionality you need to run any system upgrade.

Configuration: 4 channel

RMS @ 4 Ohms Stereo: 4 x 100 watts

RMS @ 2 Ohms Stereo: 4 x 150 watts

RMS @ 4 Ohms Mono: 2 x 300 watts

Maximum Power: 1200 watts

Frequency Response: 20Hz - 20kHz

Crossover Type: LP / HP / Flat

Crossover Range: 30Hz - 250Hz

Recommended Fuse: 2 x 25A

Topology: Class AB
