BRAX MATRIX ML1 28mm Tweeters 120W RMS 24k gold plated connectors

BRAX MATRIX ML1 28mm 120W Ultimate Car Audio Tweeter

Product Information features Technical specifications scope of delivery

BRAX MATRIX ML1

The BRAX MATRIX loudspeaker series has stood for unique sound and quality characteristics for years.

So it is only logical that the further development of our 28 mm tweeters focused on the latest technologies and the highest quality materials in order to meet the BRAX brand's claim to pure, unadulterated music reproduction.

The innovative, particularly light and fine-meshed silk dome with a visco-elastic Acronal coating on both sides ensures brilliant and velvety-soft high-frequency reproduction. The integrated coupling volume, which is dampened with pure sheep's wool, enables a particularly low resonance frequency and thus allows a deep acoustic coupling.

In terms of design and technology, the BRAX philosophy is continued without exception: the discreet, elegant appearance reveals smart details such as the two-piece, turned from solid stainless steel housing for maximum heat dissipation, the extremely precisely manufactured, 8-fold ventilated neodymium magnet for an optimally linear magnetic flow, the integrated, 24-carat gold-plated connection sockets for maximum conductivity, the thread with a solid mounting ring on the back of the housing for hidden attachment and the stable grid for optimum protection of the dome from damage.

In order to fully meet our high quality standards, the loudspeakers are hand-selected for a perfect sound interaction and put together in pairs based on their acoustic parameters and recorded with a serial number in a service database. This high-end product is rounded off by the packaging in an elegant wooden box, which once again underlines the philosophy of the BRAX brand.

features

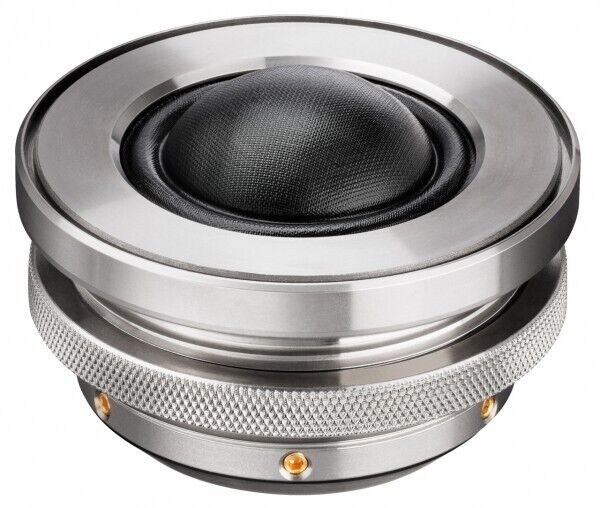

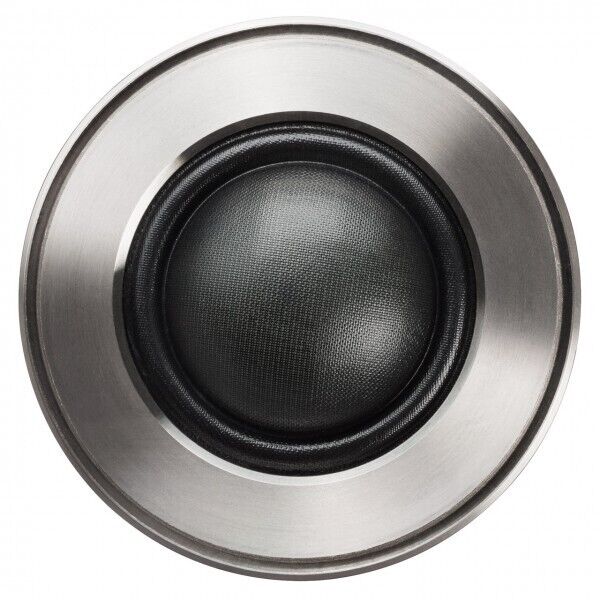

Particularly light and fine-meshed silk dome with a visco-elastic Acronal coating on both sides for brilliant and velvety-soft high-frequency reproduction

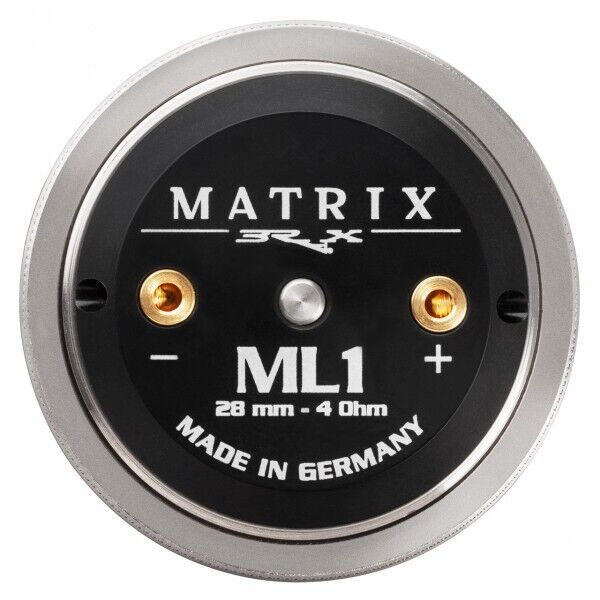

Integrated 24k gold plated connectors for maximum conductivity

Extremely precisely manufactured, 8-fold ventilated neodymium magnet for an optimally linear magnetic flow

Two-piece stainless steel housing turned from solid for maximum heat dissipation

The massive mounting ring and a thread on the back of the housing enable hidden mounting

Integrated coupling volume dampened with pure sheep's wool for a particularly low resonance frequency

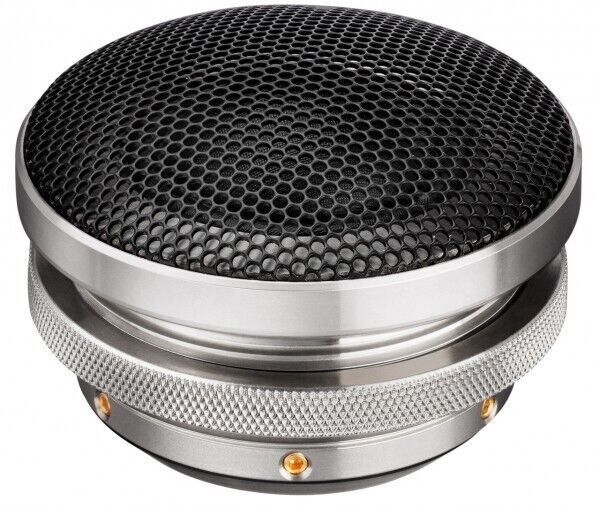

Sturdy protective grille included

Technical specifications

Power RMS / Max. P120 / 170 watts

(high pass > 3,000 Hz at 12 dB/oct.)

impedance Z4Ω

DC resistance re3.4Ω

frequency range 1,800Hz - 25,000Hz

resonant frequency Fs630Hz

Efficiency 1W/1mSPL90dB

voice coil diameterO28mm

membrane area sd6.2 cm²

moving mass Mms0.32g

membrane material Silk dome with a visco-elastic Acronal coating on both sides

outer diameterO60mm

installation diameterO50mm

installation depth 25mm

Recommended crossover frequencies for the high pass

edge steepness / minimum crossover frequency Minimum crossover frequency

6 dB/octave 3,500Hz

12dB/octave > 2,500 Hz

24 dB/octave > 1,800 Hz

scope of delivery

2 x high-end tweeters BRAX MATRIX ML1

2 x fastening rings 2

x protective grilles

1 x Allen key

1 x certificate

1 x data sheet
