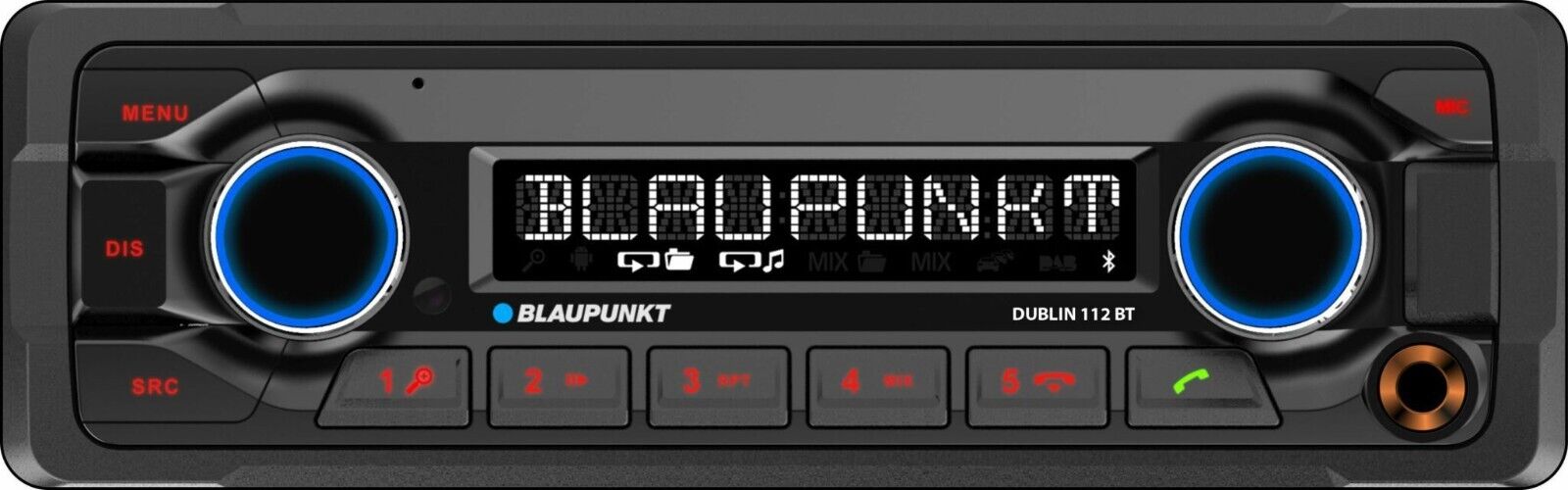

Blaupunkt Dublin 112 BT Mechless 12V Car Head unit Stereo Bluetooth Short Housin

Dublin 112 BT

Heavy Duty Series: Work hard & play hard!

High-End Codem Automotive Tuner

FM (RDS), AM (MW, LW)

Heavy Duty Design

Twin-Encoder concept for fast and comfortable folder/file browsing

Playback formats: MP3, WMA

Fast playback from USB

Selectable display modes (ID3-Tags, folder/ playtime, clock, all mode)

Data carrier: USB

9-digit high-grade wide-angle display plus status icons

Built-in Bluetooth (HFP, A2DP, PBAP, SPP)

Twin Connect

Navigation Audio Mix

Built-in microphone + external mic connector

Front USB (Standard A-type)

Rear USB (Standard A-type)

Front-Aux-in

Steering wheel control input (programmable)

4×50 Watt Max. + 4-channel Preamp-out

Separate Sub-Out (var. gain/frequency)

3-band, semi-parametric Equalizer

Sound presets (Rock,Pop, Classic)

X-Bass

12 V operating voltage

Short installation depth

ANALOG RADIO

Type of tuner: High-End Codem Automotive Tuner

World tuner (swtichable): EU, Americas, Thailand

Wave bands: FM1, 2, MW, LW

Radio Data System (RDS): Alternative Frequency (AF), Clock Time (CT), Enhanced Other Networks (EON), Programme Service Name (PS), Program Types (PTY), Regional Programme (REG), Traffic Announcement (TA), Traffic Program (TP)

Travelstore: yes (FMT)

Band Scan / Preset Scan: yes / yes

Station memory: 25

Sensitivity: lo / dx

Interference suppression: yes

Frequency response (Hz) -3 dB: 30 - 15.000

BLUETOOTH

Supported version: Bluetooth 2.0 with EDR

Supported profiles: HFP, PBAP, A2DP, AVRCP, SPP

Audio streaming: yes

Pairing (number of devices): 5

Pairing Code: 1234

Hands-free calling: via micro + radio speaker

Hands-free volume: variable

Microphone: built-in + external mic connector

Key functions: accept / hang-up / reject call / redail

Phone book access: yes (up to 1.000 entries by phone)

Twin Connect: yes (2 simultaneously connected phones for telephony)

Navigation Audio Mix: yes (Navigation commands via A2DP)

Auto Wake-Up: yes (radio switched off / ignition on)

DATA CARRIER

USB: USB 2.0

Memory cards: no

Formatting USB: FAT 32, FAT 16

MEDIA-PLAYER

Playback format: MP3, WMA

Title display: ID3-tag (version 2), file, folder

Folder- & file browsing: yes (w/o track interruption)

Multiple folder level from MSD: yes

iPod, iPhone control: yes (via USB)

Android MP3 control: yes (with operation system Android 2.3 and higher)

Fast list browsing: yes (via second encoder)

Display modes: yes (file, folder, song, artist, album, clock, elapsed time, total time, all mode)

Display of characters: File name up to 50, tags up to 30

Variable display scrolling: yes (once / always if > 9 digits)

Mix / Repeat / Scan: yes / yes / yes

Fast media reading: yes (from USB)

Bitrate (kBit/s): 32 -320

Variable bitrates: yes

EQUALIZER

Number of bands/ Model: 3 / semi-parametric

Bass / treble: yes / yes (+/- 7 steps)

Balance / fader: yes / yes (+/- 9 steps)

X-Bass: yes

Sound presets: Rock, pop, classic

AMPLIFIER

Number of channels: 4

Max. power: 4 x 50 Watt

Sinus power at 14.4 V: 4 x 24 Watt

DISPLAY

Type / Digits: DOT (1-line) / 9

Angle: Wide-view

Colour: negative, black and white

Brightness: adjustable

Clock display: 24 / 12 hrs

INPUTS

Antenna (number of): 2 (FM ISO + DAB SMB)

USB (number of / type): 2 (front + rear / standard A-Typ)

iPod/iPhone: yes (via front + rear USB

Memory cards: no

Microphone-In: yes (front)

Aux-In (number of, type): 1 (rear, RCA)

Telephone-mute / Line-In: yes / no

Steering wheel control: yes (analog programmable)

OUTPUTS

Loudspeaker (number of): 4

Pre-amplifier channel: 4-channels (Cinch)

Pre-amplifier voltage: 4 V

Variable amplifier delay time: yes

Sub-Out: yes (Cinch, var. gain/frequency)

GENERAL

Twin-Encoder concept: Left for volume control & muteRight exclusively for browsing, phone book, tuner & menu

Software update: via USB

Variable scan-time: yes

Confirmation beep: yes (on/off)

Front panel: Fix panel

Panel / decor-ring color: Black / black

Encoder / key illumination: Blue / Red

Operation voltage: 12 V

Permanent preset storage: yes

Demo mode: yes

Weight (kg): ca. 1,6

Height x Width x Depth (mm): 52 x 178 x 120

DAB-onglas antenna: included in delivery

IR-remote control: included in delivery

External hands-free microphone: optional
