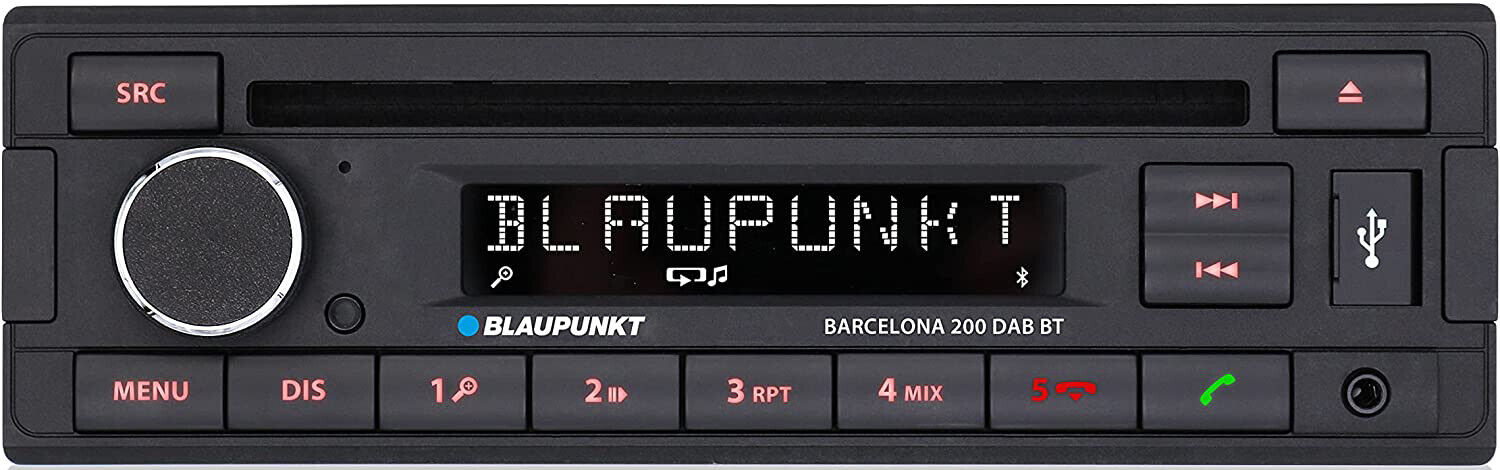

Blaupunkt Barcelona 200 DAB BT Car Stereo DAB Radio with Bluetooth CD USB

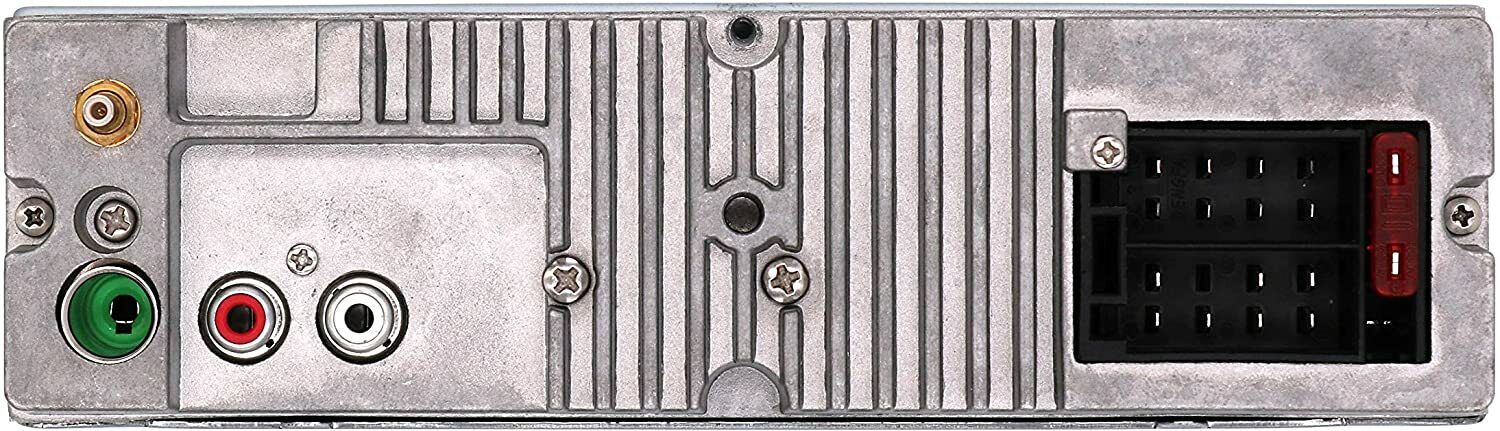

ISO on the back, No wiring included, Stalk harness or factory ISO will plug straight it

Specifications

Highlights

RDS tuner

DAB + tuner

FM (RDS), AM

9-digit display

Integrated Bluetooth (HFP, A2DP)

Integrated microphone

Playback format: MP3, WMA

Selectable display modes (file, folder, title, artist, album & time)

CD-DA, CD-R, CD-RW, USB

Front USB

Front aux-in

Sound presets (flat, rock, pop, classical)

X-bass

4 × 40 watts max.

2-channel preamplifier

Software update via USB

Key illumination red

Technical Specifications

Analog radio

Tuner type: RDS tuner

Frequency bands: 3 × FM / 2 × AM

Radio Data System (RDS): Alternative Frequency (AF), Clock Time (CT), Program Service Name (PS), Regional Program (REG), Traffic Anouncement (TA), Traffic Program (TP)

Travelstore: yes (FMT)

Band scan / preset scan: yes / no

Station memory: 15 FM / 15 AM

Sensitivity: lo / dx

Interference suppression: yes

Frequency response (Hz) -3 dB: 20 ​​- 18,000

DAB features

DAB / DAB +: yes / yes

Service update: no

Service Scan: yes

Station memory: yes

Ensemble / program browsing: no / yes

Program scan: no

Service link DAB-DAB: no

Service link DAB-FM: no

Service link DAB-DAB-FM: no

Radio text: no

PTY programs: no

Frequency response (Hz) +/- 3 dB: 20-18,000 Hz



Bluetooth

Supported profiles: HFP, A2DP

Audio streaming: yes

Pairing (number of devices): 1

Hands-free calling: yes

Microphone: integrated

Core functions: accepting, ending, rejecting calls, redialing

Access to mobile phone directory: yes (up to 100 contacts per mobile phone)



Disk

CD: CD-DA, CD-R, CD-RW

Drive type: Automatic loading

USB: 1 × front



Media player

Playback formats: MP3, WMA

Title display: ID tag, folder / file

Folder & file selection: no

Display modes: yes (file, folder, title, artist, album, playing time)

Mix (random play) / repeat / scan: yes / yes / yes

Bit rate (kBit / s): 32 -320



CD player

Shock proof memory: yes

Frequency response (Hz) -1 dB: 20 ​​- 20,000



Audio / equalizer

Bass / Treble: yes / yes (+/- 7 steps)

Balance / fader: yes / yes (+/- 9 steps)

X-Bass: yes

Sound presets: flat, rock, pop, classical



amplifier

Number of channels: 4

Max. Power: 4 x 40 watts

Sinus power at 14.4 V: 4 x 20 watts



Display

Type / digits: 1-line / 9

Color: negative, black and white

Clock display: 24/12 hours



Entrances

Antenna (number): 2 (FM ISO / DAB SMB 12V Phantom)

USB (number / type): 1 (front)

Aux-In (number / type): 1 front (3.5 mm jack)



Outputs

Speakers (number): 4

Preamplifier (channels): 2-channels (RCA)

Preamplifier (voltage): 1.5 V (rms)



Generally

Software update: via USB

Confirmation beep: yes

Menu language: English

Control unit type: Fix Panel

Key illumination: red

Permanent storage after power loss: yes

Ignition logic: yes

Weight (kg): approx. 1.4

Dimensions (mm): 188 × 58 × 165

DAB window antenna: Optional

ISO connector cable set: yes, 16 pin connector

Operating instructions: yes

Jewelry packaging: yes
