Blam Speaker Upgrade kit for Tesla Model 3 & Y (standard Audio) 165mm

BLAM LIVE ORIGINAL LSQ 165mm (6.5 inch) Hi-Efficiency 2-way component speaker system

BL-L165-LSQ

If you have decided to install new speakers in your car in order to fully enjoy your playlist during your rides and you are looking for a warm, aerated and strong system, the new BLAM 165LSQ of our LIVE line is made for you.

Elaborated with the "French sound" concept and by keeping in mind the "vinyl" sound idea, which is known for its delicacy, we have designed this product using very high-quality materials such as cellulose pulp membranes strengthened with bamboo fibers.

The 165LSQ will emphasize the authentic side of your favorite tracks and, no matter the music styles, it will make you want to listen and listen again to them thanks to its mesmerizing warmness, dynamism and smoothness.

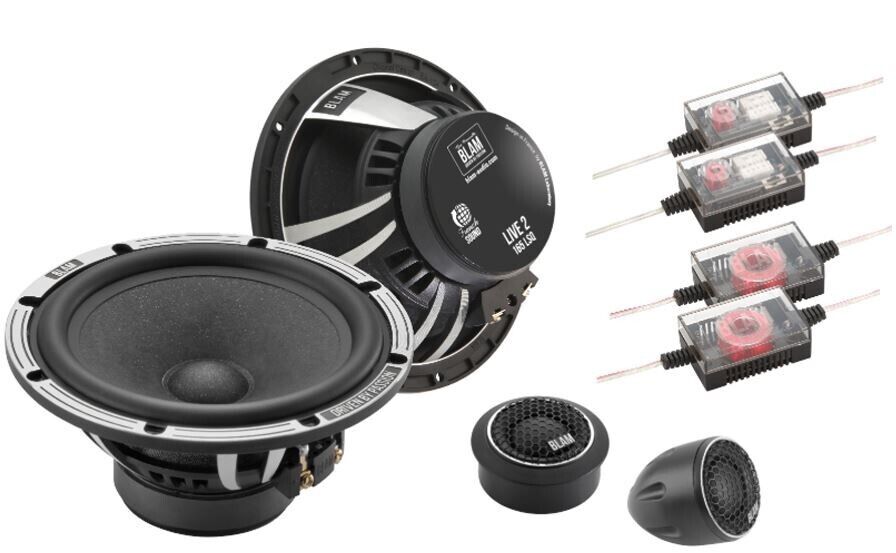

System includes two 165 mm (6.5") woofers, two 25 mm (1") soft dome tweeters, two high-quality low pass 6 dB/octave BFW01 crossovers and two high-quality high pass 12 dB/octave BFT01 crossovers, suitable for bi-amplification.

High efficiency Sound quality 2-way component system

165 mm (6.5'') woofer

Max power 120 W - Nominal power 60 W

Frequency response 60 Hz - 25 kHz

Sensitivity (2,83V/1m) 94 dB - Impedance 2 ?

Composition

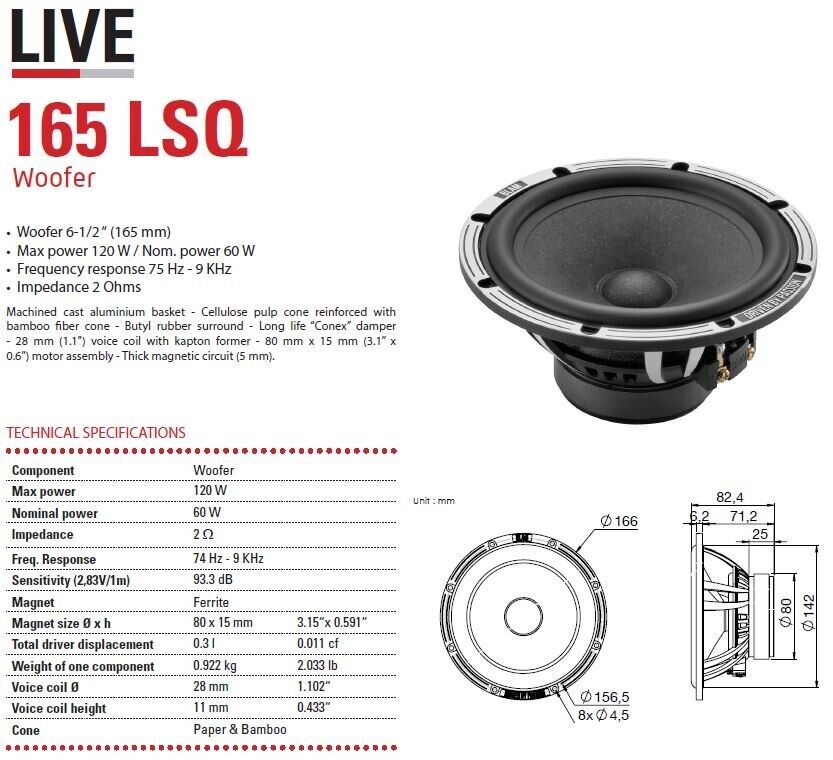

165LSQ HIGH EFFICIENCY WOOFER

165 mm (6.5?) woofer

Max power 120 W - Nominal power 60 W

Frequency response 60 Hz - 9 kHz

Sensitivity 94 dB - Impedance 2 O

Machined cast aluminium basket - Cellulose pulp cone reinforced with bamboo fiber - Butyl rubber surround - Long life "Conex" damper - 28 mm (1.1'') voice coil with kapton former - 80 mm x 15 mm (3.1'' x 0.6'') motor assembly - Thick magnetic circuit 5 mm

LT25 HIGH QUALITY TWEETER

25 mm (1'') high quality soft dome tweeter

Max power 100 W - Nominal power 15 W

Frequency response 2.5 kHz - 25 kHz

Sensitivity 91.6 dB - Impedance 3 O

High efficiency N38 neodymium motor

BFW01 HIGH QUALITY CROSSOVER

Low pass 6 dB/octave crossover

BFT01 HIGH QUALITY CROSSOVER

High pass 12 dB/octave crossovers

Adjustable tweeter level to +3 dB, 0 dB or attenuated -3 dB

Supplied Accessories:

Mounting screws

Tweeters accessories - Angled support included

User manual

These Speakers also come with the correct Speaker Collars and wiring adapters.

Tesla Model 3 and Y 165mm front door speaker upgrade fitting kit

SFKU-TSL07-165

Provide a sound upgrade to your Tesla Model 3 or Y front doors with our 165mm speaker upgrade fitting kit.

This kit allows you to fit a set of aftermarket 165mm speakers to your Tesla Model 3 or Y front door panels (SPEAKERS NOT INCLUDED)

This kit also includes the adapter cables to replace the front tweeters as well as the front door speakers.

This speaker fitting kit includes:

- Speaker adapter panels (40-1833-165)

A pair of front or rear door car speaker adapter panels for 165mm (6.5 inch) speakers.

These panels allow you replace the cars original speakers with new improved quality aftermarket speakers.

- Speaker adapter cables (41-034)

Speaker adapter cables;  used to connect after market speakers to the original loom on Tesla vehicles.

- Tweeter adapter cables (41-038)

Tweeter adapter cables;  used to connect after market mid-range speakers or tweeters to the original loom on Tesla vehicles.

Car models: The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.

Tesla - Model 3 (2017 >)

Tesla - Model Y (2020 >)
