BLAM Relax Ultra-compact D Class 2 X 80W 2 Chanel Amplifier

BLAM Relax Ultra-compact D Class 2 X 80W 2 Chanel Amplifier

BL-RA1202D

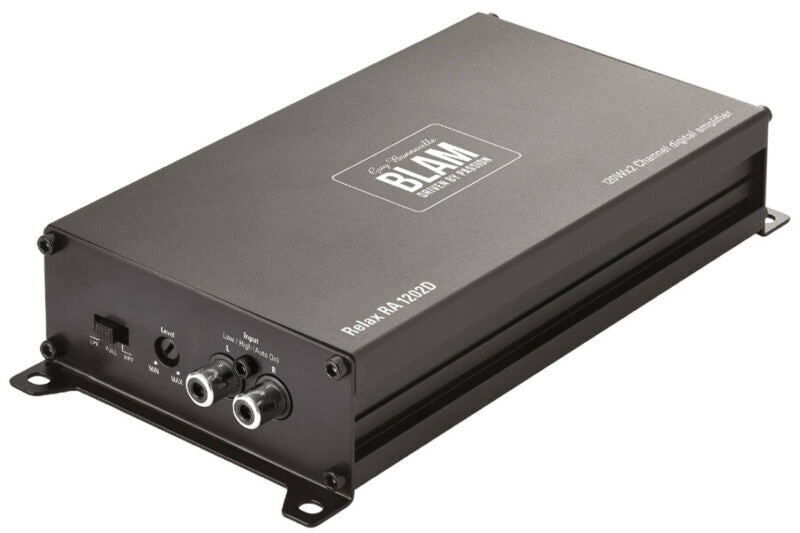

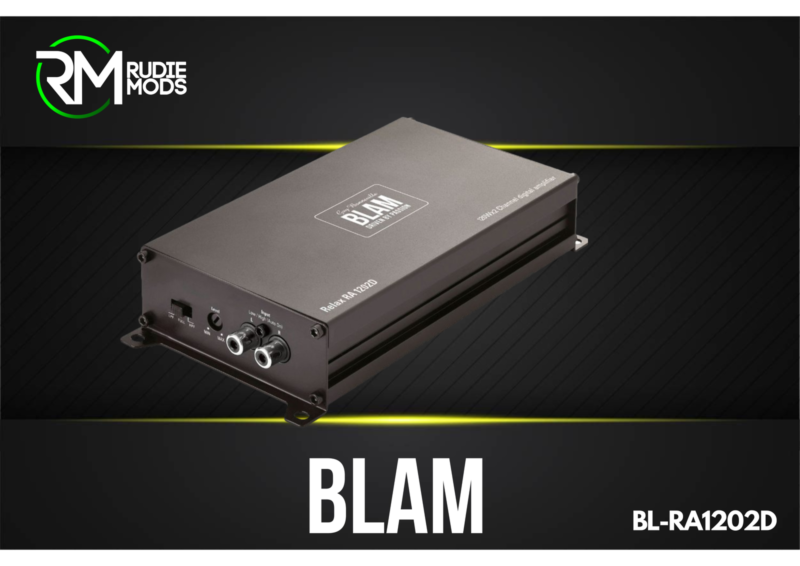

BLAM Ultra-compact D Class 2 X 80W amplifier

To design this powerful, robust and compact amplifier, we have used the latest class D audio amplifier technologies.

This amplifier employs SMD (surface mount device) electronics components, reducing the overall size while still providing high-end  audio performance.

Thanks to its high efficiency, it will provide the power required to reproduce the full dynamics of your favorite recording combined with unheard of reliability.

Composition

High level inputs with auto turn on

RCA low level input : 0.3 V

RCA high level input : 15 V

RMS Power (4 ohm): 2 x 80 W

RMS Power (2 ohm): 2 x 120 W

RMS Bridged Power: 1 x 240 W

Frequency response: 20 Hz ? 22 kHz

Low pass crossover: 120 Hz

High pass crossover: 100 Hz

Signal / noise ratio > 90 dB

Protections: short circuit / low impedance / reversal of polarity / heat protection

Remote control

Dimensions (L x l x H): 188 mm x 91,4 mm x 38 mm ? 7.4??x 3.6??x 1.4??

Supplied accessories:

Fixing screws

User manual

manual Wired remote control
