BLAM LIVE L165A ACOUSTIC 165mm (6.5 inch) 140W High-fidelity Car Audio Speakers

With its high-end design, the LIVE L165A - ACOUSTIC speaker system from BLAM system set specially designed to provide the best sound quality even in minimal door space.

Unparalleled technology and excellent features characterize this speaker set. With a light and rigid composite diaphragm combined with a 28 mm diameter coil gives it dynamism and detail that brings the recording to life without sacrificing sound quality.

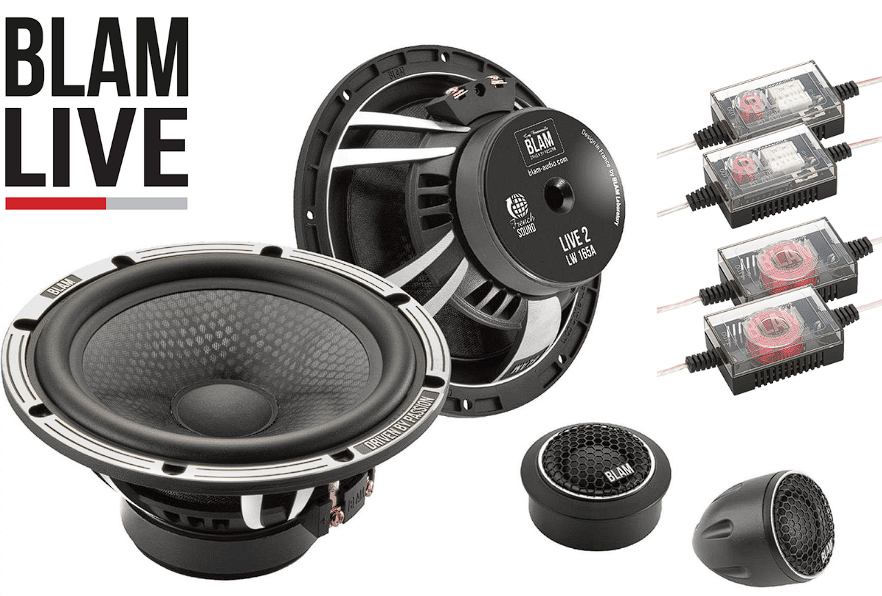

This system consists of two 165 mm (6.5”) woofers, two 25 mm (1”) soft dome tweeters, two 12 db/octave low-pass audiophile crossovers and two 12 dB/octave high-pass audiophile crossovers, adapted for bi-amplification.

Product Features

2-channel high-fidelity system

165 mm woofer

Max Power 140 W

Nominal Power 70 W

Frequency response 55 Hz – 25 kHz

Sensitivity 92 dB

Impedance 2 ?

Composition

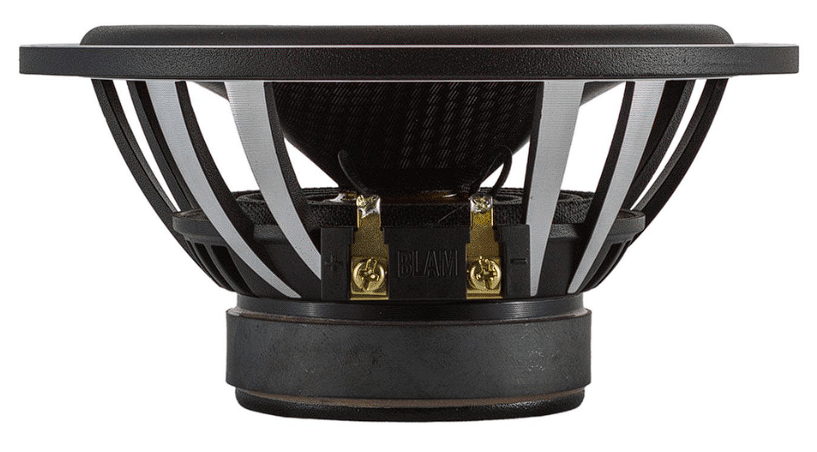

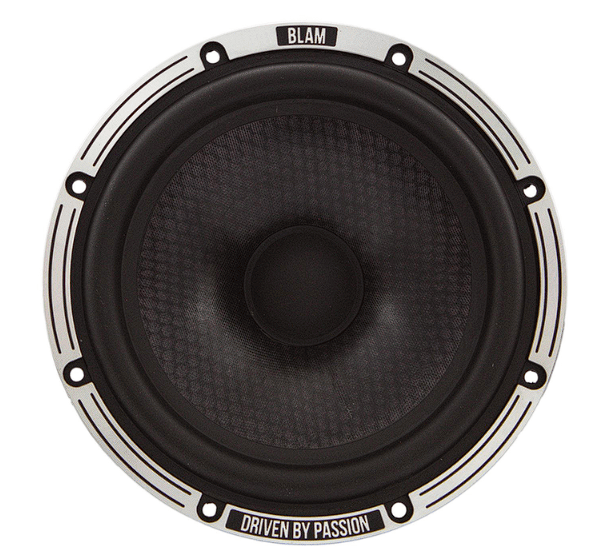

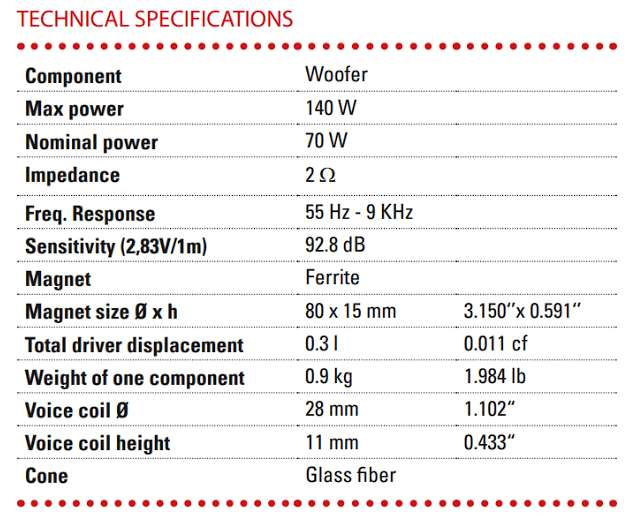

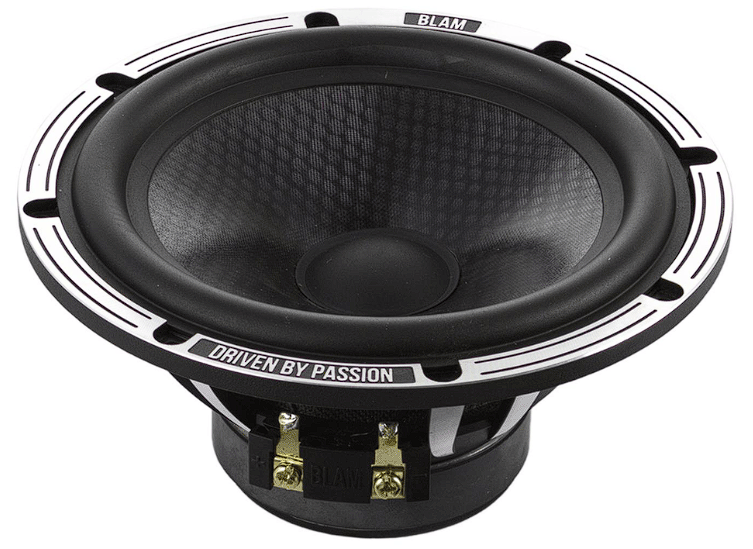

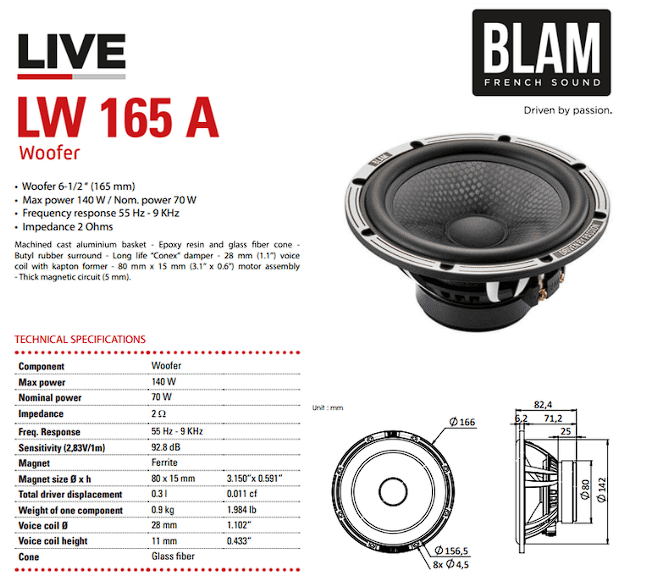

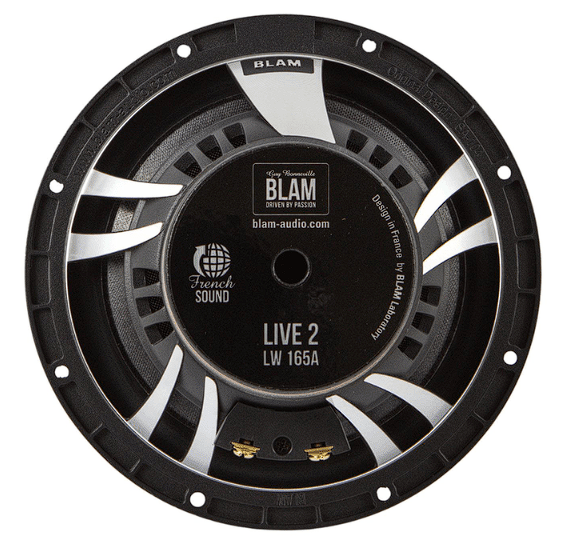

L165A HIGH-FIDELITY WOOFER

165 mm (6.5?) woofer

Max power 140 W

Nominal power 70 W

Frequency response 55 Hz – 9 kHz

Sensitivity 92.8 dB

Impedance 2 ?

Moulded and machined aluminium basket – Epoxy resin and fiberglass membrane – Butyl peripheral surround – “Conex” long-life spider – 28 mm voice coil on kapton former – 80 mm x 15 mm magnetic motor – 5 mm thick magnetic circuit

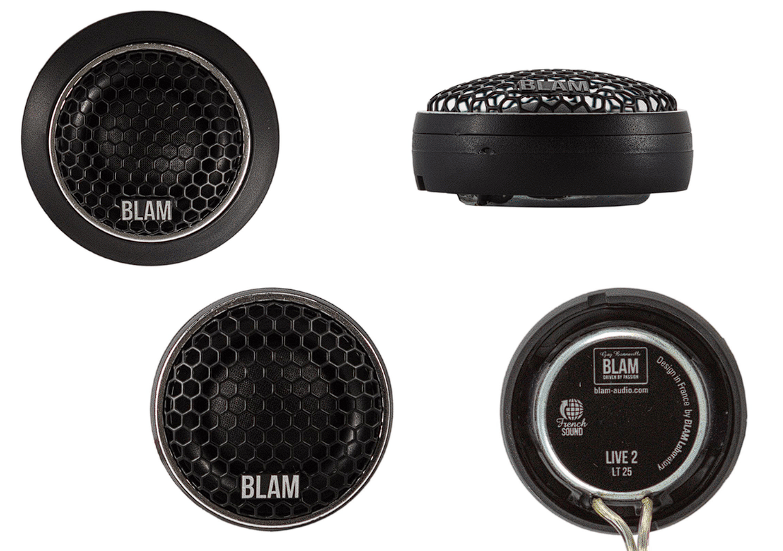

LT25 HIGH-QUALITY TWEETER

High quality 25 mm soft dome tweeter

Maximum power 100 W

Nominal power 15 W

Frequency response 2.5 kHz – 25 kHz

Sensitivity 91.6 dB

Impedance 3 ?

High-efficiency N38 neodymium motor

 BFW02 HIGH QUALITY CROSSOVER

Low pass 12 dB/octave

 BFT02 HIGH QUALITY CROSSOVER

High pass 12 dB/octave

Tweeter level adjustable to +3 dB, 0 dB or attenuated to -3 dB

Supplied Accessories

Mounting screws

Mounting accessories for tweeters

User manual
