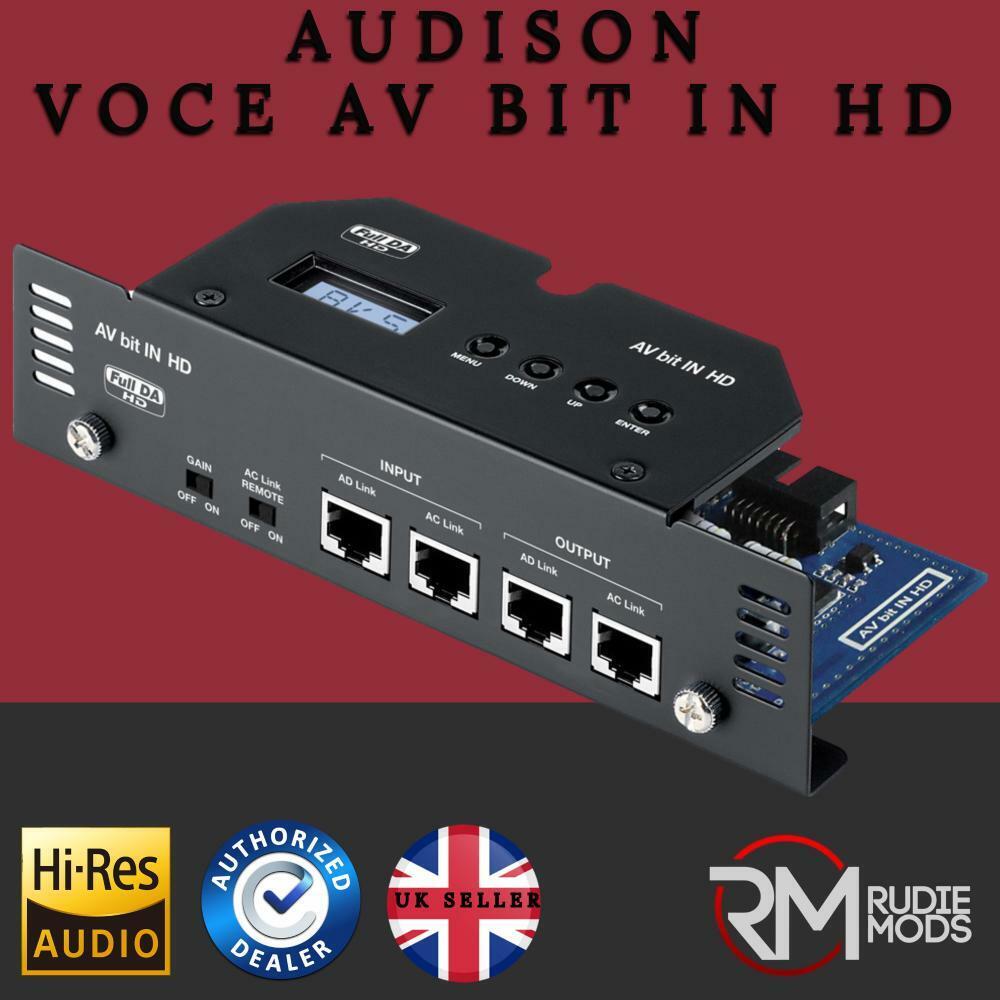

Audison Voce AV bit IN HD Digital Interface for Multiple Audison Amplifiers

Audison Voce AV bit IN HD Digital Interface for Multiple Audison Amplifiers

Digital interface for all AV amplifiers, for perfect digital connection with Audison bit processors provided with AD Link and AC Link connections.

 By mounting the AV bit IN "Digital Interface" onto the Voce amplifier series, through the AD Link connection the S/PDIF digital signal will get directly to the high quality internal D/A converters. After these, the signal becomes analog and is immediately amplified preventing it from deterioration due to the long paths. The result is extremely high quality music, not achievable with any other analog system.

It offers one AD Link and AC Link input, as well as one AD Link and AC Link output in order to drive a multi-amplified system.

Thanks to its digital panel with 3 character display and 4 push buttons, you can select the amplifier type, mono or stereo mode, and also the digital channel coming from the audio processor. AV bit IN HD features two new switches on the front panel: one provides you with the ability of turning off the gain control of the amplifier to achieve an improved Signal to Noise ratio. With the second switch you can control the DSP remote start function. Connection to amplifier: remove analog crossover module and insert AV bit IN module into the amplifier's front side.

It requires no external power supply.

For AV Uno, Due, Quattro & AV amplifier's.

Features

Hi-Res audio

According to the definition of HiRes audio provided by JAS (Japan Audio Society - jas-audio.or.jp), AV bit IN HD exceed the 24 bit / 96 kHz digital to analog conversion processing requirement, providing an astonishing 24 bit / 192 kHz!

Full DA HD

Pure digital signal transfer with a resolution up to 24 bit / 96 kHz
