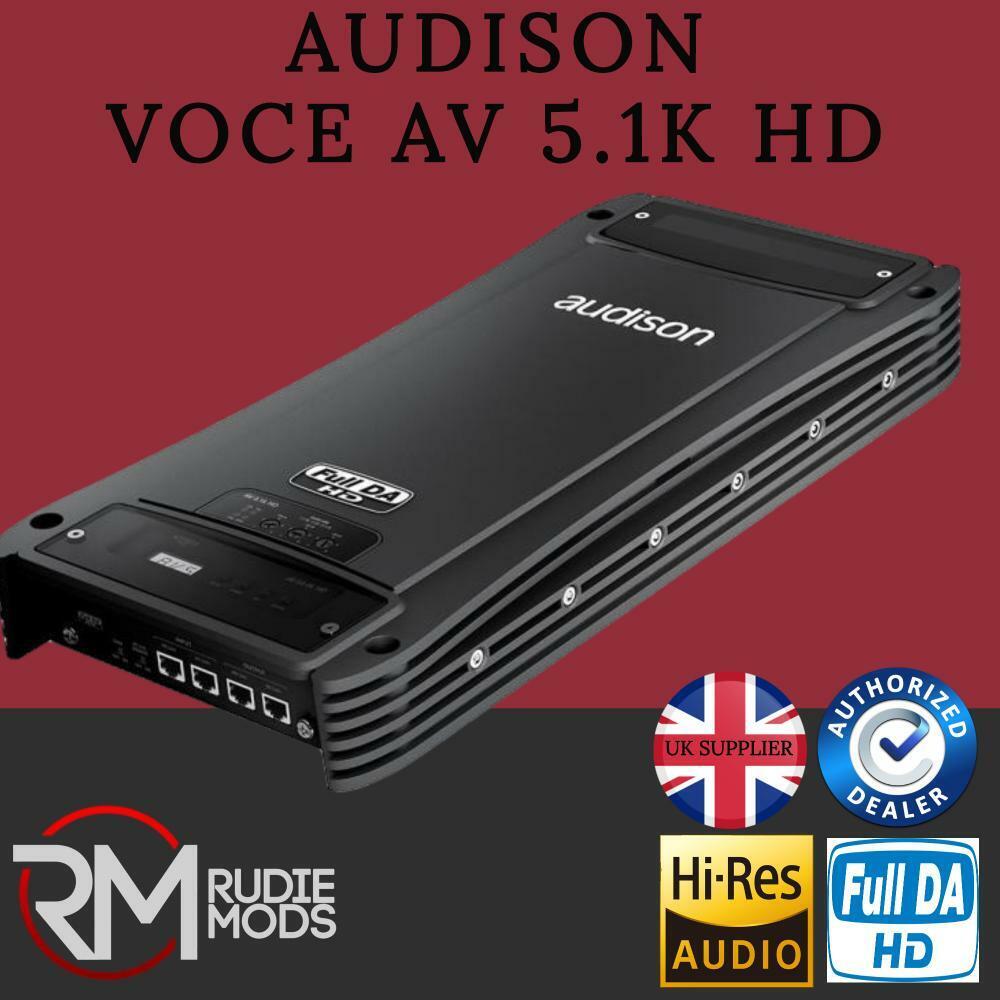

Audison Voce AV 5.1k HD 5-Channel Professional Car Amplifier 1650W UK Seller

Audison Voce AV 5.1k HD 5-Channel Professional Car Amplifier 1650W UK Seller

AV 5.1k HD is the first Car Audio amplifiers featuring digital inputs only, providing the ability to connect directly to the digital outputs of a digital signal processor (DSP). Through this connection, made via the Audison AD Link available on the Audison processors (bit One HD, bit One, bit Ten D), a Full DA HD audio chain can be created. Thanks to this chain, the high resolution (96kHz/24 bit) digital audio signal coming from the head unit, via the processor, can be obtained up to just the Digital/Analog converter of the amplifier’s audio chain, ensuring maximum reduction of any signal deterioration.The Audison AC Link can also be connected to control the amplifier as well as the AC Link and AD Link outputs, to expand the audio system with other Audison Voce amplifiers. These features make AV 5.1k HD the most advanced amplifier available in the market, perfect to appreciate the quality of Hi-Res audio files.

Power Output

Load Imp.

5 Channels

4 Ohm

75 W x 2 + 140 W x 2 + 600 W x 1

4/2 Ohm

75 W x 2 + 140 W x 2 + 1000 W x 1

2/4 Ohm

75 W x 2 + 250 W x 2 + 1000 W x 1

Channels 5 (A/B/C)RMS Power @14.4V @4 ohm 75x2/A + 140x2/B + 600x1/CRMS Power @14.4V @4/4/2 ohm 75x2/A + 140x2/B + 1000x1/CRMS Power @14.4V @4/2/2 ohm 75x2/A + 250x2/B + 1000x1/C

Distortion - THD (1k Hz @ 4 Ohm ) A, B Ch: 0.05 %Distortion - THD (100 Hz @ 4Ohm), C (sub) Ch: 0.3 %Bandwidth (-3 dB) A, B Ch: 5 ÷ 20k HzBandwidth (-3 dB) C (sub) Ch: 7 ÷ 350 HzS/N ratio (A weighted @ 0dB) A, B Ch: 100 dBS/N ratio (A weighted @ 0dB) C (sub) Ch: 87 dBDamping factor (1k Hz @ 4 Ohm) A, B Ch: 100Damping factor (100 Hz @ 4 Ohm) C (sub) Ch: 80Gain (ON/OFF selectable): -15 / +3 dBMinimum load impedance A / B / C Ch: 4 Ohm / 2 Ohm / 2 OhmNOMINAL POWER (RMS)A + B + C Ch @ 12 VDC, THD 0,3%, 4 Ohm: 50 W x 2 + 120 W x 2 + 500 W x 1OUTPUTPOWER (RMS)A + B + C Ch @ 14.4VDC, THD 1%:5 Ch: 75 W x 2 (4 Ohm) + 140 W x 2 (4 Ohm) + 600 W x 1 (4 Ohm)5 Ch: 75 W x 2 (4 Ohm) + 140 W x 2 (4 Ohm) + 1000 W x 1 (2 Ohm)5 Ch: 75 W x 2 (4 Ohm) + 250 W x 2 (2 Ohm) + 1000 W x 1 (2 Ohm)

Whats in the box

AV 5.1k HD amplifierQuick start guideWarrantynr.4 3,9 x 25mm / 0,15” x 0,99 self-tapping cross-headed fixing screwsN. 1 Allen wrench 0,118”nr.1 100A AFS spare fuse.CD ROM with:This Owner’s Manual (.pdf format) Test tracks

Please note: Due to the the quality of this professional amplifier they are made in small quantity batches. Please message for dispatch times
