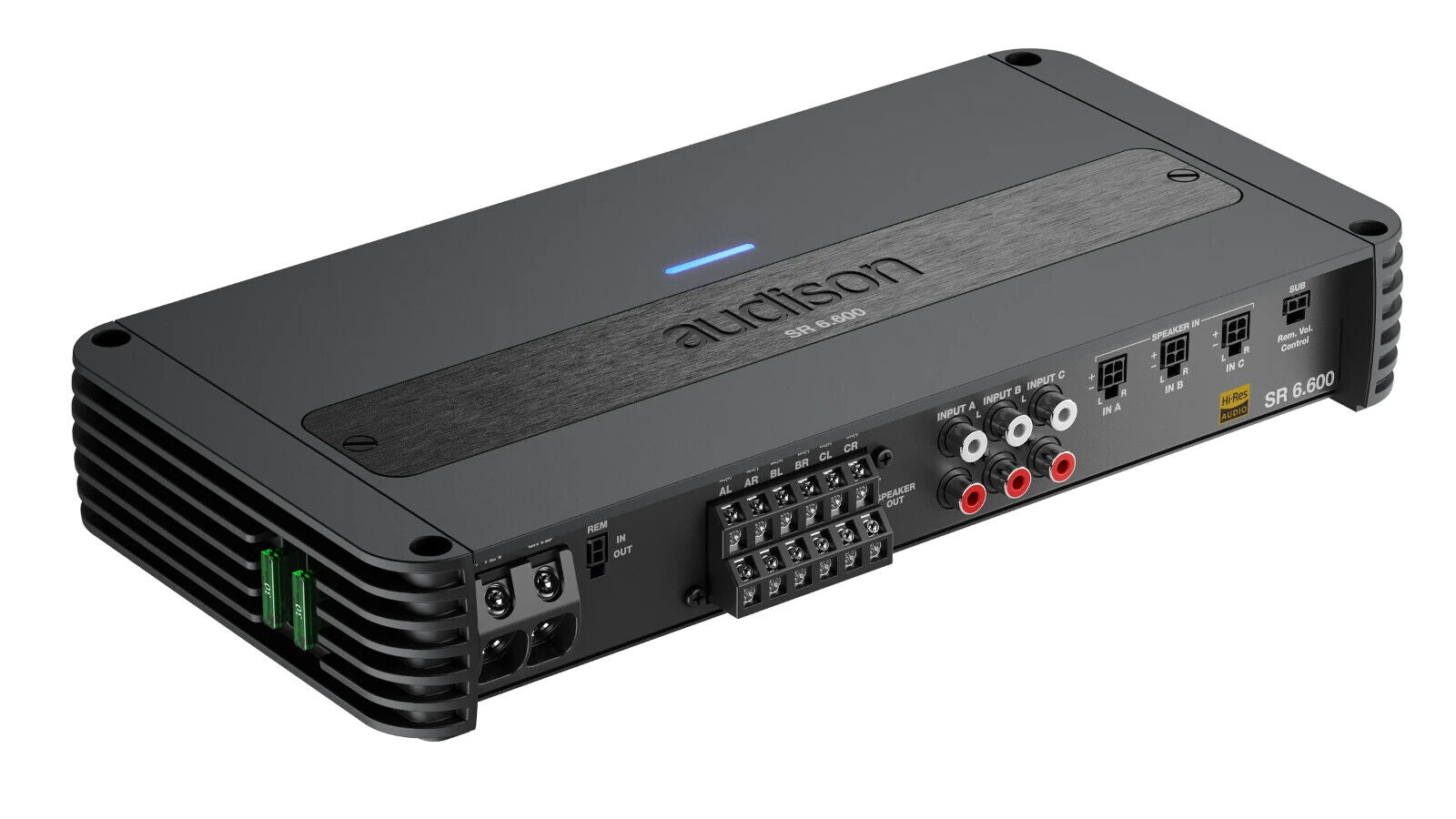

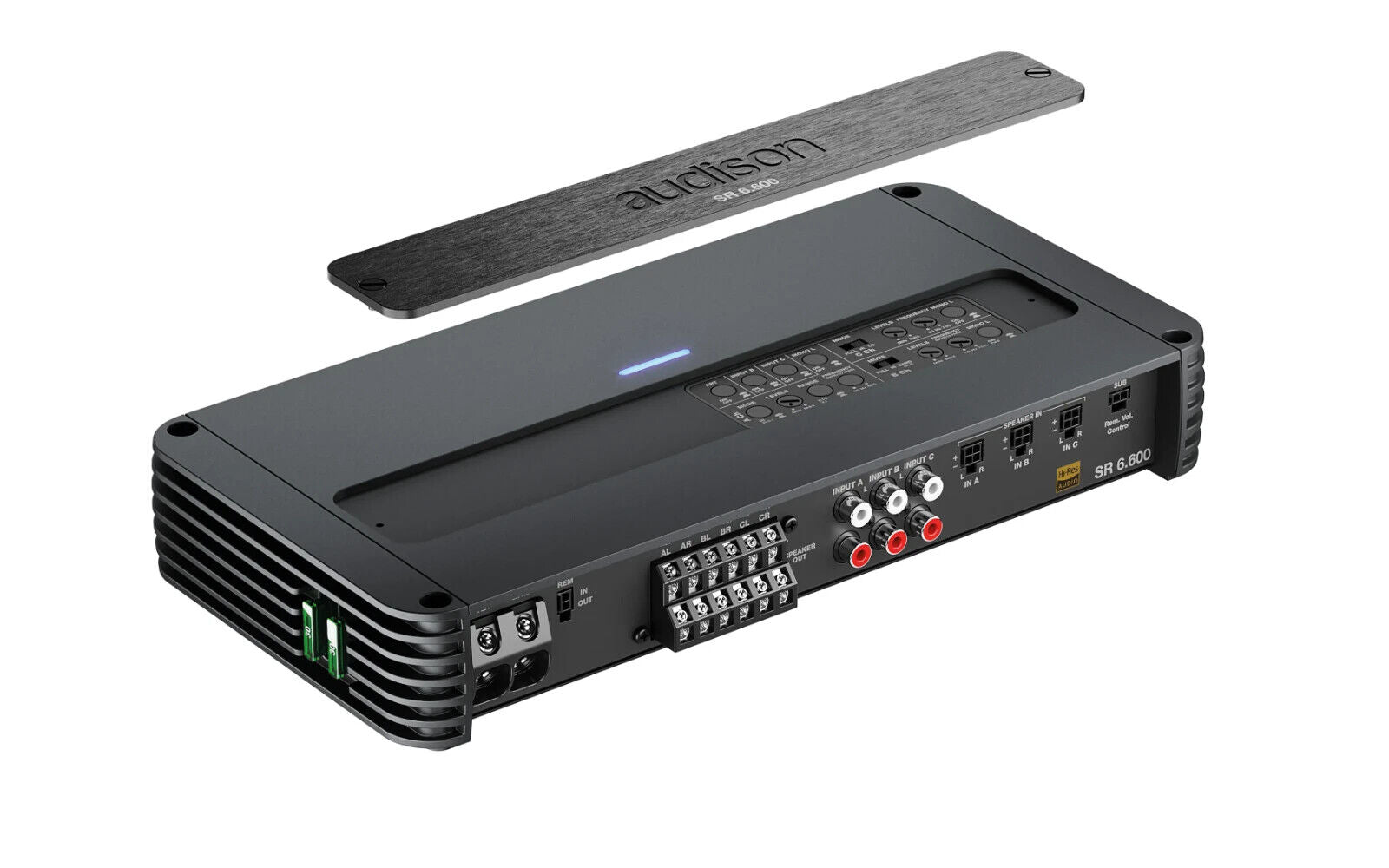

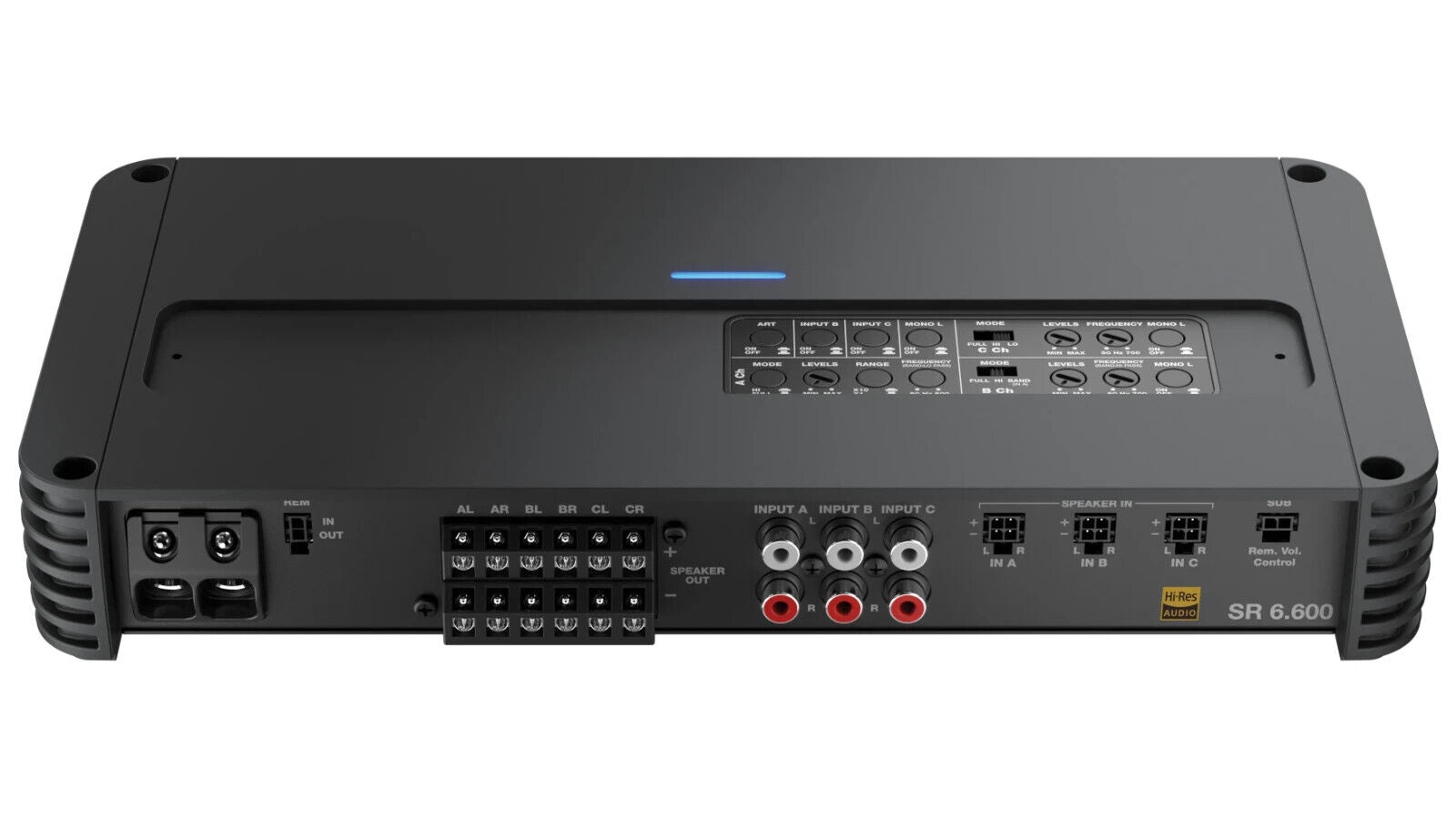

Audison SR 6.600 Amplifier 1120 W total power 140 W x 4 + 185 x 2 @2ohm D-Class

SR 6.600Amplifier ' 1120 W total power ' 140 W x 4 + 185 x 2 @2ohm ' D-Class

At Audison, our commitment to delivering unparalleled sound quality and innovation in-car audio systems remains unwavering.

We are thrilled to present our latest masterpiece - the Audison SR 6.600 6-Channel Amplifier with Hi-Res Audio Certification.

This amplifier is engineered to redefine your in-car listening experience, setting a new standard in audio excellence

AMPLIFIER TECH DATA

Channels6

ClassD-Class

Efficiency>87%

Hi Level InputYes

Low Level InputYes

Digital InputNo

Power supply voltage / fuse11 ÷ 17 VDC

Operating power supply voltage11 ÷ 17 VDC / 2 x 30A

Idling current2.2 A

Idling current when off0.04 mA

Consumption @ 14.4 VDC, 2Ω, Max Musical Power54 A

Remote OUT4 ÷ 15 VDC (150 mA)

Remote IN4 ÷ 15 VDC (1 mA)

ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable)1.5 ÷ 7 VDC

AMPLIFIER STAGE

Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power0.05 %

Bandwidth A10Hz ÷ 42 kHz

S/N ratio A102 dBA

Damping factor AA Ch/B Ch 100

C Ch 400

Input sensitivity Pre-In0.32 ÷ 8 VRMS

Pre In Impedance>10 kOhm

Input sensitivity Speaker-In1.6 ÷ 40 VRMS

Input impedance Speaker-In3Ohm ÷ 100kOhm (it depends by the Polyfuse specifications)

Total Power RMS1120 W

Minimum load impedanceCh 1-4: 2Ω

Ch 5-6: 1Ω

1+2/3+4 Bridged: 4Ω

5+6 Bridged: 2Ω

Output Power (RMS) @14.4 VDC, 1% THD6Ch mode

@4Ω: 85 x 4 + 110 x 2

@2Ω: 140 x 4 + 185 x 2

Ch1-4 @2Ω, Ch5-6 @1Ω: 140 x 4 + 300 x 2

5Ch mode

@4Ω: 85 x 4 + 370 x 1 (Ch5/6 bridged)

@2Ω: 130 x 4 + 600 x 1 (Ch5/6 bridged)

4Ch mode

@4Ω: 280 x 2 (bridged) + 110 x 2

@2Ω: 130 x 2 + 260 x 1 + 600 x 1

3Ch mode

@4Ω: 280 x 2 + 370 x 1 (Ch5/6 bridged)

280 x 2 (Ch1-4 @4Ω) + 600 x 1 (Ch5/6 bridged @2Ω)

Adjustable CrossoverYes

CEA SPECIFICATIONS

Output power @ 4Ω, 1% THD+N, 14.4 V75 W x 4 Ch + 85 W x 2 Ch

SN ratio (ref. 1W output)A Ch, B Ch: 84 dBA

C Ch: 84 dBA

INPUTS

Input TypePre-In / Speaker-In

Filter Pass AFull

Hi-pass: 50 ÷ 500 Hz @ 12 dB/Oct.

Filter Pass BFull

Hi-pass: 50 ÷ 500 Hz @ 12 dB/Oct

Band-pass: 50 ÷ 700 Hz (Hi) / 50 ÷ 5 kHz (Lo) @ 12 dB/Oct

Filter Pass CFull

Hi-pass: 50 ÷ 700 Hz @ 12 dB/Oct

Lo-pass: 50 ÷ 700 Hz @ 12 dB/Oct

Inputs/Outputs Sub CH-

Inputs/Outputs PhaseNo

Inputs/Outputs Bass BoostNo

Inputs/Outputs SubsonicNo

Remote Sub Volume(-20 ÷ 6) dB

OTHER

Weight2.52 kg
