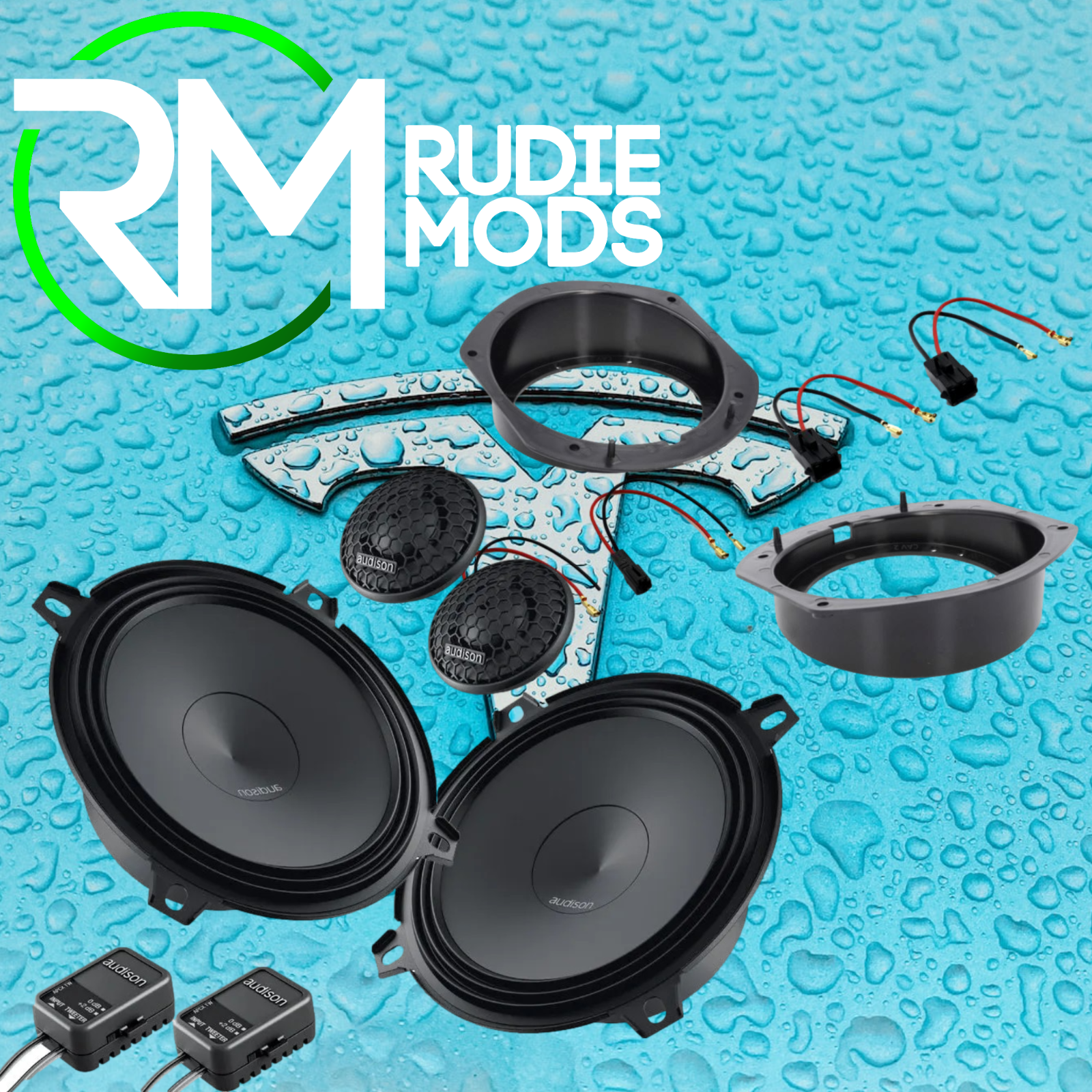

Audison Prima Speaker Upgrade kit for Tesla Model S & X (standard Audio) 130mm

Audison Prima APK 130

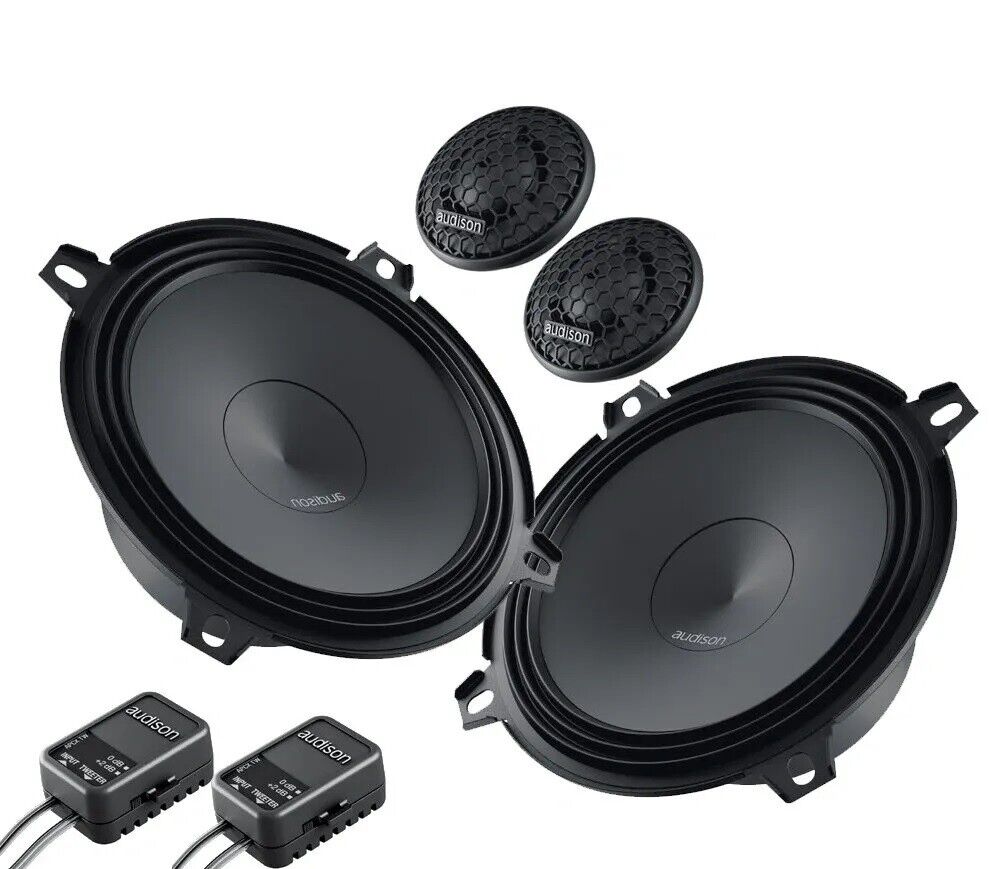

Designed to enable a quick yet comprehensive upgrade to factory fitted 5inch component speaker systems. The Prima technologies on board offer improved fidelity and huge improvements on the dispersion of sound from the often less than ideal mounting positions provided by vehicle manufacturers The wide-roll tweeter surround in this ingenious replacement component speaker system ensures a clear and resonance free high frequency performance vital in overcoming the issues with poor tweeter placement. Additional benefits are provided by use of an acoustic lens which pays particular attention to frequencies between 10 and 13KHz which are often compromised by poor speaker grille design as well as placement. THe cone features a water repellent stiffened paper cone suspended by a unique triple wave surround for extremely linear performance even at high levels and the shallow basket depth allows the speakers to be fitted in the tightest of spaces

Technical Specification

Size mm (in.) Woofer 130 (5)

Tweeter 26 (1)

Power Handling 225Watts peak

75Watts continuous

Impedance 4 Ohm

Frequency Response 70 Hz- 20KHz

Crossover type HP @ 3.5 kHz - 6 dB per Octave

Component adjustment 0 to +2dB

Woofer Magnet size mm 85 x 40 x 13

D xd x h (in.) (3.35 x 1.57 x 0.51)

Tweeter Magnet size mm 19 x 13

D x d x h (in.) (0.75 x 0.12)

Weight of one speaker kg (lb) Woofer 0.65 (1.43)

Tweeter 0.04 (0.09)

Voice Coil mm (in.) Woofer 32 (1.26)

Tweeter 20 (0.8)

Also Included is the below fitting kit and adapters to make this as easy to fit as possible.

Tesla Model S and X (STANDARD AUDIO) 130mm front door speaker upgrade fitting kit

SFKU-TSL01-130

Provide a sound upgrade to your Tesla Model S and X (WITH OEM STANDARD AUDIO) front doors with our 130mm speaker upgrade fitting kit.

This kit allows you to fit a set of aftermarket 130mm speakers to your Tesla Model S or X front door panels (SPEAKERS NOT INCLUDED)

This kit also includes the adapter cables to replace the front tweeters as well as the front door speakers.

For cars with original standard sound system use kit SFKU-TSL03-130

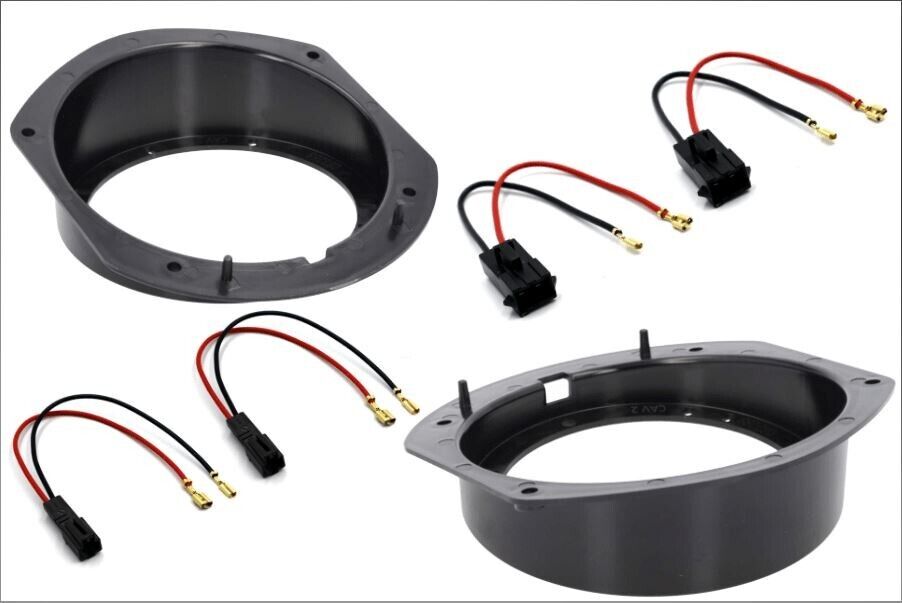

This speaker fitting kit includes:

130mm speaker adapter panels (40-1803-130)

A pair of front or rear door car speaker adapter panels for 130mm (5.25 inch) speakers.

These panels allow you replace the cars original speakers with new improved quality aftermarket speakers.

Door Speaker adapter cables (41-032)

Speaker adapter cables;  used to connect after market speakers to the original loom on Tesla vehicles.

Tweeter speaker adapter cables (41-037)

Tweeter adapter cables;  used to connect after market mid-range speakers or tweeters to the original loom on Tesla vehicles.

Car models: The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.

Tesla - Model S (2012 >)

Tesla - Model X (2015 >)
