Audison Prima Speaker Upgrade kit for Tesla Model 3 & Y (standard Audio) 165mm

Audison Speaker Upgrade kit for Tesla Model S 2017+ & X 2020+ (standard Audio) 165mm

Audison Prima APK 165

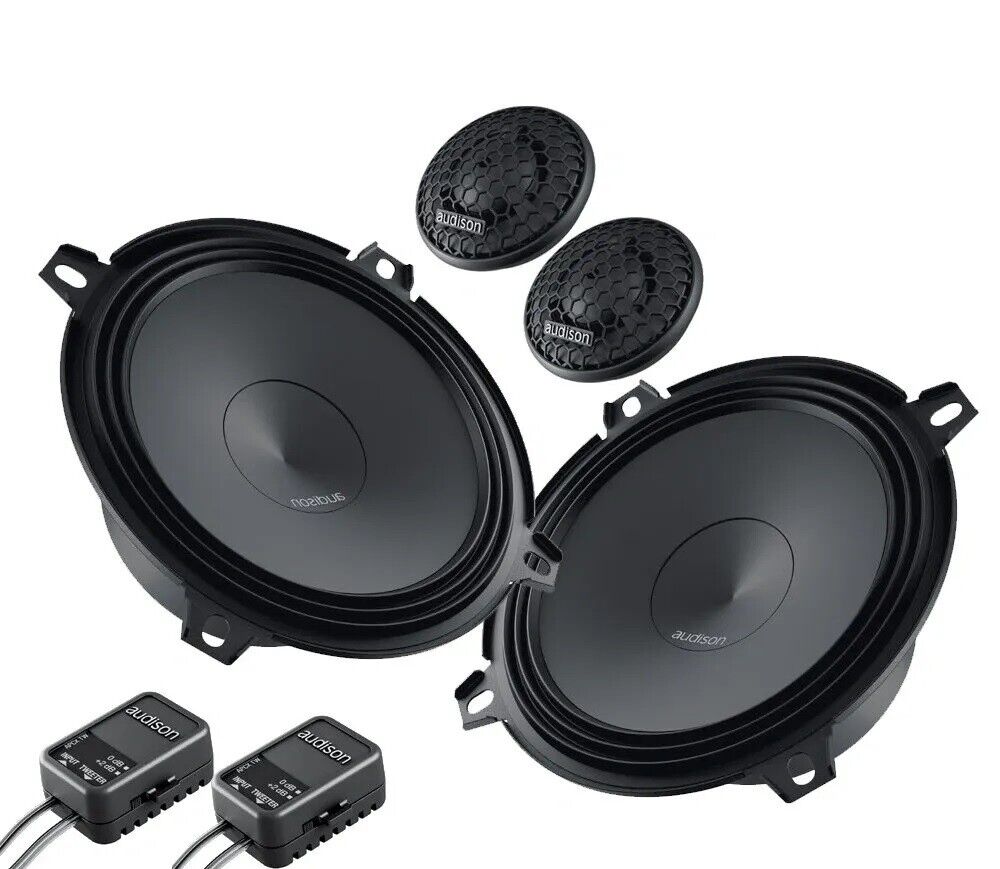

Slim fit 2-Way component upgrade speaker system This superb component pair has been designed for direct replacement of OEM speakers. The shallow basket and fast connectors keep install time down to a minimum while the woofer's triple wave surround helps with linearity under maximum excursion conditions. The tweeter features an acoustic lens designed to overcome the problems associated with attenuation at certain frequencies by OEM grills.

Technical Specification

Component 2-way Coaxial

Size mm (inch) Woofer 165 (6.5)

Tweeter 26 (1)

Power Handling W peak 300W continuous 100

Impedance 4 Ohm

Frequency Response 60 Hz - 20Khz

Crossover type HP @ 3.5 kHz - 6 dB Oct

Component adjustment 0 and +2dB

Magnet size mm 85 x 40 x 15

D x h (in.) (3.35 x 1.57 x 0.59)

Weight of one speaker kg (lb) Woofer 0.78 (1.72)

Tweeter 0.04 (0.09)

Voice Coil mm (in.) Woofer 32 (1.26)

Tweeter 20 (0.8)

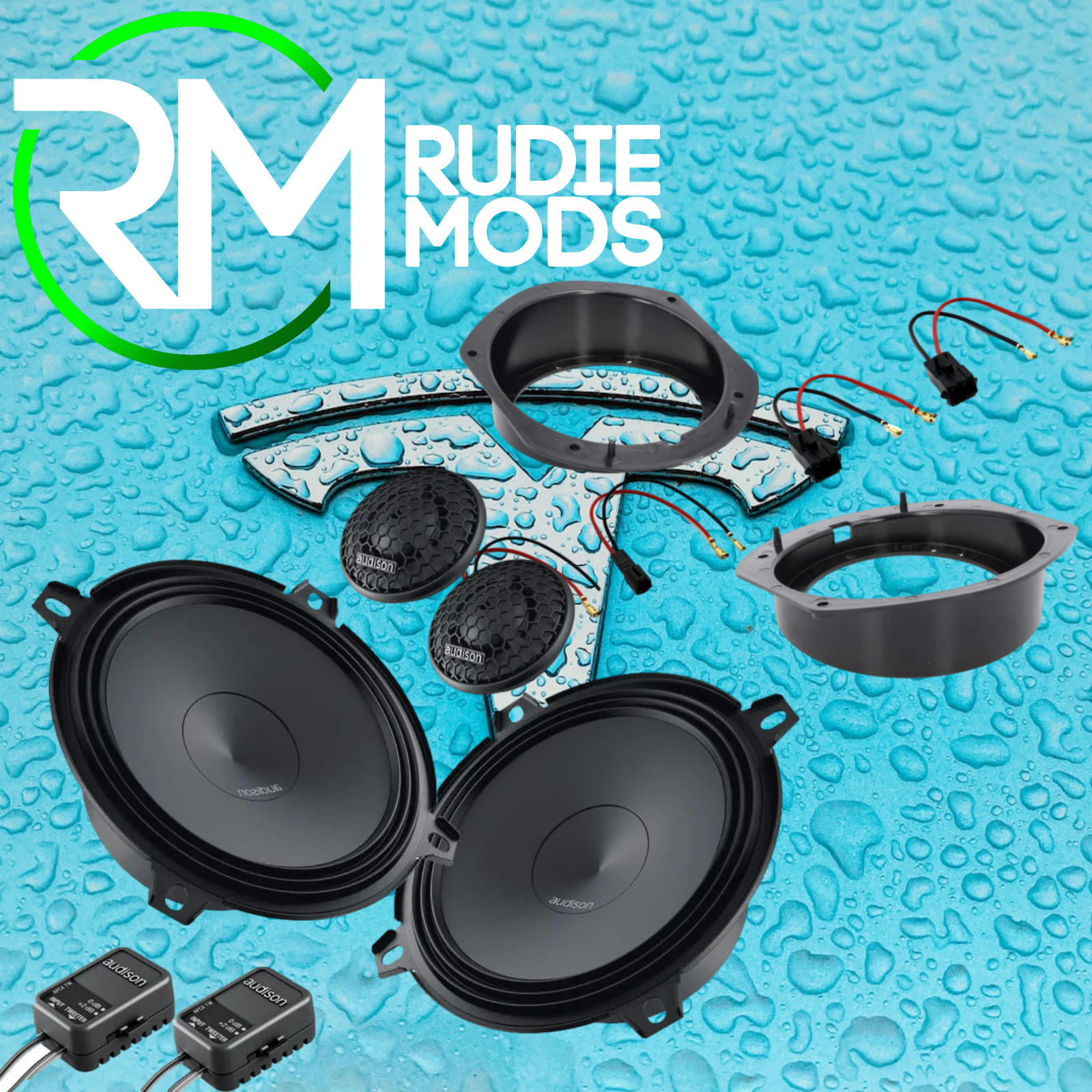

Also Included is the below fitting kit and adapters to make this as easy to fit as possible.

Tesla Model 3 and & (STANDARD AUDIO) 165mm front door speaker upgrade fitting kit

SFKU-TSL07-165

Provide a sound upgrade to your Tesla Model 3 or Y front doors with our 165mm speaker upgrade fitting kit.

This kit allows you to fit a set of aftermarket 165mm speakers to your Tesla Model 3 or Y front door panels (SPEAKERS NOT INCLUDED)

This kit also includes the adapter cables to replace the front tweeters as well as the front door speakers.

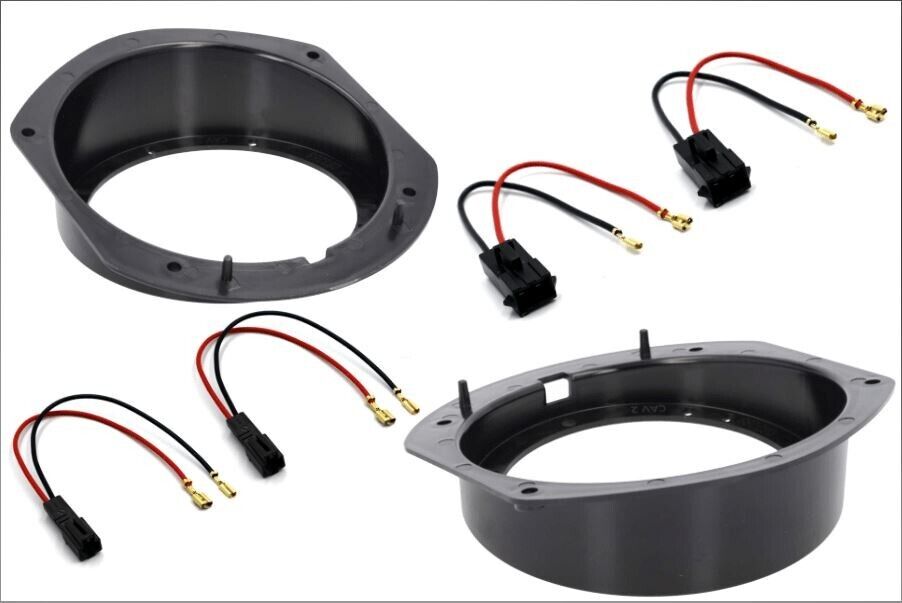

This speaker fitting kit includes:

Speaker adapter panels (40-1833-165)

A pair of front or rear door car speaker adapter panels for 165mm (6.5 inch) speakers.

These panels allow you replace the cars original speakers with new improved quality aftermarket speakers.

Speaker adapter cables (41-034)

Speaker adapter cables;  used to connect after market speakers to the original loom on Tesla vehicles.

Tweeter adapter cables (41-038)

Tweeter adapter cables;  used to connect after market mid-range speakers or tweeters to the original loom on Tesla vehicles.

Car models: The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.

Tesla - Model 3 (2017 >)

Tesla - Model Y (2020 >)
