Audison Prima APBMW K4M BMW & Mini Component Door Speaker Upgrade Kit

Brand New

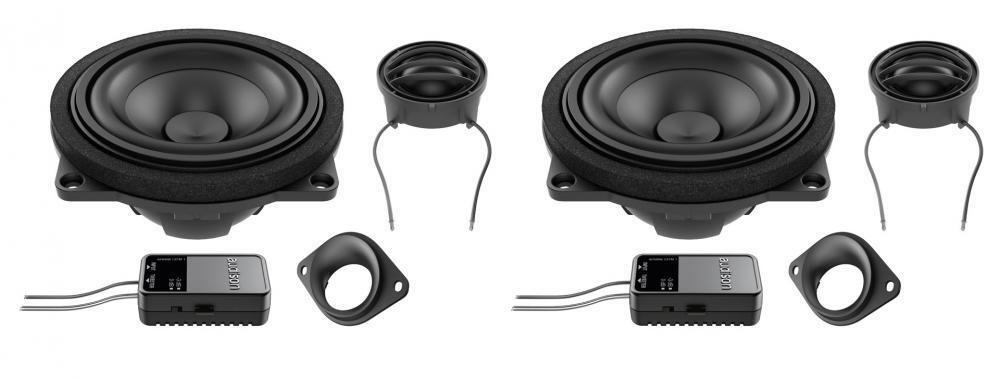

  Audison Prima APBMW K4M BMW & Mini Component Door Speaker Upgrade Kit

If you are unsure if these fit your vehicle, please message us your car details to confirm if they fit

The two-way APBMW K4M kit creates a three-dimensional sound stage and give the musical message the essential timbre accuracy.

The 100 mm (4″) midrange is provided with a water-repellent pressed-paper cone, a material providing natural sound. It features a low resonance frequency that allows hi-pass cut-off in the 150-200 Hz range for an excellent mid-low reproduction.

The 25 mm coil and Tetolon dome tweeter features a great extension on both medium and high frequencies and is optimized for off-axis output, for an extended sound stage in the three dimensions, that amplifies the perception of reality in the car cabin.

Specially developed for the upgrade of BMW-Mini featuring factory 2 way systemsTo create an extended sound stage in the three dimensions, amplifying the perception of reality in the car cabin.

Neodymium Magnetic groupTo maximize performance while minimizing bulk and weight.

25 mm (1") fiberglass woofer voice coilFor high power dissipation and stiffness.

Waterproof pressed-paper coneFor medium natural frequencies free from any plastic resonance.

Aluminium die-cast basketWith Plug & Play connectors.

25 mm Tetolon coil tweeterWith dispersion characteristics optimized with FEM simulations.Tweeter support supplied

For Plug&Play OEM placements.30 cm extension provided

Featuring Plug & Play connectors, for high flexibility of installation.Damping removable motor cover

Crossover equipped with high quality componentsWith Plug&Play connections.

Technical SpecificationWoofer Size mm (in.): 100 (4) Tweeter Size mm (in.): 29 (1.1) Power Handling: 100W peak, 50W continuous Impedance: 4 Ohms Frequency Response Hz: 90 - 23k Sensitivity dB: 89 Crossover Type: Hi-Pass - 6 KHz @ 6dB/Oct. Component adjustment dB: -3, 0 Woofer Magnet size D x d x h mm (in.): 50 x 29 x 3 (1.97 x 1.14 x 0.12) Tweeter Magnet size D x d x h mm (in.): 24.5 x 4 (0.96 x 0.16) Weight of one speaker Kg (lb): Woofer 0.426 (0.94) Tweeter 0.06 (0.13) Voice Coil Ø: Woofer 25 (1) Tweeter 25 (1)
