Audison Forza AF M12.14 bit Car DSP 12ch Amplifier 60 W x 12

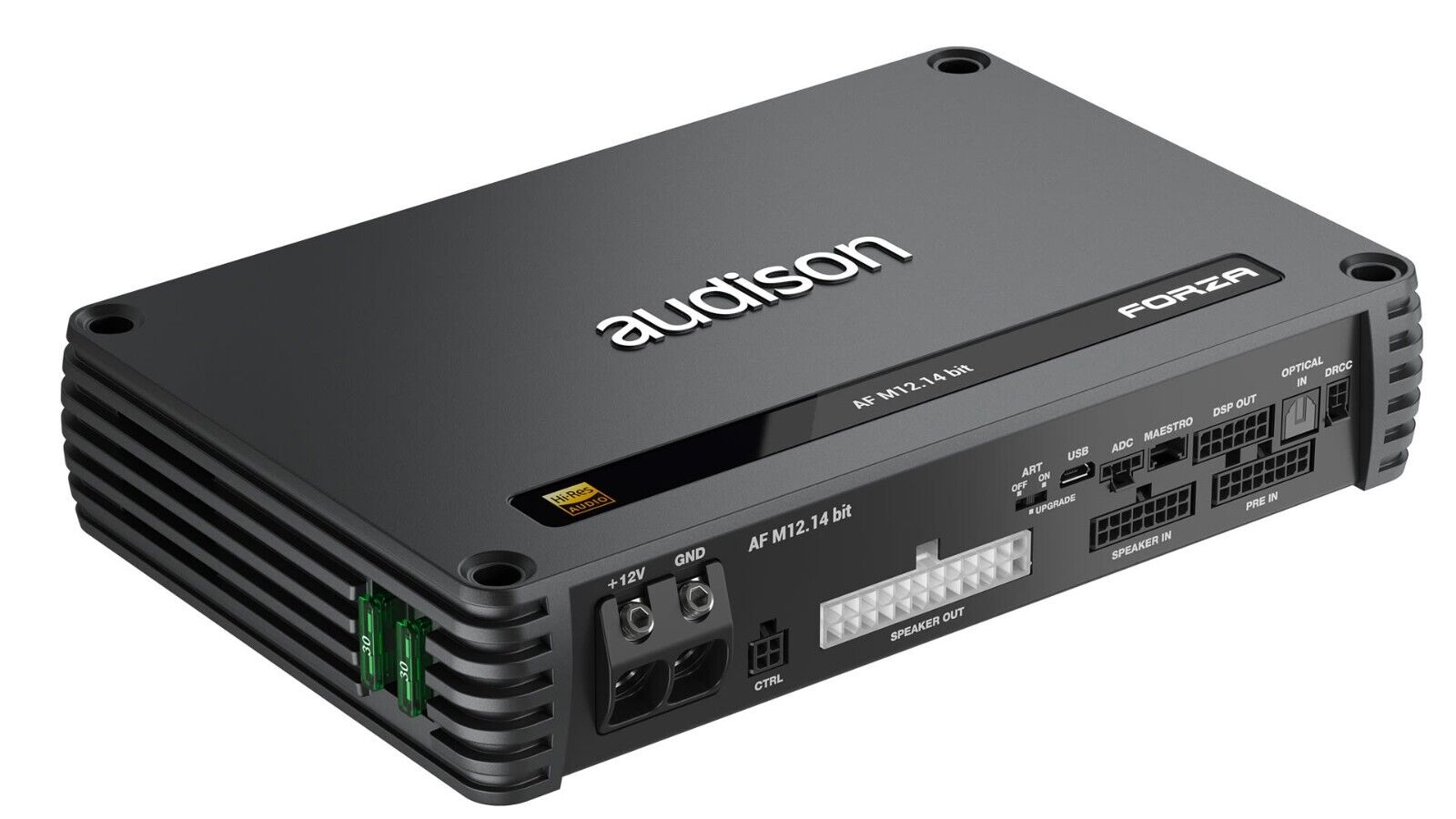

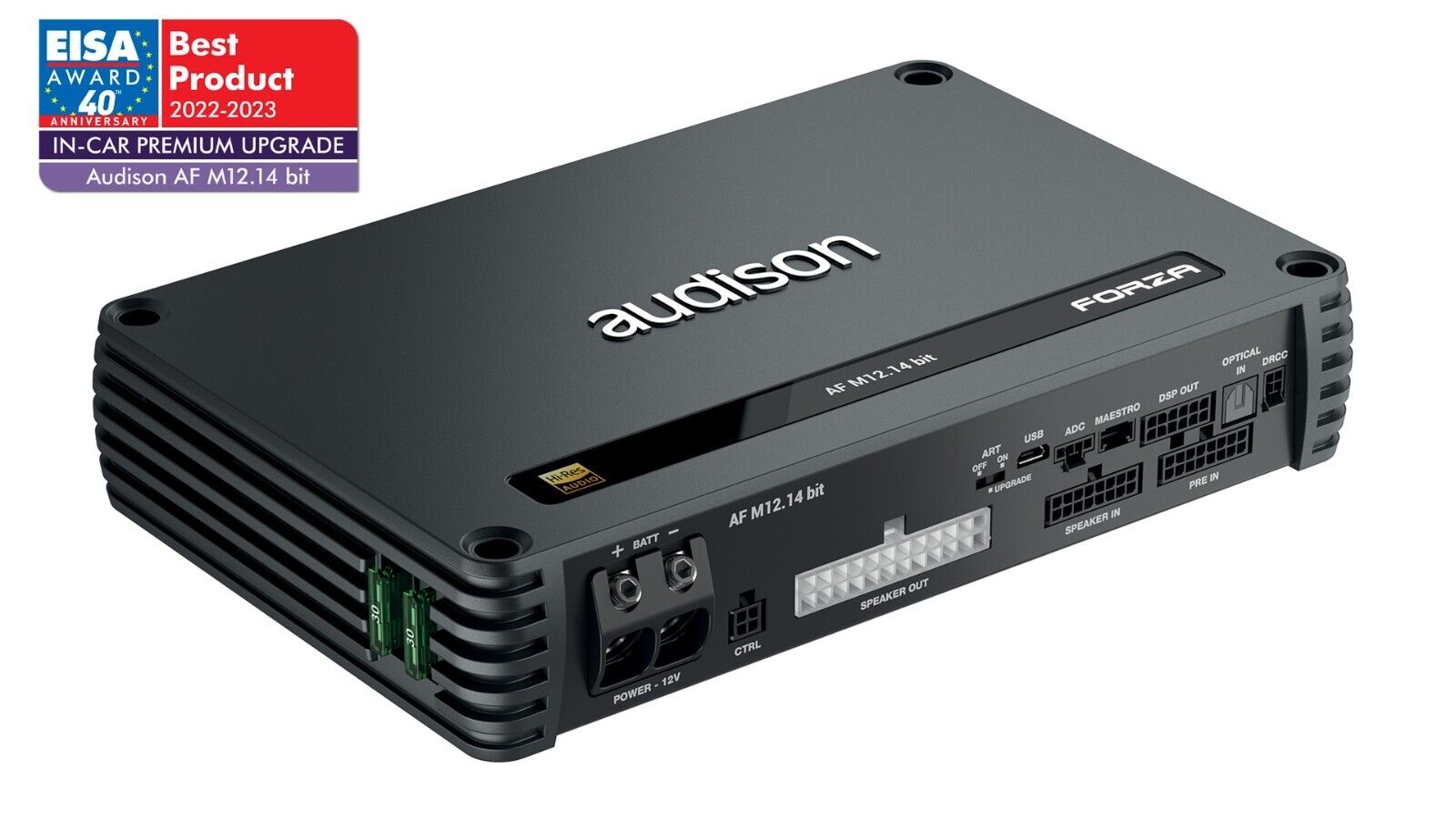

Audison Forza AF M12.14 bit

This next-generation Forza amplifier offers installers and users the most flexibility ever. Able to cope with the most sophisticated multi-channel OEM integration project. The AF M12.14 bit features 12 amplified channels capable of delivering 60wRMS each into 4ohmsm. These channels can all be bridged in pairs to provide 6 X 90wRMS channels. Containing 14 channels of the world's most sophisticated bit DSP, it is almost easier to list what it does not do. Each channel has its own dedicated channel of eq, time-alignment and RTA, enabling your installation specialist to shape the sound in your vehicle to your exact taste.

POWER SUPPLY

Nominal power supply voltage / fuse:

11 - 15 VDC / 2 x 30A

Pulse operating voltage:

6.5 - 17.5 VDC

Idling current:

1.68 A

Standby current draw:

1.7 mA

Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power):

45 A

Remote IN:

4 -15 VDC (1 mA)

Remote OUT:

6.5 -15 VDC (150 mA)

ART - Automatic Remote Turn on/off from Speaker-In

1.5 VDC

Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels:

80%

AMPLIFIER STAGE

Distortion - THD+N @ 1 KHz, 4Ω, 70% Rated Power:

0.03%

Damping factor @ 1 kHz , 4Ω, 2 VRMS:

80

Bandwidth @ -3 dB:

10 Hz - 42 kHz

S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input:

98 dBA

S/N ratio (A weighted @ Rated Power) Optical Input:

105 dBA

Minimum load impedance:

12Ch: 2Ω

6Ch - (Bridge 1/2; 3/4; 5/6; 7/8; 9/10; 11/12): 4Ω

Output Continuous Power (RMS) @14.4 VDC, 1% THD:

• 12 Ch @ 4Ω: 60 W x 12

• 12 Ch @ 2Ω: 90 W x 12

• 4Ch (Bridge 1/2; 3/4; 5/6; 7/8; 9/10; 11/12) @ 4Ω: 180 W x 6

CEA SPECIFICATIONS

Output power @ 4Ω, 1% THD+N, 14.4 V: 45 W

SN ratio (ref. 1 W output): 75.5 dB

INPUTS / OUTPUTS

Pre-In (8 Ch): 0.6 - 6 VRMS (15 kΩ Imp.)

Speaker-In (8 Ch + additional 4 Ch with optional F4IN card):

2.2 - 22 VRMS (5 Ω Imp.)

Digital IN:

1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card

DSP Preout (2 Ch): 5V RMS

DIGITAL SIGNAL PROCESSOR

Audio DSP and converters:

Analog Devices ADAU1467 automotive qualified audio processor.

Processing @ 96 kHz.Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high level performance

Filter type:

Full / High-Pass / Low-Pass / Band-Pass

Filter mode and slope:

Linkwitz-Riley @ 12/24/36/48 dB/Oct.

Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.

Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.

Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.

QLP @ 6 dB/Oct.

Crossover frequency: 20 Hz - 20 kHz

Phase control: 0° / 180°, All-Pass filters

Analog Input Equalizer (20 Hz - 20 kHz): 12 Biquad + Delay

Output Equalizer:

Parametric/Graphic Biquad: 15 poles, 20 Hz - 20 kHz

Input and Output Real Time Audio Monitor: RTA

Time Alignment Distance: 0 - 510 cm / 0 - 200.8 inches

Time Alignment Delay: 0 - 15 ms

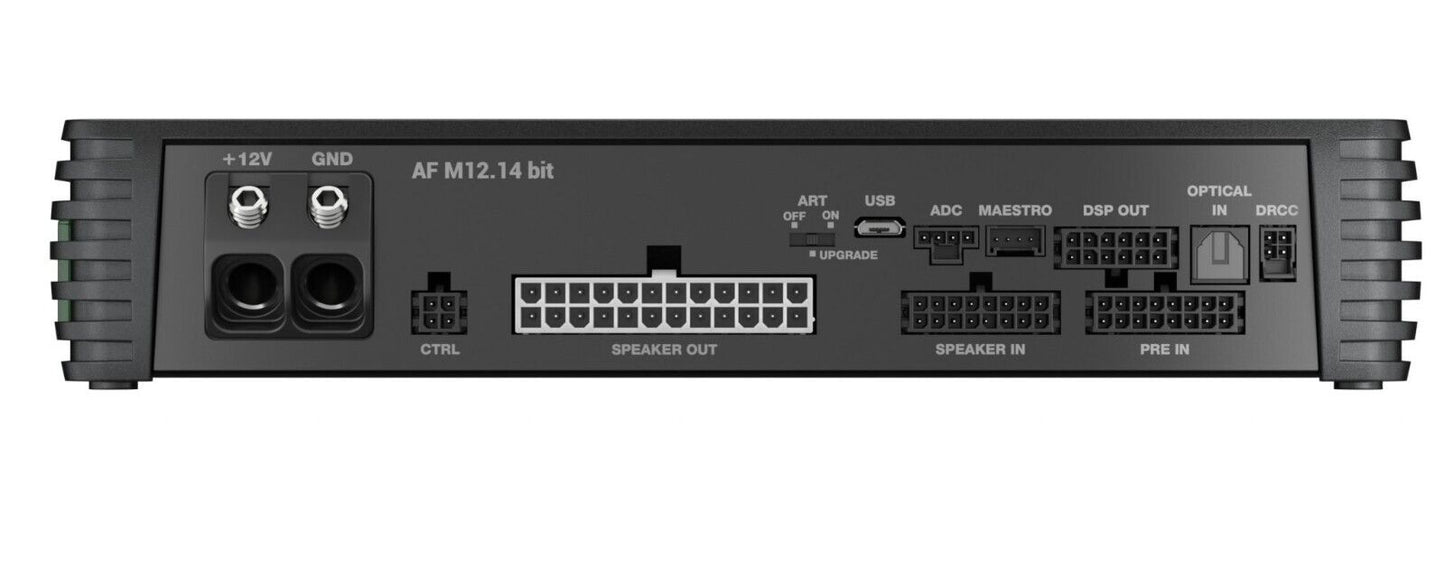

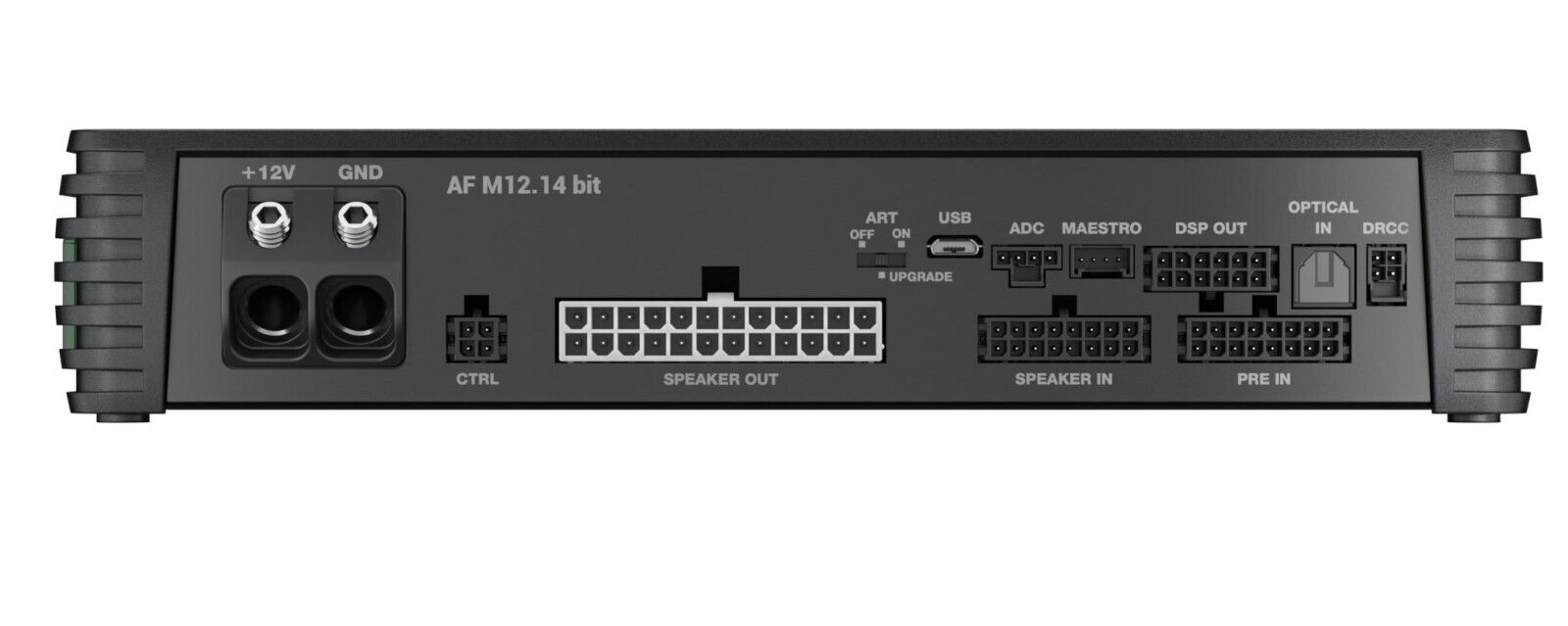

CONTROL CONNECTIONS

Audison DRCC port:

Input for DRCC remote control (Optional)

Audison ADC port:

Manage other Audison devices that support this standard

Control 1 wire:

Customisable functions (+ 12 V activated)

Control 2 wire:

Customisable functions (+ 12 V activated)

GENERAL REQUIREMENTS

PC connections:

Micro USB 1.1 / 2.0 / 3.0 Compatible

Software/ PC requirements:

Windows 10, Windows 11 (min. res. 1024 x 768

Ambient operating temperature range:

0 °C to 55 °C (32 °F to 131 °F)

SIZE / WEIGHT

Max size W x H x D (mm/inch):

240 x 47 x 156 / 9.44 x 1.85 x 6.14

Weight (kg/lb):

2.04 / 4.49
