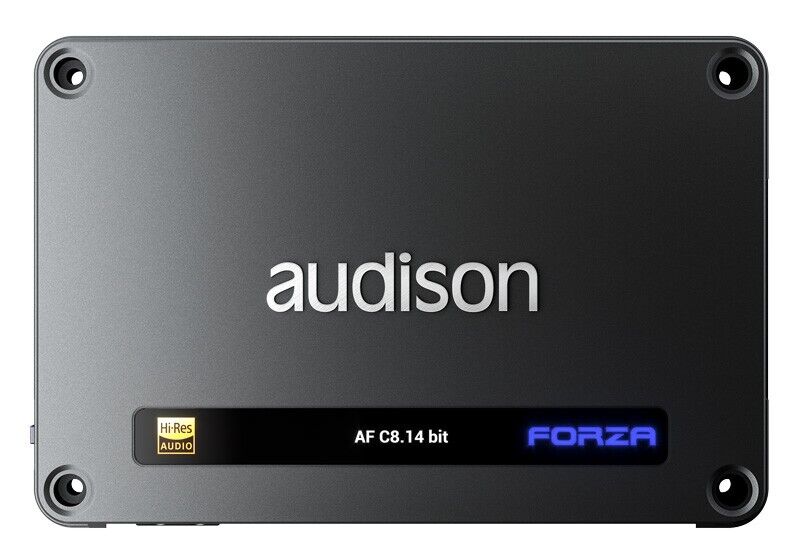

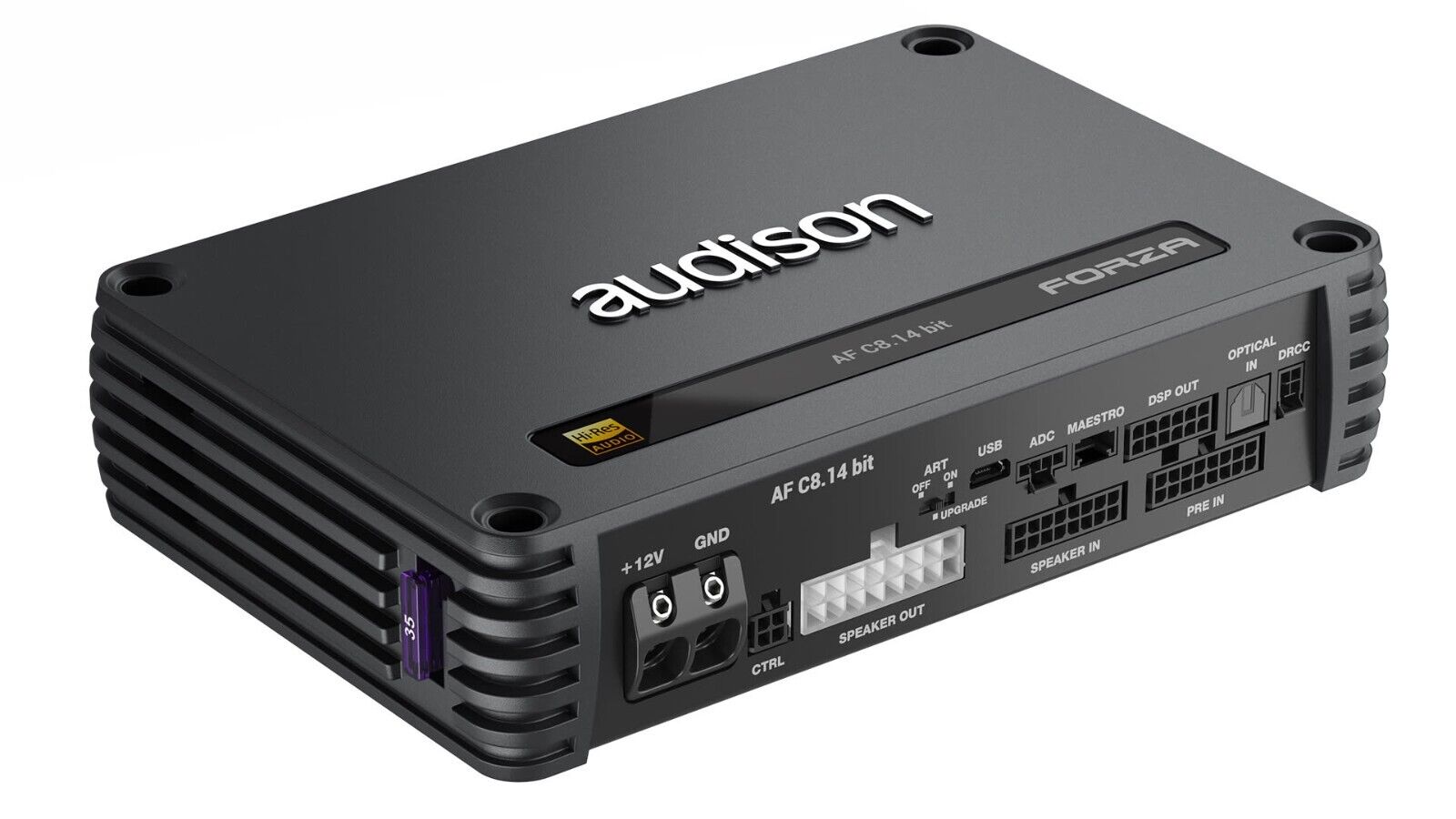

Audison Forza AF C8.14 Bit D Class Fully Bridgeable 14 CH DSP Amplifier 800W

Audison Forza AF C 8.14 bit

Eight amplified channels (8 x 65w into 4ohms) and six further pre-outs mean this 8-channel can be configured to offer the benefits of built-in DSP to a much larger system. With complete bridging available, the flexibility of this mini-beast is astonishing!

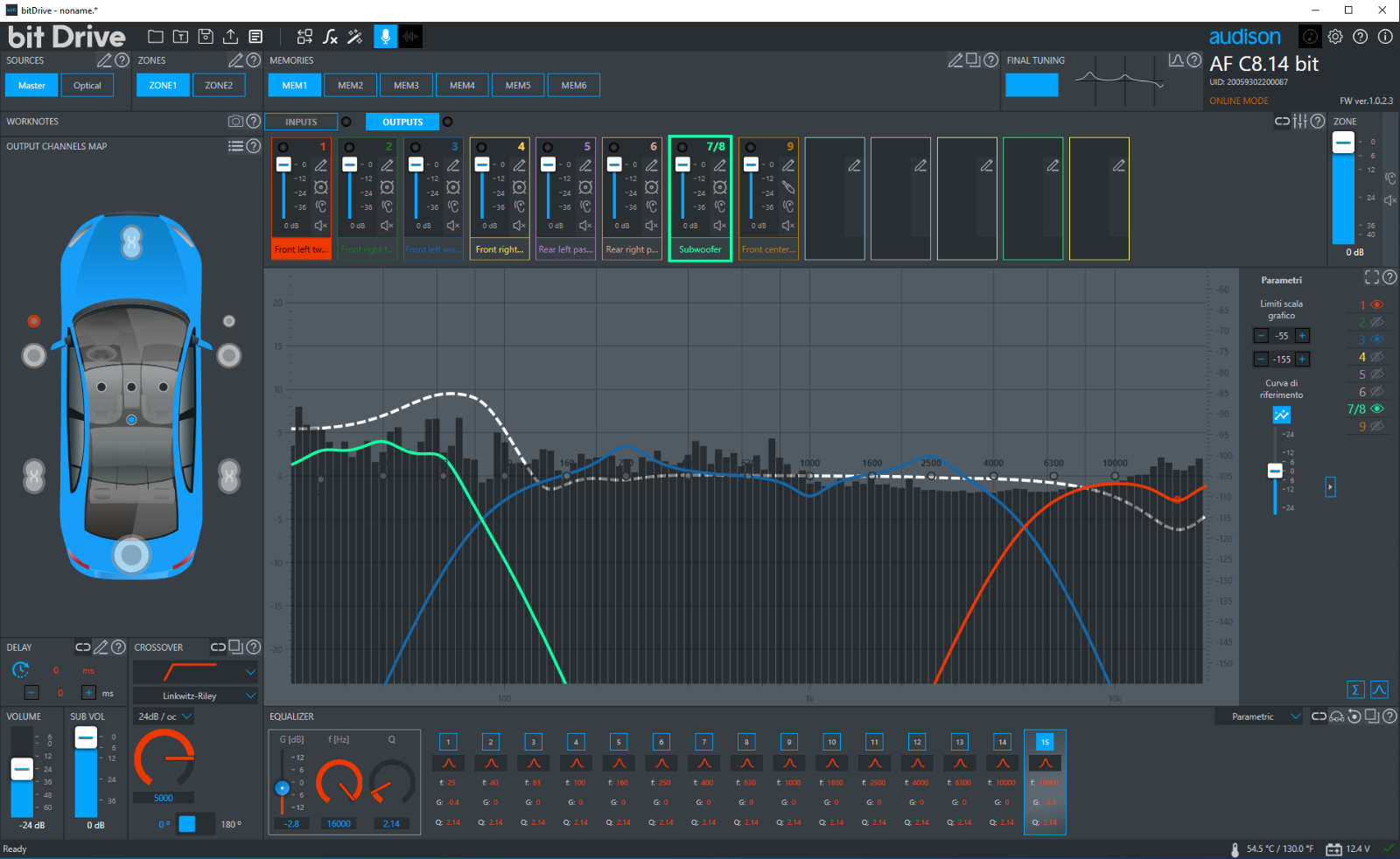

New generation software for adjusting parameters of the DSP plus built-in audio analysis (acoustic RTA) means the entire set-up can take place without the need for external equipment. This makes the installer's job easier.

POWER SUPPLY

Nominal power supply voltage / fuse:

11 - 15 VDC / 2 x 30A

Pulse operating voltage:

6.5 - 17.5 VDC

Idling current: 1.5 A

Standby current draw: 1.7 mA

Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power): 55 A

Remote IN: 4 -15 VDC (1 mA)

Remote OUT: 6.5 -15 VDC (150 mA)

ART - Automatic Remote Turn on/off from Speaker-In

1.5 VDC

Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels: 82%

AMPLIFIER STAGE

Distortion - THD+N @ 1 KHz, 4Ω, 70% Rated Power: 0.05%

Damping factor @ 1 kHz , 4Ω, 2 VRMS: 100

Bandwidth @ -3 dB: 10 Hz - 42 kHz

S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input:

98.5 dBA

S/N ratio (A weighted @ Rated Power) Optical Input:

105 dBA

Minimum load impedance:

8Ch: 2Ω

4Ch - (Bridge 1/2; 3/4; 5/6; 7/8): 4Ω

Output Continuous Power (RMS) @14.4 VDC, 1% THD:

• 8 Ch @ 4Ω: 65 W x 8

• 8 Ch @ 2Ω: 100 W x 8

• 4Ch (Bridge 1/2; 3/4; 5/6; 7/8) @ 4Ω: 200 W x 4

CEA SPECIFICATIONS

Output power @ 4Ω, 1% THD+N, 14.4 V: 65 W x 8

SN ratio (ref. 1 W output): 80 dB

INPUTS / OUTPUTS

Pre-In (8 Ch): 0.6 - 6 VRMS (15 kΩ Imp.)

Speaker-In (8 Ch + + additional 4 Ch with optional F4IN card):

2.2 - 22 VRMS (5 Ω Imp.)

Digital IN:

1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card

DSP Preout (6 Ch): 5V RMS

DIGITAL SIGNAL PROCESSOR

Audio DSP and converters:

Analog Devices ADAU1467 automotive qualified audio processor.

Processing @ 96 kHz.Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high level performance

Filter type:

Full / High-Pass / Low-Pass / Band-Pass

Filter mode and slope:

Linkwitz-Riley @ 12/24/36/48 dB/Oct.

Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.

Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.

Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.

QLP @ 6 dB/Oct.

Crossover frequency: 20 Hz - 20 kHz

Phase control: 0° / 180°, All-Pass filters

Analog Input Equalizer (20 Hz ÷ 20 kHz):

12 Biquad + Delay

Output Equalizer:

Parametric/Graphic Biquad: 15 poles, 20 Hz - 20 kHz

Input and Output Real-Time Audio Monitor: RTA

Time Alignment Distance: 0 - 510 cm / 0 - 200.8 inches

Time Alignment Delay: 0 - 15 ms

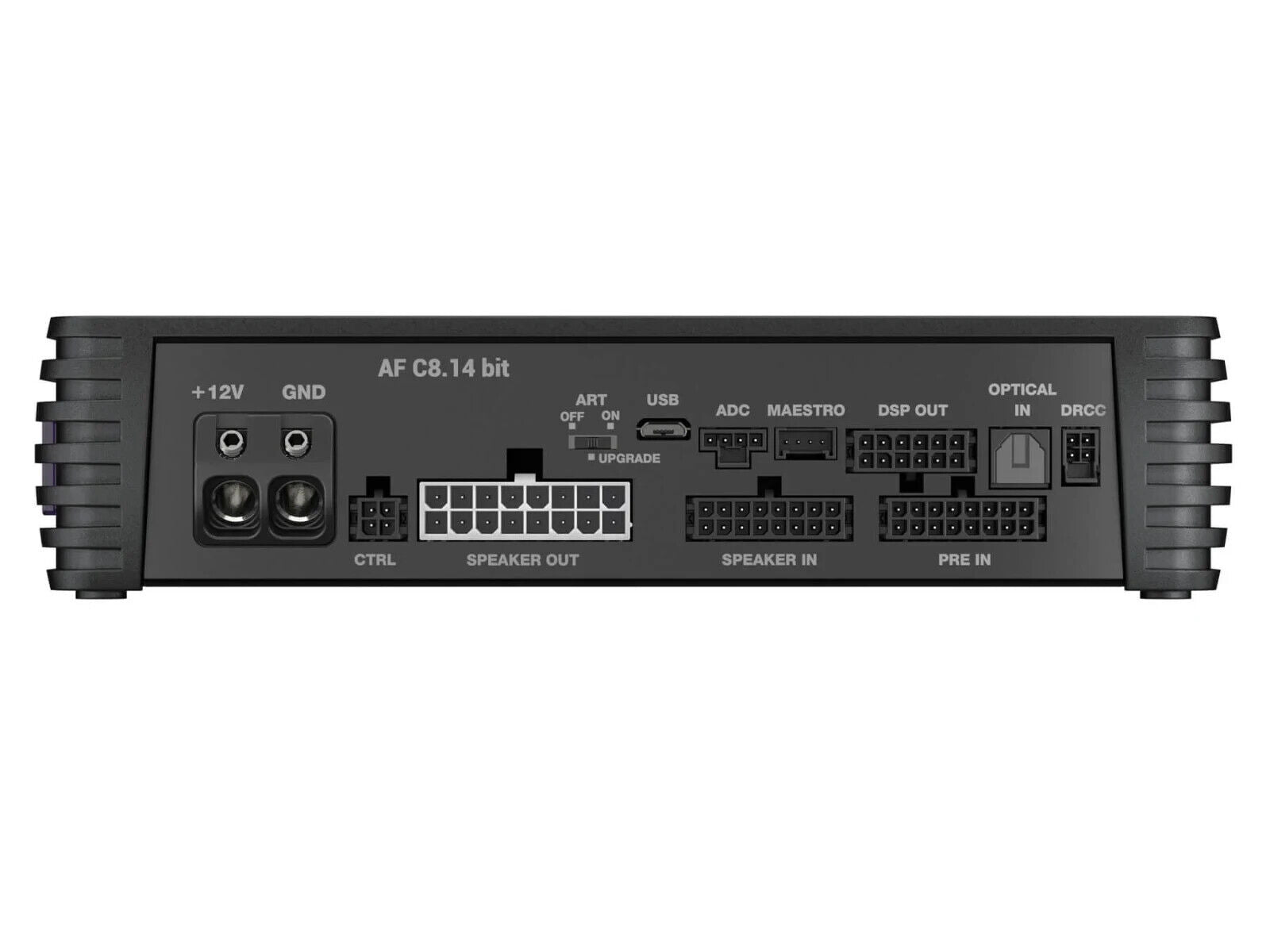

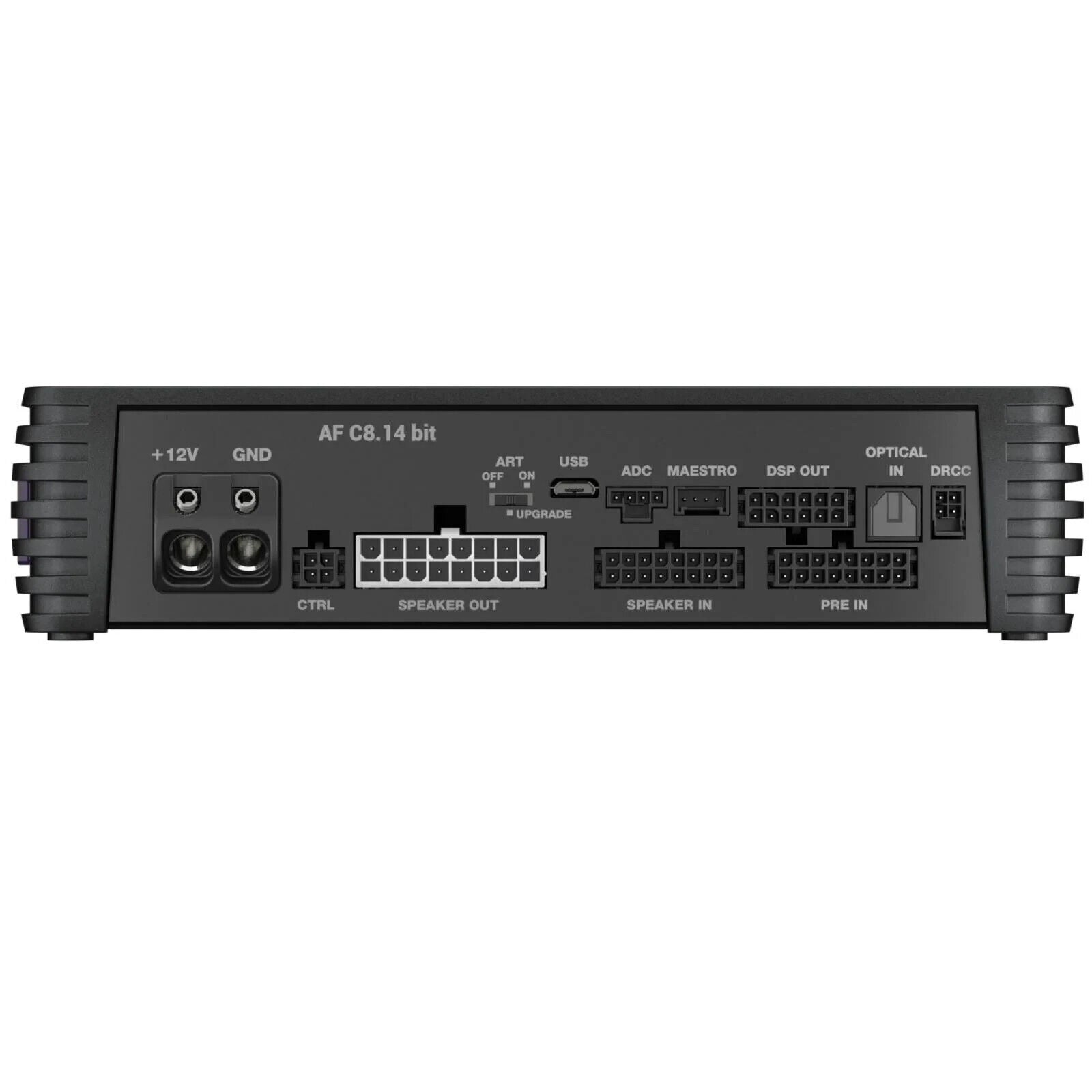

CONTROL CONNECTIONS

Audison DRCC port:

Input for DRCC remote control (Optional)

Audison ADC port:

Manage other Audison devices that support this standard

Control 1 wire:

Customisable functions (+ 12 V activated)

Control 2 wire:

Customisable functions (+ 12 V activated)

GENERAL REQUIREMENTS

PC connections:

Micro USB 1.1 / 2.0 / 3.0 Compatible

Software/ PC requirements:

Windows 10, Windows 11 (min. res. 1024 x 768

Ambient operating temperature range:

0 °C to 55 °C (32 °F to 131 °F)

SIZE / WEIGHT

Max size W x H x D (mm/inch):

240 x 47 x 156 / 9.44 x 1.85 x 6.14

Weight (kg/lb): 2.04 / 4.49
