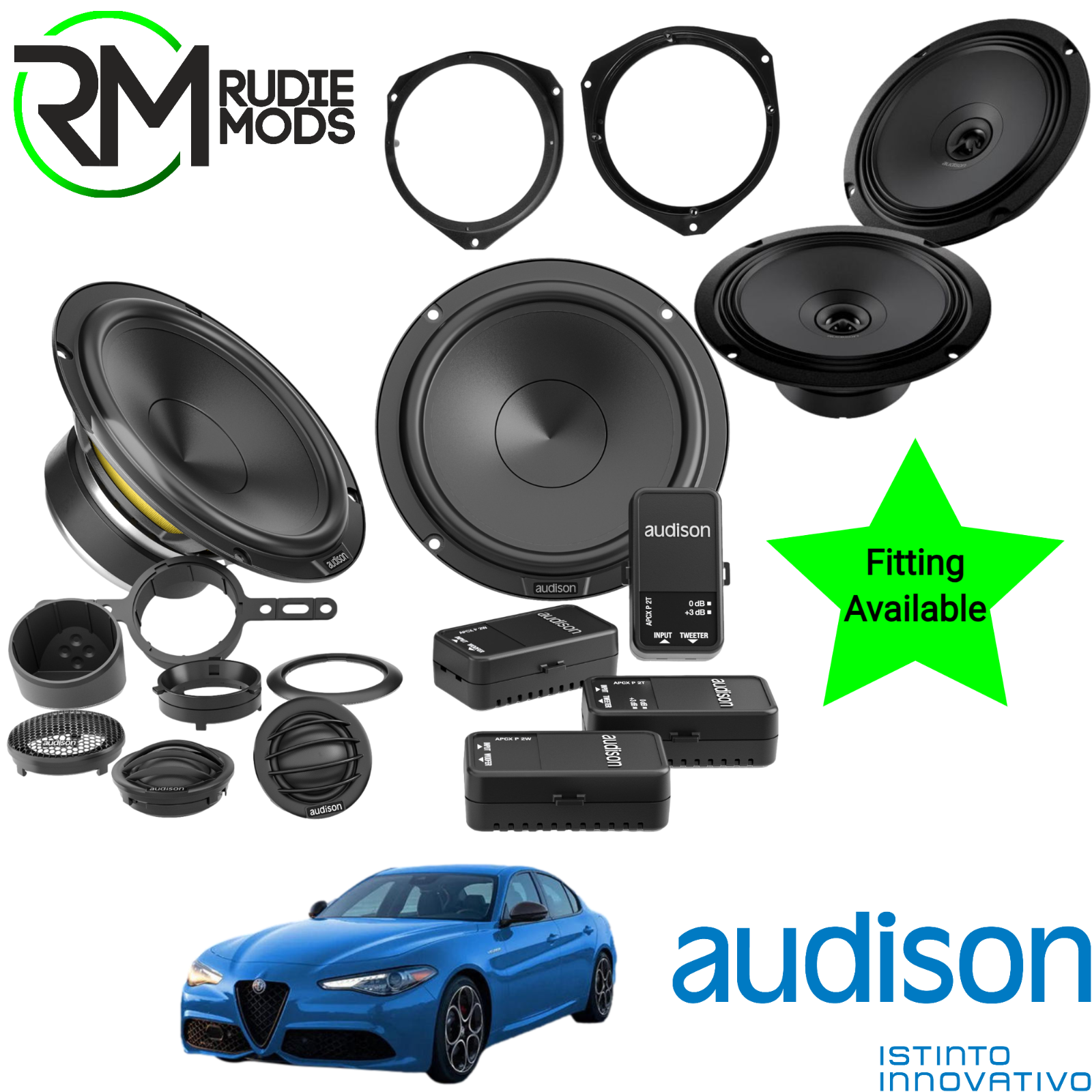

Audison Factory Speaker System upgrade for Alfa Romeo Giulia 2016-22 Base Audio

Audison Factory Speaker System upgrade for Alfa Romeo Giulia 2016-2022 with Base Audio

ALF-SPK-01

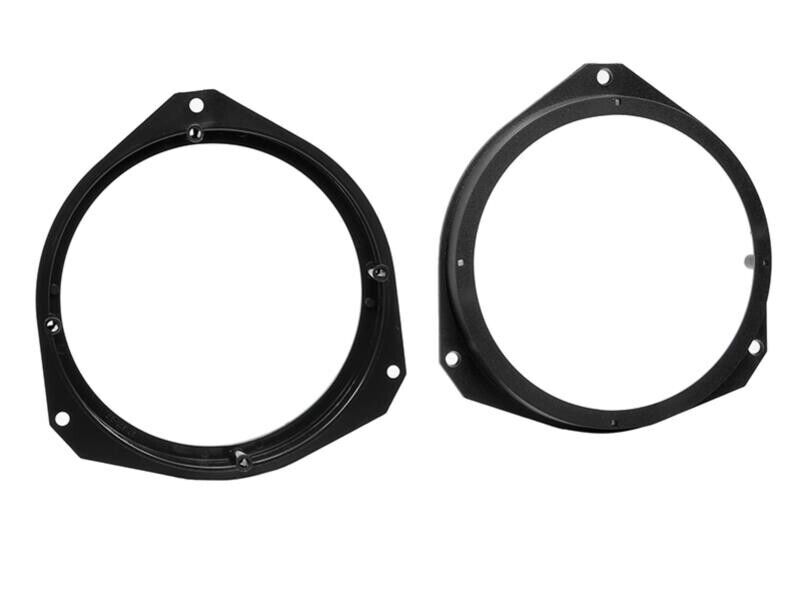

Front Passive 2way (spacers included) + Rear Coax (spacers included)

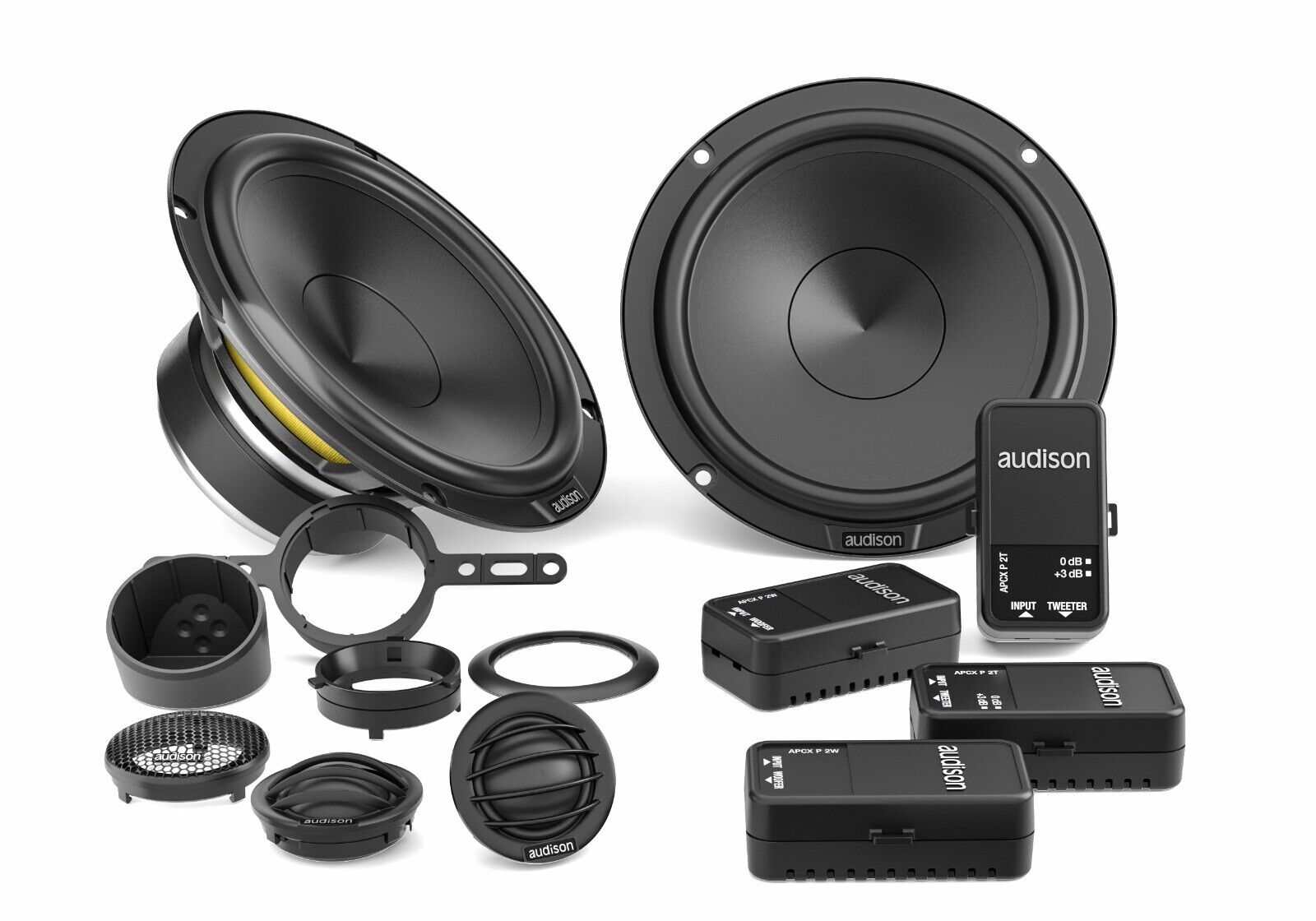

APK 165PKit ' 345 W Peak Power ' Kit 2 way 4 ohm ' AP 1P + AP 6.5P + Crossover

The new Prima APK 165P two-way loudspeaker system, capable of handling up to 345 W peak, is the ideal combination to fully exploit the power of the AP F8.9 bit or all other Prima amplifiers used in high power configurations. The exclusive AIF technology (Any Install Faceplate) of the AP 1P Tweeter provides the installer with 3 different faceplates for total application versatility and a significant reduction in installation time. The woofer has been designed to perform at its best in OEM placements, combining excellent power handling and efficiency.

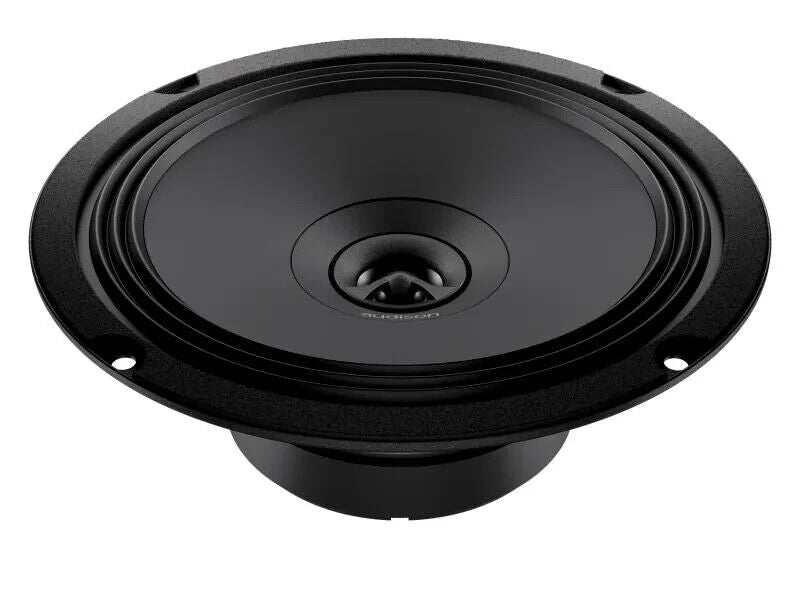

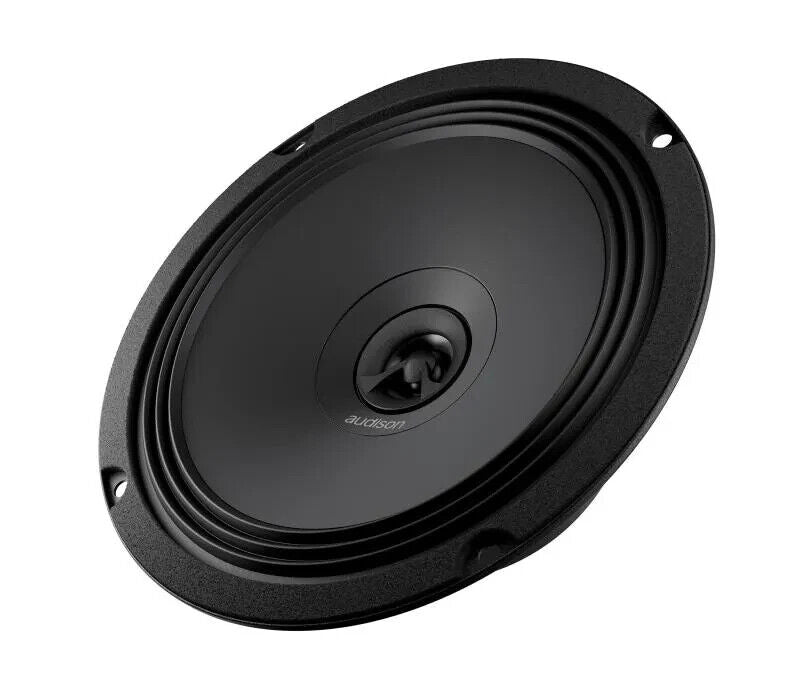

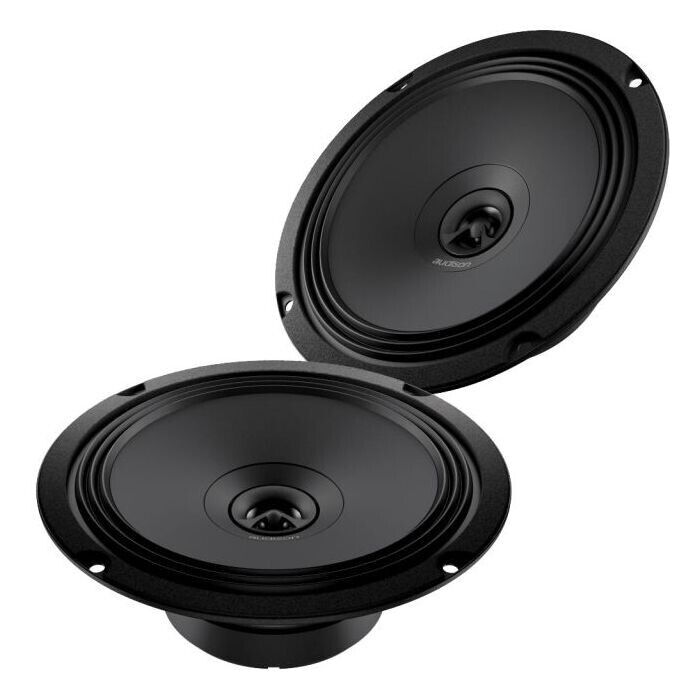

APX 6.5Coaxial ' 210 W Peak Power ' 165 mm ' 4 ohm

APX 6.5 features a concentric coaxial tweeter: with one single point of sound emission it is possible to obtain a consistent in-phase response, with consequent reconstruction of the acoustic scene comparable to a system of separate woofer + tweeter.The 6.5³ cones surround features the exclusive shallow Triple Wave profile, for maximum excursion linearity.

APK 165PKit ' 345 W Peak Power ' Kit 2 way 4 ohm ' AP 1P + AP 6.5P + Crossover

TECHNICAL SPECS

Woofer Size165 mm

Tweeter Size29 mm

Woofer Voice Coil Diameter32 mm

Tweeter Voice Coil Diameter25 mm

Magnet Size Woofer100 x 40 x 18

Power Handling - Peak345 W

Power Handling - Continuous115 W

Sensitivity92.5 dB

Impedance4 Ohm

Frequency Response50 ÷ 24k

Crossover WooferLow-Pass: 4 kHz @ 6 dB/Oct

Crossover TweeterHi-Pass: 4 KHz @ 12dB/Oct.

Adjustment Tweeter LevelTweeter Level; 0 / +3

Woofer Cone Diameter132 mm

Xmax Woofer5.6 mm

ELECTRIC-ACOUSTIC SPECS

Re Woofer3.1 Ohm

Fs Woofer60 Hz

Le Woofer mH @ 1 kHz0.29

Vas Woofer11.4 l

Mms Woofer14.6 g

Cms Woofer0.47

Bxl Woofer5.35

Qts Woofer0.55

Qms Woofer7.6

Qes Tweeter1,74

Spl Woofer89.5 dB

GENERAL

Weight Woofer1.45 kg

Weight Tweeter0.067 kg

APX 6.5Coaxial ' 210 W Peak Power ' 165 mm ' 4 ohm

TECHNICAL SPECS

Woofer Size165 mm

Tweeter Size24 mm

Woofer Power Handling - Peak210 W

Woofer Power Handling - Continuous70 W

Woofer Impedance4 Ohm

Woofer Frequency Response60 ÷ 23k

Woofer Magnet Size85 x 40 x 15

Woofer Voice Coil Diameter32 mm

Tweeter Voice Coil Diameter15 mm

Xmax2 mm

ELECTRIC-ACOUSTIC SPECS

D129 mm

Re3.1 Ohm

Fs80 Hz

LE standard0.1

Vas8.1 l

Mms11.5 g

Cms0.33

Bl4.6

Qts0.73

Qes0,84

Qms5.4

Tweeter Spl94 dB

GENERAL

Weight0.87 kg
