Audison Factory Speaker, Amp & Sub Upgrade for BMW 3-Series E90 2005-2011 Base

Audison Factory Speaker, Amp & Sub Upgrade for BMW 3-Series E90 2005-2011 Base

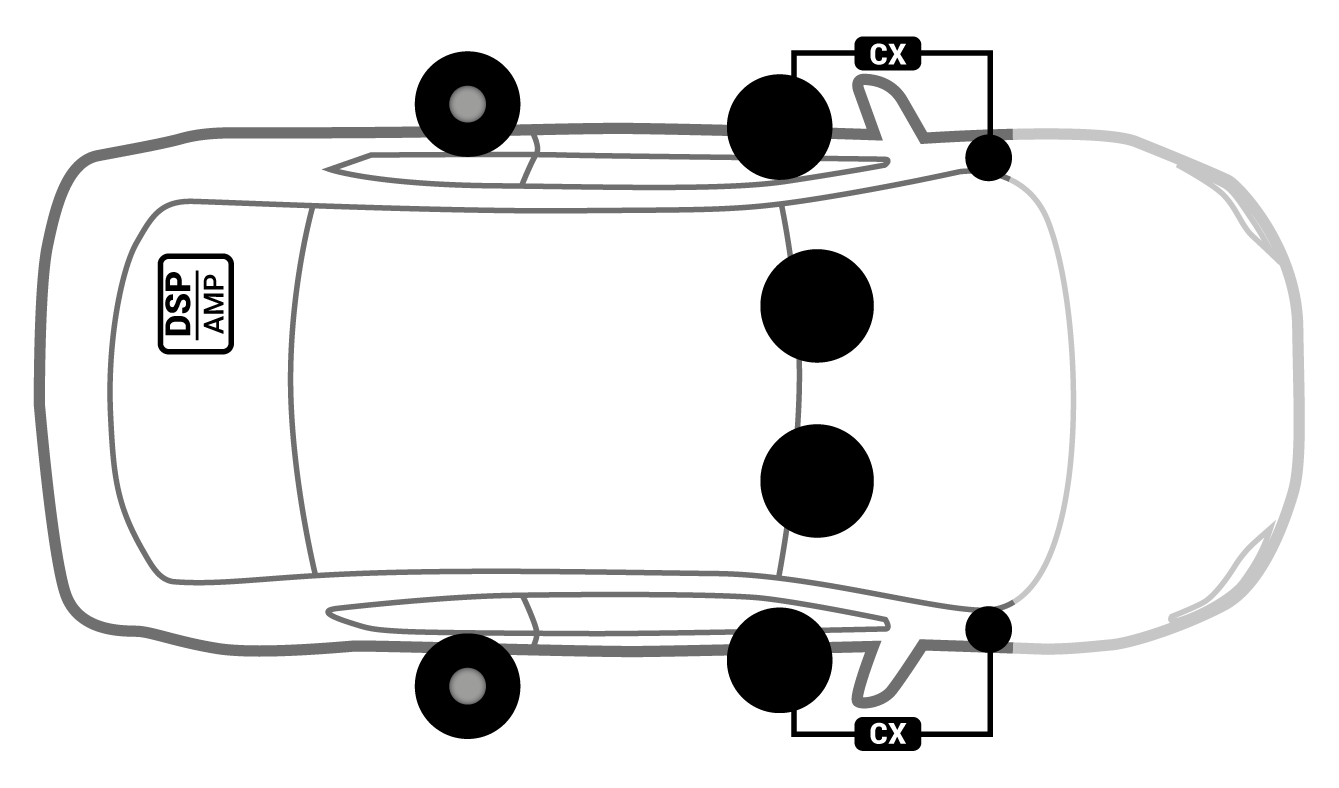

This package is for the BMW 3-Series E90 2005-2011.

Included are as below:

Front passive 4" 2 Way Component speakers

Rear passive Coaxial

2x Underseat Subwoofers

Cables

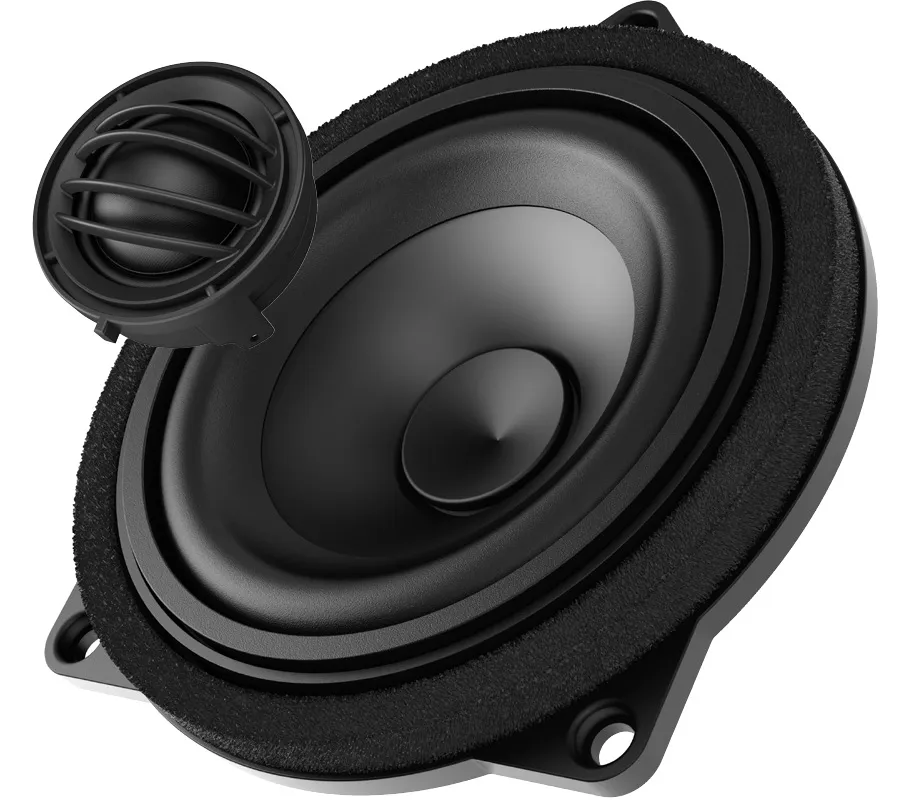

APBMW K4E ' 100 W Peak Power ' Kit 2 way 4 ohm ' BMW Upgrade

The two-way APBMW K4E kit creates a three-dimensional sound stage and give the musical message the essential timbre accuracy. The 100 mm (4 in.) midrange is provided with a water-repellent pressed-paper cone, a material providing natural sound. It features a low resonance frequency that allows hi-pass cut-off in the 150-200 Hz range for an excellent mid-low reproduction. The 25 mm coil and Tetolon dome tweeter features a great extension on both medium and high frequencies and is optimized for off-axis output, for an extended sound stage in the three dimensions, that amplifies the perception of reality in the car cabin.

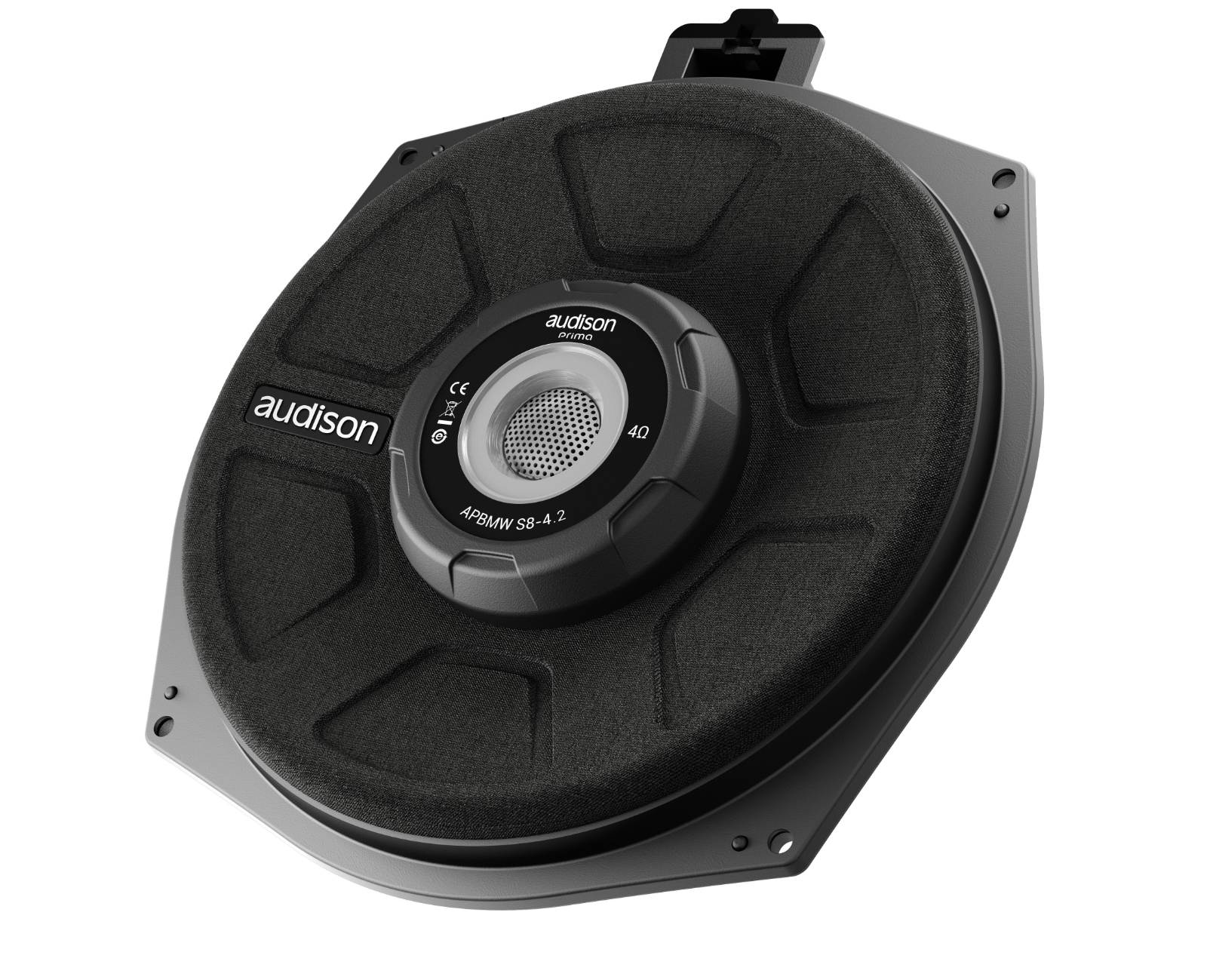

APBMW S8-4 ' 300 W Peak Power ' 200 mm ' 4 ohm

The 200 mm (8 in.) APBMW S subwoofers allow a direct replacement of the OEM speakers underneath the front seats, making the most of the factory acoustic load and generating deep and crisp low frequencies. The Neodymium magnet allows for greater power and control than ferrite while maintaining the depth of installation unaltered.

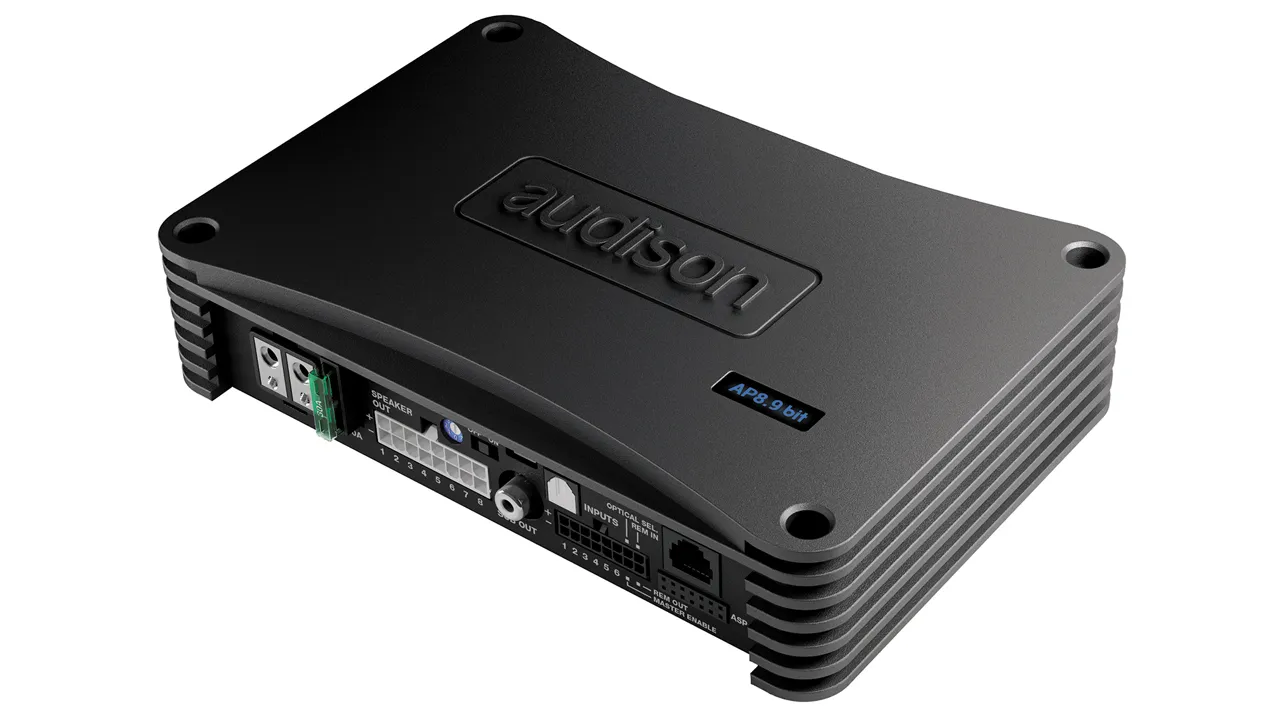

AP8.9 bit ' DSP Amplifier ' 520 W ' 9 CH DSP + 8 x 65 W @ 2 ohm ' D-class Fully Bridgeable

The AP8.9 bit amplifier was designed by Audison R&D Department to achieve maximum sound quality in OEM Integration applications. The powerful management software proves the ability to acquire the bit Drive presets which the Audison team fine-tuned specifically for your car. Thanks to the innovative power supply stage, a power of 520 W total can be achieved in an extremely compact case. The non-amplifiable ninth channel can be used to drive a subwoofer via the mono AP1 D amplifier.

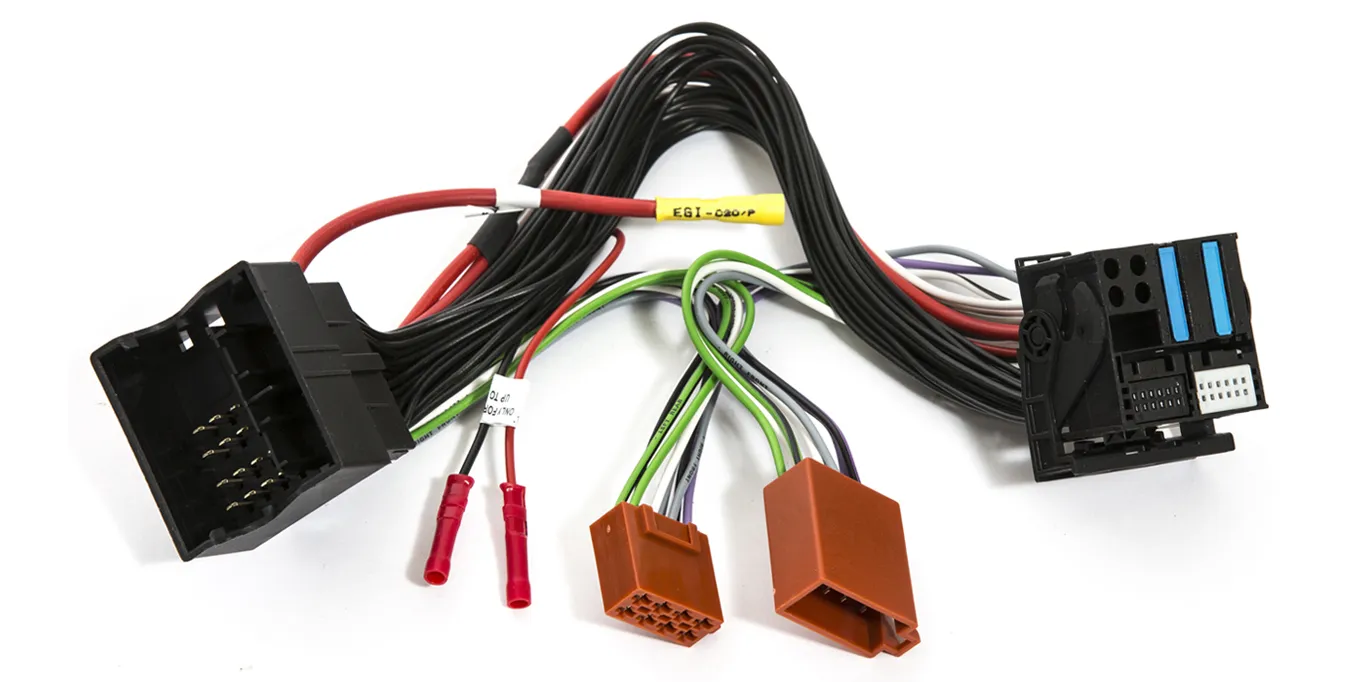

AP T-H BMW01 ' T-Harness Plug&Play solution for BMW

The Audison T-Harness is the perfect Plug&Play solution for integrating your car's factory audio system with the exceptional sound quality offered by Audison. With the T-Harness, you can enjoy a high-quality audio experience in your vehicle, fully leveraging the potential of Audison products without having to make complex modifications to the existing audio system.

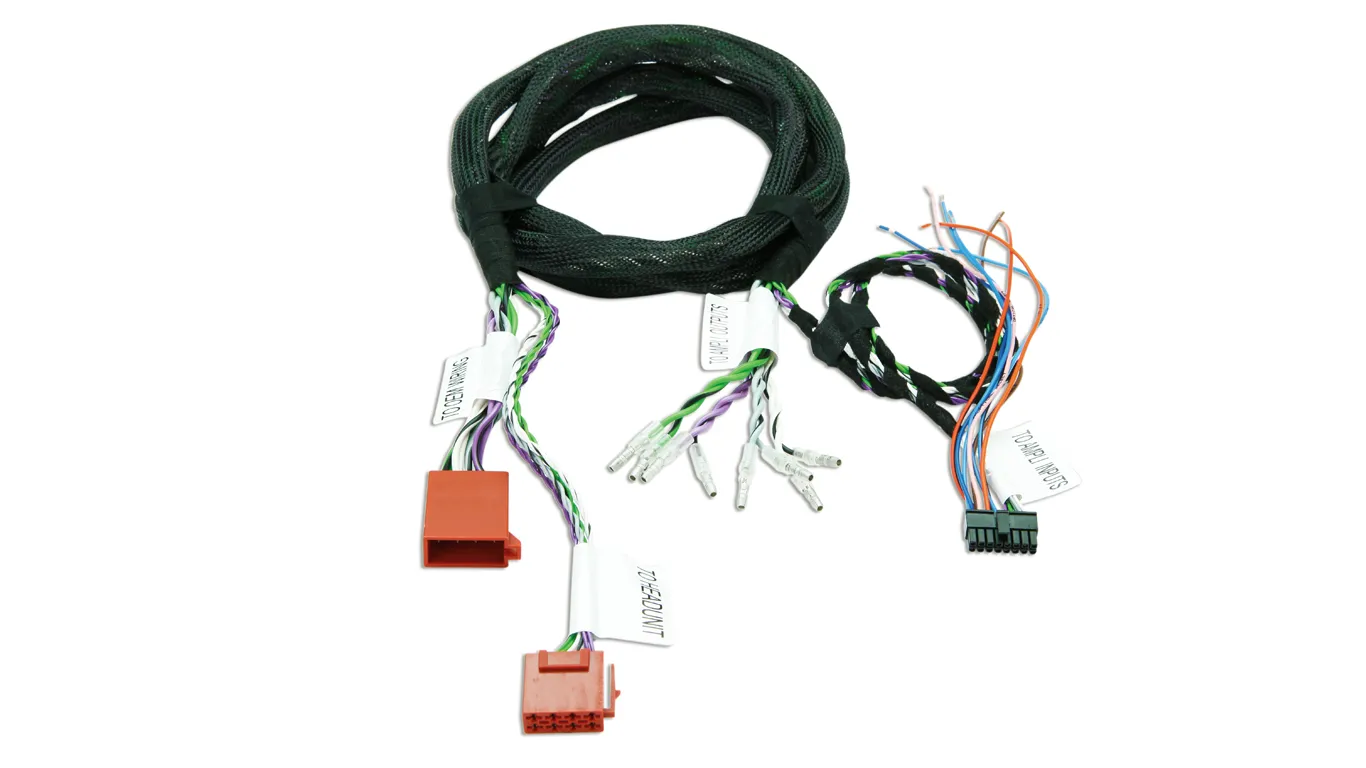

AP 560P&P I/O ' Extension cable IN/OUT 560cm

Prima extension cable with Plug & amp;Play connections allows total freedom in positioning the AP bit amplifiers. Two extension typologies are available: input only, to only send the audio signal coming from the head unit to the AP bit amplifiers, or input/output, transmit also the AP bit amplifiers" output signal to the factory audio system. To do so, the AP Extension Cables IN/OUT needs to be installed together with the AP Speakers Output Cables (see following paragraph). By use of the input/output extension, the installer is free to choose which configuration to adopt. Actually, thanks to the AP Extension cables, each single channel of the AP bit amplifier is sent to any of the speakers in the car, so the installer is free to carry out the desired configuration. For example: standard front (2ch TW+WF), multi-amplified front (2ch TW + 2ch WF), multi-amplified front with 4 bridged channels (130W @ 4 ohm) for the woofers (2ch TW + 4ch bridge WF) and all the other possible combinations.

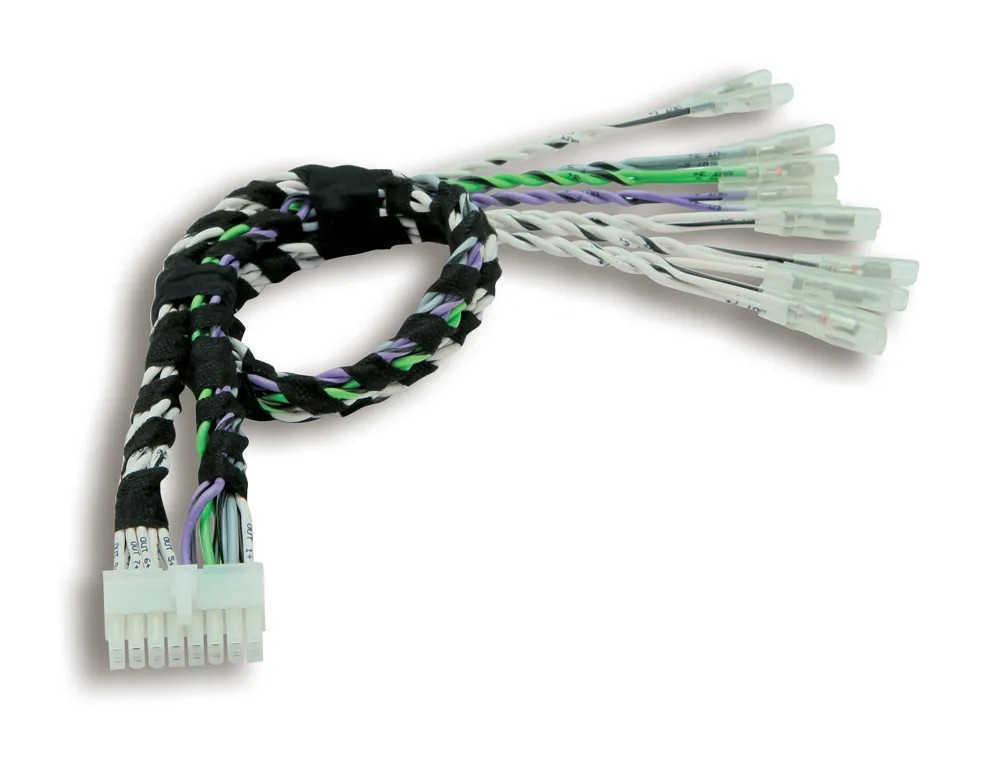

AP SPK OUT 8.9 ' Speaker OUTPUT cable for AP8.9 bit

AP SPK OUT 8.9 cable are dedicated to the connection of the AP8.9 bit amplifier with the input/output Extension cable. The Plug & amp;Play connectors with circle terminals are numbered (CH1 +, CH1 -, etc...) for a foolproof connection. There is no need to solder any cable.

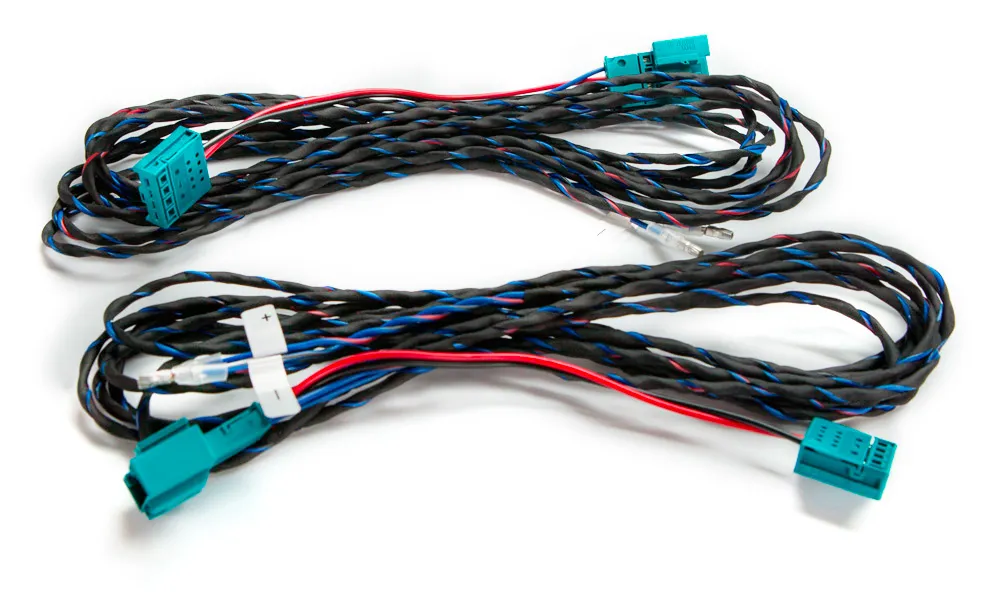

APBMW BIAMP 1 ' Plug & Play harness to bi-amplify the front speakers of BMW

This Plug & Play harness provides the ability to bi-amplify the front speakers of BMW and MINI vehicles that are not provided with an OEM amplifier. The APBMW BIAMP 1 is installed under the vehicle seat and is connected to the subwoofers. The T connection type allows the user to separately route the signal to the front mid-woofer housed in the car door and to the sub underneath the seat, without the need to cut the OEM cables. The cable is 450 cm long to reach the vehicle boot, where the Audison Prima AP bit amplifier is installed. The package contains a pair of cables, one for the left channel and one for the right channel.
