Audison Factory Audio System upgrade for Alfa Romeo Giulia 2016-2022 Base Audio

Audison Factory Audio System upgrade for Alfa Romeo Giulia 2016-2022 with Base Audio

ALF-DSP-AF-07

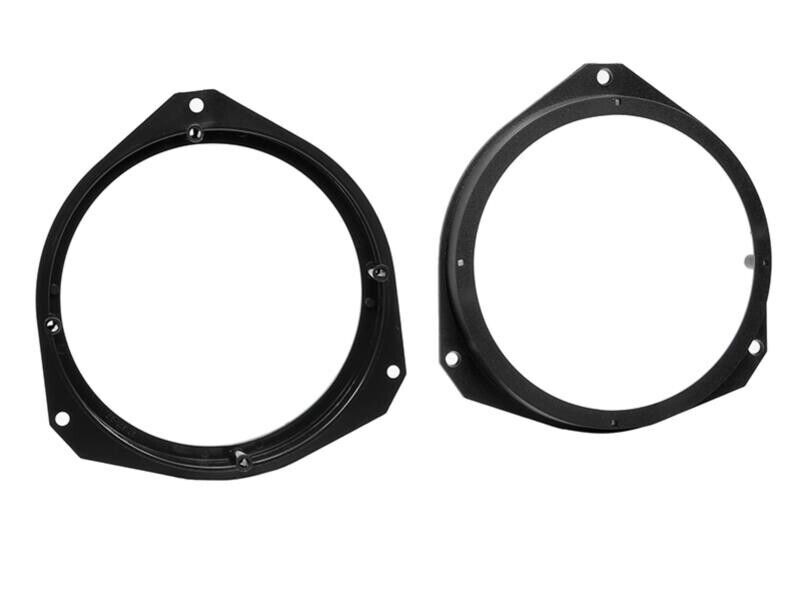

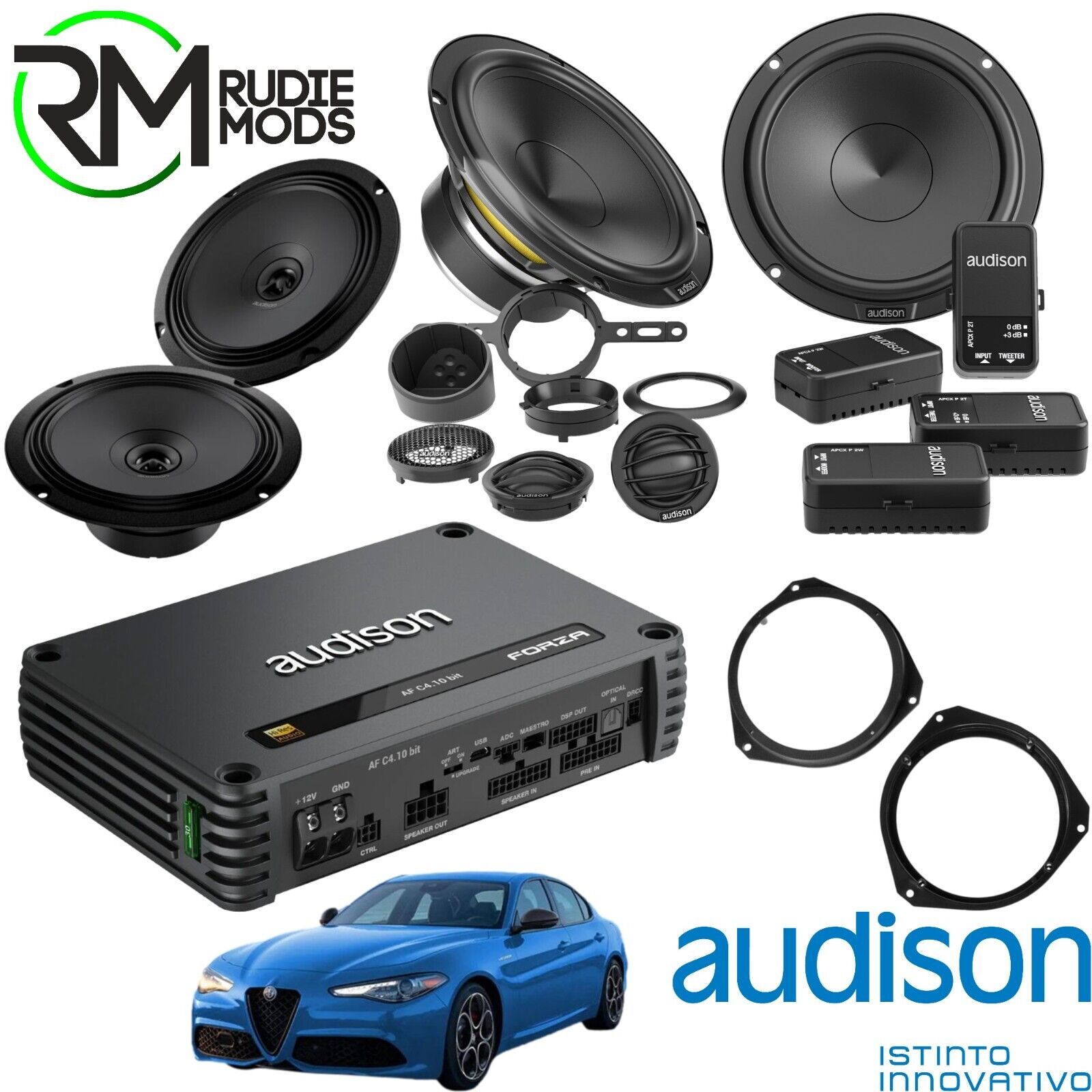

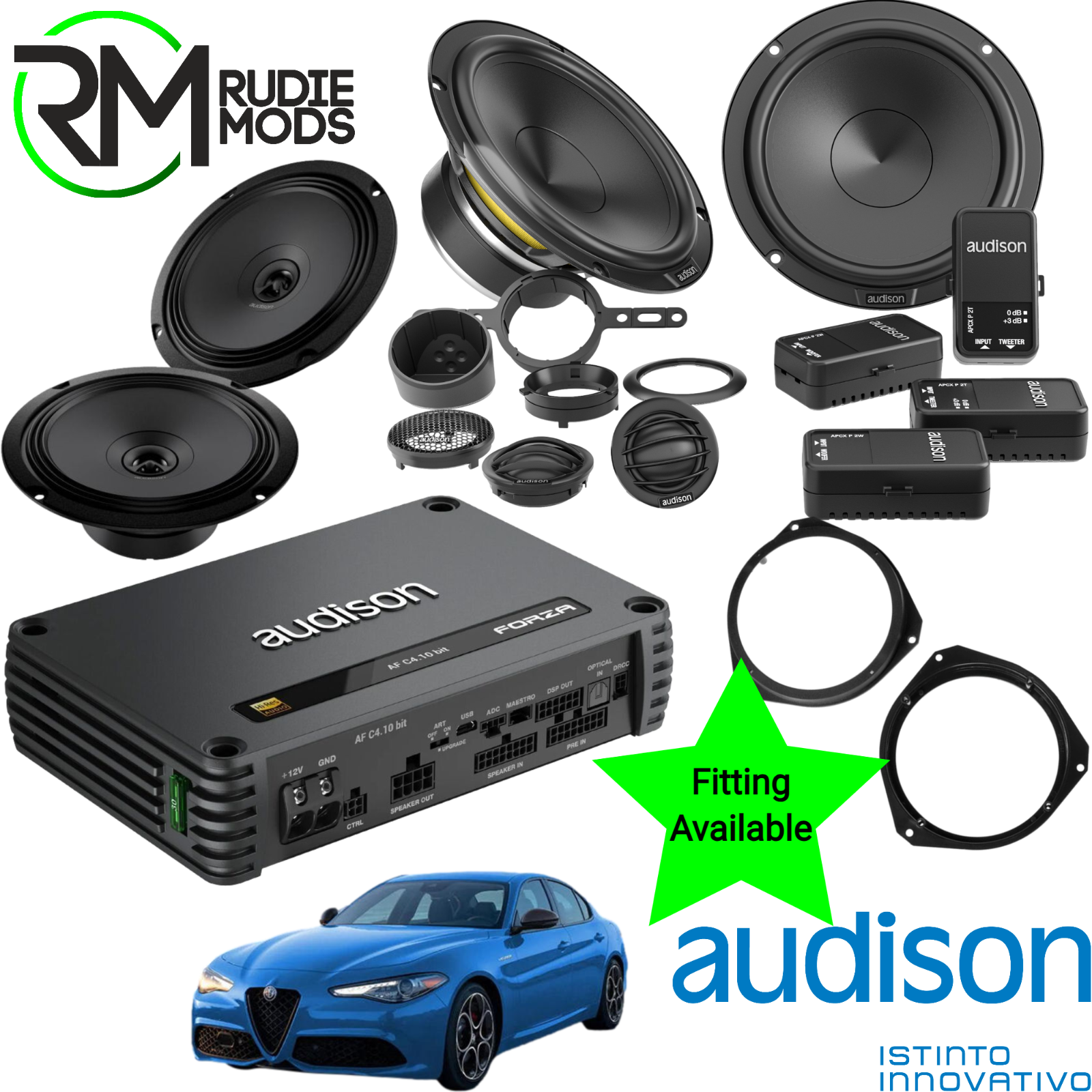

AF C4.10bit + Front Passive 2way (spacers included) + Rear Coax (spacers included)

Finally an all in one system for your car with everything you need to totally transform your base audio system in to something to be proud of.

Not only does this package come with all the cabling required, it also comes complete with a DSP Amplifier allowing you to custom tune your system to just how you like it.

Please find below all the different components included, I appreciate its a lot to read but it just goes to show how amazing this system is.

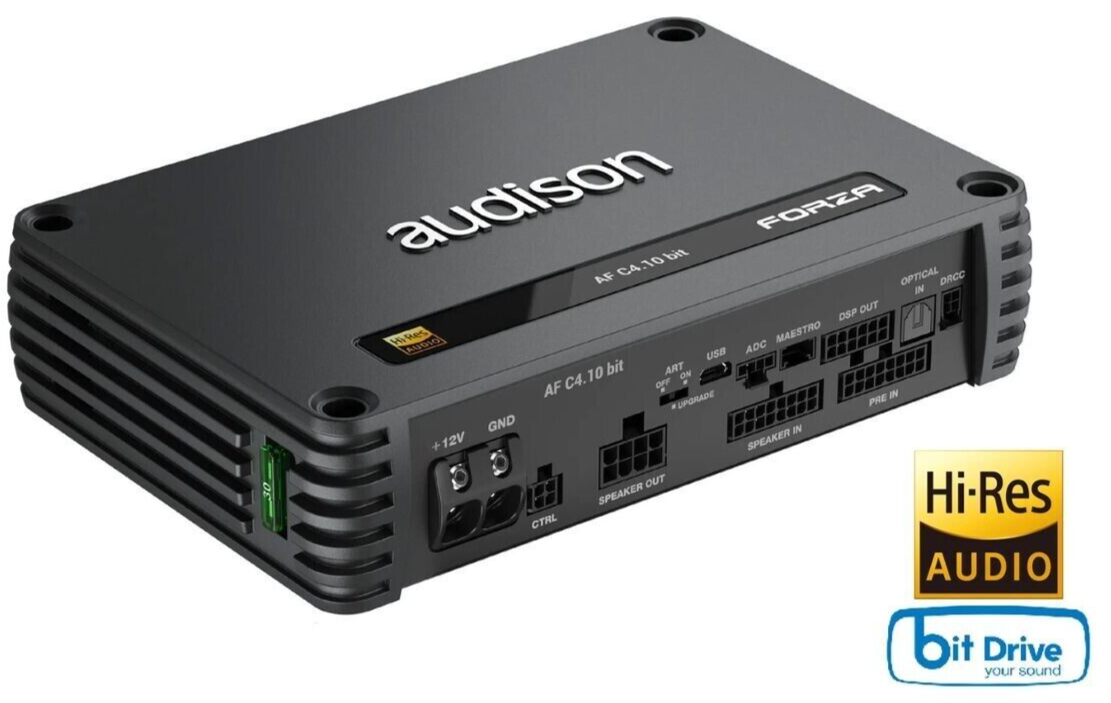

AF C4.10 bitDSP Amplifier ' 600 W ' 10 CH DSP + 4 x 150 W @ 2 ohm ' D-class Fully Bridgeable

AF C4.10 bit boasts four high-fidelity amplified channels 90W x 4 @4Ω*, 150W x 4 @2Ω*, with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D - in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 300 x 2 @4Ω, guaranteeing flexible and powerful performance. Support for the Audison B-Con's Absolute Volume function guarantees maximum bit depth, even with wireless connections!*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.

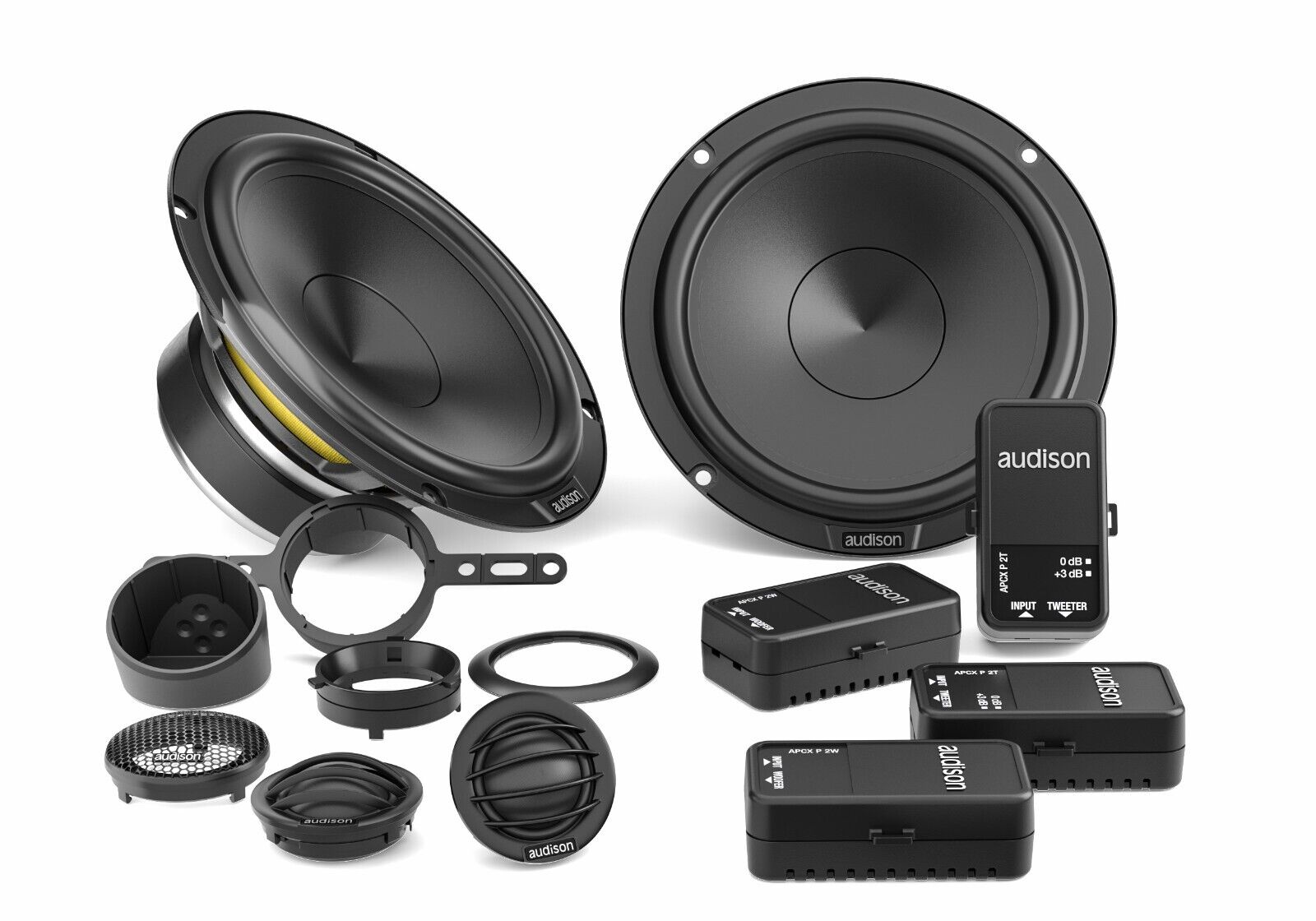

APK 165PKit ' 345 W Peak Power ' Kit 2 way 4 ohm ' AP 1P + AP 6.5P + Crossover

The new Prima APK 165P two-way loudspeaker system, capable of handling up to 345 W peak, is the ideal combination to fully exploit the power of the AP F8.9 bit or all other Prima amplifiers used in high power configurations. The exclusive AIF technology (Any Install Faceplate) of the AP 1P Tweeter provides the installer with 3 different faceplates for total application versatility and a significant reduction in installation time. The woofer has been designed to perform at its best in OEM placements, combining excellent power handling and efficiency.

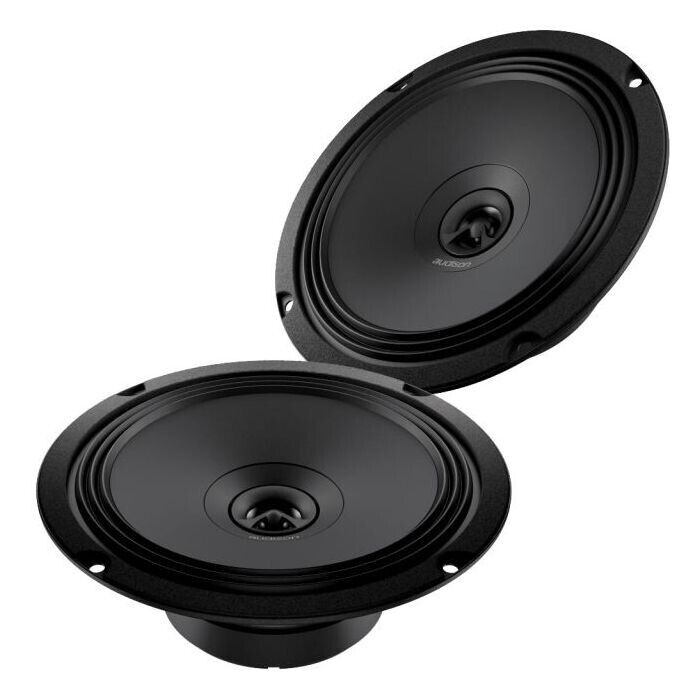

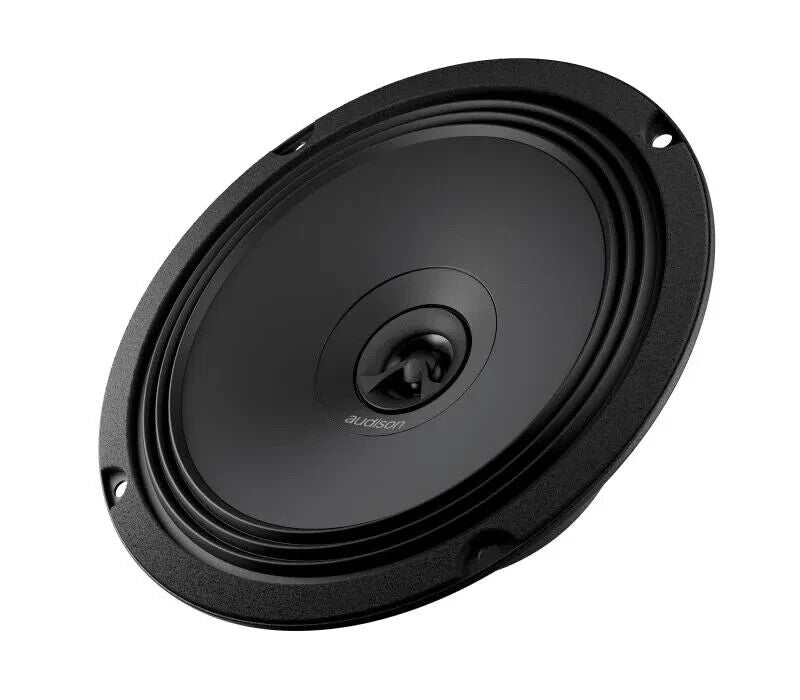

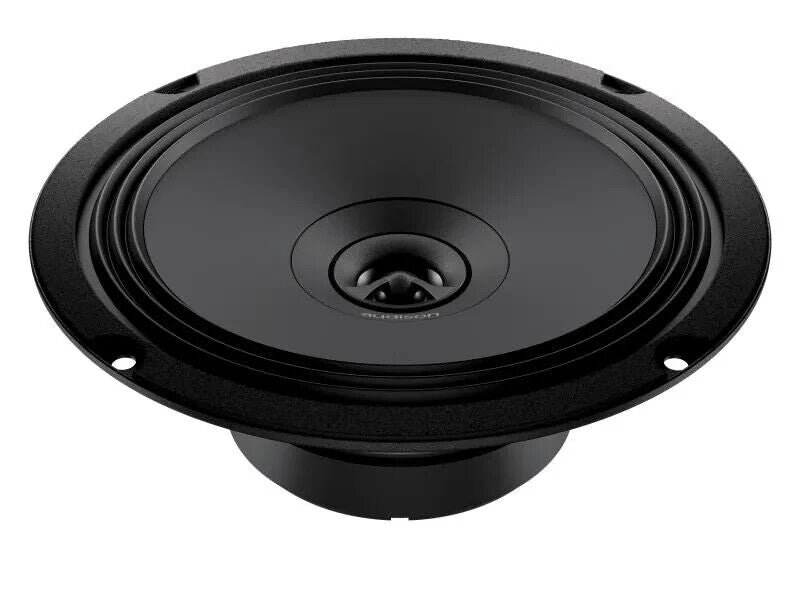

APX 6.5Coaxial ' 210 W Peak Power ' 165 mm ' 4 ohm

APX 6.5 features a concentric coaxial tweeter: with one single point of sound emission it is possible to obtain a consistent in-phase response, with consequent reconstruction of the acoustic scene comparable to a system of separate woofer + tweeter.The 6.5³ cones surround features the exclusive shallow Triple Wave profile, for maximum excursion linearity.

AP 560P&P I/OAccessories ' Extension cable IN/OUT 560cm

Prima extension cable with Plug & amp;Play connections allows total freedom in positioning the AP bit amplifiers. Two extension typologies are available: input only, to only send the audio signal coming from the head unit to the AP bit amplifiers, or input/output, transmit also the AP bit amplifiers" output signal to the factory audio system. To do so, the AP Extension Cables IN/OUT needs to be installed together with the AP Speakers Output Cables (see following paragraph). By use of the input/output extension, the installer is free to choose which configuration to adopt. Actually, thanks to the AP Extension cables, each single channel of the AP bit amplifier is sent to any of the speakers in the car, so the installer is free to carry out the desired configuration. For example: standard front (2ch TW+WF), multi-amplified front (2ch TW + 2ch WF), multi-amplified front with 4 bridged channels (130W @ 4 ohm) for the woofers (2ch TW + 4ch bridge WF) and all the other possible combinations.

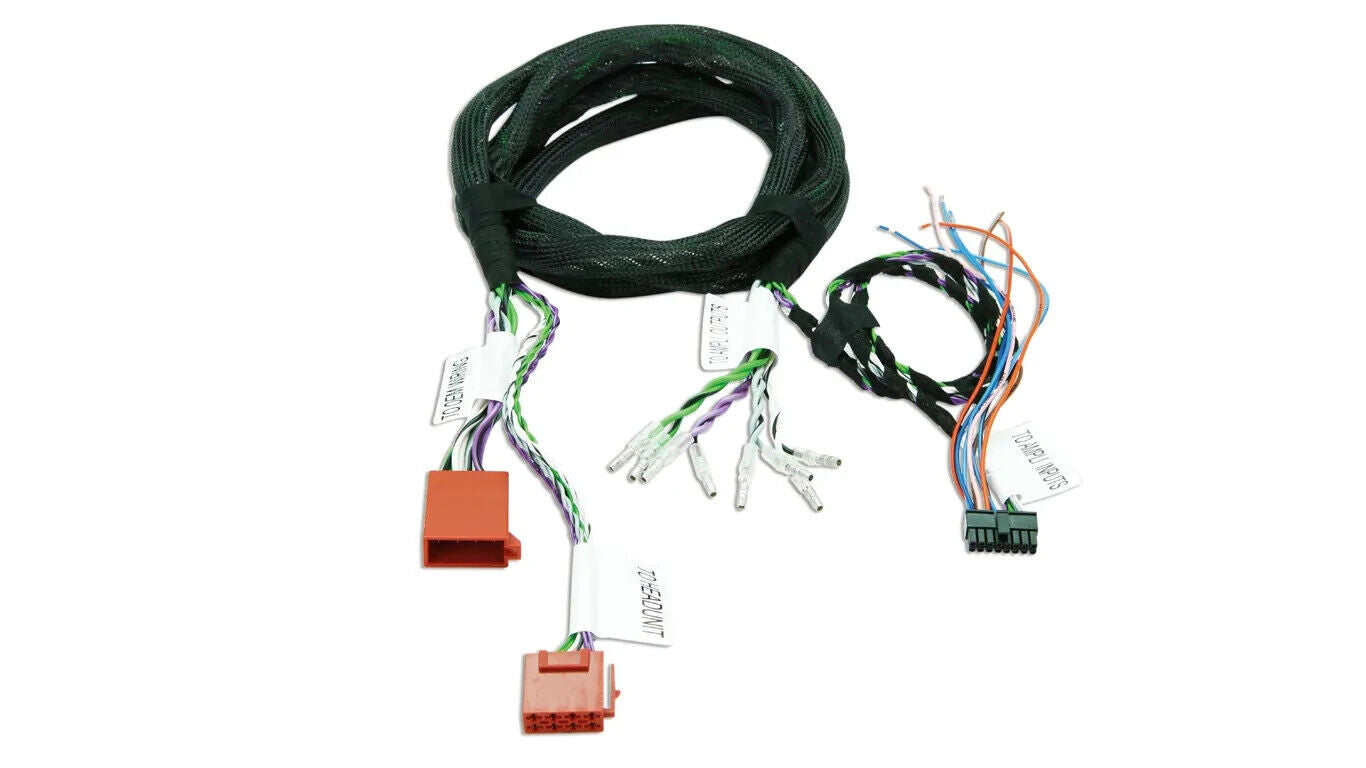

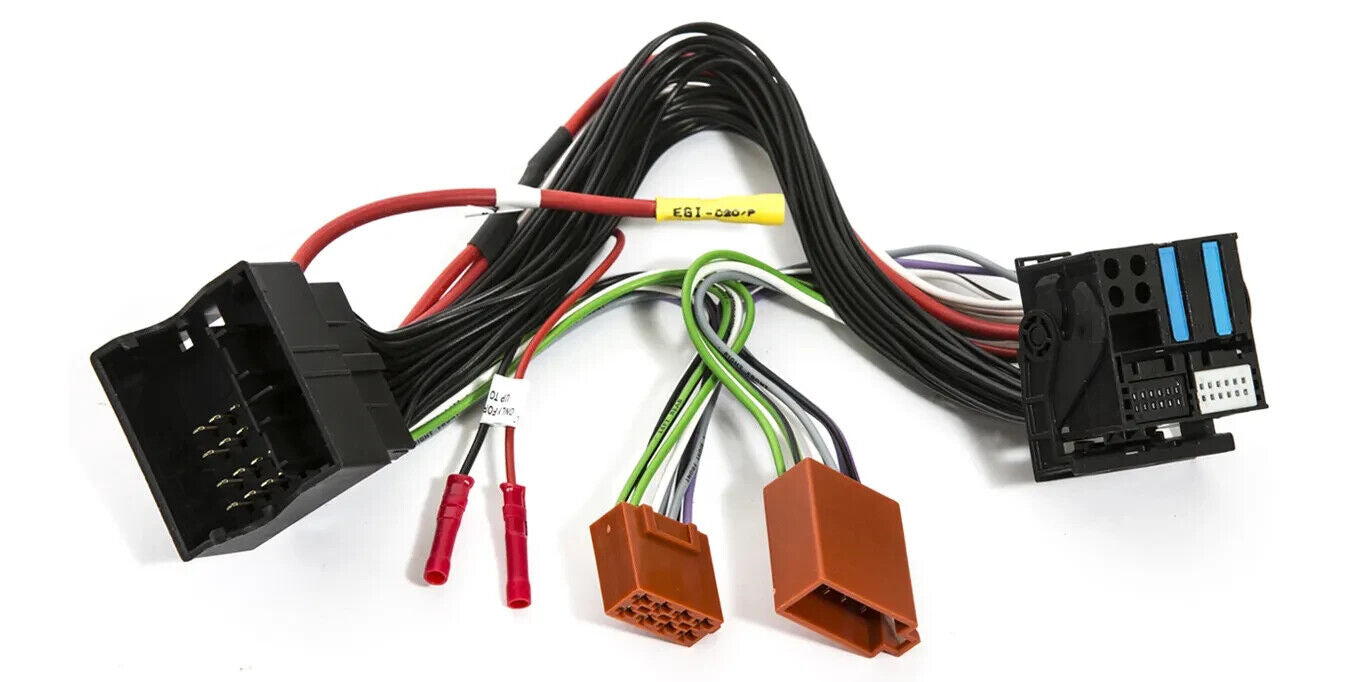

AP T-H BMW01Accessories ' T-Harness Plug & Play solution for Alfa Romeo

The Audison T-Harness is the perfect Plug&Play solution for integrating your car's factory audio system with the exceptional sound quality offered by Audison. With the T-Harness, you can enjoy a high-quality audio experience in your vehicle, fully leveraging the potential of Audison products without having to make complex modifications to the existing audio system.

All the Tech Bits

AF C4.10 bit DSP Amplifier

AMPLIFIER TECH DATA

Channels4

ClassD-Class

Power supply voltage / fuse11 ÷ 15 VDC / 1 x 30A

Operating power supply voltage6.5 ÷ 17.5 VDC

Idling current1 A

Standby Current Draw1 mA

Consumption @ 14.4 VDC, 2Ω, Max Musical Power29 A

Remote IN4 ÷15 VDC (1 mA)

Remote OUT6.5 ÷15 VDC (150 mA)

ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers1.5 VDC

AST - Automatic Signal Turn on/off (Selectable)1.5 VDC

Efficiency Rated Power81%

AMPLIFIER STAGE

Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power0.03%

Bandwidth @ -1.5 dB10 Hz ÷ 42 kHz

Damping factor @ 1 kHz, 4Ω, 2 VRMS95

S/N ratio (A weighted @ 1 V Input) Master Input98 dBA

S/N ratio (A weighted @ 1 V Input) Optical Input105

Total Power RMS600 W

Minimum load impedance2Ω

Output Continuous Power (RMS) @14.4 VDC, 1% THD4 Ch @ 4Ω: 90 W x 4

4 Ch @ 2Ω: 150 W x 4

2 Ch (Bridge 1/2; 3/4) @ 4Ω: 300 W x 2

Adjustable CrossoverYes

CEA SPECIFICATIONS

Output power @ 4Ω, 1% THD+N, 14.4 V90 W x 4

SN ratio (ref. 1W output)80 dB

INPUTS / OUTPUTS

Pre-In Inputs0.6 ÷ 6 VRMS (15 kΩ Imp.)

Digital InputYes

Pre Outputs6

Hi Level Inputs8

Low Level Inputs8

Speaker-In Inputs2.2 ÷ 22 VRMS (5 Ω Imp.)

Digital IN1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card

DIGITAL SIGNAL PROCESSOR

Audio DSP ConverterAnalog Devices ADAU1467 automotive qualified audio processor.

Processing @ 96 kHz.Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very

high level performance

Filter typeFull / High-Pass / Low-Pass / Band-Pass

Filter mode and slopeLinkwitz-Riley @ 12/24/36/48 dB/Oct.

Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.

Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.

Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.

QLP @ 6 dB/Oct.

Crossover frequency20 Hz ÷ 20 kHz

Phase control0° / 180°, All-Pass filters

Analog Input Equalizer (20 ÷ 20k Hz)12 Biquad + Delay

Output EqualizerParametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz

Time Alignment Distance0 ÷ 510 cm / 0 ÷ 200.8 inches

Time Alignment Delay0 ÷ 15 ms

Input Output Real Time Audio MonitorRTA

CONTROL CONNECTIONS

DRC PortInput for DRC AC remote control (Optional)

ADC PortManage other Audison devices that support this standard

1 WireCustomizable functions (+ 12 V activated)

2 WireCustomizable functions (+ 12 V activated)

GENERAL REQUIREMENTS

PC connectionsMicro USB 1.1 / 2.0 / 3.0 Compatible

Software/PC requirementsWindows 10, Windows 11

Video Resolution with screen resize(min. res. 1024 x 768)

Ambient operating temperature range0 °C to 55 °C (32 °F to 131 °F)

Weight1.38 kg

APK 165PKit ' 345 W Peak Power ' Kit 2 way 4 ohm ' AP 1P + AP 6.5P + Crossover

TECHNICAL SPECS

Woofer Size165 mm

Tweeter Size29 mm

Woofer Voice Coil Diameter32 mm

Tweeter Voice Coil Diameter25 mm

Magnet Size Woofer100 x 40 x 18

Power Handling - Peak345 W

Power Handling - Continuous115 W

Sensitivity92.5 dB

Impedance4 Ohm

Frequency Response50 ÷ 24k

Crossover WooferLow-Pass: 4 kHz @ 6 dB/Oct

Crossover TweeterHi-Pass: 4 KHz @ 12dB/Oct.

Adjustment Tweeter LevelTweeter Level; 0 / +3

Woofer Cone Diameter132 mm

Xmax Woofer5.6 mm

ELECTRIC-ACOUSTIC SPECS

Re Woofer3.1 Ohm

Fs Woofer60 Hz

Le Woofer mH @ 1 kHz0.29

Vas Woofer11.4 l

Mms Woofer14.6 g

Cms Woofer0.47

Bxl Woofer5.35

Qts Woofer0.55

Qms Woofer7.6

Qes Tweeter1,74

Spl Woofer89.5 dB

GENERAL

Weight Woofer1.45 kg

Weight Tweeter0.067 kg

APX 6.5Coaxial ' 210 W Peak Power ' 165 mm ' 4 ohm

TECHNICAL SPECS

Woofer Size165 mm

Tweeter Size24 mm

Woofer Power Handling - Peak210 W

Woofer Power Handling - Continuous70 W

Woofer Impedance4 Ohm

Woofer Frequency Response60 ÷ 23k

Woofer Magnet Size85 x 40 x 15

Woofer Voice Coil Diameter32 mm

Tweeter Voice Coil Diameter15 mm

Xmax2 mm

ELECTRIC-ACOUSTIC SPECS

D129 mm

Re3.1 Ohm

Fs80 Hz

LE standard0.1

Vas8.1 l

Mms11.5 g

Cms0.33

Bl4.6

Qts0.73

Qes0,84

Qms5.4

Tweeter Spl94 dB

GENERAL

Weight0.87 kg
