Audison Factory Audio System upgrade for Alfa Romeo Giulia 2016-2022 Base Audio

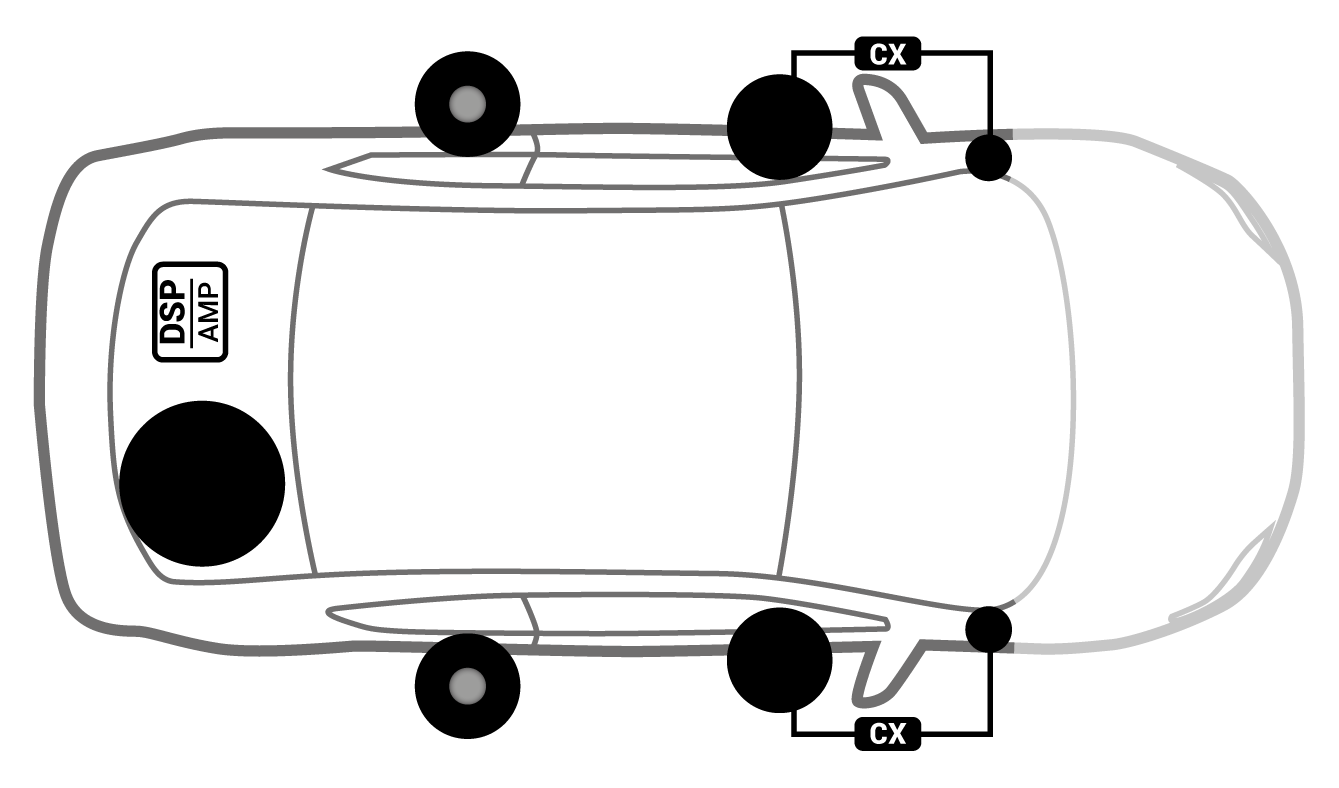

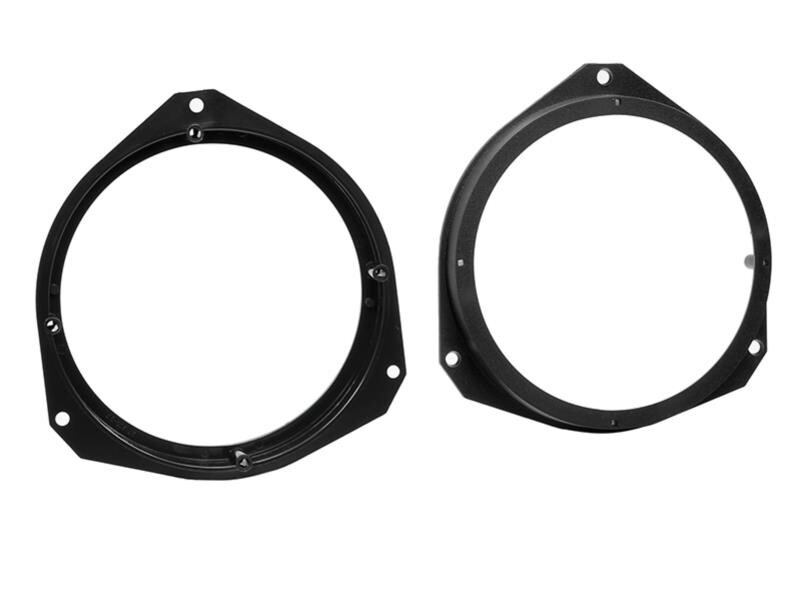

AF M5.11bit + Front Passive 2way (spacers included) + Rear Coax (spacers included) + Subwoofer

Finally an all in one system for your car with everything you need to totally transform your base audio system in to something to be proud of, amazing vocals and more than enough bass to keep the inner child happy.

Not only does this package come with all the cabling required, it also comes complete with a DSP Amplifier allowing you to custom tune your system to just how you like it.

Please find below all the different components included, I appreciate its a lot to read but it just goes to show how amazing this system is.

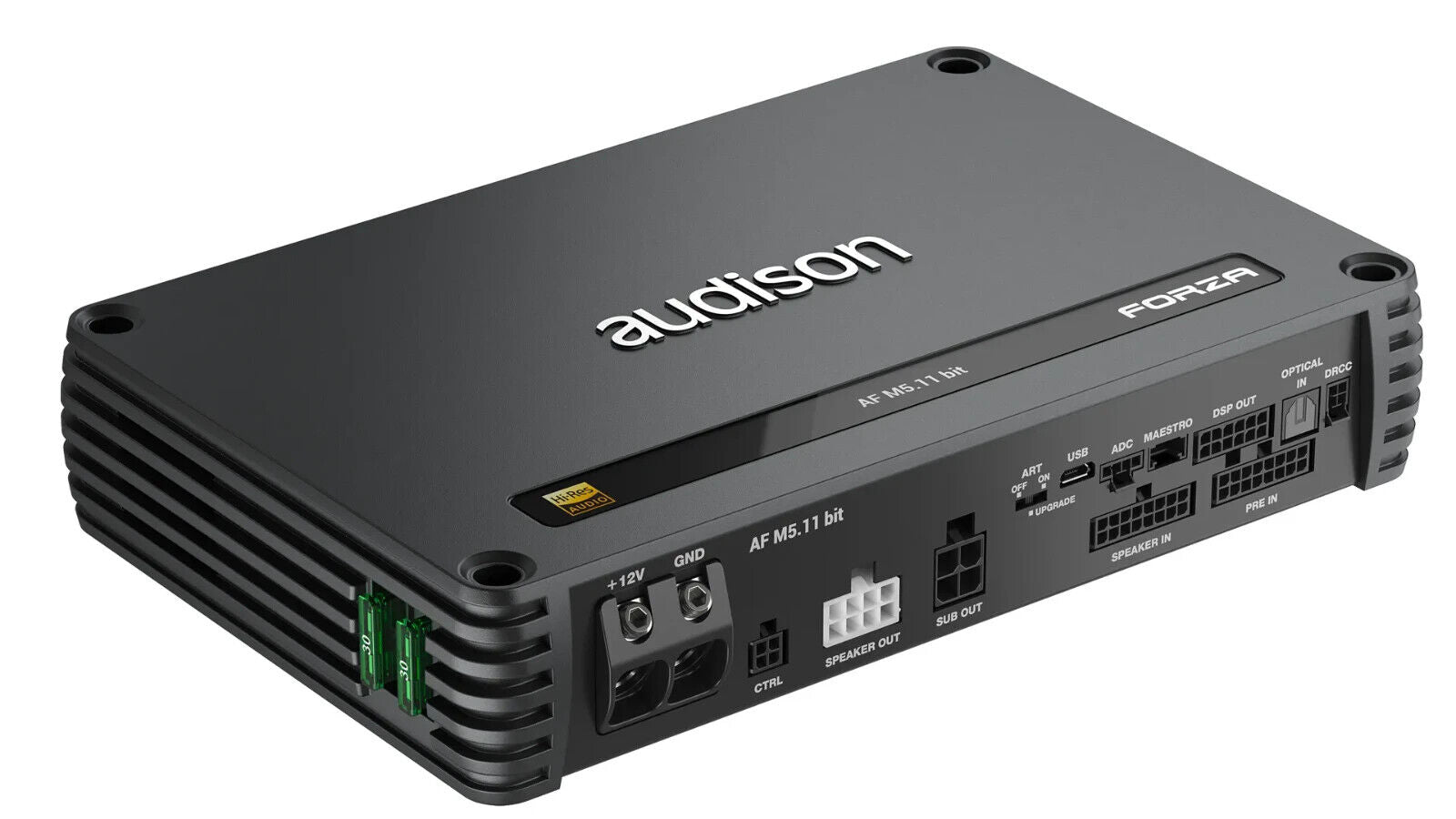

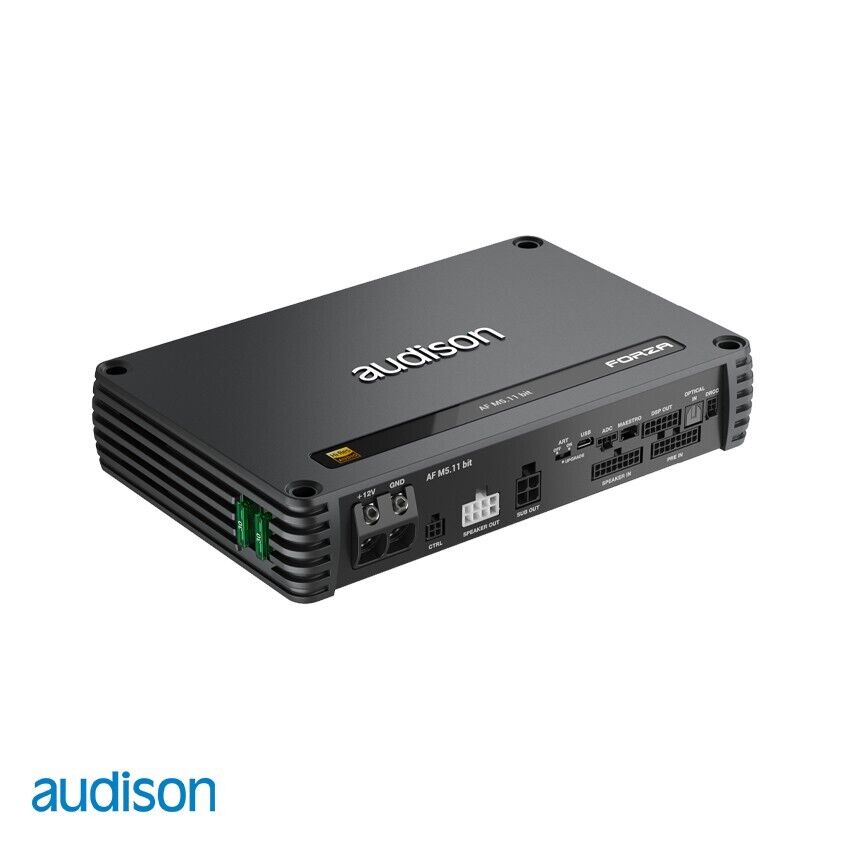

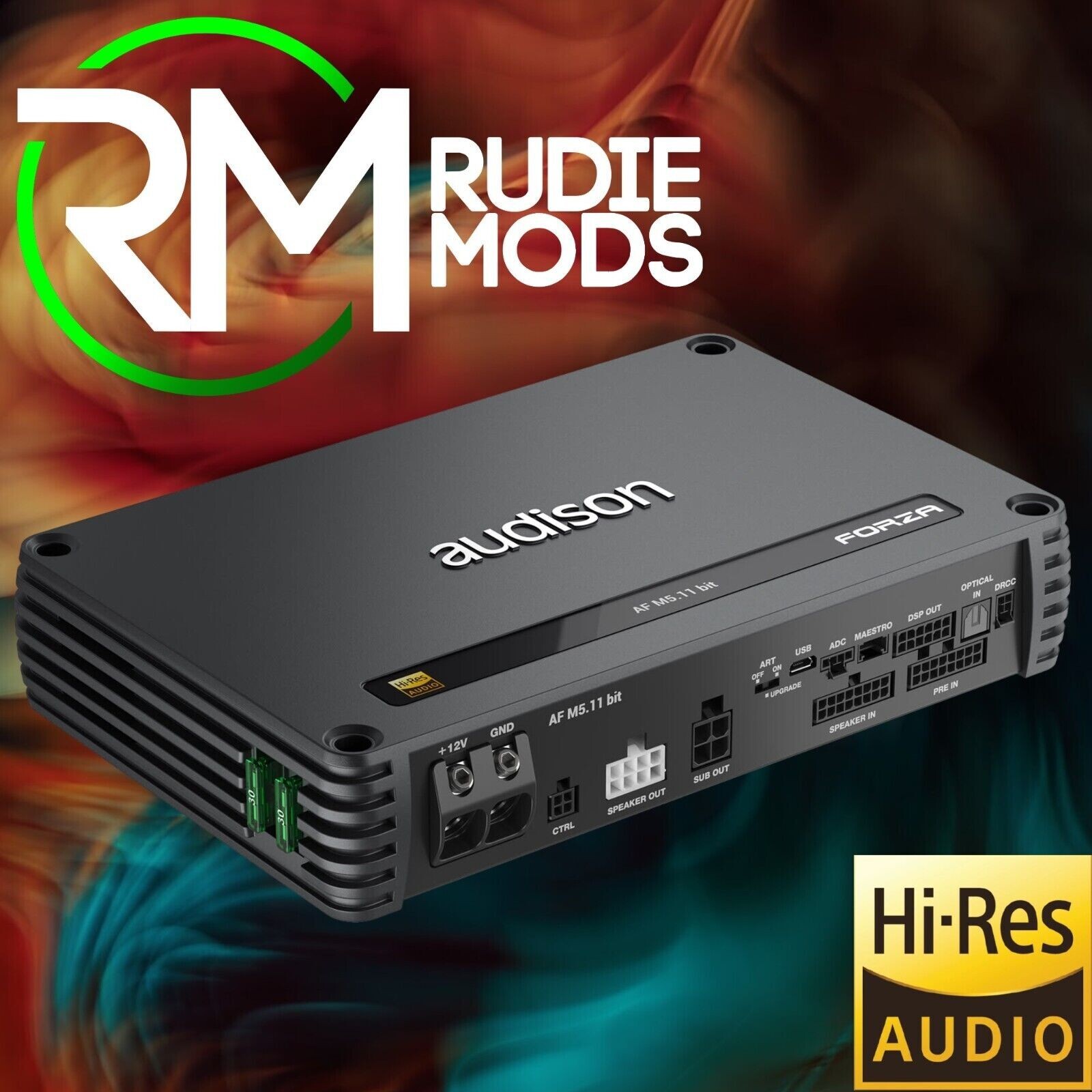

AF M5.11 bit boasts five high-fidelity amplified channels 100W x 4 + 400W @4Ω*, 150WP x 4 + 600W @2Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D - in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 200W x 2 + 400W @4Ω*, guaranteeing flexible and powerful performance. Support for the Audison B-CON's Absolute Volume function guarantees maximum bit depth, even with wireless connections! Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.

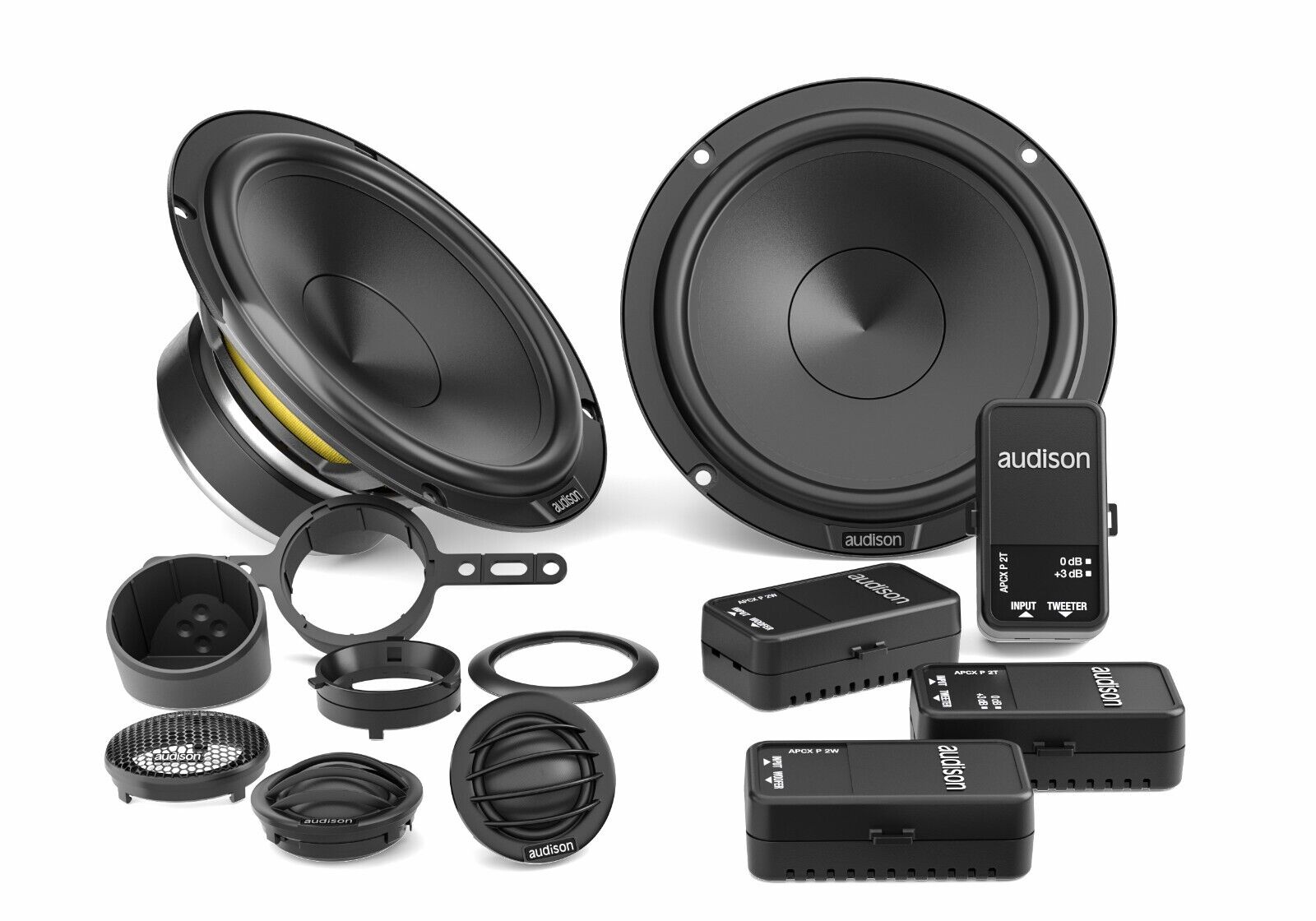

The new Prima APK 165P two-way loudspeaker system, capable of handling up to 345 W peak, is the ideal combination to fully exploit the power of the AP F8.9 bit or all other Prima amplifiers used in high power configurations. The exclusive AIF technology (Any Install Faceplate) of the AP 1P Tweeter provides the installer with 3 different faceplates for total application versatility and a significant reduction in installation time. The woofer has been designed to perform at its best in OEM placements, combining excellent power handling and efficiency.

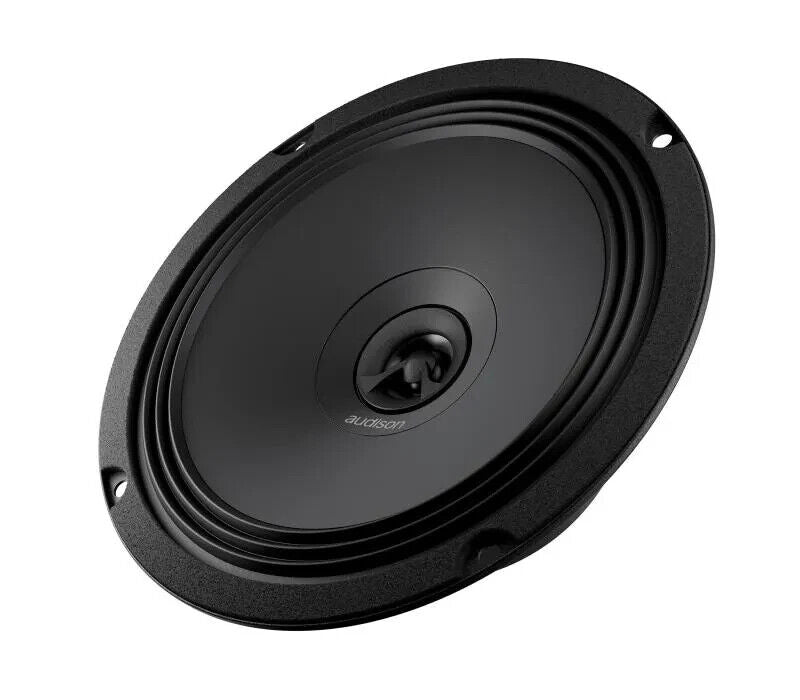

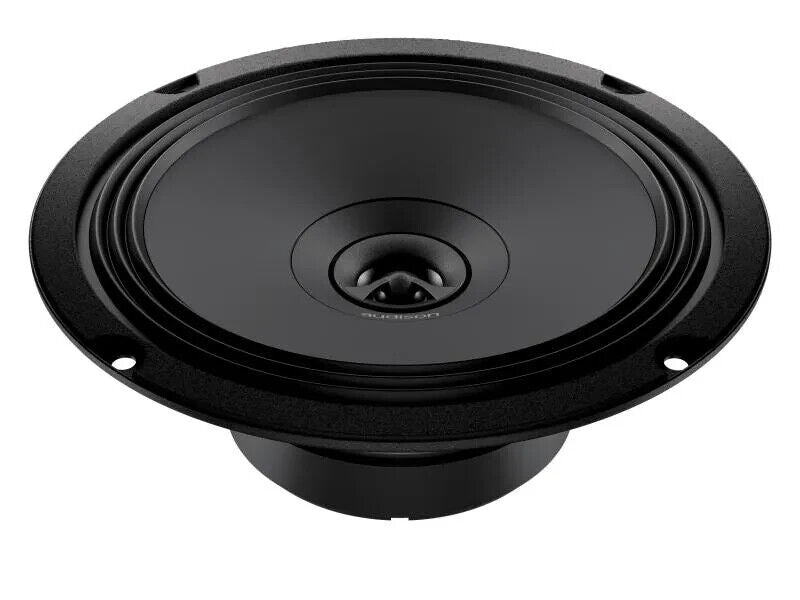

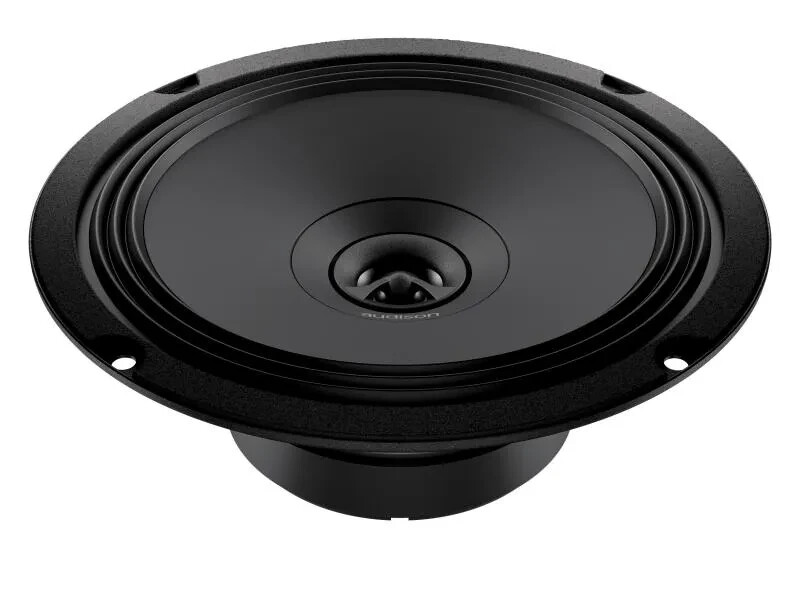

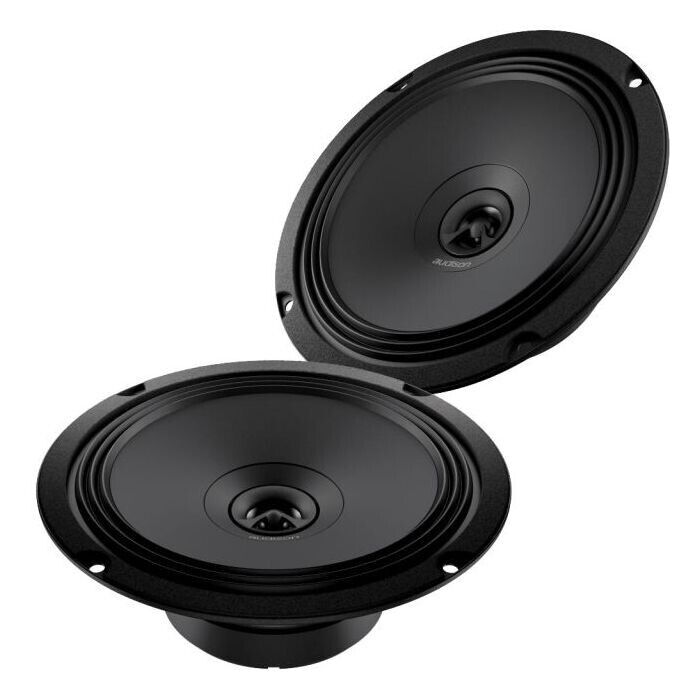

APX 6.5 features a concentric coaxial tweeter: with one single point of sound emission it is possible to obtain a consistent in-phase response, with consequent reconstruction of the acoustic scene comparable to a system of separate woofer + tweeter.The 6.5³ cones surround features the exclusive shallow Triple Wave profile, for maximum excursion linearity.

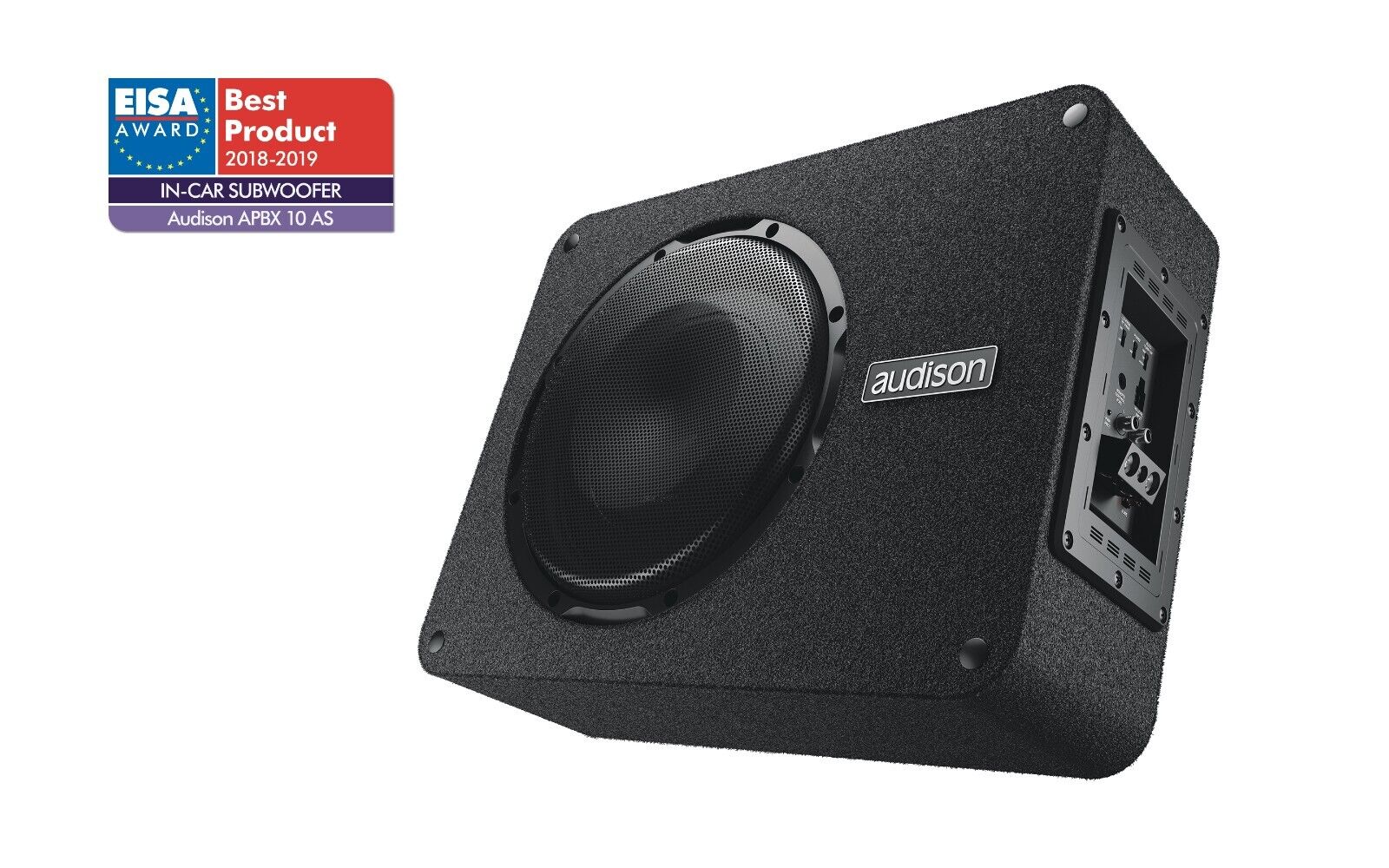

The APBX 10 DS, a 10 subwoofer loaded in a 12-liter sealed enclosure, is the flagship. It is dedicated to the highest-performing Prima systems, using the AP1 D amplifier for the sub-section. The speaker's mechanical excursion of more than 18 mm provides for incredible authority, while the refined Thiele & Small parameters set-up provides the ideal balance for all music genres.

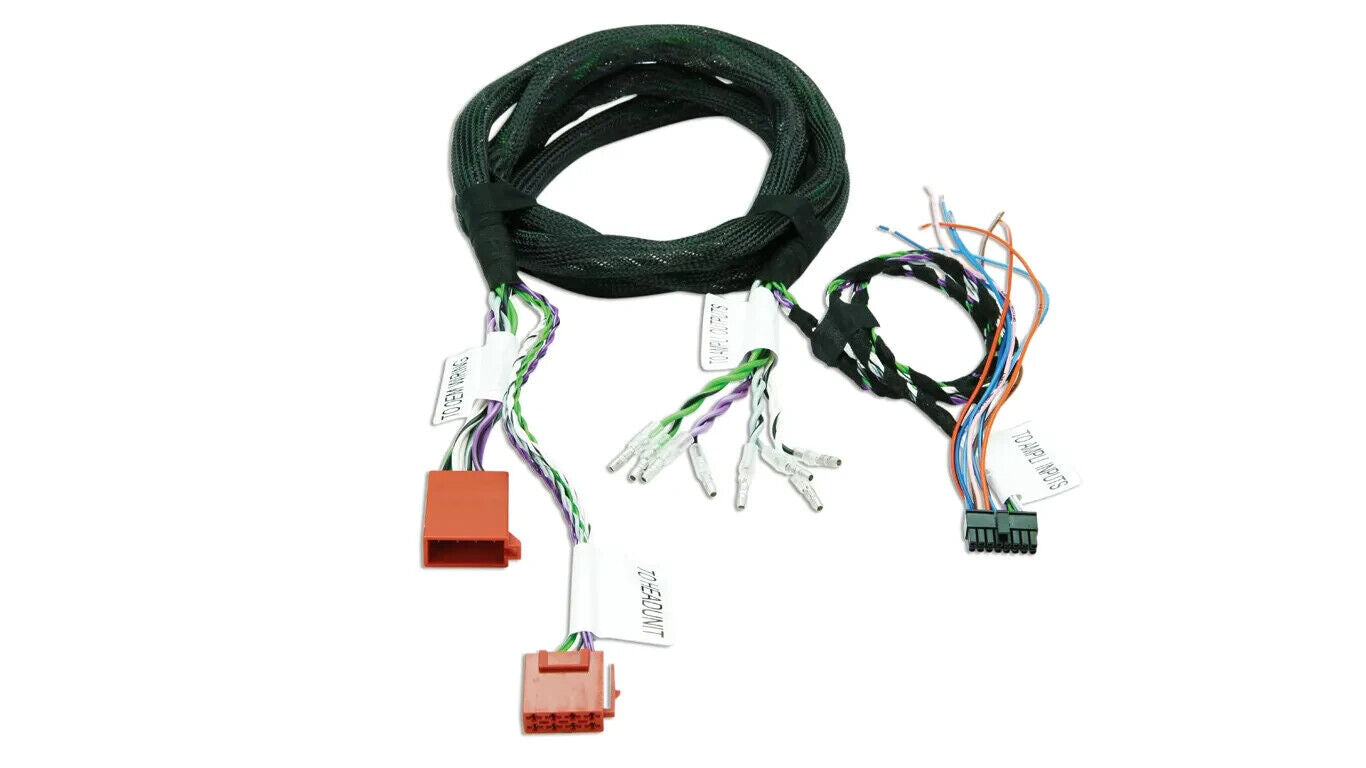

Prima extension cable with Plug & amp;Play connections allows total freedom in positioning the AP bit amplifiers. Two extension typologies are available: input only, to only send the audio signal coming from the head unit to the AP bit amplifiers, or input/output, transmit also the AP bit amplifiers" output signal to the factory audio system. To do so, the AP Extension Cables IN/OUT needs to be installed together with the AP Speakers Output Cables (see following paragraph). By use of the input/output extension, the installer is free to choose which configuration to adopt. Actually, thanks to the AP Extension cables, each single channel of the AP bit amplifier is sent to any of the speakers in the car, so the installer is free to carry out the desired configuration. For example: standard front (2ch TW+WF), multi-amplified front (2ch TW + 2ch WF), multi-amplified front with 4 bridged channels (130W @ 4 ohm) for the woofers (2ch TW + 4ch bridge WF) and all the other possible combinations.

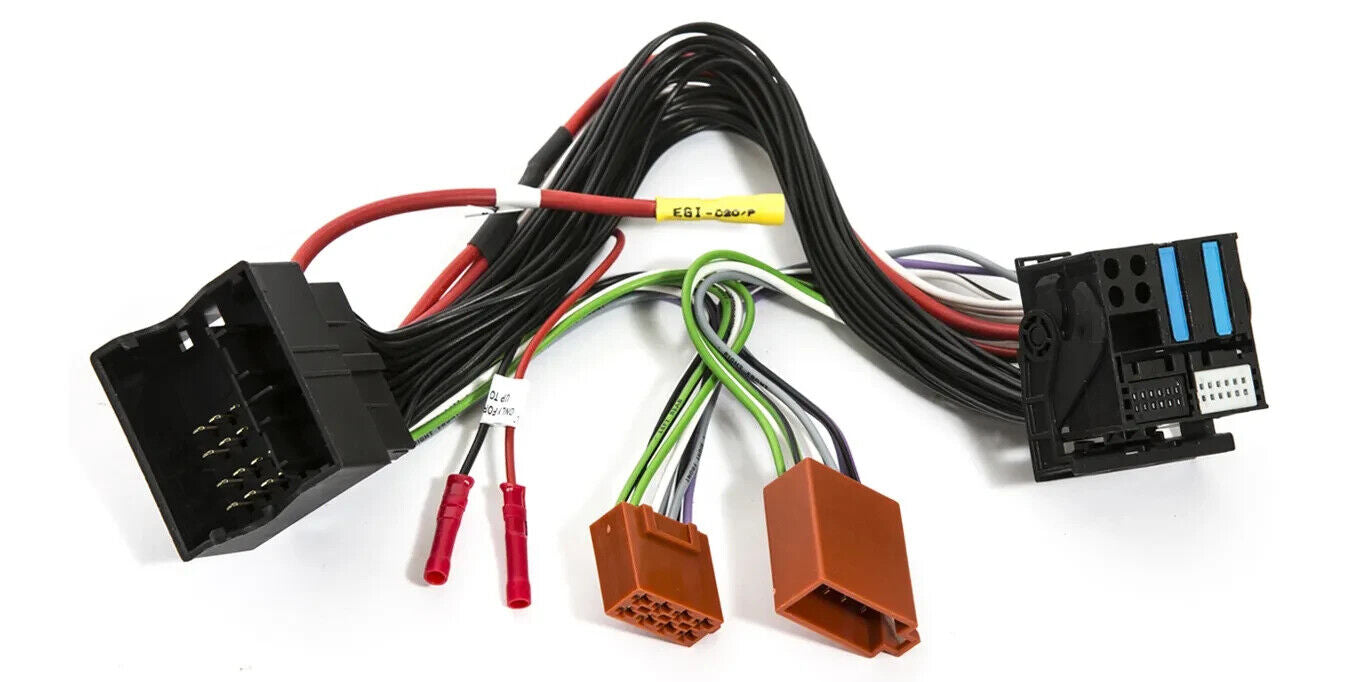

The Audison T-Harness is the perfect Plug&Play solution for integrating your car's factory audio system with the exceptional sound quality offered by Audison. With the T-Harness, you can enjoy a high-quality audio experience in your vehicle, fully leveraging the potential of Audison products without having to make complex modifications to the existing audio system.

All the Tech Bits

Channels 5

Class D-Class

Power supply voltage / fuse 11 ÷ 15 VDC / 2 x 30A

Operating power supply voltage 6.5 ÷ 17.5 VDC

Idling current 1.5 A

Standby Current Draw 1.5 mA

Consumption @ 14.4 VDC, 2Ω, Max Musical Power 53.4 A

Remote IN 4 ÷15 VDC (1 mA)

Remote OUT 6.5 ÷15 VDC (150 mA)

ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers 1.5V DC

Efficiency Rated Power 80.5%

AMPLIFIER STAGE

Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power 0.02%

Bandwidth @ -1.5 dB 10 Hz ÷ 42 kHz

Damping factor @ 1 kHz, 4Ω, 2 VRMS 100 kHz , 4Ω, 2 VRMS SUB Channel): 140 ' 1 kHz , 4Ω, 2 VRMS: 140

S/N ratio (A weighted @ 1 V Input) Master Input 98 dBA

S/N ratio (A weighted @ 1 V Input) Optical Input 105

Total Power RMS 1200 W

Minimum load impedance 2Ω

Output Continuous Power (RMS) @14.4 VDC, 1% THD 5 Ch @ 4Ω: 100 W x 4 + 400 W x 1

5 Ch @ 2Ω: 150 W x 4 + 600 W x 1

3 Ch (Bridge 1/2; 3/4) @ 4Ω: 300 W x 2 + 400 W x 1

3 Ch (Bridge 1/2; 3/4) @ 4Ω / 2Ω: 300 W x 2 + 600 W x 1

Adjustable Crossover Yes

CEA SPECIFICATIONS

Output power @ 4Ω, 1% THD+N, 14.4 V 85 W x 4 + 340 W x 1

SN ratio (ref. 1W output) 78 dB

INPUTS / OUTPUTS

Pre-In Inputs 0.6 ÷ 6 VRMS (15 kΩ Imp.)

Digital Input Yes

Pre Outputs 6

Hi Level Inputs 8

Low Level Inputs 8

Speaker-In Inputs 2.2 ÷ 22 VRMS (5 Ω Imp.)

Digital IN 1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card

Sub Out (RCA Pre Out) 5V RMS

DIGITAL SIGNAL PROCESSOR

Audio DSP Converter Analog Devices ADAU1467 automotive qualified audio processor.

Processing @ 96 kHz.Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very

high level performance

Filter mode and slope Linkwitz-Riley @ 12/24/36/48 dB/Oct.

Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.

Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.

Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.

QLP @ 6 dB/Oct.

Crossover frequency 20 Hz ÷ 20 kHz

Phase control 0° / 180°, All-Pass filters

Analog Input Equalizer (20 ÷ 20k Hz) 12 Biquad + Delay

Output Equalizer Parametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz

Time Alignment Distance 0 ÷ 510 cm / 0 ÷ 200.8 inches

Time Alignment Delay 0 ÷ 15 ms

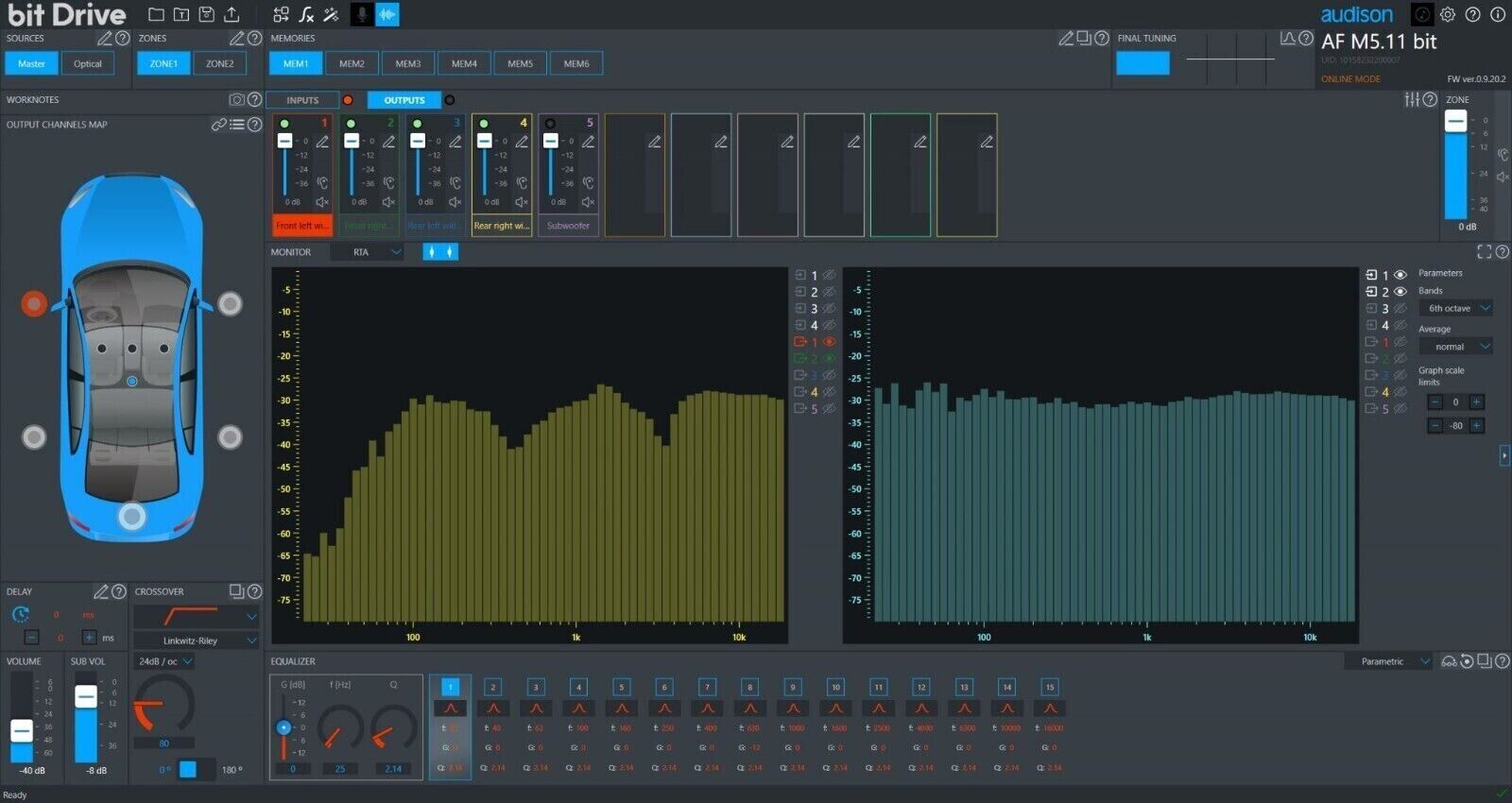

Input Output Real Time Audio Monitor RTA

CONTROL CONNECTIONS

DRC Port Input for DRC AC remote control (Optional)

ADC Port Manage other Audison devices that support this standard

1 Wire Customizable functions (+ 12 V activated)

2 Wire Customizable functions (+ 12 V activated)

GENERAL REQUIREMENTS

PC connections Micro USB 1.1 / 2.0 / 3.0 Compatible

Software/PC requirements Windows 10, Windows 11 (min. res. 1024 x 768)

Ambient operating temperature range 0 °C to 55 °C (32 °F to 131 °F)

Size 240 x 47 x 156 / 9.44 x 1.85 x 6.14

Weight 2.04 kg

Woofer Size 165 mm

Tweeter Size 29 mm

Woofer Voice Coil Diameter 32 mm

Tweeter Voice Coil Diameter 25 mm

Magnet Size Woofer 100 x 40 x 18

Power Handling - Peak 345 W

Power Handling - Continuous 115 W

Sensitivity 92.5 dB

Impedance 4 Ohm

Frequency Response 50 ÷ 24k

Crossover Woofer Low-Pass: 4 kHz @ 6 dB/Oct

Crossover Tweeter Hi-Pass: 4 KHz @ 12dB/Oct.

Adjustment Tweeter Level Tweeter Level; 0 / +3

Woofer Cone Diameter 132 mm

Xmax Woofer 5.6 mm

ELECTRIC-ACOUSTIC SPECS

Re Woofer 3.1 Ohm

Fs Woofer 60 Hz

Le Woofer mH @ 1 kHz 0.29

Vas Woofer 11.4 l

Mms Woofer 14.6 g

Cms Woofer 0.47

Bxl Woofer 5.35

Qts Woofer 0.55

Qms Woofer 7.6

Qes Tweeter 1,74

Spl Woofer 89.5 dB

GENERAL

Weight Woofer 1.45 kg

Weight Tweeter 0.067 kg

Woofer Size 165 mm

Tweeter Size 24 mm

Woofer Power Handling - Peak 210 W

Woofer Power Handling - Continuous 70 W

Woofer Impedance 4 Ohm

Woofer Frequency Response 60 ÷ 23k

Woofer Magnet Size 85 x 40 x 15

Woofer Voice Coil Diameter 32 mm

Tweeter Voice Coil Diameter 15 mm

Xmax 2 mm

ELECTRIC-ACOUSTIC SPECS

D 129 mm

Re 3.1 Ohm

Fs 80 Hz

LE standard 0.1

Vas 8.1 l

Mms 11.5 g

Cms 0.33

Bl 4.6

Qts 0.73

Qes 0,84

Qms 5.4

Tweeter Spl 94 dB

GENERAL

Weight 0.87 kg

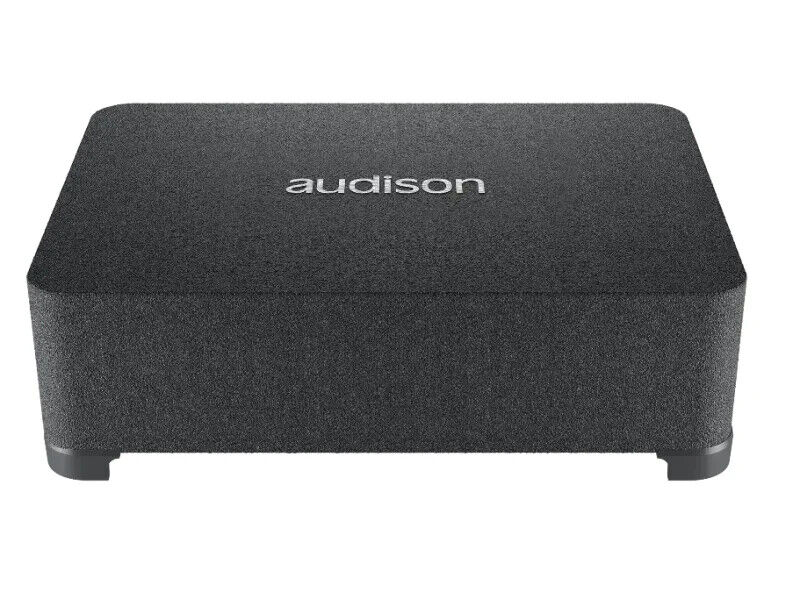

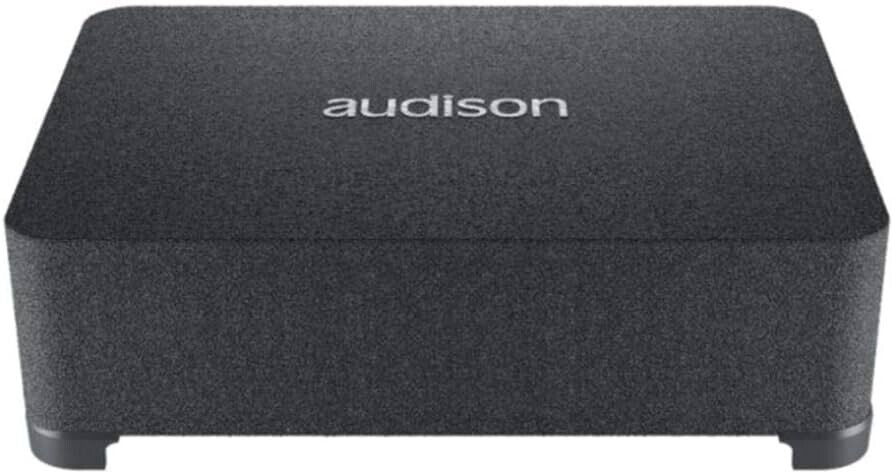

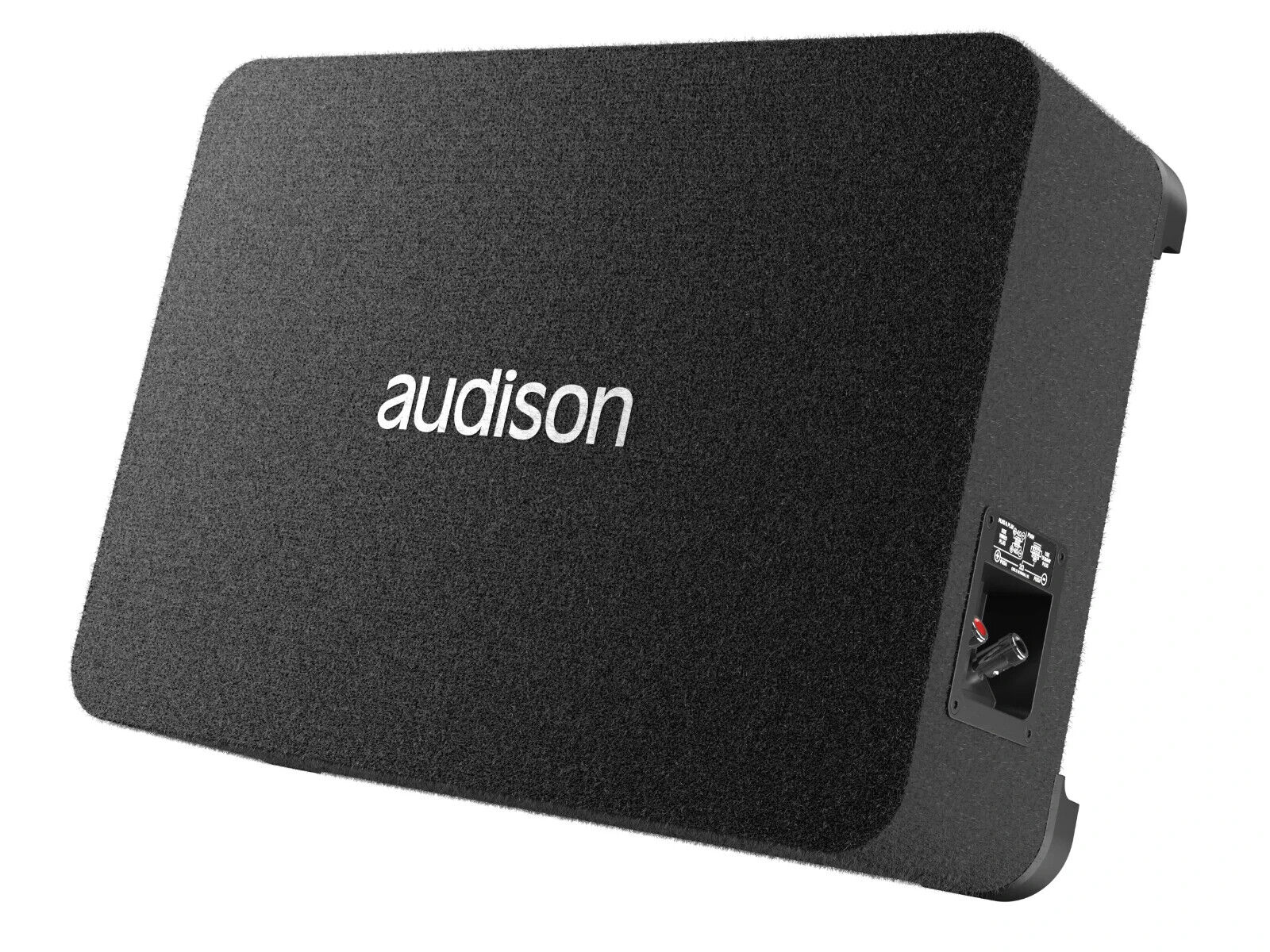

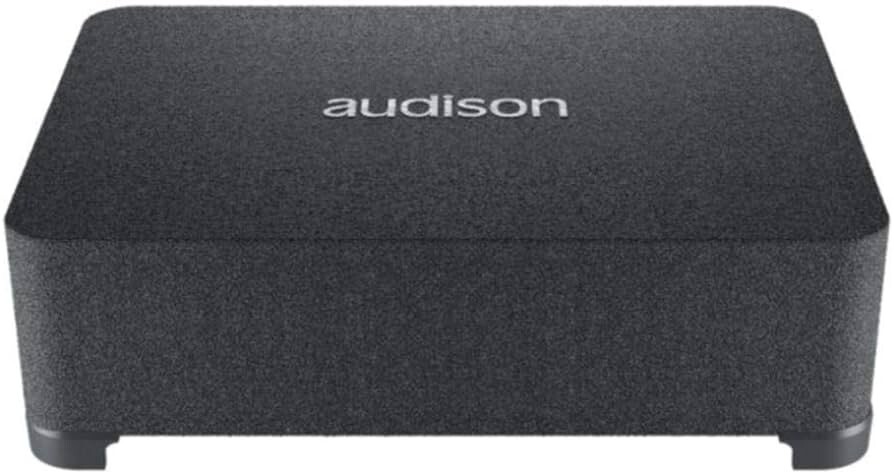

Ultra-low profile (5.6 in. / 142 mm) box with a sealed design perfectly tuned to fully exploit the APS 10 D driver.

2 Sides/2 Sounds: design provides the ability to choose between

Down-Firing mounting to increase the low-frequency extension and

Up-Firing installation to obtain more punch and definition.

Leveling feet with velcro inserts included for a secure grip on the carpet while maintaining easy removal.

SSP (Sub Smart Plug) features both traditional push contacts and a

Plug-&-Play terminal block to easily configure the impedance as

required and provides a quick release.

Rounded corners allow easy positioning in the trunk and act as reinforcement to reduce enclosure resonance.

6 Special designed cone-dustcap-basket geometry which guarantees a

long linear excursion capability (11 mm, one-way).

Massive driver motor assembly, optimized with FEM (Finite Element

Modeling) for perfect control under high excursion conditions.

Water-repellent pressed paper 10 in. cone, featuring a profile developed with FEM simulation and optimized with the Klippel Scan Vibrometer.

Specifically developed to be combined with either the AP8.9 bit

(2 CH + 2 CH bridged), AP5.9 bit (Sub CH) or AP4.9 bit/AP4 D

(2 CH bridged) amplifiers taking advantage of the bass boost feature and integrated parametric equalizer of the built-in DSP.

A sturdy metal grid is included for the total protection of the subwoofer driver.
