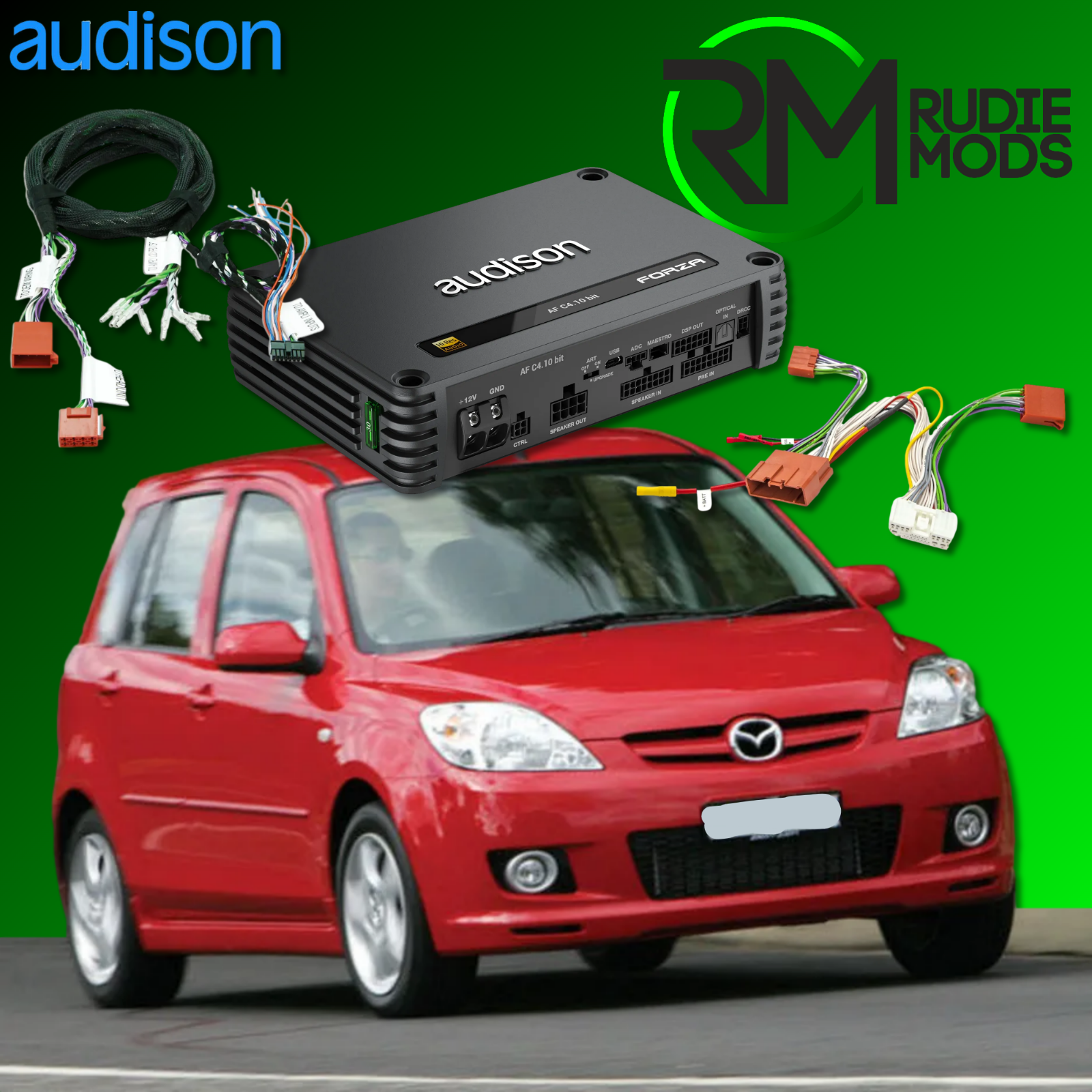

Audison Factory Amplifer Upgrade for Mazda 2 2003-2007

Audison Factory Amplifer Upgrade for Mazda 2 2003-2007

This kit is for Mazda 2 2003-2007

Included are as below:

AF C4.10 bit

AP T-H MAZ01

AP 560P&P I/O

AF C4.10 bit

DSP Amplifier ' 600 W ' 10 CH DSP + 4 x 150 W @ 2 ohm ' D-class Fully Bridgeable

AF C4.10 bit boasts four high-fidelity amplified channels 90W x 4 @4Ω*, 150W x 4 @2Ω*, with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D - in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 300 x 2 @4Ω, guaranteeing flexible and powerful performance. Support for the Audison B-Con's Absolute Volume function guarantees maximum bit depth, even with wireless connections!*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.

AP T-H MAZ01

T-Harness Plug&Play solution for MAZDA

The Audison T-Harness is the perfect Plug&Play solution for integrating your car's factory audio system with the exceptional sound quality offered by Audison. With the T-Harness, you can enjoy a high-quality audio experience in your vehicle, fully leveraging the potential of Audison products without having to make complex modifications to the existing audio system.

FEATURES

1. Designed specifically for your vehicle, for maximum OEM integration.

2. Connection to the AP Extension cable through ISO connectors.

3. Possibility to supply power to the amplifier via the direct cockpit

current system, without the need of routing the cable through the

engine compartment (with Audison Prima DCC solution).

4. ACC wire to re-launch ignition key signal to turn on / off an external device. The connector does not ensure the optical wires connection, where available, to the

OEM source. It is required to disconnect the optical wires from the OEM connector and to

connect them to the AP T-Harness. In those vehicles featuring ignition key connection wire (ACC wire), see compatibility list.

AP 560P&P I/O

Extension cable IN/OUT 560cm

Prima extension cable with Plug & amp;Play connections allows total freedom in positioning the AP bit amplifiers. Two extension typologies are available: input only, to only send the audio signal coming from the head unit to the AP bit amplifiers, or input/output, transmit also the AP bit amplifiers" output signal to the factory audio system. To do so, the AP Extension Cables IN/OUT needs to be installed together with the AP Speakers Output Cables (see following paragraph). By use of the input/output extension, the installer is free to choose which configuration to adopt. Actually, thanks to the AP Extension cables, each single channel of the AP bit amplifier is sent to any of the speakers in the car, so the installer is free to carry out the desired configuration. For example: standard front (2ch TW+WF), multi-amplified front (2ch TW + 2ch WF), multi-amplified front with 4 bridged channels (130W @ 4 ohm) for the woofers (2ch TW + 4ch bridge WF) and all the other possible combinations.
