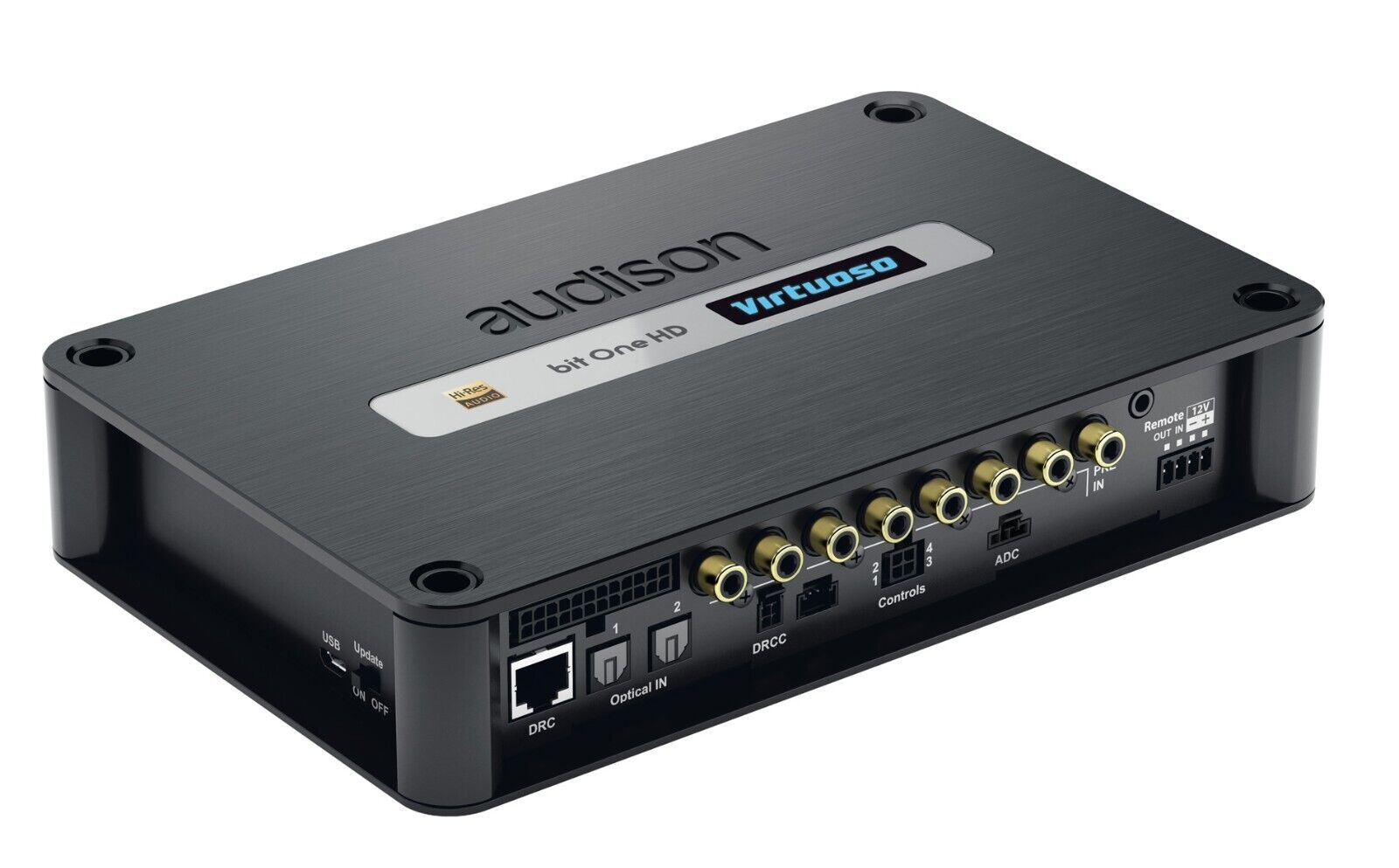

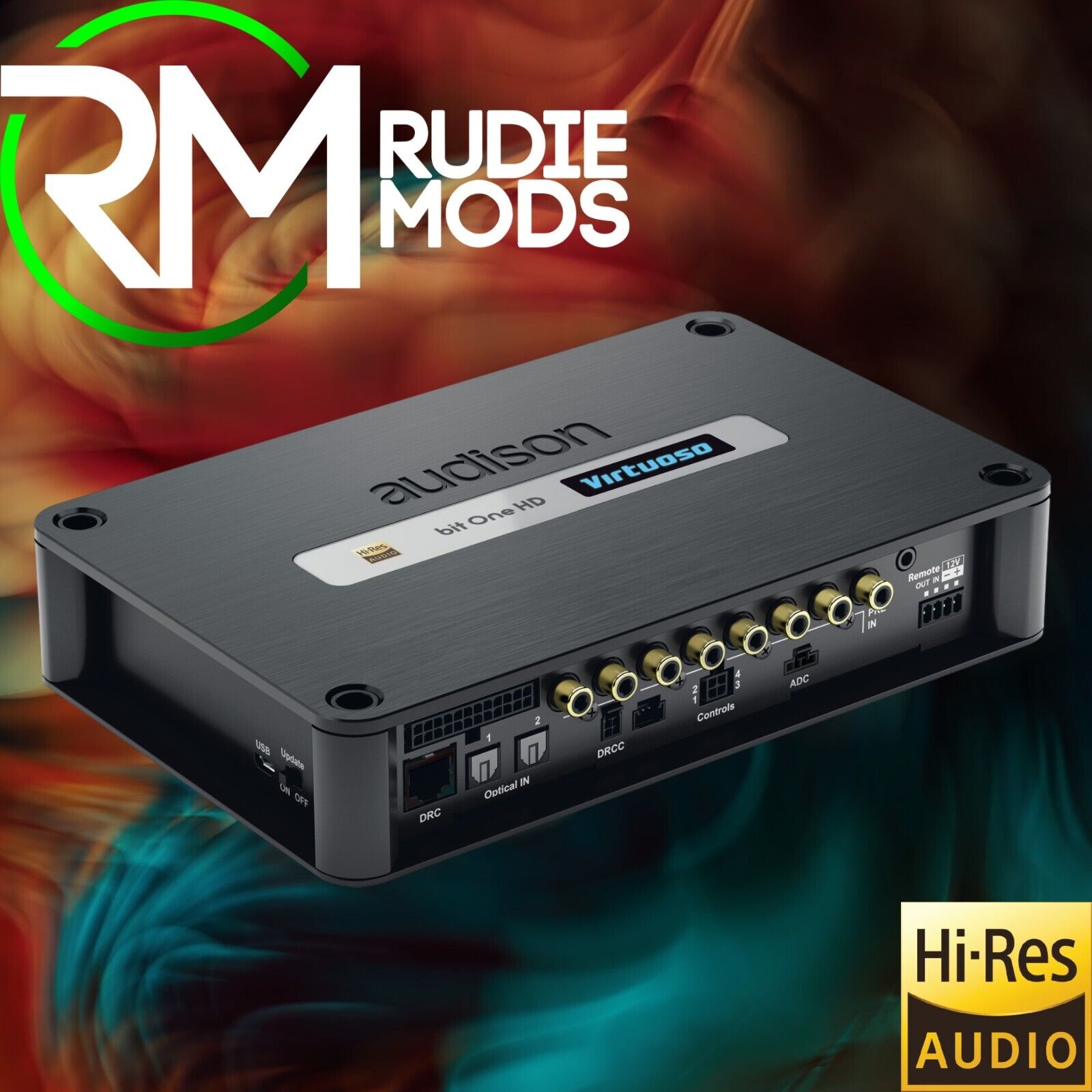

Audison bit One HD Virtuoso Car Digital Signal Processor

Audison bit One HD Virtuoso Car Digital Signal Processor

The ultimate sound shaper and OEM integration product, the bit One HD Virtuoso puts previously unattainable levels of control at the hands of your installer. The ideal beating heart around which to build a full DA system, this Virtuoso product moulds your in car sound at the highest quality possible.

AUDIO PERFORMANCE

Distortion THD @ 1 kHz, 1 VRMS Output: 0.004 %

Bandwidth @ -3 dB: 10 Hz - 44 kHz

S/N ratio @ A weighted, 4 V Output, 2 V MASTER inputs: 104 dBA

S/N ratio @ A weighted, 4 V Output, 2 V AUX input: 105 dBA

S/N ratio @ A weighted, 4 V Output, OPTICAL IN1/IN2 input: 110 dBA

Channel Separation @ 1 kHz: 80 dBA

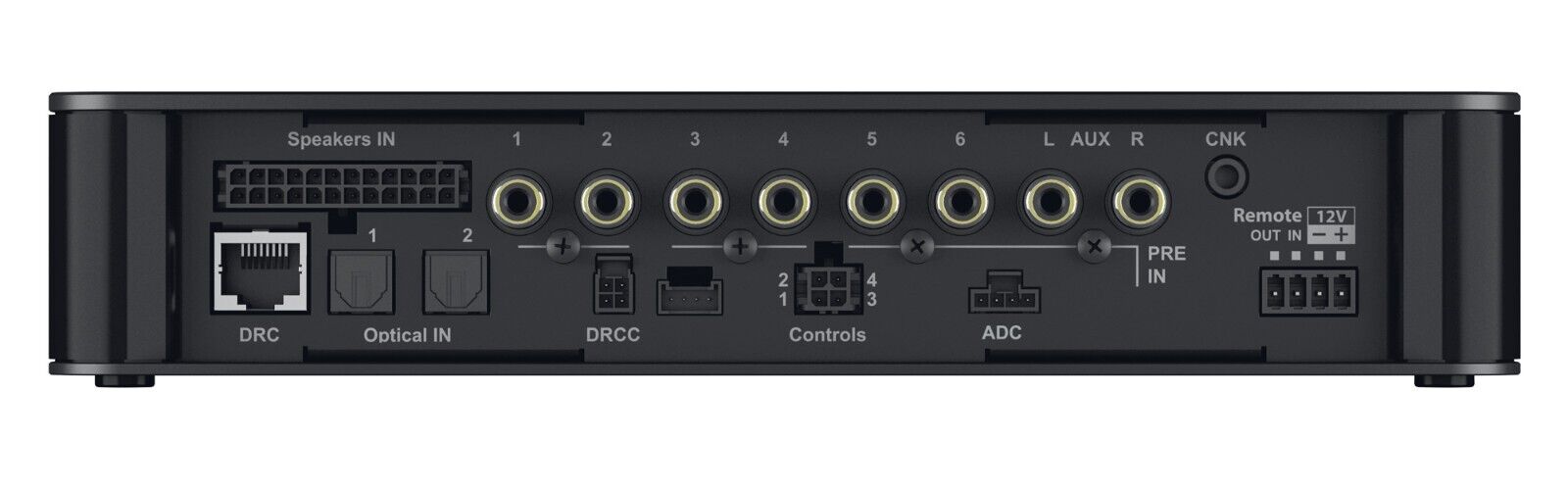

INPUTS

Low level (Pre) Ch1 - Ch6; AUX L/R

High Level (Speaker In) Ch1 - Ch12

Digital 2 x Optical: S/PDIF Max 192 kHz/24 bit

Input sensitivity PRE IN / Master: 1.3 - 9 VRMS

Input sensitivity Speaker IN / Master: 5 - 32 VRMS

Input sensitivity AUX: 0.7 - 5 VRMS

Input impedance Speaker In / AUX / Pre In: 15 K ohms (Pre IN / AUX) 5 ohms (Speaker IN)

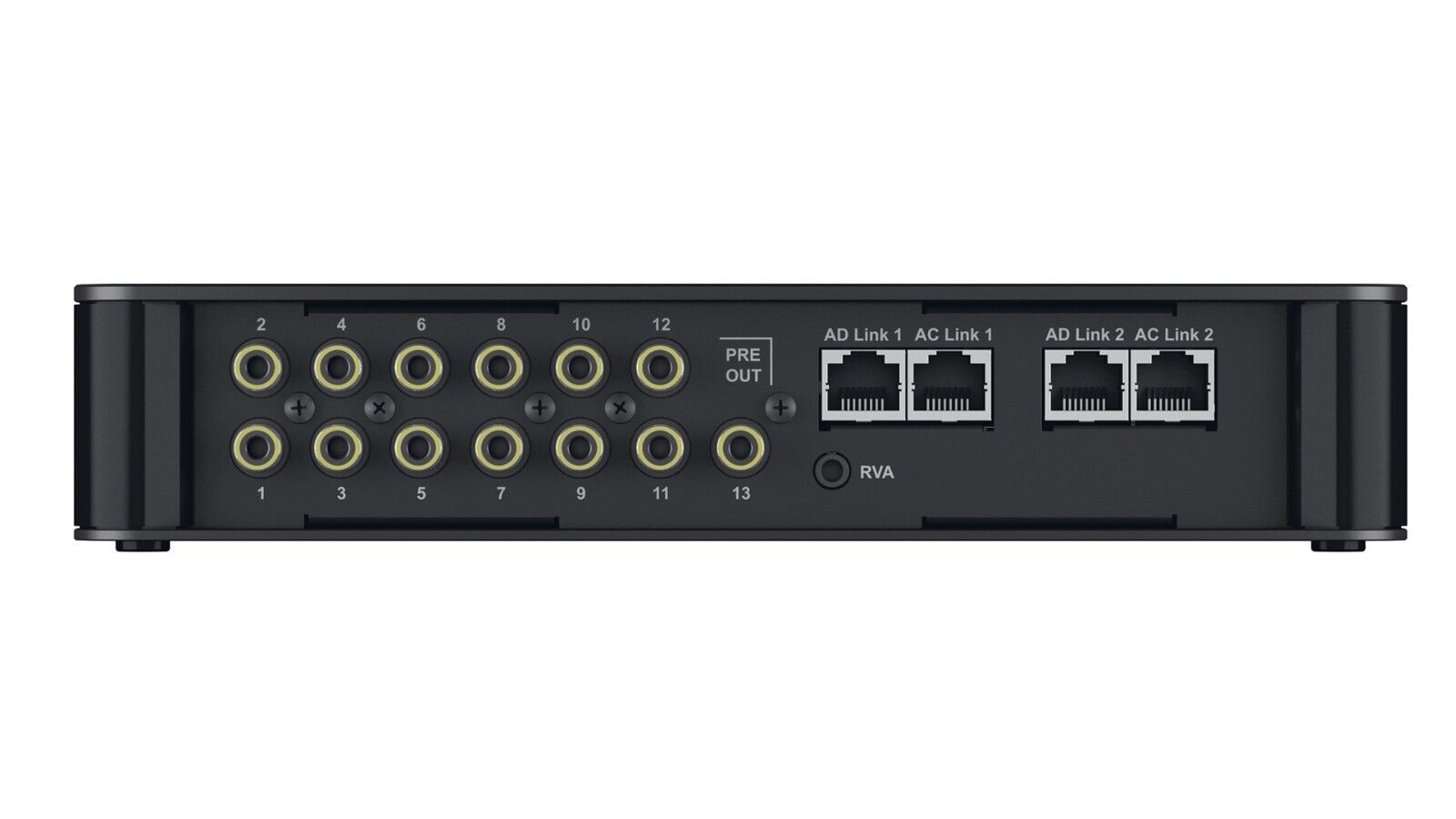

OUTPUTS

Low level (Pre): Ch1 - Ch13 (IIR mode), Ch1 ? Ch 9 (FIR mode)

Max Output Level 0.1% THD: 4 V

Digital AD Link 1: Ch1 - Ch8 (IIR / FIR mode)

Digital AD Link 2: Ch9 - Ch13 (IIR mode); Ch9 only (FIR mode)

CONNECTION

From / To Personal Computer: 1 x micro USB

To Audison Amplifiers: 2 x (AC Link / AD LINK) control bus

Digital AD Link 1: Ch1 - Ch8 (IIR / FIR mode)

To Audison DRC MP: 1 x AC Link

CROSSOVER

Filter type: Full / High-Pass / Low-Pass / Band-Pass

Filter mode and slope Linkwitz: @ 12 / 24 / 36 / 48 dB

Butterworth: @ 6 / 12 / 18 / 24 / 30 / 36 /42 / 48 dB

Bessel: @ 6 / 12 / 18 / 24 / 30 / 36 dB

FIR: @ 6 / 12 / 18 / 24 / 30 / 36 / 42 / 48 dB

Crossover Frequency Lo-Pass: 0 - 44k Hz (1 Hz step)

Hi-Pass: 0 - 20k Hz (1 Hz step)

Phase control: 0 / 180 degrees

EQUALIZER (10 Hz - 20 kHz)

High Level Inputs (Speaker In): Automatic De-Equalisation, Delay Compensation, All Pass Compensation, Polarity check

AUX Input: Parametric Equalizer: +12 dB - -15 dB; 10 poles FIR type

OPTICAL IN1/IN 2 Inputs Parametric Equalizer: +12 dB - -15 dB; 10 poles FIR type

OUTPUTS IIR mode: N.13 Parametric Equalizers: +12 dB - -15 dB; 13 poles

FIR mode: N.13 Parametric Equalizers: +12 dB - -15 dB; 9 poles FIR type + 3 poles IIR type

MAIN EQ Parametric Equalizer: +12 dB - -15 dB; 5 poles FIR type + 1 pole IIR type Dynamic Equalisation

Dynamic Equalisation: Self-adjusting System between low and high listening levels

Bass Boost: Adjustable parametric pole (-12 dB; 10 - 500 Hz)

TIME ALIGNMENT

Distance: 1.4 - 756 cm / 0.6 - 297.7 inches

Delay 0 - 22 ms

Step 0.04 ms, 1.4 cm, 0.6 inch

GENERAL REQUIREMENTS

PC connections: USB 1.1 / 2.0 / 3.0 Compatible

Software/PC requirements Microsoft Windows (32/64 bit): XP, Vista, Windows 7, Windows 8, Windows 10

Video Resolution with screen resize min.: 800 x 600

Ambient operating temperature range: 0 C to 55 C (32F to 131F)

SIZE

W (Width) x H (Height) x D (Depth) mm/inch 148 x 43.6 x 233 / 5.82" x 1. 7" x 9.17"

Weight kg/lb 1.775 / 3.9
