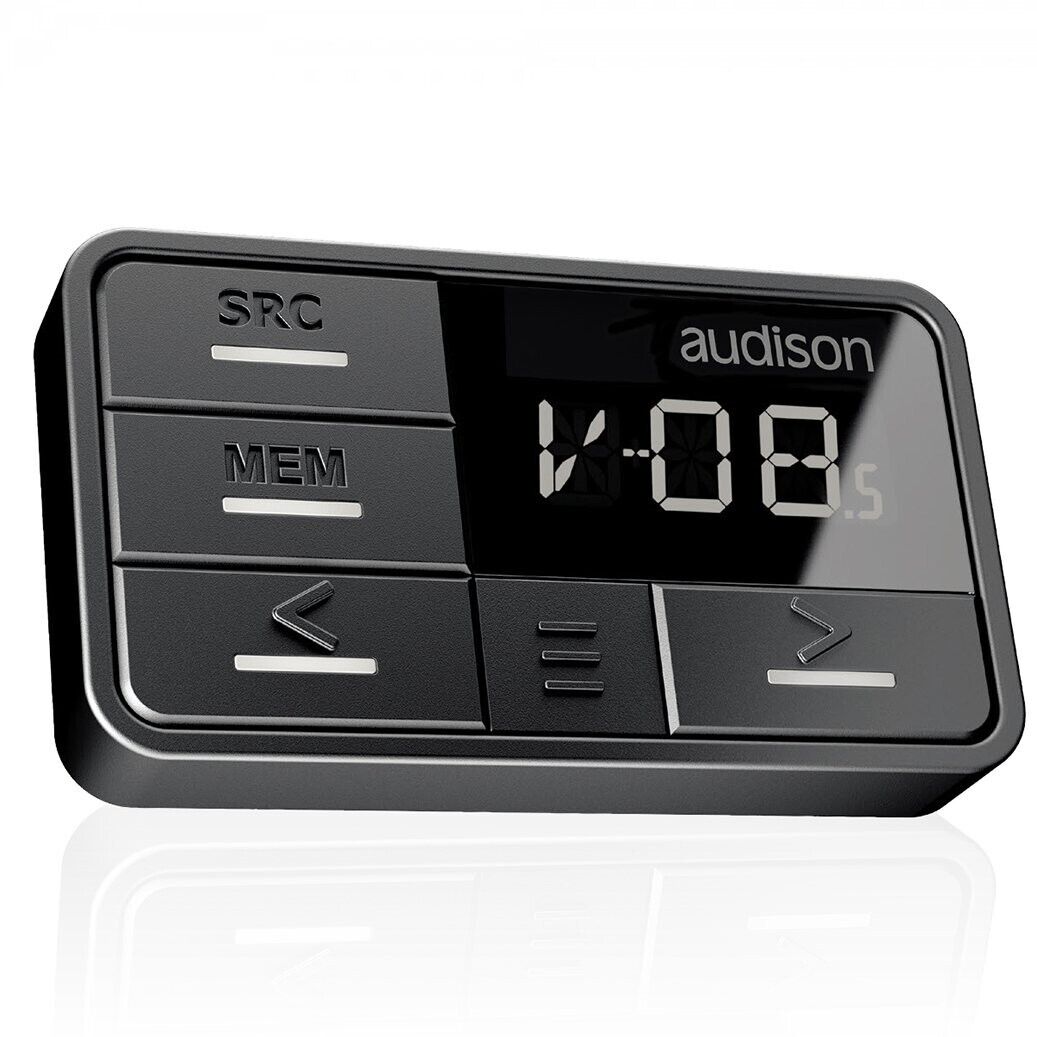

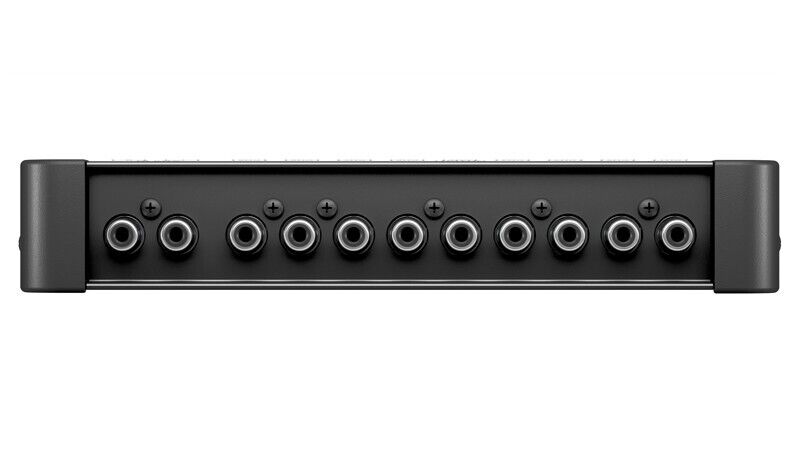

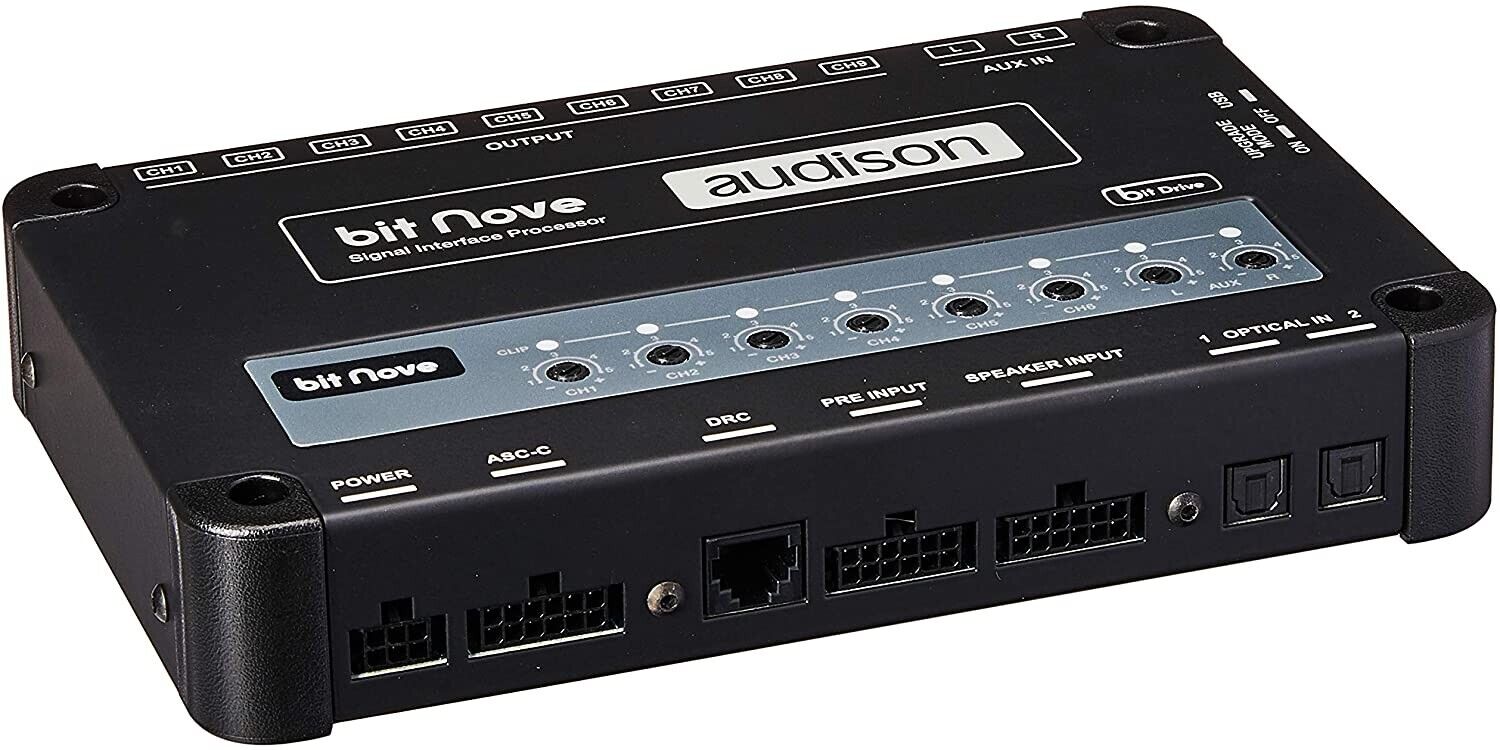

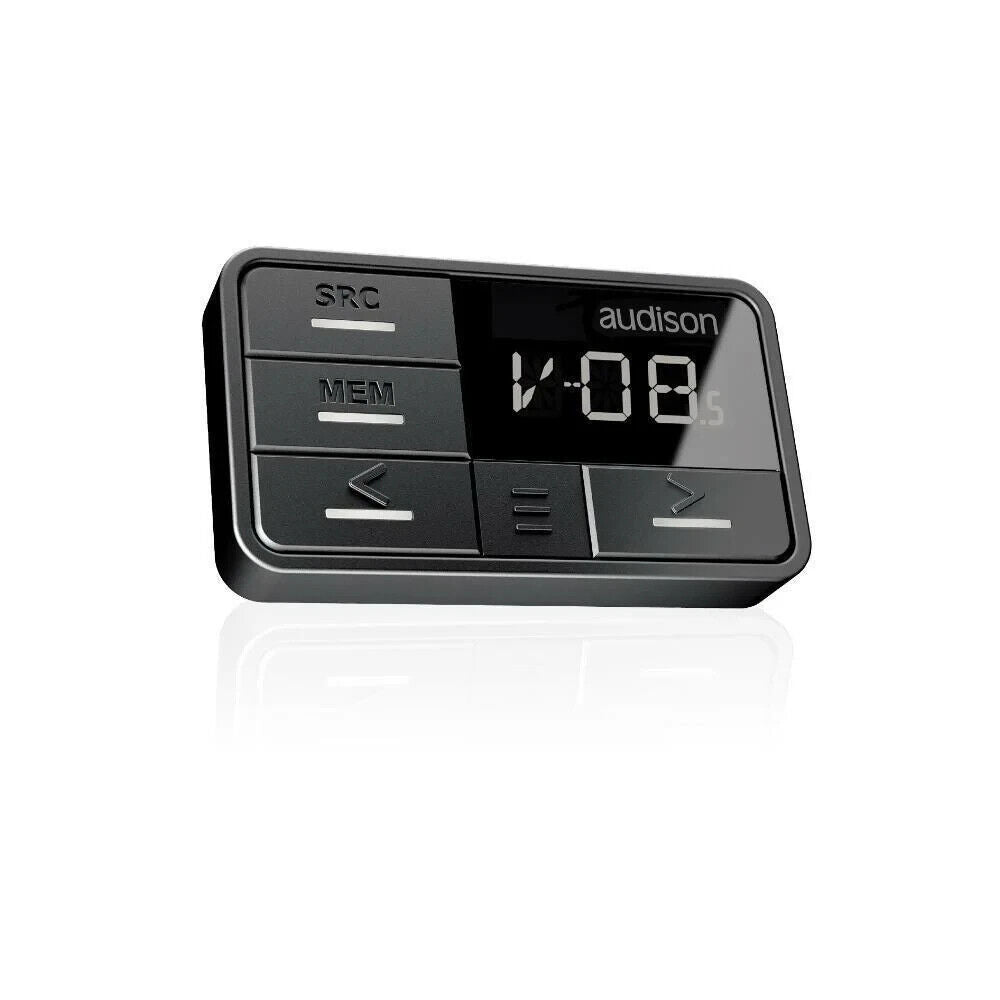

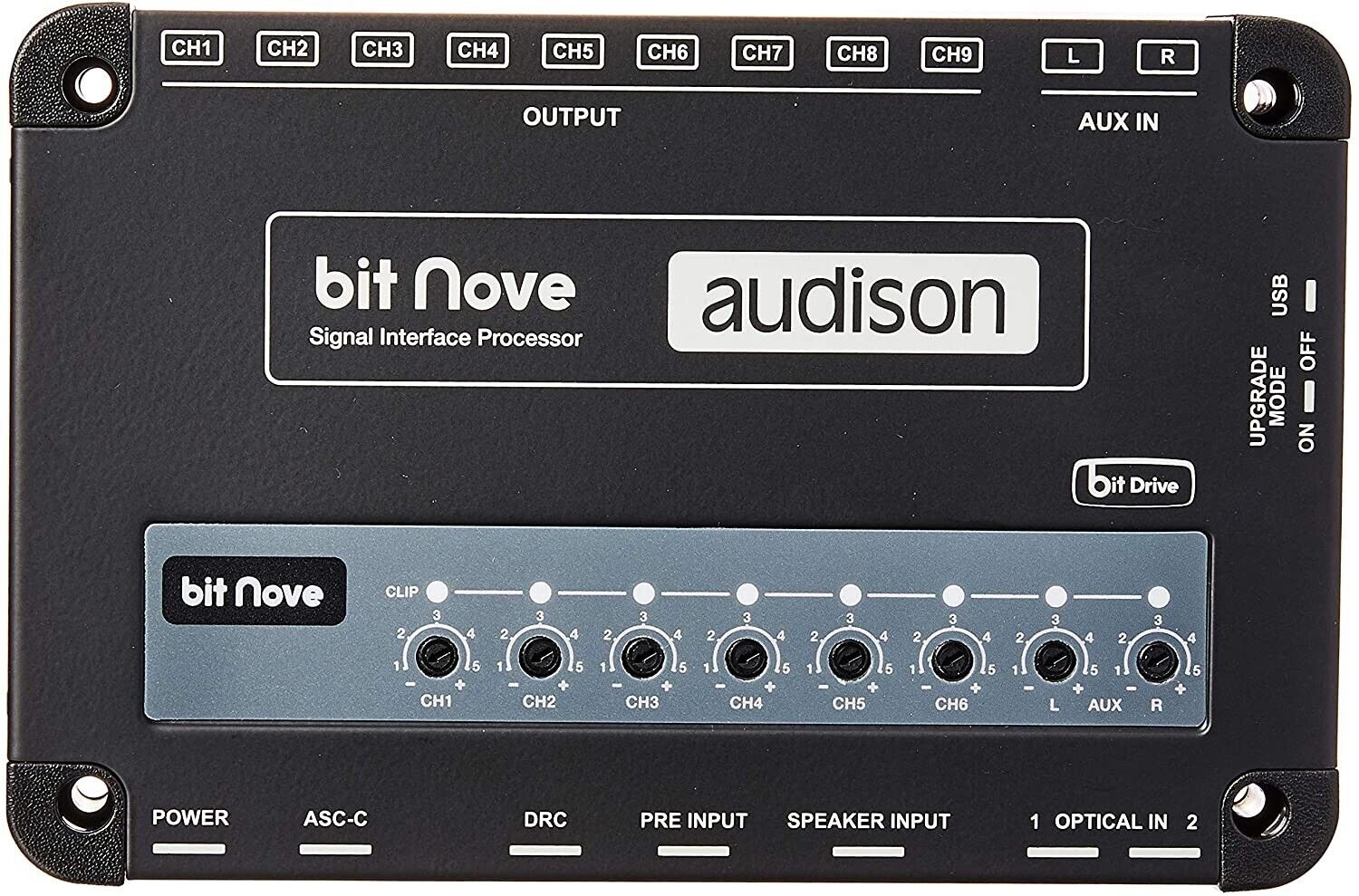

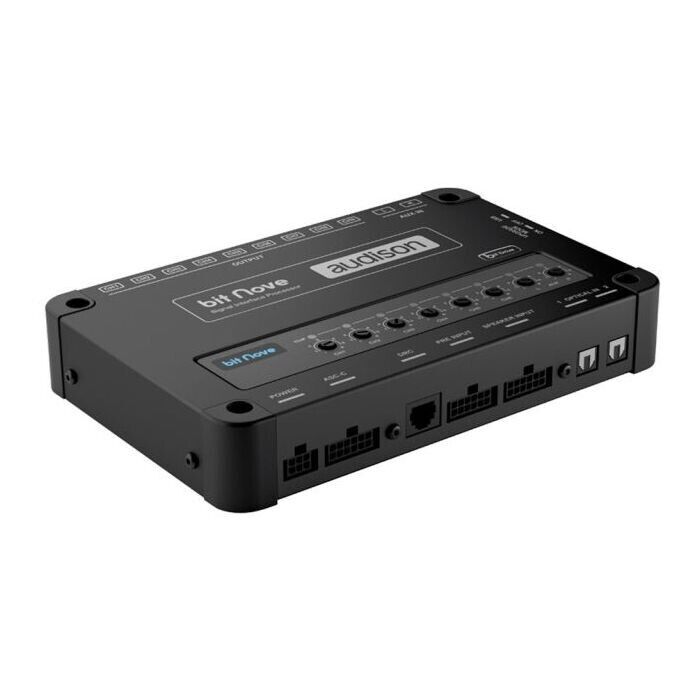

Audison bit Nove with DRC 9ch Digital Sound Processor

Audison bit Nove (with DRC)

The Nove is a nine output signal processor offering a vast array of processing and sound shaping possibilities. From Linkwitz-Riley and Butterworth crossovers with variable slopes (6-24dB/Oct). 10-band parametric equalisation on each channel with +/- 12dB of gain and variable Q. Dedicated bass and subwoofer equalisation is provided with automatic soft clipping to reduce the danger from destructive distortion. The unit feature two optical inputs and 24-bit D/A/ and A/D convertors. The processor will accept 24-bit word length digital audio signals with sampling frequencies up to 196kHz. Provided with a full suite of software for fine control of all parameters.

Technical Specification

Voltage: 10.8 - 15 VDC

Operating power supply voltage: 7.5 - 14.4 VDC

Idling current: 0.53 A

Switched off without DRC: 1 mA

Switched off with DRC: 4.5 mA

Remote IN voltage: 4 - 15 VDC (1mA)

Remote OUT voltage: 10 - 15 VDC (130 mA)

ART (Automatic Remote Turn ON): 2 - 7 VDC

Distortion - THD @ 1 kHz, 1 VRMS Output: 0.005%

Bandwidth @ -3 dB: 10 Hz - 22 kHz

S/N ratio @ A weighted:

Master Input 102 dBA,

AUX Input 101.5 dBA

OPTICAL IN1 / IN2 Inputs 110 dBA

Channel Separation @ 1 kHz: 85 dBA

Input sensitivity Pre Master: 1.2 - 8 VRMS

Input sensitivity Speaker Master: 3 - 20 VRMS

Input sensitivity AUX Master: 0.3 - 5 VRMS

Max Output Level (RMS) @ 0.1% THD: 4 V

Low level input (Pre): Ch1 - Ch6; AUX L/R

High Level (Speaker In): Ch1 - Ch6

Digital 2 x Optical S/PDIF: Max 192 kHz / 24 bit

Low level (Pre): Ch1 - Ch9

Filter type Full / Hi pass / Low Pass / Band Pass

Filter mode and slope

Linkwitz @ 12/24 dB - Butterworth @

6/12/18/24 dB

Crossover Frequency 68 steps @ 20 - 20k Hz

Phase control 0/ 180 degrees

EQUALIZER (20 - 20K Hz)

Analog Input Equalizer Automatic De-Equalization

Output Equalizer

N.9 Parametric Equalizers: -12 dB;10 pole;

20 - 20k Hz

TIME ALIGNMENT

Distance: 0 - 510 cm / 0 - 200.8 inches

Delay 0 - 15 ms

Step 0.08 ms; 2.8 cm / 1.1 inch

Fine SET 0.02 ms; 0.7 cm / 0.27 inch

PC connections USB 1.1 / 2.0 / 3.0 Compatible

Software/PC requirements

Microsoft Windows (32/64 bit): Vista,

Windows 7, Windows 8, Windows 10

Video Resolution with screen resize min. 1024 x 600

W (Width) x H (Height) x D (Depth)

mm/inch

130 x 34.5 x 199 / 5.11" x 1.35" x 7.83"

Weight kg/lb 0.7 / 1.5
